VK535

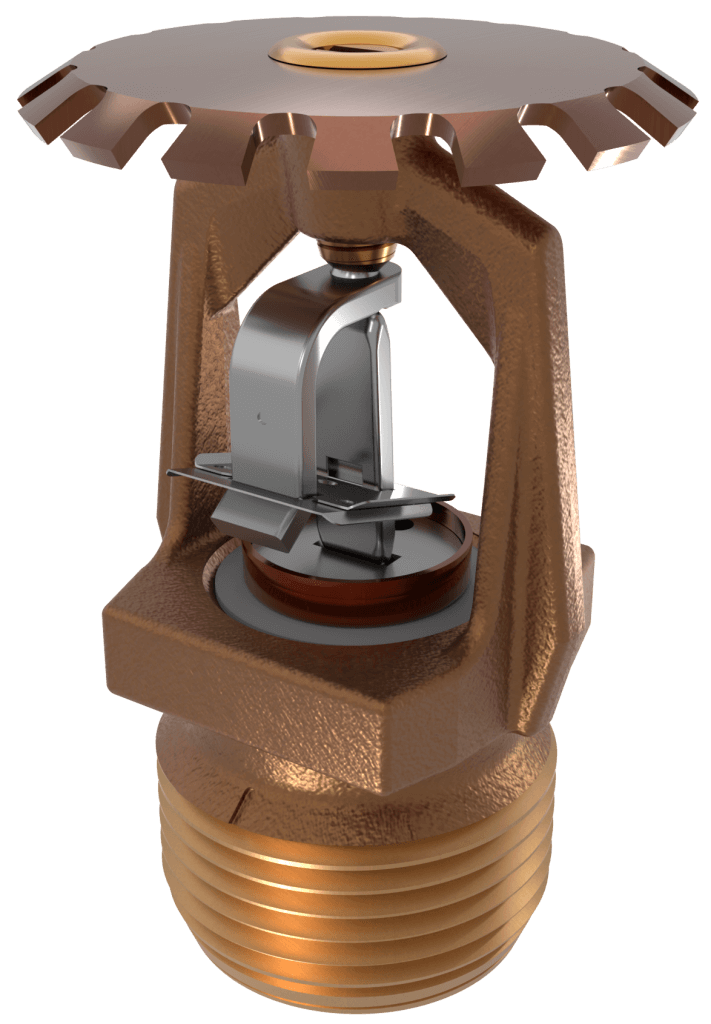

VK535 | DN20-3/4″ | K161 | Standard/Quick Response | Extended Coverage | Ordinary Hazard | ELO | Upright | Fusible Link
VK535
Documents & Resources (2)
Download all documents
Download selected files (1)
Add to download box (1)
All resources (6)
technical documentation (1)
drawings (5)
Sprinkler & Deluge
Data page
Language:
Languages
Click to select other languages
Sprinkler & Deluge
2D – CAD
Language:
Languages
Click to select other languages
Sprinkler & Deluge
2D – CAD
Language:
Languages
Click to select other languages
Sprinkler & Deluge
2D – CAD
Language:
Languages
Click to select other languages
Sprinkler & Deluge
2D – CAD
Language:
Languages
Click to select other languages
Sprinkler & Deluge
2D – CAD
Language:
Languages
Click to select other languages
Product Variants
- SAP number 14139NC
- Temperature rating 74
- K factor nominal 11,2
- K factor metric 161
- Finish Black PTFE
- Position Upright
- Response Standard/Quick
- Application detail Storage
- Connection
- Connection type
- Main material
- Maximum working pressure
- Size
- Size 2
- SIN VK535
- SAP number 14139ME/B
- Temperature rating 93
- K factor nominal 11,2
- K factor metric 161
- Finish Black
- Position Upright
- Response Standard/Quick
- Application detail Storage
- Connection
- Connection type
- Main material
- Maximum working pressure
- Size
- Size 2
- SIN VK535
- SAP number 14139NE
- Temperature rating 93
- K factor nominal 11,2
- K factor metric 161
- Finish Black PTFE
- Position Upright
- Response Standard/Quick
- Application detail Storage
- Connection
- Connection type
- Main material
- Maximum working pressure
- Size
- Size 2
- SIN VK535
- SAP number 14139AC
- Temperature rating 74
- K factor nominal 11.2
- K factor metric 160
- Finish Brass
- Position Upright
- Response Standard/Quick
- Application detail Extended Coverage
- Connection Threaded
- Connection type
- Main material Brass
- Maximum working pressure 12
- Size 3/4″
- Size 2
- SAP number 14139AE
- Temperature rating 96
- K factor nominal 11.2
- K factor metric 160
- Finish Brass
- Position Upright
- Response Standard/Quick
- Application detail Extended Coverage
- Connection Threaded
- Connection type
- Main material Brass
- Maximum working pressure 12
- Size 3/4″
- Size 2
- SAP number 14139AG
- Temperature rating 138
- K factor nominal 11.2
- K factor metric 160
- Finish Brass
- Position Upright
- Response Standard/Quick
- Application detail Extended Coverage
- Connection Threaded
- Connection type
- Main material Brass
- Maximum working pressure 12
- Size 3/4″
- Size 2
- SAP number 14139FC
- Temperature rating 74
- K factor nominal 11.2
- K factor metric 160
- Finish Chrome
- Position Upright
- Response Standard/Quick
- Application detail Extended Coverage
- Connection Threaded
- Connection type
- Main material Brass
- Maximum working pressure 12
- Size 3/4″
- Size 2
- SAP number 14139FE
- Temperature rating 96
- K factor nominal 11.2
- K factor metric 160
- Finish Chrome
- Position Upright
- Response Standard/Quick
- Application detail Extended Coverage
- Connection Threaded
- Connection type
- Main material Brass
- Maximum working pressure 12
- Size 3/4″
- Size 2
- SAP number 14139FG
- Temperature rating 138
- K factor nominal 11.2
- K factor metric 160
- Finish Chrome
- Position Upright
- Response Standard/Quick
- Application detail Extended Coverage
- Connection Threaded
- Connection type
- Main material Brass
- Maximum working pressure 12
- Size 3/4″
- Size 2
- SAP number 14139JNC
- Temperature rating 74
- K factor nominal 11.2
- K factor metric 160
- Finish ENT
- Position Upright
- Response Standard/Quick
- Application detail Extended Coverage
- Connection Threaded
- Connection type
- Main material Brass
- Maximum working pressure 12
- Size 3/4″
- Size 2
- SAP number 14139JNE
- Temperature rating 96
- K factor nominal 11.2
- K factor metric 160
- Finish ENT
- Position Upright
- Response Standard/Quick
- Application detail Extended Coverage
- Connection Threaded
- Connection type
- Main material Brass
- Maximum working pressure 12
- Size 3/4″
- Size 2
- SAP number 14139JNG
- Temperature rating 138
- K factor nominal 11.2
- K factor metric 160
- Finish ENT
- Position Upright
- Response Standard/Quick
- Application detail Extended Coverage
- Connection Threaded
- Connection type
- Main material Brass
- Maximum working pressure 12
- Size 3/4″
- Size 2
- SAP number 14139MC/B
- Temperature rating 74
- K factor nominal 11.2
- K factor metric 160
- Finish Black
- Position Upright
- Response Standard/Quick
- Application detail Extended Coverage
- Connection Threaded
- Connection type
- Main material Brass
- Maximum working pressure 12
- Size 3/4″
- Size 2
- SAP number 14139MC/W
- Temperature rating 74
- K factor nominal 11.2
- K factor metric 160
- Finish White
- Position Upright
- Response Standard/Quick
- Application detail Extended Coverage
- Connection Threaded
- Connection type
- Main material Brass
- Maximum working pressure 12
- Size 3/4″
- Size 2
- SAP number 14139ME/W
- Temperature rating 96
- K factor nominal 11.2
- K factor metric 160
- Finish White
- Position Upright
- Response Standard/Quick
- Application detail Extended Coverage
- Connection Threaded
- Connection type
- Main material Brass
- Maximum working pressure 12
- Size 3/4″
- Size 2
- SAP number 14139MG/B
- Temperature rating 138
- K factor nominal 11.2
- K factor metric 160
- Finish Black
- Position Upright
- Response Standard/Quick
- Application detail Extended Coverage
- Connection Threaded
- Connection type
- Main material Brass
- Maximum working pressure 12
- Size 3/4″
- Size 2
- SAP number 14139MG/W
- Temperature rating 138
- K factor nominal 11.2
- K factor metric 160
- Finish White
- Position Upright
- Response Standard/Quick
- Application detail Extended Coverage
- Connection Threaded
- Connection type
- Main material Brass
- Maximum working pressure 12
- Size 3/4″
- Size 2
| SAP number | Application detail | Connection | Connection type | Finish | K factor metric | K factor nominal | Main material | Maximum working pressure | Position | Response | Size | Size 2 | Temperature rating | |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| 14139NC | Storage |
Black PTFE |
161 |
11,2 |
Upright |
Standard/Quick |
74 |
VK535 | ||||||
| 14139ME/B | Storage |
Black |
161 |
11,2 |
Upright |
Standard/Quick |
93 |
VK535 | ||||||
| 14139NE | Storage |
Black PTFE |
161 |
11,2 |
Upright |
Standard/Quick |
93 |
VK535 | ||||||
| 14139AC | Extended Coverage |
Threaded |
Brass |
160 |
11.2 |
Brass |
12 |
Upright |
Standard/Quick |
3/4″ |
74 |
|||
| 14139AE | Extended Coverage |
Threaded |
Brass |
160 |
11.2 |
Brass |
12 |
Upright |
Standard/Quick |
3/4″ |
96 |
|||
| 14139AG | Extended Coverage |
Threaded |
Brass |
160 |
11.2 |
Brass |
12 |
Upright |
Standard/Quick |
3/4″ |
138 |
|||
| 14139FC | Extended Coverage |
Threaded |
Chrome |
160 |
11.2 |
Brass |
12 |
Upright |
Standard/Quick |
3/4″ |
74 |
|||
| 14139FE | Extended Coverage |
Threaded |
Chrome |
160 |
11.2 |
Brass |
12 |
Upright |
Standard/Quick |
3/4″ |
96 |
|||
| 14139FG | Extended Coverage |
Threaded |
Chrome |
160 |
11.2 |
Brass |
12 |
Upright |
Standard/Quick |
3/4″ |
138 |
|||
| 14139JNC | Extended Coverage |
Threaded |
ENT |
160 |
11.2 |
Brass |
12 |
Upright |
Standard/Quick |
3/4″ |
74 |
|||
| 14139JNE | Extended Coverage |
Threaded |
ENT |
160 |
11.2 |
Brass |
12 |
Upright |
Standard/Quick |
3/4″ |
96 |
|||
| 14139JNG | Extended Coverage |
Threaded |
ENT |
160 |
11.2 |
Brass |
12 |
Upright |
Standard/Quick |
3/4″ |
138 |
|||
| 14139MC/B | Extended Coverage |
Threaded |
Black |
160 |
11.2 |
Brass |
12 |
Upright |
Standard/Quick |
3/4″ |
74 |
|||
| 14139MC/W | Extended Coverage |
Threaded |
White |
160 |
11.2 |
Brass |
12 |
Upright |
Standard/Quick |
3/4″ |
74 |
|||
| 14139ME/W | Extended Coverage |
Threaded |
White |
160 |
11.2 |
Brass |
12 |
Upright |
Standard/Quick |
3/4″ |
96 |
|||
| 14139MG/B | Extended Coverage |
Threaded |
Black |
160 |
11.2 |
Brass |
12 |
Upright |
Standard/Quick |
3/4″ |
138 |
|||
| 14139MG/W | Extended Coverage |
Threaded |
White |
160 |
11.2 |
Brass |
12 |
Upright |
Standard/Quick |
3/4″ |
138 |
Additional part numbers might be available. Please refer to the technical documentation or contact your local Viking sales office for more information.
