VK535

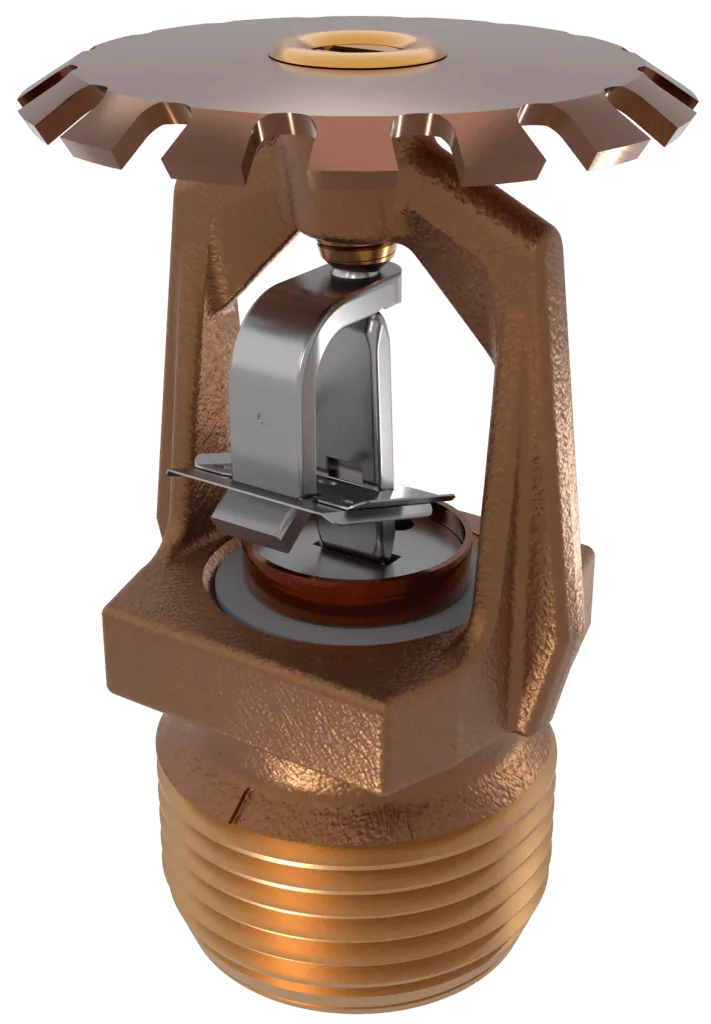

VK535 | DN20-3/4″ | K161 | Standard/Quick Response | Extended Coverage | Ordinary Hazard | ELO | Upright | Fusible Link

VK535

Documents & Resources (2)

Download all documents

Download selected files (1)

Zum Download-Feld hinzufügen (1)

All resources (1)

technical documentation (1)

Technical Data Sheet | VK535

Sprinkler & Sprühwasser

Datenblatt

Language:

Sprachen

Klicken Sie, um andere Sprachen auszuwählen

English

Bitte wählen Sie eine Sprache aus

Downloads are not available for youtube, video and external files

Product Variants

SAP number 14139NC
Temperature rating 74
K factor nominal 11,2
K factor metric 161
Finish Black PTFE
Position Upright
Response Standard/Quick
Application detail Storage
Connection
Connection type
Main material
Maximum working pressure
Size
Size 2

SAP number 14139ME/B
Temperature rating 93
K factor nominal 11,2
K factor metric 161
Finish Black
Position Upright
Response Standard/Quick
Application detail Storage
Connection
Connection type
Main material
Maximum working pressure
Size
Size 2

SAP number 14139NE
Temperature rating 93
K factor nominal 11,2
K factor metric 161
Finish Black PTFE
Position Upright
Response Standard/Quick
Application detail Storage
Connection
Connection type
Main material
Maximum working pressure
Size
Size 2

SAP number 14139AC
Temperature rating 74
K factor nominal 11.2
K factor metric 160
Finish Brass
Position Upright
Response Standard/Quick
Application detail Extended Coverage
Connection Threaded
Connection type NPT
Main material Brass
Maximum working pressure 12
Size 3/4″
Size 2 3/4″

SAP number 14139AE
Temperature rating 96
K factor nominal 11.2
K factor metric 160
Finish Brass
Position Upright
Response Standard/Quick
Application detail Extended Coverage
Connection Threaded
Connection type NPT
Main material Brass
Maximum working pressure 12
Size 3/4″
Size 2 3/4″

SAP number 14139AG
Temperature rating 138
K factor nominal 11.2
K factor metric 160
Finish Brass
Position Upright
Response Standard/Quick
Application detail Extended Coverage
Connection Threaded
Connection type NPT
Main material Brass
Maximum working pressure 12
Size 3/4″
Size 2 3/4″

SAP number 14139FC
Temperature rating 74
K factor nominal 11.2
K factor metric 160
Finish Chrome
Position Upright
Response Standard/Quick
Application detail Extended Coverage
Connection Threaded
Connection type NPT
Main material Brass
Maximum working pressure 12
Size 3/4″
Size 2 3/4″

SAP number 14139FE
Temperature rating 96
K factor nominal 11.2
K factor metric 160
Finish Chrome
Position Upright
Response Standard/Quick
Application detail Extended Coverage
Connection Threaded
Connection type NPT
Main material Brass
Maximum working pressure 12
Size 3/4″
Size 2 3/4″

SAP number 14139FG
Temperature rating 138
K factor nominal 11.2
K factor metric 160
Finish Chrome
Position Upright
Response Standard/Quick
Application detail Extended Coverage
Connection Threaded
Connection type NPT
Main material Brass
Maximum working pressure 12
Size 3/4″
Size 2 3/4″

SAP number 14139JNC
Temperature rating 74
K factor nominal 11.2
K factor metric 160
Finish ENT
Position Upright
Response Standard/Quick
Application detail Extended Coverage
Connection Threaded
Connection type NPT
Main material Brass
Maximum working pressure 12
Size 3/4″
Size 2 3/4″

SAP number 14139JNE
Temperature rating 96
K factor nominal 11.2
K factor metric 160
Finish ENT
Position Upright
Response Standard/Quick
Application detail Extended Coverage
Connection Threaded
Connection type NPT
Main material Brass
Maximum working pressure 12
Size 3/4″
Size 2 3/4″

SAP number 14139JNG
Temperature rating 138
K factor nominal 11.2
K factor metric 160
Finish ENT
Position Upright
Response Standard/Quick
Application detail Extended Coverage
Connection Threaded
Connection type NPT
Main material Brass
Maximum working pressure 12
Size 3/4″
Size 2 3/4″

SAP number 14139MC/B
Temperature rating 74
K factor nominal 11.2
K factor metric 160
Finish Black
Position Upright
Response Standard/Quick
Application detail Extended Coverage
Connection Threaded
Connection type NPT
Main material Brass
Maximum working pressure 12
Size 3/4″
Size 2 3/4″

SAP number 14139MC/W
Temperature rating 74
K factor nominal 11.2
K factor metric 160
Finish White
Position Upright
Response Standard/Quick
Application detail Extended Coverage
Connection Threaded
Connection type NPT
Main material Brass
Maximum working pressure 12
Size 3/4″
Size 2 3/4″

SAP number 14139ME/W
Temperature rating 96
K factor nominal 11.2
K factor metric 160
Finish White
Position Upright
Response Standard/Quick
Application detail Extended Coverage
Connection Threaded
Connection type NPT
Main material Brass
Maximum working pressure 12
Size 3/4″
Size 2 3/4″

SAP number 14139MG/B
Temperature rating 138
K factor nominal 11.2
K factor metric 160
Finish Black
Position Upright
Response Standard/Quick
Application detail Extended Coverage
Connection Threaded
Connection type NPT
Main material Brass
Maximum working pressure 12
Size 3/4″
Size 2 3/4″

SAP number 14139MG/W
Temperature rating 138
K factor nominal 11.2
K factor metric 160
Finish White
Position Upright
Response Standard/Quick
Application detail Extended Coverage
Connection Threaded
Connection type NPT
Main material Brass
Maximum working pressure 12
Size 3/4″
Size 2 3/4″

SAP number	Application detail	Connection	Connection type	Finish	K factor metric	K factor nominal	Main material	Maximum working pressure	Position	Response	Size	Size 2	Temperature rating
14139NC	Storage			Black PTFE	161	11,2			Upright	Standard/Quick			74
14139ME/B	Storage			Black	161	11,2			Upright	Standard/Quick			93
14139NE	Storage			Black PTFE	161	11,2			Upright	Standard/Quick			93
14139AC	Extended Coverage	Threaded	NPT	Brass	160	11.2	Brass	12	Upright	Standard/Quick	3/4″	3/4″	74
14139AE	Extended Coverage	Threaded	NPT	Brass	160	11.2	Brass	12	Upright	Standard/Quick	3/4″	3/4″	96
14139AG	Extended Coverage	Threaded	NPT	Brass	160	11.2	Brass	12	Upright	Standard/Quick	3/4″	3/4″	138
14139FC	Extended Coverage	Threaded	NPT	Chrome	160	11.2	Brass	12	Upright	Standard/Quick	3/4″	3/4″	74
14139FE	Extended Coverage	Threaded	NPT	Chrome	160	11.2	Brass	12	Upright	Standard/Quick	3/4″	3/4″	96
14139FG	Extended Coverage	Threaded	NPT	Chrome	160	11.2	Brass	12	Upright	Standard/Quick	3/4″	3/4″	138
14139JNC	Extended Coverage	Threaded	NPT	ENT	160	11.2	Brass	12	Upright	Standard/Quick	3/4″	3/4″	74
14139JNE	Extended Coverage	Threaded	NPT	ENT	160	11.2	Brass	12	Upright	Standard/Quick	3/4″	3/4″	96
14139JNG	Extended Coverage	Threaded	NPT	ENT	160	11.2	Brass	12	Upright	Standard/Quick	3/4″	3/4″	138
14139MC/B	Extended Coverage	Threaded	NPT	Black	160	11.2	Brass	12	Upright	Standard/Quick	3/4″	3/4″	74
14139MC/W	Extended Coverage	Threaded	NPT	White	160	11.2	Brass	12	Upright	Standard/Quick	3/4″	3/4″	74
14139ME/W	Extended Coverage	Threaded	NPT	White	160	11.2	Brass	12	Upright	Standard/Quick	3/4″	3/4″	96
14139MG/B	Extended Coverage	Threaded	NPT	Black	160	11.2	Brass	12	Upright	Standard/Quick	3/4″	3/4″	138
14139MG/W	Extended Coverage	Threaded	NPT	White	160	11.2	Brass	12	Upright	Standard/Quick	3/4″	3/4″	138

Additional part numbers might be available. Please refer to the technical documentation or contact your local Viking sales office for more information.
