VMX FM

VMX FM Preaction Alarm Valve System | Groove-Groove

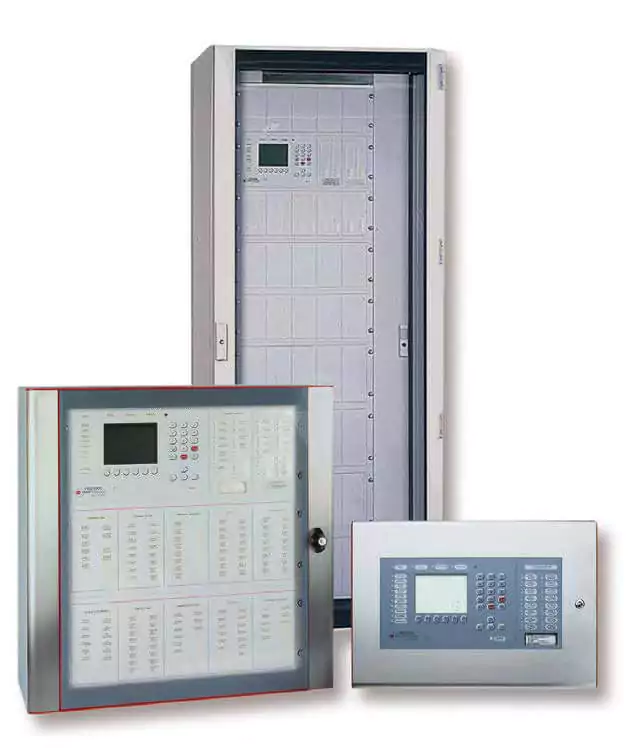

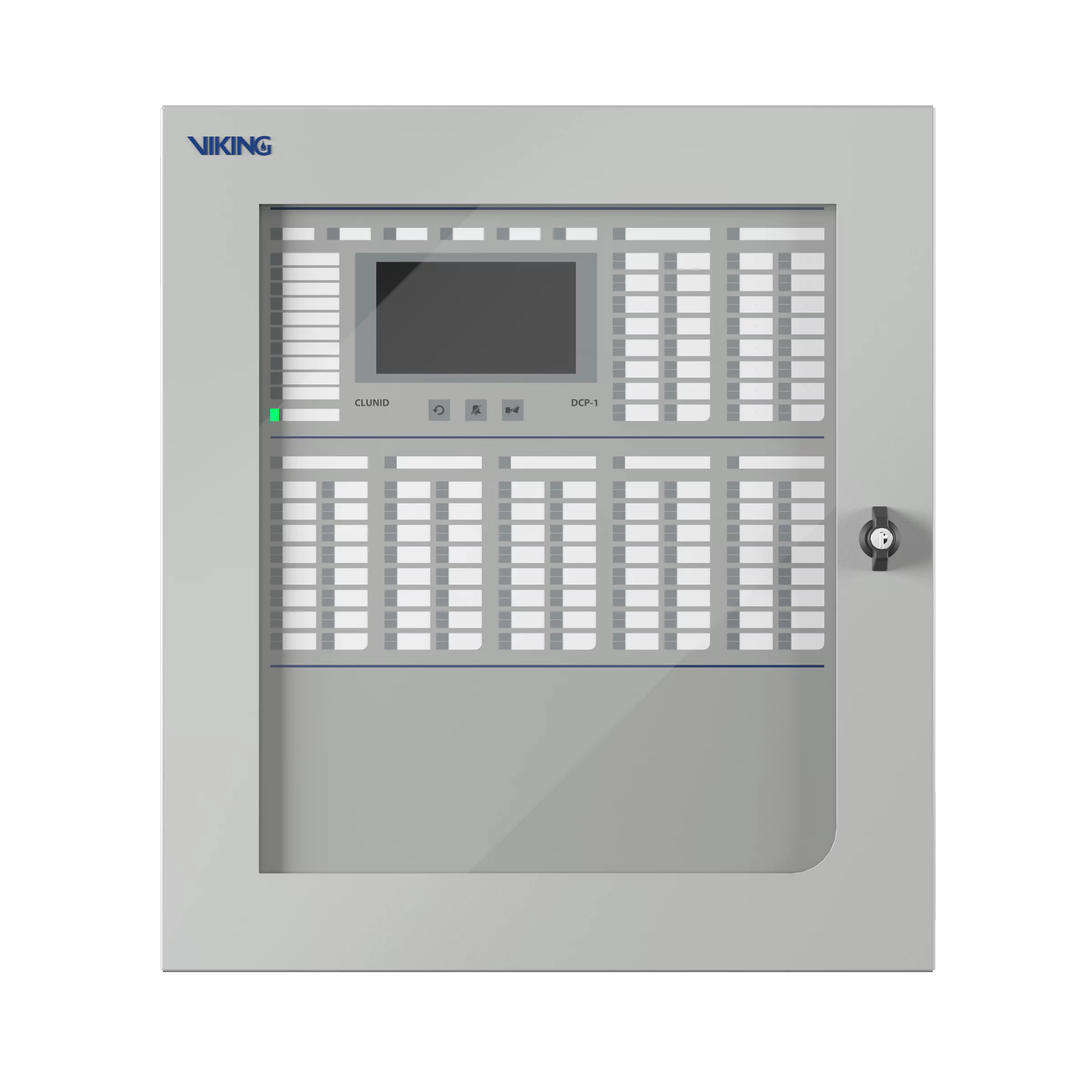

The VMX FM Preaction alarm valve system is available in 3″/DN80, 4″/DN100 and 6″/DN150 valve sizes. To control the alarm valve system, a control panel such as FMZ 5000 or Clunid DCP-1 is required.

VMX FM The VMX FM Preaction alarm valve system is available in 3″/DN80, 4″/DN100 and 6″/DN150 valve sizes. To control the alarm valve system, a control panel such as FMZ 5000 or Clunid DCP-1 is required.

Documents & Resources (2)

Download all documents

Download selected files (1)

Add to download box (1)

All resources (1)

technical documentation (1)

Product Sheet | Sprinkler & Deluge Systems | Alarm & Deluge Valves | Dry pipe alarm valve set VMX GG, FM

Sprinkler & Deluge

Product sheet

Language:

Languages

Click to select other languages

English

Please select one language

Downloads are not available for youtube, video and external files

Product Variants

SAP number 933565
Application detail FM – preassembled
Connection Groove-Groove (GG)
Finish Varnished – Red (valve body)
Main material Ductile Iron (valve body)
Maximum working pressure 16 bar
Position Vertical
Size 3″/DN80
Size 2 3″/DN80
Style Straight Through

SAP number 933566
Application detail FM – preassembled
Connection Groove-Groove (GG)
Finish Varnished – Red (valve body)
Main material Ductile Iron (valve body)
Maximum working pressure 16 bar
Position Vertical
Size 4″/DN100
Size 2 4″/DN100
Style Straight Through

SAP number 933567
Application detail FM – preassembled
Connection Groove-Groove (GG)
Finish Varnished – Red (valve body)
Main material Ductile Iron (valve body)
Maximum working pressure 16 bar
Position Vertical
Size 6″/DN150
Size 2 6″/DN150
Style Straight Through

SAP number	Application detail	Connection	Finish	Main material	Maximum working pressure	Position	Size	Size 2	Style
933565	FM preassembled	Groove Groove (GG)	Varnished Red (valve body)	Ductile Iron (valve body)	16 bar	Vertical	3″/DN80	3″/DN80	Straight Through
933566	FM preassembled	Groove Groove (GG)	Varnished Red (valve body)	Ductile Iron (valve body)	16 bar	Vertical	4″/DN100	4″/DN100	Straight Through
933567	FM preassembled	Groove Groove (GG)	Varnished Red (valve body)	Ductile Iron (valve body)	16 bar	Vertical	6″/DN150	6″/DN150	Straight Through

Additional part numbers might be available. Please refer to the technical documentation or contact your local Viking sales office for more information.
