VK609

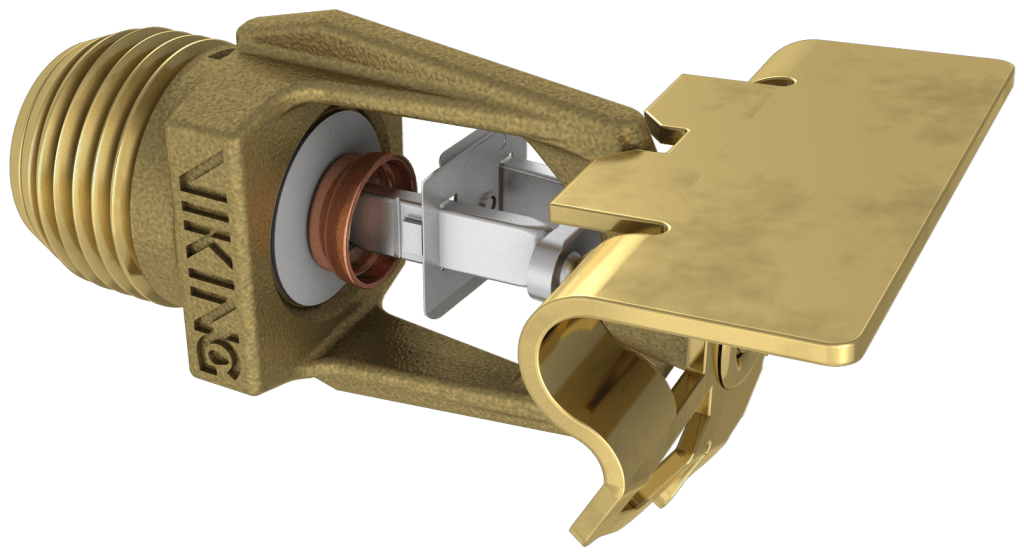

VK609 | DN15-1/2″ | K80 | Standard/Quick Response | Extended Coverage | Horizontal Sidewall | Fusible Link

VK609

Documents & Resources (2)

Download all documents

Download selected files (1)

Add to download box (1)

All resources (1)

technical documentation (1)

Technical Data Sheet | VK609

Sprinkler & Deluge

Data page

Language:

Languages

Click to select other languages

English

Please select one language

Downloads are not available for youtube, video and external files

Product Variants

SAP number 13971JNC
Temperature rating 74
K factor nominal 5.6
K factor metric 80
Finish ENT
Position Horizontal sidewall
Response Standard/Quick
Application detail Extended Coverage
Connection Threaded
Connection type
Main material Brass
Maximum working pressure 12
Size 1/2″
Size 2

SAP number 13971JNE
Temperature rating 96
K factor nominal 5.6
K factor metric 80
Finish ENT
Position Horizontal sidewall
Response Standard/Quick
Application detail Extended Coverage
Connection Threaded
Connection type
Main material Brass
Maximum working pressure 12
Size 1/2″
Size 2

SAP number 13971AC
Temperature rating 74
K factor nominal 5.6
K factor metric 80
Finish Brass
Position Horizontal sidewall
Response Standard/Quick
Application detail Extended Coverage
Connection Threaded
Connection type
Main material Brass
Maximum working pressure 12
Size 1/2″
Size 2

SAP number 13971AE
Temperature rating 96
K factor nominal 5.6
K factor metric 80
Finish Brass
Position Horizontal sidewall
Response Standard/Quick
Application detail Extended Coverage
Connection Threaded
Connection type
Main material Brass
Maximum working pressure 12
Size 1/2″
Size 2

SAP number 13971FC
Temperature rating 74
K factor nominal 5.6
K factor metric 80
Finish Chrome
Position Horizontal sidewall
Response Standard/Quick
Application detail Extended Coverage
Connection Threaded
Connection type
Main material Brass
Maximum working pressure 12
Size 1/2″
Size 2

SAP number 13971FE
Temperature rating 96
K factor nominal 5.6
K factor metric 80
Finish Chrome
Position Horizontal sidewall
Response Standard/Quick
Application detail Extended Coverage
Connection Threaded
Connection type
Main material Brass
Maximum working pressure 12
Size 1/2″
Size 2

SAP number 13971MC/B
Temperature rating 74
K factor nominal 5.6
K factor metric 80
Finish Black
Position Horizontal sidewall
Response Standard/Quick
Application detail Extended Coverage
Connection Threaded
Connection type
Main material Brass
Maximum working pressure 12
Size 1/2″
Size 2

SAP number 13971MC/W
Temperature rating 74
K factor nominal 5.6
K factor metric 80
Finish White
Position Horizontal sidewall
Response Standard/Quick
Application detail Extended Coverage
Connection Threaded
Connection type
Main material Brass
Maximum working pressure 12
Size 1/2″
Size 2

SAP number 13971ME/B
Temperature rating 96
K factor nominal 5.6
K factor metric 80
Finish Black
Position Horizontal sidewall
Response Standard/Quick
Application detail Extended Coverage
Connection Threaded
Connection type
Main material Brass
Maximum working pressure 12
Size 1/2″
Size 2

SAP number 13971ME/W
Temperature rating 96
K factor nominal 5.6
K factor metric 80
Finish White
Position Horizontal sidewall
Response Standard/Quick
Application detail Extended Coverage
Connection Threaded
Connection type
Main material Brass
Maximum working pressure 12
Size 1/2″
Size 2

SAP number	Application detail	Connection	Finish	K factor metric	K factor nominal	Main material	Maximum working pressure	Position	Response	Size	Temperature rating
13971JNC	Extended Coverage	Threaded	ENT	80	5.6	Brass	12	Horizontal sidewall	Standard/Quick	1/2″	74
13971JNE	Extended Coverage	Threaded	ENT	80	5.6	Brass	12	Horizontal sidewall	Standard/Quick	1/2″	96
13971AC	Extended Coverage	Threaded	Brass	80	5.6	Brass	12	Horizontal sidewall	Standard/Quick	1/2″	74
13971AE	Extended Coverage	Threaded	Brass	80	5.6	Brass	12	Horizontal sidewall	Standard/Quick	1/2″	96
13971FC	Extended Coverage	Threaded	Chrome	80	5.6	Brass	12	Horizontal sidewall	Standard/Quick	1/2″	74
13971FE	Extended Coverage	Threaded	Chrome	80	5.6	Brass	12	Horizontal sidewall	Standard/Quick	1/2″	96
13971MC/B	Extended Coverage	Threaded	Black	80	5.6	Brass	12	Horizontal sidewall	Standard/Quick	1/2″	74
13971MC/W	Extended Coverage	Threaded	White	80	5.6	Brass	12	Horizontal sidewall	Standard/Quick	1/2″	74
13971ME/B	Extended Coverage	Threaded	Black	80	5.6	Brass	12	Horizontal sidewall	Standard/Quick	1/2″	96
13971ME/W	Extended Coverage	Threaded	White	80	5.6	Brass	12	Horizontal sidewall	Standard/Quick	1/2″	96

Additional part numbers might be available. Please refer to the technical documentation or contact your local Viking sales office for more information.
