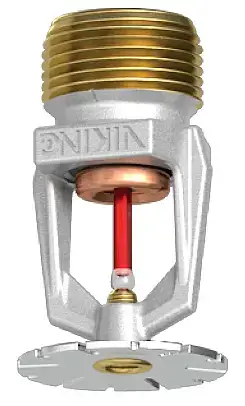

VK608
VK608
Documents & Resources (2)
Download all documents
Download selected files (1)
Add to download box (1)
All resources (6)
technical documentation (1)
drawings (5)
Sprinkler & Deluge
Data page
Language:
Languages
Click to select other languages
Sprinkler & Deluge
2D – CAD
Language:
Languages
Click to select other languages
Sprinkler & Deluge
2D – CAD
Language:
Languages
Click to select other languages
Sprinkler & Deluge
2D – CAD
Language:
Languages
Click to select other languages
Sprinkler & Deluge
3D – Revit-BIM
Language:
Languages
Click to select other languages
Sprinkler & Deluge
2D – CAD
Language:
Languages
Click to select other languages
Product Variants
- SAP number 08339AZ
- Temperature_rating Open
- K_factor_nominal 11.2
- K_factor_metric 160
- Finish Brass
- Position Pendent
- Response Standard/Quick
- Application_detail Extended Coverage
- Connection Threaded
- Connection_type NPT
- Main_material Brass
- Maximum_working_pressure 12
- Size 3/4″
- Size_2 3/4″
- SAP number 08339JNA
- Temperature_rating 57
- K_factor_nominal 11.2
- K_factor_metric 160
- Finish ENT
- Position Pendent
- Response Standard/Quick
- Application_detail Extended Coverage
- Connection Threaded
- Connection_type NPT
- Main_material Brass
- Maximum_working_pressure 12
- Size 3/4″
- Size_2 3/4″
- SAP number 08339JNB
- Temperature_rating 68
- K_factor_nominal 11.2
- K_factor_metric 160
- Finish ENT
- Position Pendent
- Response Standard/Quick
- Application_detail Extended Coverage
- Connection Threaded
- Connection_type NPT
- Main_material Brass
- Maximum_working_pressure 12
- Size 3/4″
- Size_2 3/4″
- SAP number 08339JND
- Temperature_rating 79
- K_factor_nominal 11.2
- K_factor_metric 160
- Finish ENT
- Position Pendent
- Response Standard/Quick
- Application_detail Extended Coverage
- Connection Threaded
- Connection_type NPT
- Main_material Brass
- Maximum_working_pressure 12
- Size 3/4″
- Size_2 3/4″
- SAP number 08339MA/B
- Temperature_rating 57
- K_factor_nominal 11.2
- K_factor_metric 160
- Finish Black
- Position Pendent
- Response Standard/Quick
- Application_detail Extended Coverage
- Connection Threaded
- Connection_type NPT
- Main_material Brass
- Maximum_working_pressure 12
- Size 3/4″
- Size_2 3/4″
- SAP number 08339MB/B
- Temperature_rating 68
- K_factor_nominal 11.2
- K_factor_metric 160
- Finish Black
- Position Pendent
- Response Standard/Quick
- Application_detail Extended Coverage
- Connection Threaded
- Connection_type NPT
- Main_material Brass
- Maximum_working_pressure 12
- Size 3/4″
- Size_2 3/4″
- SAP number 08339AA
- Temperature_rating 57
- K_factor_nominal 11.2
- K_factor_metric 160
- Finish Brass
- Position Pendent
- Response Standard/Quick
- Application_detail Extended Coverage
- Connection Threaded
- Connection_type NPT
- Main_material Brass
- Maximum_working_pressure 12
- Size 3/4″
- Size_2 3/4″
- SAP number 08339AB
- Temperature_rating 68
- K_factor_nominal 11.2
- K_factor_metric 160
- Finish Brass
- Position Pendent
- Response Standard/Quick
- Application_detail Extended Coverage
- Connection Threaded
- Connection_type NPT
- Main_material Brass
- Maximum_working_pressure 12
- Size 3/4″
- Size_2 3/4″
- SAP number 08339AD
- Temperature_rating 79
- K_factor_nominal 11.2
- K_factor_metric 160
- Finish Brass
- Position Pendent
- Response Standard/Quick
- Application_detail Extended Coverage
- Connection Threaded
- Connection_type NPT
- Main_material Brass
- Maximum_working_pressure 12
- Size 3/4″
- Size_2 3/4″
- SAP number 08339FA
- Temperature_rating 57
- K_factor_nominal 11.2
- K_factor_metric 160
- Finish Chrome
- Position Pendent
- Response Standard/Quick
- Application_detail Extended Coverage
- Connection Threaded
- Connection_type NPT
- Main_material Brass
- Maximum_working_pressure 12
- Size 3/4″
- Size_2 3/4″
- SAP number 08339FB
- Temperature_rating 68
- K_factor_nominal 11.2
- K_factor_metric 160
- Finish Chrome
- Position Pendent
- Response Standard/Quick
- Application_detail Extended Coverage
- Connection Threaded
- Connection_type NPT
- Main_material Brass
- Maximum_working_pressure 12
- Size 3/4″
- Size_2 3/4″
- SAP number 08339FD
- Temperature_rating 79
- K_factor_nominal 11.2
- K_factor_metric 160
- Finish Chrome
- Position Pendent
- Response Standard/Quick
- Application_detail Extended Coverage
- Connection Threaded
- Connection_type NPT
- Main_material Brass
- Maximum_working_pressure 12
- Size 3/4″
- Size_2 3/4″
- SAP number 08339MA/W
- Temperature_rating 57
- K_factor_nominal 11.2
- K_factor_metric 160
- Finish White
- Position Pendent
- Response Standard/Quick
- Application_detail Extended Coverage
- Connection Threaded
- Connection_type NPT
- Main_material Brass
- Maximum_working_pressure 12
- Size 3/4″
- Size_2 3/4″
- SAP number 08339MB/W
- Temperature_rating 68
- K_factor_nominal 11.2
- K_factor_metric 160
- Finish White
- Position Pendent
- Response Standard/Quick
- Application_detail Extended Coverage
- Connection Threaded
- Connection_type NPT
- Main_material Brass
- Maximum_working_pressure 12
- Size 3/4″
- Size_2 3/4″
- SAP number 08339MD/W
- Temperature_rating 79
- K_factor_nominal 11.2
- K_factor_metric 160
- Finish White
- Position Pendent
- Response Standard/Quick
- Application_detail Extended Coverage
- Connection Threaded
- Connection_type NPT
- Main_material Brass
- Maximum_working_pressure 12
- Size 3/4″
- Size_2 3/4″
| SAP number | Application_detail | Connection | Connection_type | Finish | K_factor_metric | K_factor_nominal | Main_material | Maximum_working_pressure | Position | Response | Size | Size_2 | Temperature_rating |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| 08339AZ | Extended Coverage |
Threaded |
NPT |
Brass |
160 |
11.2 |
Brass |
12 |
Pendent |
Standard/Quick |
3/4″ |
3/4″ |
Open |
| 08339JNA | Extended Coverage |
Threaded |
NPT |
ENT |
160 |
11.2 |
Brass |
12 |
Pendent |
Standard/Quick |
3/4″ |
3/4″ |
57 |
| 08339JNB | Extended Coverage |
Threaded |
NPT |
ENT |
160 |
11.2 |
Brass |
12 |
Pendent |
Standard/Quick |
3/4″ |
3/4″ |
68 |
| 08339JND | Extended Coverage |
Threaded |
NPT |
ENT |
160 |
11.2 |
Brass |
12 |
Pendent |
Standard/Quick |
3/4″ |
3/4″ |
79 |
| 08339MA/B | Extended Coverage |
Threaded |
NPT |
Black |
160 |
11.2 |
Brass |
12 |
Pendent |
Standard/Quick |
3/4″ |
3/4″ |
57 |
| 08339MB/B | Extended Coverage |
Threaded |
NPT |
Black |
160 |
11.2 |
Brass |
12 |
Pendent |
Standard/Quick |
3/4″ |
3/4″ |
68 |
| 08339AA | Extended Coverage |
Threaded |
NPT |
Brass |
160 |
11.2 |
Brass |
12 |
Pendent |
Standard/Quick |
3/4″ |
3/4″ |
57 |
| 08339AB | Extended Coverage |
Threaded |
NPT |
Brass |
160 |
11.2 |
Brass |
12 |
Pendent |
Standard/Quick |
3/4″ |
3/4″ |
68 |
| 08339AD | Extended Coverage |
Threaded |
NPT |
Brass |
160 |
11.2 |
Brass |
12 |
Pendent |
Standard/Quick |
3/4″ |
3/4″ |
79 |
| 08339FA | Extended Coverage |
Threaded |
NPT |
Chrome |
160 |
11.2 |
Brass |
12 |
Pendent |
Standard/Quick |
3/4″ |
3/4″ |
57 |
| 08339FB | Extended Coverage |
Threaded |
NPT |
Chrome |
160 |
11.2 |
Brass |
12 |
Pendent |
Standard/Quick |
3/4″ |
3/4″ |
68 |
| 08339FD | Extended Coverage |
Threaded |
NPT |
Chrome |
160 |
11.2 |
Brass |
12 |
Pendent |
Standard/Quick |
3/4″ |
3/4″ |
79 |
| 08339MA/W | Extended Coverage |
Threaded |
NPT |
White |
160 |
11.2 |
Brass |
12 |
Pendent |
Standard/Quick |
3/4″ |
3/4″ |
57 |
| 08339MB/W | Extended Coverage |
Threaded |
NPT |
White |
160 |
11.2 |
Brass |
12 |
Pendent |
Standard/Quick |
3/4″ |
3/4″ |
68 |
| 08339MD/W | Extended Coverage |
Threaded |
NPT |
White |
160 |
11.2 |
Brass |
12 |
Pendent |
Standard/Quick |
3/4″ |
3/4″ |
79 |
Additional part numbers might be available. Please refer to the technical documentation or contact your local Viking sales office for more information.
