VK549

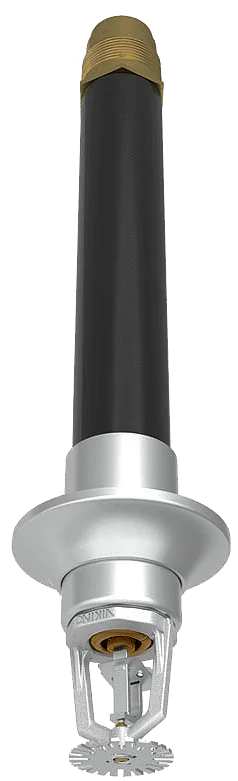

Adjustable Standard Dry QR ELO Pendent Fusible Link Sprinkler

VK549 | DN32 – 1-1/4″ | K161 | Dry | Quick Response | ELO | Pendent | Fusible Link | Adjustable Standard

VK549 VK549 | DN32 – 1-1/4″ | K161 | Dry | Quick Response | ELO | Pendent | Fusible Link | Adjustable Standard

Documents & Resources (2)

Download all documents

Download selected files (1)

Add to download box (1)

All resources (2)

technical documentation (1)

drawings (1)

Data Page | VK547-VK548-VK549 | Quick Response Dry Pendent Fusible Link ELO Sprinkler

Sprinkler & Deluge

Data page

Language:

Languages

Click to select other languages

All

English

Polish

Please select one language

Downloads are not available for youtube, video and external files

Revit | VK549 | Quick Response Dry Pendent Fusible Link ELO Sprinkler

Sprinkler & Deluge

3D – Revit-BIM

Language:

Languages

Click to select other languages

English

Please select one language

Downloads are not available for youtube, video and external files

Product Variants

SAP number 19838FC12
Application detail Standard Coverage
Connection Threaded
Connection type
Finish Chrome
K factor metric 160
K factor nominal 11.2
Main material Brass
Maximum working pressure 12
Position Pendent
Response Quick
Size 1-1/4”
Size 2 305 mm
Temperature rating 74

SAP number 19838FC18
Application detail Standard Coverage
Connection Threaded
Connection type
Finish Chrome
K factor metric 160
K factor nominal 11.2
Main material Brass
Maximum working pressure 12
Position Pendent
Response Quick
Size 1-1/4”
Size 2 457 mm
Temperature rating 74

SAP number 19838FC24
Application detail Standard Coverage
Connection Threaded
Connection type
Finish Chrome
K factor metric 160
K factor nominal 11.2
Main material Brass
Maximum working pressure 12
Position Pendent
Response Quick
Size 1-1/4”
Size 2 610 mm
Temperature rating 74

SAP number 19838FC30
Application detail Standard Coverage
Connection Threaded
Connection type
Finish Chrome
K factor metric 160
K factor nominal 11.2
Main material Brass
Maximum working pressure 12
Position Pendent
Response Quick
Size 1-1/4”
Size 2 762 mm
Temperature rating 74

SAP number 19838FC36
Application detail Standard Coverage
Connection Threaded
Connection type
Finish Chrome
K factor metric 160
K factor nominal 11.2
Main material Brass
Maximum working pressure 12
Position Pendent
Response Quick
Size 1-1/4”
Size 2 914 mm
Temperature rating 74

SAP number 19838FC42
Application detail Standard Coverage
Connection Threaded
Connection type
Finish Chrome
K factor metric 160
K factor nominal 11.2
Main material Brass
Maximum working pressure 12
Position Pendent
Response Quick
Size 1-1/4”
Size 2 1067 mm
Temperature rating 74

SAP number 19838FC48
Application detail Standard Coverage
Connection Threaded
Connection type
Finish Chrome
K factor metric 160
K factor nominal 11.2
Main material Brass
Maximum working pressure 12
Position Pendent
Response Quick
Size 1-1/4”
Size 2 1219 mm
Temperature rating 74

SAP number 19838FE12
Application detail Standard Coverage
Connection Threaded
Connection type
Finish Chrome
K factor metric 160
K factor nominal 11.2
Main material Brass
Maximum working pressure 12
Position Pendent
Response Quick
Size 1-1/4”
Size 2 305 mm
Temperature rating 96

SAP number 19838FE18
Application detail Standard Coverage
Connection Threaded
Connection type
Finish Chrome
K factor metric 160
K factor nominal 11.2
Main material Brass
Maximum working pressure 12
Position Pendent
Response Quick
Size 1-1/4”
Size 2 457 mm
Temperature rating 96

SAP number 19838FE24
Application detail Standard Coverage
Connection Threaded
Connection type
Finish Chrome
K factor metric 160
K factor nominal 11.2
Main material Brass
Maximum working pressure 12
Position Pendent
Response Quick
Size 1-1/4”
Size 2 610 mm
Temperature rating 96

SAP number 19838FE30
Application detail Standard Coverage
Connection Threaded
Connection type
Finish Chrome
K factor metric 160
K factor nominal 11.2
Main material Brass
Maximum working pressure 12
Position Pendent
Response Quick
Size 1-1/4”
Size 2 762 mm
Temperature rating 96

SAP number 19838FE36
Application detail Standard Coverage
Connection Threaded
Connection type
Finish Chrome
K factor metric 160
K factor nominal 11.2
Main material Brass
Maximum working pressure 12
Position Pendent
Response Quick
Size 1-1/4”
Size 2 914 mm
Temperature rating 96

SAP number 19838FE42
Application detail Standard Coverage
Connection Threaded
Connection type
Finish Chrome
K factor metric 160
K factor nominal 11.2
Main material Brass
Maximum working pressure 12
Position Pendent
Response Quick
Size 1-1/4”
Size 2 1067 mm
Temperature rating 96

SAP number 19838FE48
Application detail Standard Coverage
Connection Threaded
Connection type
Finish Chrome
K factor metric 160
K factor nominal 11.2
Main material Brass
Maximum working pressure 12
Position Pendent
Response Quick
Size 1-1/4”
Size 2 1219 mm
Temperature rating 96

SAP number 19838FG12
Application detail Standard Coverage
Connection Threaded
Connection type
Finish Chrome
K factor metric 160
K factor nominal 11.2
Main material Brass
Maximum working pressure 12
Position Pendent
Response Quick
Size 1-1/4”
Size 2 305 mm
Temperature rating 138

SAP number 19838FG18
Application detail Standard Coverage
Connection Threaded
Connection type
Finish Chrome
K factor metric 160
K factor nominal 11.2
Main material Brass
Maximum working pressure 12
Position Pendent
Response Quick
Size 1-1/4”
Size 2 457 mm
Temperature rating 138

SAP number 19838FG24
Application detail Standard Coverage
Connection Threaded
Connection type
Finish Chrome
K factor metric 160
K factor nominal 11.2
Main material Brass
Maximum working pressure 12
Position Pendent
Response Quick
Size 1-1/4”
Size 2 610 mm
Temperature rating 138

SAP number 19838FG30
Application detail Standard Coverage
Connection Threaded
Connection type
Finish Chrome
K factor metric 160
K factor nominal 11.2
Main material Brass
Maximum working pressure 12
Position Pendent
Response Quick
Size 1-1/4”
Size 2 762 mm
Temperature rating 138

SAP number 19838FG36
Application detail Standard Coverage
Connection Threaded
Connection type
Finish Chrome
K factor metric 160
K factor nominal 11.2
Main material Brass
Maximum working pressure 12
Position Pendent
Response Quick
Size 1-1/4”
Size 2 914 mm
Temperature rating 138

SAP number 19838FG42
Application detail Standard Coverage
Connection Threaded
Connection type
Finish Chrome
K factor metric 160
K factor nominal 11.2
Main material Brass
Maximum working pressure 12
Position Pendent
Response Quick
Size 1-1/4”
Size 2 1067 mm
Temperature rating 138

SAP number 19838FG48
Application detail Standard Coverage
Connection Threaded
Connection type
Finish Chrome
K factor metric 160
K factor nominal 11.2
Main material Brass
Maximum working pressure 12
Position Pendent
Response Quick
Size 1-1/4”
Size 2 1219 mm
Temperature rating 138

SAP number 19838JNC12
Application detail Standard Coverage
Connection Threaded
Connection type
Finish ENT
K factor metric 160
K factor nominal 11.2
Main material Brass
Maximum working pressure 12
Position Pendent
Response Quick
Size 1-1/4”
Size 2 305 mm
Temperature rating 74

SAP number 19838JNC18
Application detail Standard Coverage
Connection Threaded
Connection type
Finish ENT
K factor metric 160
K factor nominal 11.2
Main material Brass
Maximum working pressure 12
Position Pendent
Response Quick
Size 1-1/4”
Size 2 457 mm
Temperature rating 74

SAP number 19838JNC24
Application detail Standard Coverage
Connection Threaded
Connection type
Finish ENT
K factor metric 160
K factor nominal 11.2
Main material Brass
Maximum working pressure 12
Position Pendent
Response Quick
Size 1-1/4”
Size 2 610 mm
Temperature rating 74

SAP number 19838JNC30
Application detail Standard Coverage
Connection Threaded
Connection type
Finish ENT
K factor metric 160
K factor nominal 11.2
Main material Brass
Maximum working pressure 12
Position Pendent
Response Quick
Size 1-1/4”
Size 2 762 mm
Temperature rating 74

SAP number 19838JNC36
Application detail Standard Coverage
Connection Threaded
Connection type
Finish ENT
K factor metric 160
K factor nominal 11.2
Main material Brass
Maximum working pressure 12
Position Pendent
Response Quick
Size 1-1/4”
Size 2 914 mm
Temperature rating 74

SAP number 19838JNC42
Application detail Standard Coverage
Connection Threaded
Connection type
Finish ENT
K factor metric 160
K factor nominal 11.2
Main material Brass
Maximum working pressure 12
Position Pendent
Response Quick
Size 1-1/4”
Size 2 1067 mm
Temperature rating 74

SAP number 19838JNC48
Application detail Standard Coverage
Connection Threaded
Connection type
Finish ENT
K factor metric 160
K factor nominal 11.2
Main material Brass
Maximum working pressure 12
Position Pendent
Response Quick
Size 1-1/4”
Size 2 1219 mm
Temperature rating 74

SAP number 19838JNE12
Application detail Standard Coverage
Connection Threaded
Connection type
Finish ENT
K factor metric 160
K factor nominal 11.2
Main material Brass
Maximum working pressure 12
Position Pendent
Response Quick
Size 1-1/4”
Size 2 305 mm
Temperature rating 96

SAP number 19838JNE18
Application detail Standard Coverage
Connection Threaded
Connection type
Finish ENT
K factor metric 160
K factor nominal 11.2
Main material Brass
Maximum working pressure 12
Position Pendent
Response Quick
Size 1-1/4”
Size 2 457 mm
Temperature rating 96

SAP number 19838JNE24
Application detail Standard Coverage
Connection Threaded
Connection type
Finish ENT
K factor metric 160
K factor nominal 11.2
Main material Brass
Maximum working pressure 12
Position Pendent
Response Quick
Size 1-1/4”
Size 2 610 mm
Temperature rating 96

SAP number 19838JNE30
Application detail Standard Coverage
Connection Threaded
Connection type
Finish ENT
K factor metric 160
K factor nominal 11.2
Main material Brass
Maximum working pressure 12
Position Pendent
Response Quick
Size 1-1/4”
Size 2 762 mm
Temperature rating 96

SAP number 19838JNE36
Application detail Standard Coverage
Connection Threaded
Connection type
Finish ENT
K factor metric 160
K factor nominal 11.2
Main material Brass
Maximum working pressure 12
Position Pendent
Response Quick
Size 1-1/4”
Size 2 914 mm
Temperature rating 96

SAP number 19838JNE42
Application detail Standard Coverage
Connection Threaded
Connection type
Finish ENT
K factor metric 160
K factor nominal 11.2
Main material Brass
Maximum working pressure 12
Position Pendent
Response Quick
Size 1-1/4”
Size 2 1067 mm
Temperature rating 96

SAP number 19838JNE48
Application detail Standard Coverage
Connection Threaded
Connection type
Finish ENT
K factor metric 160
K factor nominal 11.2
Main material Brass
Maximum working pressure 12
Position Pendent
Response Quick
Size 1-1/4”
Size 2 1219 mm
Temperature rating 96

SAP number 19838JNG12
Application detail Standard Coverage
Connection Threaded
Connection type
Finish ENT
K factor metric 160
K factor nominal 11.2
Main material Brass
Maximum working pressure 12
Position Pendent
Response Quick
Size 1-1/4”
Size 2 305 mm
Temperature rating 138

SAP number 19838JNG18
Application detail Standard Coverage
Connection Threaded
Connection type
Finish ENT
K factor metric 160
K factor nominal 11.2
Main material Brass
Maximum working pressure 12
Position Pendent
Response Quick
Size 1-1/4”
Size 2 457 mm
Temperature rating 138

SAP number 19838JNG24
Application detail Standard Coverage
Connection Threaded
Connection type
Finish ENT
K factor metric 160
K factor nominal 11.2
Main material Brass
Maximum working pressure 12
Position Pendent
Response Quick
Size 1-1/4”
Size 2 610 mm
Temperature rating 138

SAP number 19838JNG30
Application detail Standard Coverage
Connection Threaded
Connection type
Finish ENT
K factor metric 160
K factor nominal 11.2
Main material Brass
Maximum working pressure 12
Position Pendent
Response Quick
Size 1-1/4”
Size 2 762 mm
Temperature rating 138

SAP number 19838JNG36
Application detail Standard Coverage
Connection Threaded
Connection type
Finish ENT
K factor metric 160
K factor nominal 11.2
Main material Brass
Maximum working pressure 12
Position Pendent
Response Quick
Size 1-1/4”
Size 2 914 mm
Temperature rating 138

SAP number 19838JNG42
Application detail Standard Coverage
Connection Threaded
Connection type
Finish ENT
K factor metric 160
K factor nominal 11.2
Main material Brass
Maximum working pressure 12
Position Pendent
Response Quick
Size 1-1/4”
Size 2 1067 mm
Temperature rating 138

SAP number 19838JNG48
Application detail Standard Coverage
Connection Threaded
Connection type
Finish ENT
K factor metric 160
K factor nominal 11.2
Main material Brass
Maximum working pressure 12
Position Pendent
Response Quick
Size 1-1/4”
Size 2 1219 mm
Temperature rating 138

SAP number 19838MC/W12
Application detail Standard Coverage
Connection Threaded
Connection type
Finish White
K factor metric 160
K factor nominal 11.2
Main material Brass
Maximum working pressure 12
Position Pendent
Response Quick
Size 1-1/4”
Size 2 305 mm
Temperature rating 74

SAP number 19838MC/W18
Application detail Standard Coverage
Connection Threaded
Connection type
Finish White
K factor metric 160
K factor nominal 11.2
Main material Brass
Maximum working pressure 12
Position Pendent
Response Quick
Size 1-1/4”
Size 2 457 mm
Temperature rating 74

SAP number 19838MC/W24
Application detail Standard Coverage
Connection Threaded
Connection type
Finish White
K factor metric 160
K factor nominal 11.2
Main material Brass
Maximum working pressure 12
Position Pendent
Response Quick
Size 1-1/4”
Size 2 610 mm
Temperature rating 74

SAP number 19838MC/W30
Application detail Standard Coverage
Connection Threaded
Connection type
Finish White
K factor metric 160
K factor nominal 11.2
Main material Brass
Maximum working pressure 12
Position Pendent
Response Quick
Size 1-1/4”
Size 2 762 mm
Temperature rating 74

SAP number 19838MC/W36
Application detail Standard Coverage
Connection Threaded
Connection type
Finish White
K factor metric 160
K factor nominal 11.2
Main material Brass
Maximum working pressure 12
Position Pendent
Response Quick
Size 1-1/4”
Size 2 914 mm
Temperature rating 74

SAP number 19838MC/W42
Application detail Standard Coverage
Connection Threaded
Connection type
Finish White
K factor metric 160
K factor nominal 11.2
Main material Brass
Maximum working pressure 12
Position Pendent
Response Quick
Size 1-1/4”
Size 2 1067 mm
Temperature rating 74

SAP number 19838MC/W48
Application detail Standard Coverage
Connection Threaded
Connection type
Finish White
K factor metric 160
K factor nominal 11.2
Main material Brass
Maximum working pressure 12
Position Pendent
Response Quick
Size 1-1/4”
Size 2 1219 mm
Temperature rating 74

SAP number 19838ME/W12
Application detail Standard Coverage
Connection Threaded
Connection type
Finish White
K factor metric 160
K factor nominal 11.2
Main material Brass
Maximum working pressure 12
Position Pendent
Response Quick
Size 1-1/4”
Size 2 305 mm
Temperature rating 96

SAP number 19838ME/W18
Application detail Standard Coverage
Connection Threaded
Connection type
Finish White
K factor metric 160
K factor nominal 11.2
Main material Brass
Maximum working pressure 12
Position Pendent
Response Quick
Size 1-1/4”
Size 2 457 mm
Temperature rating 96

SAP number 19838ME/W24
Application detail Standard Coverage
Connection Threaded
Connection type
Finish White
K factor metric 160
K factor nominal 11.2
Main material Brass
Maximum working pressure 12
Position Pendent
Response Quick
Size 1-1/4”
Size 2 610 mm
Temperature rating 96

SAP number 19838ME/W30
Application detail Standard Coverage
Connection Threaded
Connection type
Finish White
K factor metric 160
K factor nominal 11.2
Main material Brass
Maximum working pressure 12
Position Pendent
Response Quick
Size 1-1/4”
Size 2 762 mm
Temperature rating 96

SAP number 19838ME/W36
Application detail Standard Coverage
Connection Threaded
Connection type
Finish White
K factor metric 160
K factor nominal 11.2
Main material Brass
Maximum working pressure 12
Position Pendent
Response Quick
Size 1-1/4”
Size 2 914 mm
Temperature rating 96

SAP number 19838ME/W42
Application detail Standard Coverage
Connection Threaded
Connection type
Finish White
K factor metric 160
K factor nominal 11.2
Main material Brass
Maximum working pressure 12
Position Pendent
Response Quick
Size 1-1/4”
Size 2 1067 mm
Temperature rating 96

SAP number 19838ME/W48
Application detail Standard Coverage
Connection Threaded
Connection type
Finish White
K factor metric 160
K factor nominal 11.2
Main material Brass
Maximum working pressure 12
Position Pendent
Response Quick
Size 1-1/4”
Size 2 1219 mm
Temperature rating 96

SAP number 19838MG/W12
Application detail Standard Coverage
Connection Threaded
Connection type
Finish White
K factor metric 160
K factor nominal 11.2
Main material Brass
Maximum working pressure 12
Position Pendent
Response Quick
Size 1-1/4”
Size 2 305 mm
Temperature rating 138

SAP number 19838MG/W18
Application detail Standard Coverage
Connection Threaded
Connection type
Finish White
K factor metric 160
K factor nominal 11.2
Main material Brass
Maximum working pressure 12
Position Pendent
Response Quick
Size 1-1/4”
Size 2 457 mm
Temperature rating 138

SAP number 19838MG/W24
Application detail Standard Coverage
Connection Threaded
Connection type
Finish White
K factor metric 160
K factor nominal 11.2
Main material Brass
Maximum working pressure 12
Position Pendent
Response Quick
Size 1-1/4”
Size 2 610 mm
Temperature rating 138

SAP number 19838MG/W30
Application detail Standard Coverage
Connection Threaded
Connection type
Finish White
K factor metric 160
K factor nominal 11.2
Main material Brass
Maximum working pressure 12
Position Pendent
Response Quick
Size 1-1/4”
Size 2 762 mm
Temperature rating 138

SAP number 19838MG/W36
Application detail Standard Coverage
Connection Threaded
Connection type
Finish White
K factor metric 160
K factor nominal 11.2
Main material Brass
Maximum working pressure 12
Position Pendent
Response Quick
Size 1-1/4”
Size 2 914 mm
Temperature rating 138

SAP number 19838MG/W42
Application detail Standard Coverage
Connection Threaded
Connection type
Finish White
K factor metric 160
K factor nominal 11.2
Main material Brass
Maximum working pressure 12
Position Pendent
Response Quick
Size 1-1/4”
Size 2 1067 mm
Temperature rating 138

SAP number 19838MG/W48
Application detail Standard Coverage
Connection Threaded
Connection type
Finish White
K factor metric 160
K factor nominal 11.2
Main material Brass
Maximum working pressure 12
Position Pendent
Response Quick
Size 1-1/4”
Size 2 1219 mm
Temperature rating 138

SAP number 19839FC12
Application detail Standard Coverage
Connection Threaded
Connection type
Finish Chrome
K factor metric 160
K factor nominal 11.2
Main material Brass
Maximum working pressure 12
Position Pendent
Response Quick
Size 32 mm
Size 2 305 mm
Temperature rating 74

SAP number 19839FC18
Application detail Standard Coverage
Connection Threaded
Connection type
Finish Chrome
K factor metric 160
K factor nominal 11.2
Main material Brass
Maximum working pressure 12
Position Pendent
Response Quick
Size 32 mm
Size 2 457 mm
Temperature rating 74

SAP number 19839FC24
Application detail Standard Coverage
Connection Threaded
Connection type
Finish Chrome
K factor metric 160
K factor nominal 11.2
Main material Brass
Maximum working pressure 12
Position Pendent
Response Quick
Size 32 mm
Size 2 610 mm
Temperature rating 74

SAP number 19839FC30
Application detail Standard Coverage
Connection Threaded
Connection type
Finish Chrome
K factor metric 160
K factor nominal 11.2
Main material Brass
Maximum working pressure 12
Position Pendent
Response Quick
Size 32 mm
Size 2 762 mm
Temperature rating 74

SAP number 19839FC36
Application detail Standard Coverage
Connection Threaded
Connection type
Finish Chrome
K factor metric 160
K factor nominal 11.2
Main material Brass
Maximum working pressure 12
Position Pendent
Response Quick
Size 32 mm
Size 2 914 mm
Temperature rating 74

SAP number 19839FC42
Application detail Standard Coverage
Connection Threaded
Connection type
Finish Chrome
K factor metric 160
K factor nominal 11.2
Main material Brass
Maximum working pressure 12
Position Pendent
Response Quick
Size 32 mm
Size 2 1067 mm
Temperature rating 74

SAP number 19839FC48
Application detail Standard Coverage
Connection Threaded
Connection type
Finish Chrome
K factor metric 160
K factor nominal 11.2
Main material Brass
Maximum working pressure 12
Position Pendent
Response Quick
Size 32 mm
Size 2 1219 mm
Temperature rating 74

SAP number 19839FE12
Application detail Standard Coverage
Connection Threaded
Connection type
Finish Chrome
K factor metric 160
K factor nominal 11.2
Main material Brass
Maximum working pressure 12
Position Pendent
Response Quick
Size 32 mm
Size 2 305 mm
Temperature rating 96

SAP number 19839FE18
Application detail Standard Coverage
Connection Threaded
Connection type
Finish Chrome
K factor metric 160
K factor nominal 11.2
Main material Brass
Maximum working pressure 12
Position Pendent
Response Quick
Size 32 mm
Size 2 457 mm
Temperature rating 96

SAP number 19839FE24
Application detail Standard Coverage
Connection Threaded
Connection type
Finish Chrome
K factor metric 160
K factor nominal 11.2
Main material Brass
Maximum working pressure 12
Position Pendent
Response Quick
Size 32 mm
Size 2 610 mm
Temperature rating 96

SAP number 19839FE30
Application detail Standard Coverage
Connection Threaded
Connection type
Finish Chrome
K factor metric 160
K factor nominal 11.2
Main material Brass
Maximum working pressure 12
Position Pendent
Response Quick
Size 32 mm
Size 2 762 mm
Temperature rating 96

SAP number 19839FE36
Application detail Standard Coverage
Connection Threaded
Connection type
Finish Chrome
K factor metric 160
K factor nominal 11.2
Main material Brass
Maximum working pressure 12
Position Pendent
Response Quick
Size 32 mm
Size 2 914 mm
Temperature rating 96

SAP number 19839FE42
Application detail Standard Coverage
Connection Threaded
Connection type
Finish Chrome
K factor metric 160
K factor nominal 11.2
Main material Brass
Maximum working pressure 12
Position Pendent
Response Quick
Size 32 mm
Size 2 1067 mm
Temperature rating 96

SAP number 19839FE48
Application detail Standard Coverage
Connection Threaded
Connection type
Finish Chrome
K factor metric 160
K factor nominal 11.2
Main material Brass
Maximum working pressure 12
Position Pendent
Response Quick
Size 32 mm
Size 2 1219 mm
Temperature rating 96

SAP number 19839FG12
Application detail Standard Coverage
Connection Threaded
Connection type
Finish Chrome
K factor metric 160
K factor nominal 11.2
Main material Brass
Maximum working pressure 12
Position Pendent
Response Quick
Size 32 mm
Size 2 305 mm
Temperature rating 138

SAP number 19839FG18
Application detail Standard Coverage
Connection Threaded
Connection type
Finish Chrome
K factor metric 160
K factor nominal 11.2
Main material Brass
Maximum working pressure 12
Position Pendent
Response Quick
Size 32 mm
Size 2 457 mm
Temperature rating 138

SAP number 19839FG24
Application detail Standard Coverage
Connection Threaded
Connection type
Finish Chrome
K factor metric 160
K factor nominal 11.2
Main material Brass
Maximum working pressure 12
Position Pendent
Response Quick
Size 32 mm
Size 2 610 mm
Temperature rating 138

SAP number 19839FG30
Application detail Standard Coverage
Connection Threaded
Connection type
Finish Chrome
K factor metric 160
K factor nominal 11.2
Main material Brass
Maximum working pressure 12
Position Pendent
Response Quick
Size 32 mm
Size 2 762 mm
Temperature rating 138

SAP number 19839FG36
Application detail Standard Coverage
Connection Threaded
Connection type
Finish Chrome
K factor metric 160
K factor nominal 11.2
Main material Brass
Maximum working pressure 12
Position Pendent
Response Quick
Size 32 mm
Size 2 914 mm
Temperature rating 138

SAP number 19839FG42
Application detail Standard Coverage
Connection Threaded
Connection type
Finish Chrome
K factor metric 160
K factor nominal 11.2
Main material Brass
Maximum working pressure 12
Position Pendent
Response Quick
Size 32 mm
Size 2 1067 mm
Temperature rating 138

SAP number 19839FG48
Application detail Standard Coverage
Connection Threaded
Connection type
Finish Chrome
K factor metric 160
K factor nominal 11.2
Main material Brass
Maximum working pressure 12
Position Pendent
Response Quick
Size 32 mm
Size 2 1219 mm
Temperature rating 138

SAP number 19839MC/W12
Application detail Standard Coverage
Connection Threaded
Connection type
Finish White
K factor metric 160
K factor nominal 11.2
Main material Brass
Maximum working pressure 12
Position Pendent
Response Quick
Size 32 mm
Size 2 305 mm
Temperature rating 74

SAP number 19839MC/W18
Application detail Standard Coverage
Connection Threaded
Connection type
Finish White
K factor metric 160
K factor nominal 11.2
Main material Brass
Maximum working pressure 12
Position Pendent
Response Quick
Size 32 mm
Size 2 457 mm
Temperature rating 74

SAP number 19839MC/W24
Application detail Standard Coverage
Connection Threaded
Connection type
Finish White
K factor metric 160
K factor nominal 11.2
Main material Brass
Maximum working pressure 12
Position Pendent
Response Quick
Size 32 mm
Size 2 610 mm
Temperature rating 74

SAP number 19839MC/W30
Application detail Standard Coverage
Connection Threaded
Connection type
Finish White
K factor metric 160
K factor nominal 11.2
Main material Brass
Maximum working pressure 12
Position Pendent
Response Quick
Size 32 mm
Size 2 762 mm
Temperature rating 74

SAP number 19839MC/W36
Application detail Standard Coverage
Connection Threaded
Connection type
Finish White
K factor metric 160
K factor nominal 11.2
Main material Brass
Maximum working pressure 12
Position Pendent
Response Quick
Size 32 mm
Size 2 914 mm
Temperature rating 74

SAP number 19839MC/W42
Application detail Standard Coverage
Connection Threaded
Connection type
Finish White
K factor metric 160
K factor nominal 11.2
Main material Brass
Maximum working pressure 12
Position Pendent
Response Quick
Size 32 mm
Size 2 1067 mm
Temperature rating 74

SAP number 19839MC/W48
Application detail Standard Coverage
Connection Threaded
Connection type
Finish White
K factor metric 160
K factor nominal 11.2
Main material Brass
Maximum working pressure 12
Position Pendent
Response Quick
Size 32 mm
Size 2 1219 mm
Temperature rating 74

SAP number 19839ME/W12
Application detail Standard Coverage
Connection Threaded
Connection type
Finish White
K factor metric 160
K factor nominal 11.2
Main material Brass
Maximum working pressure 12
Position Pendent
Response Quick
Size 32 mm
Size 2 305 mm
Temperature rating 96

SAP number 19839ME/W18
Application detail Standard Coverage
Connection Threaded
Connection type
Finish White
K factor metric 160
K factor nominal 11.2
Main material Brass
Maximum working pressure 12
Position Pendent
Response Quick
Size 32 mm
Size 2 457 mm
Temperature rating 96

SAP number 19839ME/W24
Application detail Standard Coverage
Connection Threaded
Connection type
Finish White
K factor metric 160
K factor nominal 11.2
Main material Brass
Maximum working pressure 12
Position Pendent
Response Quick
Size 32 mm
Size 2 610 mm
Temperature rating 96

SAP number 19839ME/W30
Application detail Standard Coverage
Connection Threaded
Connection type
Finish White
K factor metric 160
K factor nominal 11.2
Main material Brass
Maximum working pressure 12
Position Pendent
Response Quick
Size 32 mm
Size 2 762 mm
Temperature rating 96

SAP number 19839ME/W36
Application detail Standard Coverage
Connection Threaded
Connection type
Finish White
K factor metric 160
K factor nominal 11.2
Main material Brass
Maximum working pressure 12
Position Pendent
Response Quick
Size 32 mm
Size 2 914 mm
Temperature rating 96

SAP number 19839ME/W42
Application detail Standard Coverage
Connection Threaded
Connection type
Finish White
K factor metric 160
K factor nominal 11.2
Main material Brass
Maximum working pressure 12
Position Pendent
Response Quick
Size 32 mm
Size 2 1067 mm
Temperature rating 96

SAP number 19839ME/W48
Application detail Standard Coverage
Connection Threaded
Connection type
Finish White
K factor metric 160
K factor nominal 11.2
Main material Brass
Maximum working pressure 12
Position Pendent
Response Quick
Size 32 mm
Size 2 1219 mm
Temperature rating 96

SAP number 19839MG/W12
Application detail Standard Coverage
Connection Threaded
Connection type
Finish White
K factor metric 160
K factor nominal 11.2
Main material Brass
Maximum working pressure 12
Position Pendent
Response Quick
Size 32 mm
Size 2 305 mm
Temperature rating 138

SAP number 19839MG/W18
Application detail Standard Coverage
Connection Threaded
Connection type
Finish White
K factor metric 160
K factor nominal 11.2
Main material Brass
Maximum working pressure 12
Position Pendent
Response Quick
Size 32 mm
Size 2 457 mm
Temperature rating 138

SAP number 19839MG/W24
Application detail Standard Coverage
Connection Threaded
Connection type
Finish White
K factor metric 160
K factor nominal 11.2
Main material Brass
Maximum working pressure 12
Position Pendent
Response Quick
Size 32 mm
Size 2 610 mm
Temperature rating 138

SAP number 19839MG/W30
Application detail Standard Coverage
Connection Threaded
Connection type
Finish White
K factor metric 160
K factor nominal 11.2
Main material Brass
Maximum working pressure 12
Position Pendent
Response Quick
Size 32 mm
Size 2 762 mm
Temperature rating 138

SAP number 19839MG/W36
Application detail Standard Coverage
Connection Threaded
Connection type
Finish White
K factor metric 160
K factor nominal 11.2
Main material Brass
Maximum working pressure 12
Position Pendent
Response Quick
Size 32 mm
Size 2 914 mm
Temperature rating 138

SAP number 19839MG/W42
Application detail Standard Coverage
Connection Threaded
Connection type
Finish White
K factor metric 160
K factor nominal 11.2
Main material Brass
Maximum working pressure 12
Position Pendent
Response Quick
Size 32 mm
Size 2 1067 mm
Temperature rating 138

SAP number 19839MG/W48
Application detail Standard Coverage
Connection Threaded
Connection type
Finish White
K factor metric 160
K factor nominal 11.2
Main material Brass
Maximum working pressure 12
Position Pendent
Response Quick
Size 32 mm
Size 2 1219 mm
Temperature rating 138

SAP number	Application detail	Connection	Finish	K factor metric	K factor nominal	Main material	Maximum working pressure	Position	Response	Size	Size 2	Temperature rating
19838FC12	Standard Coverage	Threaded	Chrome	160	11.2	Brass	12	Pendent	Quick	1 1/4”	305 mm	74
19838FC18	Standard Coverage	Threaded	Chrome	160	11.2	Brass	12	Pendent	Quick	1 1/4”	457 mm	74
19838FC24	Standard Coverage	Threaded	Chrome	160	11.2	Brass	12	Pendent	Quick	1 1/4”	610 mm	74
19838FC30	Standard Coverage	Threaded	Chrome	160	11.2	Brass	12	Pendent	Quick	1 1/4”	762 mm	74
19838FC36	Standard Coverage	Threaded	Chrome	160	11.2	Brass	12	Pendent	Quick	1 1/4”	914 mm	74
19838FC42	Standard Coverage	Threaded	Chrome	160	11.2	Brass	12	Pendent	Quick	1 1/4”	1067 mm	74
19838FC48	Standard Coverage	Threaded	Chrome	160	11.2	Brass	12	Pendent	Quick	1 1/4”	1219 mm	74
19838FE12	Standard Coverage	Threaded	Chrome	160	11.2	Brass	12	Pendent	Quick	1 1/4”	305 mm	96
19838FE18	Standard Coverage	Threaded	Chrome	160	11.2	Brass	12	Pendent	Quick	1 1/4”	457 mm	96
19838FE24	Standard Coverage	Threaded	Chrome	160	11.2	Brass	12	Pendent	Quick	1 1/4”	610 mm	96
19838FE30	Standard Coverage	Threaded	Chrome	160	11.2	Brass	12	Pendent	Quick	1 1/4”	762 mm	96
19838FE36	Standard Coverage	Threaded	Chrome	160	11.2	Brass	12	Pendent	Quick	1 1/4”	914 mm	96
19838FE42	Standard Coverage	Threaded	Chrome	160	11.2	Brass	12	Pendent	Quick	1 1/4”	1067 mm	96
19838FE48	Standard Coverage	Threaded	Chrome	160	11.2	Brass	12	Pendent	Quick	1 1/4”	1219 mm	96
19838FG12	Standard Coverage	Threaded	Chrome	160	11.2	Brass	12	Pendent	Quick	1 1/4”	305 mm	138
19838FG18	Standard Coverage	Threaded	Chrome	160	11.2	Brass	12	Pendent	Quick	1 1/4”	457 mm	138
19838FG24	Standard Coverage	Threaded	Chrome	160	11.2	Brass	12	Pendent	Quick	1 1/4”	610 mm	138
19838FG30	Standard Coverage	Threaded	Chrome	160	11.2	Brass	12	Pendent	Quick	1 1/4”	762 mm	138
19838FG36	Standard Coverage	Threaded	Chrome	160	11.2	Brass	12	Pendent	Quick	1 1/4”	914 mm	138
19838FG42	Standard Coverage	Threaded	Chrome	160	11.2	Brass	12	Pendent	Quick	1 1/4”	1067 mm	138
19838FG48	Standard Coverage	Threaded	Chrome	160	11.2	Brass	12	Pendent	Quick	1 1/4”	1219 mm	138
19838JNC12	Standard Coverage	Threaded	ENT	160	11.2	Brass	12	Pendent	Quick	1 1/4”	305 mm	74
19838JNC18	Standard Coverage	Threaded	ENT	160	11.2	Brass	12	Pendent	Quick	1 1/4”	457 mm	74
19838JNC24	Standard Coverage	Threaded	ENT	160	11.2	Brass	12	Pendent	Quick	1 1/4”	610 mm	74
19838JNC30	Standard Coverage	Threaded	ENT	160	11.2	Brass	12	Pendent	Quick	1 1/4”	762 mm	74
19838JNC36	Standard Coverage	Threaded	ENT	160	11.2	Brass	12	Pendent	Quick	1 1/4”	914 mm	74
19838JNC42	Standard Coverage	Threaded	ENT	160	11.2	Brass	12	Pendent	Quick	1 1/4”	1067 mm	74
19838JNC48	Standard Coverage	Threaded	ENT	160	11.2	Brass	12	Pendent	Quick	1 1/4”	1219 mm	74
19838JNE12	Standard Coverage	Threaded	ENT	160	11.2	Brass	12	Pendent	Quick	1 1/4”	305 mm	96
19838JNE18	Standard Coverage	Threaded	ENT	160	11.2	Brass	12	Pendent	Quick	1 1/4”	457 mm	96
19838JNE24	Standard Coverage	Threaded	ENT	160	11.2	Brass	12	Pendent	Quick	1 1/4”	610 mm	96
19838JNE30	Standard Coverage	Threaded	ENT	160	11.2	Brass	12	Pendent	Quick	1 1/4”	762 mm	96
19838JNE36	Standard Coverage	Threaded	ENT	160	11.2	Brass	12	Pendent	Quick	1 1/4”	914 mm	96
19838JNE42	Standard Coverage	Threaded	ENT	160	11.2	Brass	12	Pendent	Quick	1 1/4”	1067 mm	96
19838JNE48	Standard Coverage	Threaded	ENT	160	11.2	Brass	12	Pendent	Quick	1 1/4”	1219 mm	96
19838JNG12	Standard Coverage	Threaded	ENT	160	11.2	Brass	12	Pendent	Quick	1 1/4”	305 mm	138
19838JNG18	Standard Coverage	Threaded	ENT	160	11.2	Brass	12	Pendent	Quick	1 1/4”	457 mm	138
19838JNG24	Standard Coverage	Threaded	ENT	160	11.2	Brass	12	Pendent	Quick	1 1/4”	610 mm	138
19838JNG30	Standard Coverage	Threaded	ENT	160	11.2	Brass	12	Pendent	Quick	1 1/4”	762 mm	138
19838JNG36	Standard Coverage	Threaded	ENT	160	11.2	Brass	12	Pendent	Quick	1 1/4”	914 mm	138
19838JNG42	Standard Coverage	Threaded	ENT	160	11.2	Brass	12	Pendent	Quick	1 1/4”	1067 mm	138
19838JNG48	Standard Coverage	Threaded	ENT	160	11.2	Brass	12	Pendent	Quick	1 1/4”	1219 mm	138
19838MC/W12	Standard Coverage	Threaded	White	160	11.2	Brass	12	Pendent	Quick	1 1/4”	305 mm	74
19838MC/W18	Standard Coverage	Threaded	White	160	11.2	Brass	12	Pendent	Quick	1 1/4”	457 mm	74
19838MC/W24	Standard Coverage	Threaded	White	160	11.2	Brass	12	Pendent	Quick	1 1/4”	610 mm	74
19838MC/W30	Standard Coverage	Threaded	White	160	11.2	Brass	12	Pendent	Quick	1 1/4”	762 mm	74
19838MC/W36	Standard Coverage	Threaded	White	160	11.2	Brass	12	Pendent	Quick	1 1/4”	914 mm	74
19838MC/W42	Standard Coverage	Threaded	White	160	11.2	Brass	12	Pendent	Quick	1 1/4”	1067 mm	74
19838MC/W48	Standard Coverage	Threaded	White	160	11.2	Brass	12	Pendent	Quick	1 1/4”	1219 mm	74
19838ME/W12	Standard Coverage	Threaded	White	160	11.2	Brass	12	Pendent	Quick	1 1/4”	305 mm	96
19838ME/W18	Standard Coverage	Threaded	White	160	11.2	Brass	12	Pendent	Quick	1 1/4”	457 mm	96
19838ME/W24	Standard Coverage	Threaded	White	160	11.2	Brass	12	Pendent	Quick	1 1/4”	610 mm	96
19838ME/W30	Standard Coverage	Threaded	White	160	11.2	Brass	12	Pendent	Quick	1 1/4”	762 mm	96
19838ME/W36	Standard Coverage	Threaded	White	160	11.2	Brass	12	Pendent	Quick	1 1/4”	914 mm	96
19838ME/W42	Standard Coverage	Threaded	White	160	11.2	Brass	12	Pendent	Quick	1 1/4”	1067 mm	96
19838ME/W48	Standard Coverage	Threaded	White	160	11.2	Brass	12	Pendent	Quick	1 1/4”	1219 mm	96
19838MG/W12	Standard Coverage	Threaded	White	160	11.2	Brass	12	Pendent	Quick	1 1/4”	305 mm	138
19838MG/W18	Standard Coverage	Threaded	White	160	11.2	Brass	12	Pendent	Quick	1 1/4”	457 mm	138
19838MG/W24	Standard Coverage	Threaded	White	160	11.2	Brass	12	Pendent	Quick	1 1/4”	610 mm	138
19838MG/W30	Standard Coverage	Threaded	White	160	11.2	Brass	12	Pendent	Quick	1 1/4”	762 mm	138
19838MG/W36	Standard Coverage	Threaded	White	160	11.2	Brass	12	Pendent	Quick	1 1/4”	914 mm	138
19838MG/W42	Standard Coverage	Threaded	White	160	11.2	Brass	12	Pendent	Quick	1 1/4”	1067 mm	138
19838MG/W48	Standard Coverage	Threaded	White	160	11.2	Brass	12	Pendent	Quick	1 1/4”	1219 mm	138
19839FC12	Standard Coverage	Threaded	Chrome	160	11.2	Brass	12	Pendent	Quick	32 mm	305 mm	74
19839FC18	Standard Coverage	Threaded	Chrome	160	11.2	Brass	12	Pendent	Quick	32 mm	457 mm	74
19839FC24	Standard Coverage	Threaded	Chrome	160	11.2	Brass	12	Pendent	Quick	32 mm	610 mm	74
19839FC30	Standard Coverage	Threaded	Chrome	160	11.2	Brass	12	Pendent	Quick	32 mm	762 mm	74
19839FC36	Standard Coverage	Threaded	Chrome	160	11.2	Brass	12	Pendent	Quick	32 mm	914 mm	74
19839FC42	Standard Coverage	Threaded	Chrome	160	11.2	Brass	12	Pendent	Quick	32 mm	1067 mm	74
19839FC48	Standard Coverage	Threaded	Chrome	160	11.2	Brass	12	Pendent	Quick	32 mm	1219 mm	74
19839FE12	Standard Coverage	Threaded	Chrome	160	11.2	Brass	12	Pendent	Quick	32 mm	305 mm	96
19839FE18	Standard Coverage	Threaded	Chrome	160	11.2	Brass	12	Pendent	Quick	32 mm	457 mm	96
19839FE24	Standard Coverage	Threaded	Chrome	160	11.2	Brass	12	Pendent	Quick	32 mm	610 mm	96
19839FE30	Standard Coverage	Threaded	Chrome	160	11.2	Brass	12	Pendent	Quick	32 mm	762 mm	96
19839FE36	Standard Coverage	Threaded	Chrome	160	11.2	Brass	12	Pendent	Quick	32 mm	914 mm	96
19839FE42	Standard Coverage	Threaded	Chrome	160	11.2	Brass	12	Pendent	Quick	32 mm	1067 mm	96
19839FE48	Standard Coverage	Threaded	Chrome	160	11.2	Brass	12	Pendent	Quick	32 mm	1219 mm	96
19839FG12	Standard Coverage	Threaded	Chrome	160	11.2	Brass	12	Pendent	Quick	32 mm	305 mm	138
19839FG18	Standard Coverage	Threaded	Chrome	160	11.2	Brass	12	Pendent	Quick	32 mm	457 mm	138
19839FG24	Standard Coverage	Threaded	Chrome	160	11.2	Brass	12	Pendent	Quick	32 mm	610 mm	138
19839FG30	Standard Coverage	Threaded	Chrome	160	11.2	Brass	12	Pendent	Quick	32 mm	762 mm	138
19839FG36	Standard Coverage	Threaded	Chrome	160	11.2	Brass	12	Pendent	Quick	32 mm	914 mm	138
19839FG42	Standard Coverage	Threaded	Chrome	160	11.2	Brass	12	Pendent	Quick	32 mm	1067 mm	138
19839FG48	Standard Coverage	Threaded	Chrome	160	11.2	Brass	12	Pendent	Quick	32 mm	1219 mm	138
19839MC/W12	Standard Coverage	Threaded	White	160	11.2	Brass	12	Pendent	Quick	32 mm	305 mm	74
19839MC/W18	Standard Coverage	Threaded	White	160	11.2	Brass	12	Pendent	Quick	32 mm	457 mm	74
19839MC/W24	Standard Coverage	Threaded	White	160	11.2	Brass	12	Pendent	Quick	32 mm	610 mm	74
19839MC/W30	Standard Coverage	Threaded	White	160	11.2	Brass	12	Pendent	Quick	32 mm	762 mm	74
19839MC/W36	Standard Coverage	Threaded	White	160	11.2	Brass	12	Pendent	Quick	32 mm	914 mm	74
19839MC/W42	Standard Coverage	Threaded	White	160	11.2	Brass	12	Pendent	Quick	32 mm	1067 mm	74
19839MC/W48	Standard Coverage	Threaded	White	160	11.2	Brass	12	Pendent	Quick	32 mm	1219 mm	74
19839ME/W12	Standard Coverage	Threaded	White	160	11.2	Brass	12	Pendent	Quick	32 mm	305 mm	96
19839ME/W18	Standard Coverage	Threaded	White	160	11.2	Brass	12	Pendent	Quick	32 mm	457 mm	96
19839ME/W24	Standard Coverage	Threaded	White	160	11.2	Brass	12	Pendent	Quick	32 mm	610 mm	96
19839ME/W30	Standard Coverage	Threaded	White	160	11.2	Brass	12	Pendent	Quick	32 mm	762 mm	96
19839ME/W36	Standard Coverage	Threaded	White	160	11.2	Brass	12	Pendent	Quick	32 mm	914 mm	96
19839ME/W42	Standard Coverage	Threaded	White	160	11.2	Brass	12	Pendent	Quick	32 mm	1067 mm	96
19839ME/W48	Standard Coverage	Threaded	White	160	11.2	Brass	12	Pendent	Quick	32 mm	1219 mm	96
19839MG/W12	Standard Coverage	Threaded	White	160	11.2	Brass	12	Pendent	Quick	32 mm	305 mm	138
19839MG/W18	Standard Coverage	Threaded	White	160	11.2	Brass	12	Pendent	Quick	32 mm	457 mm	138
19839MG/W24	Standard Coverage	Threaded	White	160	11.2	Brass	12	Pendent	Quick	32 mm	610 mm	138
19839MG/W30	Standard Coverage	Threaded	White	160	11.2	Brass	12	Pendent	Quick	32 mm	762 mm	138
19839MG/W36	Standard Coverage	Threaded	White	160	11.2	Brass	12	Pendent	Quick	32 mm	914 mm	138
19839MG/W42	Standard Coverage	Threaded	White	160	11.2	Brass	12	Pendent	Quick	32 mm	1067 mm	138
19839MG/W48	Standard Coverage	Threaded	White	160	11.2	Brass	12	Pendent	Quick	32 mm	1219 mm	138

Additional part numbers might be available. Please refer to the technical documentation or contact your local Viking sales office for more information.

URL copied to clipboard
