VK547

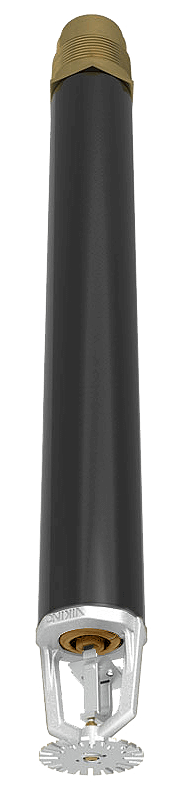

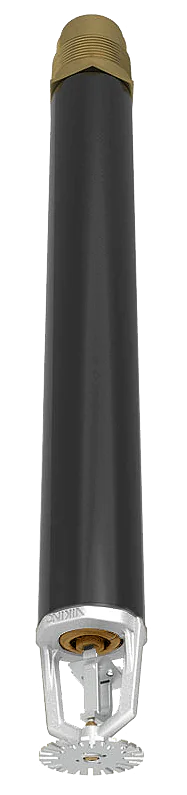

Plain Barrel QR Dry Pendent Fusible Link ELO Sprinkler
VK547 | DN32 – 1-1/4″ | K161 | Dry | Quick Response | ELO | Pendent | Fusible Link | Plain Barrel
VK547 VK547 | DN32 – 1-1/4″ | K161 | Dry | Quick Response | ELO | Pendent | Fusible Link | Plain Barrel
Documents & Resources (2)
Download all documents
Download selected files (1)
Add to download box (1)
All resources (2)
technical documentation (1)
drawings (1)
Sprinkler & Deluge
Data page
Language:
Languages
Click to select other languages
Sprinkler & Deluge
3D – Revit-BIM
Language:
Languages
Click to select other languages
Product Variants
- SAP number 19828AC12
- Application detail Standard Coverage
- Connection Threaded
- Connection type
- Finish Brass
- K factor metric 160
- K factor nominal 11.2
- Main material Brass
- Maximum working pressure 12
- Position Pendent
- Response Quick
- Size 1-1/4”
- Size 2 305 mm
- Temperature rating 74
- SAP number 19828AC18
- Application detail Standard Coverage
- Connection Threaded
- Connection type
- Finish Brass
- K factor metric 160
- K factor nominal 11.2
- Main material Brass
- Maximum working pressure 12
- Position Pendent
- Response Quick
- Size 1-1/4”
- Size 2 457 mm
- Temperature rating 74
- SAP number 19828AC24
- Application detail Standard Coverage
- Connection Threaded
- Connection type
- Finish Brass
- K factor metric 160
- K factor nominal 11.2
- Main material Brass
- Maximum working pressure 12
- Position Pendent
- Response Quick
- Size 1-1/4”
- Size 2 610 mm
- Temperature rating 74
- SAP number 19828AC30
- Application detail Standard Coverage
- Connection Threaded
- Connection type
- Finish Brass
- K factor metric 160
- K factor nominal 11.2
- Main material Brass
- Maximum working pressure 12
- Position Pendent
- Response Quick
- Size 1-1/4”
- Size 2 762 mm
- Temperature rating 74
- SAP number 19828AC36
- Application detail Standard Coverage
- Connection Threaded
- Connection type
- Finish Brass
- K factor metric 160
- K factor nominal 11.2
- Main material Brass
- Maximum working pressure 12
- Position Pendent
- Response Quick
- Size 1-1/4”
- Size 2 914 mm
- Temperature rating 74
- SAP number 19828AC42
- Application detail Standard Coverage
- Connection Threaded
- Connection type
- Finish Brass
- K factor metric 160
- K factor nominal 11.2
- Main material Brass
- Maximum working pressure 12
- Position Pendent
- Response Quick
- Size 1-1/4”
- Size 2 1067 mm
- Temperature rating 74
- SAP number 19828AC48
- Application detail Standard Coverage
- Connection Threaded
- Connection type
- Finish Brass
- K factor metric 160
- K factor nominal 11.2
- Main material Brass
- Maximum working pressure 12
- Position Pendent
- Response Quick
- Size 1-1/4”
- Size 2 1219 mm
- Temperature rating 74
- SAP number 19828AE12
- Application detail Standard Coverage
- Connection Threaded
- Connection type
- Finish Brass
- K factor metric 160
- K factor nominal 11.2
- Main material Brass
- Maximum working pressure 12
- Position Pendent
- Response Quick
- Size 1-1/4”
- Size 2 305 mm
- Temperature rating 96
- SAP number 19828AE18
- Application detail Standard Coverage
- Connection Threaded
- Connection type
- Finish Brass
- K factor metric 160
- K factor nominal 11.2
- Main material Brass
- Maximum working pressure 12
- Position Pendent
- Response Quick
- Size 1-1/4”
- Size 2 457 mm
- Temperature rating 96
- SAP number 19828AE24
- Application detail Standard Coverage
- Connection Threaded
- Connection type
- Finish Brass
- K factor metric 160
- K factor nominal 11.2
- Main material Brass
- Maximum working pressure 12
- Position Pendent
- Response Quick
- Size 1-1/4”
- Size 2 610 mm
- Temperature rating 96
- SAP number 19828AE30
- Application detail Standard Coverage
- Connection Threaded
- Connection type
- Finish Brass
- K factor metric 160
- K factor nominal 11.2
- Main material Brass
- Maximum working pressure 12
- Position Pendent
- Response Quick
- Size 1-1/4”
- Size 2 762 mm
- Temperature rating 96
- SAP number 19828AE36
- Application detail Standard Coverage
- Connection Threaded
- Connection type
- Finish Brass
- K factor metric 160
- K factor nominal 11.2
- Main material Brass
- Maximum working pressure 12
- Position Pendent
- Response Quick
- Size 1-1/4”
- Size 2 914 mm
- Temperature rating 96
- SAP number 19828AE42
- Application detail Standard Coverage
- Connection Threaded
- Connection type
- Finish Brass
- K factor metric 160
- K factor nominal 11.2
- Main material Brass
- Maximum working pressure 12
- Position Pendent
- Response Quick
- Size 1-1/4”
- Size 2 1067 mm
- Temperature rating 96
- SAP number 19828AE48
- Application detail Standard Coverage
- Connection Threaded
- Connection type
- Finish Brass
- K factor metric 160
- K factor nominal 11.2
- Main material Brass
- Maximum working pressure 12
- Position Pendent
- Response Quick
- Size 1-1/4”
- Size 2 1219 mm
- Temperature rating 96
- SAP number 19828AG12
- Application detail Standard Coverage
- Connection Threaded
- Connection type
- Finish Brass
- K factor metric 160
- K factor nominal 11.2
- Main material Brass
- Maximum working pressure 12
- Position Pendent
- Response Quick
- Size 1-1/4”
- Size 2 305 mm
- Temperature rating 138
- SAP number 19828AG18
- Application detail Standard Coverage
- Connection Threaded
- Connection type
- Finish Brass
- K factor metric 160
- K factor nominal 11.2
- Main material Brass
- Maximum working pressure 12
- Position Pendent
- Response Quick
- Size 1-1/4”
- Size 2 457 mm
- Temperature rating 138
- SAP number 19828AG24
- Application detail Standard Coverage
- Connection Threaded
- Connection type
- Finish Brass
- K factor metric 160
- K factor nominal 11.2
- Main material Brass
- Maximum working pressure 12
- Position Pendent
- Response Quick
- Size 1-1/4”
- Size 2 610 mm
- Temperature rating 138
- SAP number 19828AG30
- Application detail Standard Coverage
- Connection Threaded
- Connection type
- Finish Brass
- K factor metric 160
- K factor nominal 11.2
- Main material Brass
- Maximum working pressure 12
- Position Pendent
- Response Quick
- Size 1-1/4”
- Size 2 762 mm
- Temperature rating 138
- SAP number 19828AG36
- Application detail Standard Coverage
- Connection Threaded
- Connection type
- Finish Brass
- K factor metric 160
- K factor nominal 11.2
- Main material Brass
- Maximum working pressure 12
- Position Pendent
- Response Quick
- Size 1-1/4”
- Size 2 914 mm
- Temperature rating 138
- SAP number 19828AG42
- Application detail Standard Coverage
- Connection Threaded
- Connection type
- Finish Brass
- K factor metric 160
- K factor nominal 11.2
- Main material Brass
- Maximum working pressure 12
- Position Pendent
- Response Quick
- Size 1-1/4”
- Size 2 1067 mm
- Temperature rating 138
- SAP number 19828AG48
- Application detail Standard Coverage
- Connection Threaded
- Connection type
- Finish Brass
- K factor metric 160
- K factor nominal 11.2
- Main material Brass
- Maximum working pressure 12
- Position Pendent
- Response Quick
- Size 1-1/4”
- Size 2 1219 mm
- Temperature rating 138
- SAP number 19828FC12
- Application detail Standard Coverage
- Connection Threaded
- Connection type
- Finish Chrome
- K factor metric 160
- K factor nominal 11.2
- Main material Brass
- Maximum working pressure 12
- Position Pendent
- Response Quick
- Size 1-1/4”
- Size 2 305 mm
- Temperature rating 74
- SAP number 19828FC18
- Application detail Standard Coverage
- Connection Threaded
- Connection type
- Finish Chrome
- K factor metric 160
- K factor nominal 11.2
- Main material Brass
- Maximum working pressure 12
- Position Pendent
- Response Quick
- Size 1-1/4”
- Size 2 457 mm
- Temperature rating 74
- SAP number 19828FC24
- Application detail Standard Coverage
- Connection Threaded
- Connection type
- Finish Chrome
- K factor metric 160
- K factor nominal 11.2
- Main material Brass
- Maximum working pressure 12
- Position Pendent
- Response Quick
- Size 1-1/4”
- Size 2 610 mm
- Temperature rating 74
- SAP number 19828FC30
- Application detail Standard Coverage
- Connection Threaded
- Connection type
- Finish Chrome
- K factor metric 160
- K factor nominal 11.2
- Main material Brass
- Maximum working pressure 12
- Position Pendent
- Response Quick
- Size 1-1/4”
- Size 2 762 mm
- Temperature rating 74
- SAP number 19828FC36
- Application detail Standard Coverage
- Connection Threaded
- Connection type
- Finish Chrome
- K factor metric 160
- K factor nominal 11.2
- Main material Brass
- Maximum working pressure 12
- Position Pendent
- Response Quick
- Size 1-1/4”
- Size 2 914 mm
- Temperature rating 74
- SAP number 19828FC42
- Application detail Standard Coverage
- Connection Threaded
- Connection type
- Finish Chrome
- K factor metric 160
- K factor nominal 11.2
- Main material Brass
- Maximum working pressure 12
- Position Pendent
- Response Quick
- Size 1-1/4”
- Size 2 1067 mm
- Temperature rating 74
- SAP number 19828FC48
- Application detail Standard Coverage
- Connection Threaded
- Connection type
- Finish Chrome
- K factor metric 160
- K factor nominal 11.2
- Main material Brass
- Maximum working pressure 12
- Position Pendent
- Response Quick
- Size 1-1/4”
- Size 2 1219 mm
- Temperature rating 74
- SAP number 19828FE12
- Application detail Standard Coverage
- Connection Threaded
- Connection type
- Finish Chrome
- K factor metric 160
- K factor nominal 11.2
- Main material Brass
- Maximum working pressure 12
- Position Pendent
- Response Quick
- Size 1-1/4”
- Size 2 305 mm
- Temperature rating 96
- SAP number 19828FE18
- Application detail Standard Coverage
- Connection Threaded
- Connection type
- Finish Chrome
- K factor metric 160
- K factor nominal 11.2
- Main material Brass
- Maximum working pressure 12
- Position Pendent
- Response Quick
- Size 1-1/4”
- Size 2 457 mm
- Temperature rating 96
- SAP number 19828FE24
- Application detail Standard Coverage
- Connection Threaded
- Connection type
- Finish Chrome
- K factor metric 160
- K factor nominal 11.2
- Main material Brass
- Maximum working pressure 12
- Position Pendent
- Response Quick
- Size 1-1/4”
- Size 2 610 mm
- Temperature rating 96
- SAP number 19828FE30
- Application detail Standard Coverage
- Connection Threaded
- Connection type
- Finish Chrome
- K factor metric 160
- K factor nominal 11.2
- Main material Brass
- Maximum working pressure 12
- Position Pendent
- Response Quick
- Size 1-1/4”
- Size 2 762 mm
- Temperature rating 96
- SAP number 19828FE36
- Application detail Standard Coverage
- Connection Threaded
- Connection type
- Finish Chrome
- K factor metric 160
- K factor nominal 11.2
- Main material Brass
- Maximum working pressure 12
- Position Pendent
- Response Quick
- Size 1-1/4”
- Size 2 914 mm
- Temperature rating 96
- SAP number 19828FE42
- Application detail Standard Coverage
- Connection Threaded
- Connection type
- Finish Chrome
- K factor metric 160
- K factor nominal 11.2
- Main material Brass
- Maximum working pressure 12
- Position Pendent
- Response Quick
- Size 1-1/4”
- Size 2 1067 mm
- Temperature rating 96
- SAP number 19828FE48
- Application detail Standard Coverage
- Connection Threaded
- Connection type
- Finish Chrome
- K factor metric 160
- K factor nominal 11.2
- Main material Brass
- Maximum working pressure 12
- Position Pendent
- Response Quick
- Size 1-1/4”
- Size 2 1219 mm
- Temperature rating 96
- SAP number 19828FG12
- Application detail Standard Coverage
- Connection Threaded
- Connection type
- Finish Chrome
- K factor metric 160
- K factor nominal 11.2
- Main material Brass
- Maximum working pressure 12
- Position Pendent
- Response Quick
- Size 1-1/4”
- Size 2 305 mm
- Temperature rating 138
- SAP number 19828FG18
- Application detail Standard Coverage
- Connection Threaded
- Connection type
- Finish Chrome
- K factor metric 160
- K factor nominal 11.2
- Main material Brass
- Maximum working pressure 12
- Position Pendent
- Response Quick
- Size 1-1/4”
- Size 2 457 mm
- Temperature rating 138
- SAP number 19828FG24
- Application detail Standard Coverage
- Connection Threaded
- Connection type
- Finish Chrome
- K factor metric 160
- K factor nominal 11.2
- Main material Brass
- Maximum working pressure 12
- Position Pendent
- Response Quick
- Size 1-1/4”
- Size 2 610 mm
- Temperature rating 138
- SAP number 19828FG30
- Application detail Standard Coverage
- Connection Threaded
- Connection type
- Finish Chrome
- K factor metric 160
- K factor nominal 11.2
- Main material Brass
- Maximum working pressure 12
- Position Pendent
- Response Quick
- Size 1-1/4”
- Size 2 762 mm
- Temperature rating 138
- SAP number 19828FG36
- Application detail Standard Coverage
- Connection Threaded
- Connection type
- Finish Chrome
- K factor metric 160
- K factor nominal 11.2
- Main material Brass
- Maximum working pressure 12
- Position Pendent
- Response Quick
- Size 1-1/4”
- Size 2 914 mm
- Temperature rating 138
- SAP number 19828FG42
- Application detail Standard Coverage
- Connection Threaded
- Connection type
- Finish Chrome
- K factor metric 160
- K factor nominal 11.2
- Main material Brass
- Maximum working pressure 12
- Position Pendent
- Response Quick
- Size 1-1/4”
- Size 2 1067 mm
- Temperature rating 138
- SAP number 19828FG48
- Application detail Standard Coverage
- Connection Threaded
- Connection type
- Finish Chrome
- K factor metric 160
- K factor nominal 11.2
- Main material Brass
- Maximum working pressure 12
- Position Pendent
- Response Quick
- Size 1-1/4”
- Size 2 1219 mm
- Temperature rating 138
- SAP number 19828JNC12
- Application detail Standard Coverage
- Connection Threaded
- Connection type
- Finish ENT
- K factor metric 160
- K factor nominal 11.2
- Main material Brass
- Maximum working pressure 12
- Position Pendent
- Response Quick
- Size 1-1/4”
- Size 2 305 mm
- Temperature rating 74
- SAP number 19828JNC18
- Application detail Standard Coverage
- Connection Threaded
- Connection type
- Finish ENT
- K factor metric 160
- K factor nominal 11.2
- Main material Brass
- Maximum working pressure 12
- Position Pendent
- Response Quick
- Size 1-1/4”
- Size 2 457 mm
- Temperature rating 74
- SAP number 19828JNC24
- Application detail Standard Coverage
- Connection Threaded
- Connection type
- Finish ENT
- K factor metric 160
- K factor nominal 11.2
- Main material Brass
- Maximum working pressure 12
- Position Pendent
- Response Quick
- Size 1-1/4”
- Size 2 610 mm
- Temperature rating 74
- SAP number 19828JNC30
- Application detail Standard Coverage
- Connection Threaded
- Connection type
- Finish ENT
- K factor metric 160
- K factor nominal 11.2
- Main material Brass
- Maximum working pressure 12
- Position Pendent
- Response Quick
- Size 1-1/4”
- Size 2 762 mm
- Temperature rating 74
- SAP number 19828JNC36
- Application detail Standard Coverage
- Connection Threaded
- Connection type
- Finish ENT
- K factor metric 160
- K factor nominal 11.2
- Main material Brass
- Maximum working pressure 12
- Position Pendent
- Response Quick
- Size 1-1/4”
- Size 2 914 mm
- Temperature rating 74
- SAP number 19828JNC42
- Application detail Standard Coverage
- Connection Threaded
- Connection type
- Finish ENT
- K factor metric 160
- K factor nominal 11.2
- Main material Brass
- Maximum working pressure 12
- Position Pendent
- Response Quick
- Size 1-1/4”
- Size 2 1067 mm
- Temperature rating 74
- SAP number 19828JNC48
- Application detail Standard Coverage
- Connection Threaded
- Connection type
- Finish ENT
- K factor metric 160
- K factor nominal 11.2
- Main material Brass
- Maximum working pressure 12
- Position Pendent
- Response Quick
- Size 1-1/4”
- Size 2 1219 mm
- Temperature rating 74
- SAP number 19828JNE12
- Application detail Standard Coverage
- Connection Threaded
- Connection type
- Finish ENT
- K factor metric 160
- K factor nominal 11.2
- Main material Brass
- Maximum working pressure 12
- Position Pendent
- Response Quick
- Size 1-1/4”
- Size 2 305 mm
- Temperature rating 96
- SAP number 19828JNE18
- Application detail Standard Coverage
- Connection Threaded
- Connection type
- Finish ENT
- K factor metric 160
- K factor nominal 11.2
- Main material Brass
- Maximum working pressure 12
- Position Pendent
- Response Quick
- Size 1-1/4”
- Size 2 457 mm
- Temperature rating 96
- SAP number 19828JNE24
- Application detail Standard Coverage
- Connection Threaded
- Connection type
- Finish ENT
- K factor metric 160
- K factor nominal 11.2
- Main material Brass
- Maximum working pressure 12
- Position Pendent
- Response Quick
- Size 1-1/4”
- Size 2 610 mm
- Temperature rating 96
- SAP number 19828JNE30
- Application detail Standard Coverage
- Connection Threaded
- Connection type
- Finish ENT
- K factor metric 160
- K factor nominal 11.2
- Main material Brass
- Maximum working pressure 12
- Position Pendent
- Response Quick
- Size 1-1/4”
- Size 2 762 mm
- Temperature rating 96
- SAP number 19828JNE36
- Application detail Standard Coverage
- Connection Threaded
- Connection type
- Finish ENT
- K factor metric 160
- K factor nominal 11.2
- Main material Brass
- Maximum working pressure 12
- Position Pendent
- Response Quick
- Size 1-1/4”
- Size 2 914 mm
- Temperature rating 96
- SAP number 19828JNE42
- Application detail Standard Coverage
- Connection Threaded
- Connection type
- Finish ENT
- K factor metric 160
- K factor nominal 11.2
- Main material Brass
- Maximum working pressure 12
- Position Pendent
- Response Quick
- Size 1-1/4”
- Size 2 1067 mm
- Temperature rating 96
- SAP number 19828JNE48
- Application detail Standard Coverage
- Connection Threaded
- Connection type
- Finish ENT
- K factor metric 160
- K factor nominal 11.2
- Main material Brass
- Maximum working pressure 12
- Position Pendent
- Response Quick
- Size 1-1/4”
- Size 2 1219 mm
- Temperature rating 96
- SAP number 19828JNG12
- Application detail Standard Coverage
- Connection Threaded
- Connection type
- Finish ENT
- K factor metric 160
- K factor nominal 11.2
- Main material Brass
- Maximum working pressure 12
- Position Pendent
- Response Quick
- Size 1-1/4”
- Size 2 305 mm
- Temperature rating 138
- SAP number 19828JNG18
- Application detail Standard Coverage
- Connection Threaded
- Connection type
- Finish ENT
- K factor metric 160
- K factor nominal 11.2
- Main material Brass
- Maximum working pressure 12
- Position Pendent
- Response Quick
- Size 1-1/4”
- Size 2 457 mm
- Temperature rating 138
- SAP number 19828JNG24
- Application detail Standard Coverage
- Connection Threaded
- Connection type
- Finish ENT
- K factor metric 160
- K factor nominal 11.2
- Main material Brass
- Maximum working pressure 12
- Position Pendent
- Response Quick
- Size 1-1/4”
- Size 2 610 mm
- Temperature rating 138
- SAP number 19828JNG30
- Application detail Standard Coverage
- Connection Threaded
- Connection type
- Finish ENT
- K factor metric 160
- K factor nominal 11.2
- Main material Brass
- Maximum working pressure 12
- Position Pendent
- Response Quick
- Size 1-1/4”
- Size 2 762 mm
- Temperature rating 138
- SAP number 19828JNG36
- Application detail Standard Coverage
- Connection Threaded
- Connection type
- Finish ENT
- K factor metric 160
- K factor nominal 11.2
- Main material Brass
- Maximum working pressure 12
- Position Pendent
- Response Quick
- Size 1-1/4”
- Size 2 914 mm
- Temperature rating 138
- SAP number 19828JNG42
- Application detail Standard Coverage
- Connection Threaded
- Connection type
- Finish ENT
- K factor metric 160
- K factor nominal 11.2
- Main material Brass
- Maximum working pressure 12
- Position Pendent
- Response Quick
- Size 1-1/4”
- Size 2 1067 mm
- Temperature rating 138
- SAP number 19828JNG48
- Application detail Standard Coverage
- Connection Threaded
- Connection type
- Finish ENT
- K factor metric 160
- K factor nominal 11.2
- Main material Brass
- Maximum working pressure 12
- Position Pendent
- Response Quick
- Size 1-1/4”
- Size 2 1219 mm
- Temperature rating 138
- SAP number 19828MC/W12
- Application detail Standard Coverage
- Connection Threaded
- Connection type
- Finish White
- K factor metric 160
- K factor nominal 11.2
- Main material Brass
- Maximum working pressure 12
- Position Pendent
- Response Quick
- Size 1-1/4”
- Size 2 305 mm
- Temperature rating 74
- SAP number 19828MC/W18
- Application detail Standard Coverage
- Connection Threaded
- Connection type
- Finish White
- K factor metric 160
- K factor nominal 11.2
- Main material Brass
- Maximum working pressure 12
- Position Pendent
- Response Quick
- Size 1-1/4”
- Size 2 457 mm
- Temperature rating 74
- SAP number 19828MC/W24
- Application detail Standard Coverage
- Connection Threaded
- Connection type
- Finish White
- K factor metric 160
- K factor nominal 11.2
- Main material Brass
- Maximum working pressure 12
- Position Pendent
- Response Quick
- Size 1-1/4”
- Size 2 610 mm
- Temperature rating 74
- SAP number 19828MC/W30
- Application detail Standard Coverage
- Connection Threaded
- Connection type
- Finish White
- K factor metric 160
- K factor nominal 11.2
- Main material Brass
- Maximum working pressure 12
- Position Pendent
- Response Quick
- Size 1-1/4”
- Size 2 762 mm
- Temperature rating 74
- SAP number 19828MC/W36
- Application detail Standard Coverage
- Connection Threaded
- Connection type
- Finish White
- K factor metric 160
- K factor nominal 11.2
- Main material Brass
- Maximum working pressure 12
- Position Pendent
- Response Quick
- Size 1-1/4”
- Size 2 914 mm
- Temperature rating 74
- SAP number 19828MC/W42
- Application detail Standard Coverage
- Connection Threaded
- Connection type
- Finish White
- K factor metric 160
- K factor nominal 11.2
- Main material Brass
- Maximum working pressure 12
- Position Pendent
- Response Quick
- Size 1-1/4”
- Size 2 1067 mm
- Temperature rating 74
- SAP number 19828MC/W48
- Application detail Standard Coverage
- Connection Threaded
- Connection type
- Finish White
- K factor metric 160
- K factor nominal 11.2
- Main material Brass
- Maximum working pressure 12
- Position Pendent
- Response Quick
- Size 1-1/4”
- Size 2 1219 mm
- Temperature rating 74
- SAP number 19828ME/W12
- Application detail Standard Coverage
- Connection Threaded
- Connection type
- Finish White
- K factor metric 160
- K factor nominal 11.2
- Main material Brass
- Maximum working pressure 12
- Position Pendent
- Response Quick
- Size 1-1/4”
- Size 2 305 mm
- Temperature rating 96
- SAP number 19828ME/W18
- Application detail Standard Coverage
- Connection Threaded
- Connection type
- Finish White
- K factor metric 160
- K factor nominal 11.2
- Main material Brass
- Maximum working pressure 12
- Position Pendent
- Response Quick
- Size 1-1/4”
- Size 2 457 mm
- Temperature rating 96
- SAP number 19828ME/W24
- Application detail Standard Coverage
- Connection Threaded
- Connection type
- Finish White
- K factor metric 160
- K factor nominal 11.2
- Main material Brass
- Maximum working pressure 12
- Position Pendent
- Response Quick
- Size 1-1/4”
- Size 2 610 mm
- Temperature rating 96
- SAP number 19828ME/W30
- Application detail Standard Coverage
- Connection Threaded
- Connection type
- Finish White
- K factor metric 160
- K factor nominal 11.2
- Main material Brass
- Maximum working pressure 12
- Position Pendent
- Response Quick
- Size 1-1/4”
- Size 2 762 mm
- Temperature rating 96
- SAP number 19828ME/W36
- Application detail Standard Coverage
- Connection Threaded
- Connection type
- Finish White
- K factor metric 160
- K factor nominal 11.2
- Main material Brass
- Maximum working pressure 12
- Position Pendent
- Response Quick
- Size 1-1/4”
- Size 2 914 mm
- Temperature rating 96
- SAP number 19828ME/W42
- Application detail Standard Coverage
- Connection Threaded
- Connection type
- Finish White
- K factor metric 160
- K factor nominal 11.2
- Main material Brass
- Maximum working pressure 12
- Position Pendent
- Response Quick
- Size 1-1/4”
- Size 2 1067 mm
- Temperature rating 96
- SAP number 19828ME/W48
- Application detail Standard Coverage
- Connection Threaded
- Connection type
- Finish White
- K factor metric 160
- K factor nominal 11.2
- Main material Brass
- Maximum working pressure 12
- Position Pendent
- Response Quick
- Size 1-1/4”
- Size 2 1219 mm
- Temperature rating 96
- SAP number 19828MG/W12
- Application detail Standard Coverage
- Connection Threaded
- Connection type
- Finish White
- K factor metric 160
- K factor nominal 11.2
- Main material Brass
- Maximum working pressure 12
- Position Pendent
- Response Quick
- Size 1-1/4”
- Size 2 305 mm
- Temperature rating 138
- SAP number 19828MG/W18
- Application detail Standard Coverage
- Connection Threaded
- Connection type
- Finish White
- K factor metric 160
- K factor nominal 11.2
- Main material Brass
- Maximum working pressure 12
- Position Pendent
- Response Quick
- Size 1-1/4”
- Size 2 457 mm
- Temperature rating 138
- SAP number 19828MG/W24
- Application detail Standard Coverage
- Connection Threaded
- Connection type
- Finish White
- K factor metric 160
- K factor nominal 11.2
- Main material Brass
- Maximum working pressure 12
- Position Pendent
- Response Quick
- Size 1-1/4”
- Size 2 610 mm
- Temperature rating 138
- SAP number 19828MG/W30
- Application detail Standard Coverage
- Connection Threaded
- Connection type
- Finish White
- K factor metric 160
- K factor nominal 11.2
- Main material Brass
- Maximum working pressure 12
- Position Pendent
- Response Quick
- Size 1-1/4”
- Size 2 762 mm
- Temperature rating 138
- SAP number 19828MG/W36
- Application detail Standard Coverage
- Connection Threaded
- Connection type
- Finish White
- K factor metric 160
- K factor nominal 11.2
- Main material Brass
- Maximum working pressure 12
- Position Pendent
- Response Quick
- Size 1-1/4”
- Size 2 914 mm
- Temperature rating 138
- SAP number 19828MG/W42
- Application detail Standard Coverage
- Connection Threaded
- Connection type
- Finish White
- K factor metric 160
- K factor nominal 11.2
- Main material Brass
- Maximum working pressure 12
- Position Pendent
- Response Quick
- Size 1-1/4”
- Size 2 1067 mm
- Temperature rating 138
- SAP number 19828MG/W48
- Application detail Standard Coverage
- Connection Threaded
- Connection type
- Finish White
- K factor metric 160
- K factor nominal 11.2
- Main material Brass
- Maximum working pressure 12
- Position Pendent
- Response Quick
- Size 1-1/4”
- Size 2 1219 mm
- Temperature rating 138
- SAP number 19829AC12
- Application detail Standard Coverage
- Connection Threaded
- Connection type
- Finish Brass
- K factor metric 160
- K factor nominal 11.2
- Main material Brass
- Maximum working pressure 12
- Position Pendent
- Response Quick
- Size 32 mm
- Size 2 305 mm
- Temperature rating 74
- SAP number 19829AC18
- Application detail Standard Coverage
- Connection Threaded
- Connection type
- Finish Brass
- K factor metric 160
- K factor nominal 11.2
- Main material Brass
- Maximum working pressure 12
- Position Pendent
- Response Quick
- Size 32 mm
- Size 2 457 mm
- Temperature rating 74
- SAP number 19829AC24
- Application detail Standard Coverage
- Connection Threaded
- Connection type
- Finish Brass
- K factor metric 160
- K factor nominal 11.2
- Main material Brass
- Maximum working pressure 12
- Position Pendent
- Response Quick
- Size 32 mm
- Size 2 610 mm
- Temperature rating 74
- SAP number 19829AC30
- Application detail Standard Coverage
- Connection Threaded
- Connection type
- Finish Brass
- K factor metric 160
- K factor nominal 11.2
- Main material Brass
- Maximum working pressure 12
- Position Pendent
- Response Quick
- Size 32 mm
- Size 2 762 mm
- Temperature rating 74
- SAP number 19829AC36
- Application detail Standard Coverage
- Connection Threaded
- Connection type
- Finish Brass
- K factor metric 160
- K factor nominal 11.2
- Main material Brass
- Maximum working pressure 12
- Position Pendent
- Response Quick
- Size 32 mm
- Size 2 914 mm
- Temperature rating 74
- SAP number 19829AC48
- Application detail Standard Coverage
- Connection Threaded
- Connection type
- Finish Brass
- K factor metric 160
- K factor nominal 11.2
- Main material Brass
- Maximum working pressure 12
- Position Pendent
- Response Quick
- Size 32 mm
- Size 2 1219 mm
- Temperature rating 74
- SAP number 19829AE12
- Application detail Standard Coverage
- Connection Threaded
- Connection type
- Finish Brass
- K factor metric 160
- K factor nominal 11.2
- Main material Brass
- Maximum working pressure 12
- Position Pendent
- Response Quick
- Size 32 mm
- Size 2 305 mm
- Temperature rating 96
- SAP number 19829AE18
- Application detail Standard Coverage
- Connection Threaded
- Connection type
- Finish Brass
- K factor metric 160
- K factor nominal 11.2
- Main material Brass
- Maximum working pressure 12
- Position Pendent
- Response Quick
- Size 32 mm
- Size 2 457 mm
- Temperature rating 96
- SAP number 19829AE24
- Application detail Standard Coverage
- Connection Threaded
- Connection type
- Finish Brass
- K factor metric 160
- K factor nominal 11.2
- Main material Brass
- Maximum working pressure 12
- Position Pendent
- Response Quick
- Size 32 mm
- Size 2 610 mm
- Temperature rating 96
- SAP number 19829AE30
- Application detail Standard Coverage
- Connection Threaded
- Connection type
- Finish Brass
- K factor metric 160
- K factor nominal 11.2
- Main material Brass
- Maximum working pressure 12
- Position Pendent
- Response Quick
- Size 32 mm
- Size 2 762 mm
- Temperature rating 96
- SAP number 19829AE36
- Application detail Standard Coverage
- Connection Threaded
- Connection type
- Finish Brass
- K factor metric 160
- K factor nominal 11.2
- Main material Brass
- Maximum working pressure 12
- Position Pendent
- Response Quick
- Size 32 mm
- Size 2 914 mm
- Temperature rating 96
- SAP number 19829AE48
- Application detail Standard Coverage
- Connection Threaded
- Connection type
- Finish Brass
- K factor metric 160
- K factor nominal 11.2
- Main material Brass
- Maximum working pressure 12
- Position Pendent
- Response Quick
- Size 32 mm
- Size 2 1219 mm
- Temperature rating 96
- SAP number 19829AG12
- Application detail Standard Coverage
- Connection Threaded
- Connection type
- Finish Brass
- K factor metric 160
- K factor nominal 11.2
- Main material Brass
- Maximum working pressure 12
- Position Pendent
- Response Quick
- Size 32 mm
- Size 2 305 mm
- Temperature rating 138
- SAP number 19829AG18
- Application detail Standard Coverage
- Connection Threaded
- Connection type
- Finish Brass
- K factor metric 160
- K factor nominal 11.2
- Main material Brass
- Maximum working pressure 12
- Position Pendent
- Response Quick
- Size 32 mm
- Size 2 457 mm
- Temperature rating 138
- SAP number 19829AG24
- Application detail Standard Coverage
- Connection Threaded
- Connection type
- Finish Brass
- K factor metric 160
- K factor nominal 11.2
- Main material Brass
- Maximum working pressure 12
- Position Pendent
- Response Quick
- Size 32 mm
- Size 2 610 mm
- Temperature rating 138
- SAP number 19829AG30
- Application detail Standard Coverage
- Connection Threaded
- Connection type
- Finish Brass
- K factor metric 160
- K factor nominal 11.2
- Main material Brass
- Maximum working pressure 12
- Position Pendent
- Response Quick
- Size 32 mm
- Size 2 762 mm
- Temperature rating 138
- SAP number 19829AG36
- Application detail Standard Coverage
- Connection Threaded
- Connection type
- Finish Brass
- K factor metric 160
- K factor nominal 11.2
- Main material Brass
- Maximum working pressure 12
- Position Pendent
- Response Quick
- Size 32 mm
- Size 2 914 mm
- Temperature rating 138
- SAP number 19829AG48
- Application detail Standard Coverage
- Connection Threaded
- Connection type
- Finish Brass
- K factor metric 160
- K factor nominal 11.2
- Main material Brass
- Maximum working pressure 12
- Position Pendent
- Response Quick
- Size 32 mm
- Size 2 1219 mm
- Temperature rating 138
- SAP number 19829FC12
- Application detail Standard Coverage
- Connection Threaded
- Connection type
- Finish Chrome
- K factor metric 160
- K factor nominal 11.2
- Main material Brass
- Maximum working pressure 12
- Position Pendent
- Response Quick
- Size 32 mm
- Size 2 305 mm
- Temperature rating 74
- SAP number 19829FC18
- Application detail Standard Coverage
- Connection Threaded
- Connection type
- Finish Chrome
- K factor metric 160
- K factor nominal 11.2
- Main material Brass
- Maximum working pressure 12
- Position Pendent
- Response Quick
- Size 32 mm
- Size 2 457 mm
- Temperature rating 74
- SAP number 19829FC24
- Application detail Standard Coverage
- Connection Threaded
- Connection type
- Finish Chrome
- K factor metric 160
- K factor nominal 11.2
- Main material Brass
- Maximum working pressure 12
- Position Pendent
- Response Quick
- Size 32 mm
- Size 2 610 mm
- Temperature rating 74
- SAP number 19829FC30
- Application detail Standard Coverage
- Connection Threaded
- Connection type
- Finish Chrome
- K factor metric 160
- K factor nominal 11.2
- Main material Brass
- Maximum working pressure 12
- Position Pendent
- Response Quick
- Size 32 mm
- Size 2 762 mm
- Temperature rating 74
- SAP number 19829FC36
- Application detail Standard Coverage
- Connection Threaded
- Connection type
- Finish Chrome
- K factor metric 160
- K factor nominal 11.2
- Main material Brass
- Maximum working pressure 12
- Position Pendent
- Response Quick
- Size 32 mm
- Size 2 914 mm
- Temperature rating 74
- SAP number 19829FC42
- Application detail Standard Coverage
- Connection Threaded
- Connection type
- Finish Chrome
- K factor metric 160
- K factor nominal 11.2
- Main material Brass
- Maximum working pressure 12
- Position Pendent
- Response Quick
- Size 32 mm
- Size 2 1067 mm
- Temperature rating 74
- SAP number 19829FC48
- Application detail Standard Coverage
- Connection Threaded
- Connection type
- Finish Chrome
- K factor metric 160
- K factor nominal 11.2
- Main material Brass
- Maximum working pressure 12
- Position Pendent
- Response Quick
- Size 32 mm
- Size 2 1219 mm
- Temperature rating 74
- SAP number 19829FE12
- Application detail Standard Coverage
- Connection Threaded
- Connection type
- Finish Chrome
- K factor metric 160
- K factor nominal 11.2
- Main material Brass
- Maximum working pressure 12
- Position Pendent
- Response Quick
- Size 32 mm
- Size 2 305 mm
- Temperature rating 96
- SAP number 19829FE18
- Application detail Standard Coverage
- Connection Threaded
- Connection type
- Finish Chrome
- K factor metric 160
- K factor nominal 11.2
- Main material Brass
- Maximum working pressure 12
- Position Pendent
- Response Quick
- Size 32 mm
- Size 2 457 mm
- Temperature rating 96
- SAP number 19829FE24
- Application detail Standard Coverage
- Connection Threaded
- Connection type
- Finish Chrome
- K factor metric 160
- K factor nominal 11.2
- Main material Brass
- Maximum working pressure 12
- Position Pendent
- Response Quick
- Size 32 mm
- Size 2 610 mm
- Temperature rating 96
- SAP number 19829FE30
- Application detail Standard Coverage
- Connection Threaded
- Connection type
- Finish Chrome
- K factor metric 160
- K factor nominal 11.2
- Main material Brass
- Maximum working pressure 12
- Position Pendent
- Response Quick
- Size 32 mm
- Size 2 762 mm
- Temperature rating 96
- SAP number 19829FE36
- Application detail Standard Coverage
- Connection Threaded
- Connection type
- Finish Chrome
- K factor metric 160
- K factor nominal 11.2
- Main material Brass
- Maximum working pressure 12
- Position Pendent
- Response Quick
- Size 32 mm
- Size 2 914 mm
- Temperature rating 96
- SAP number 19829FE48
- Application detail Standard Coverage
- Connection Threaded
- Connection type
- Finish Chrome
- K factor metric 160
- K factor nominal 11.2
- Main material Brass
- Maximum working pressure 12
- Position Pendent
- Response Quick
- Size 32 mm
- Size 2 1219 mm
- Temperature rating 96
- SAP number 19829FG12
- Application detail Standard Coverage
- Connection Threaded
- Connection type
- Finish Chrome
- K factor metric 160
- K factor nominal 11.2
- Main material Brass
- Maximum working pressure 12
- Position Pendent
- Response Quick
- Size 32 mm
- Size 2 305 mm
- Temperature rating 138
- SAP number 19829FG18
- Application detail Standard Coverage
- Connection Threaded
- Connection type
- Finish Chrome
- K factor metric 160
- K factor nominal 11.2
- Main material Brass
- Maximum working pressure 12
- Position Pendent
- Response Quick
- Size 32 mm
- Size 2 457 mm
- Temperature rating 138
- SAP number 19829FG24
- Application detail Standard Coverage
- Connection Threaded
- Connection type
- Finish Chrome
- K factor metric 160
- K factor nominal 11.2
- Main material Brass
- Maximum working pressure 12
- Position Pendent
- Response Quick
- Size 32 mm
- Size 2 610 mm
- Temperature rating 138
- SAP number 19829FG30
- Application detail Standard Coverage
- Connection Threaded
- Connection type
- Finish Chrome
- K factor metric 160
- K factor nominal 11.2
- Main material Brass
- Maximum working pressure 12
- Position Pendent
- Response Quick
- Size 32 mm
- Size 2 762 mm
- Temperature rating 138
- SAP number 19829FG36
- Application detail Standard Coverage
- Connection Threaded
- Connection type
- Finish Chrome
- K factor metric 160
- K factor nominal 11.2
- Main material Brass
- Maximum working pressure 12
- Position Pendent
- Response Quick
- Size 32 mm
- Size 2 914 mm
- Temperature rating 138
- SAP number 19829FG48
- Application detail Standard Coverage
- Connection Threaded
- Connection type
- Finish Chrome
- K factor metric 160
- K factor nominal 11.2
- Main material Brass
- Maximum working pressure 12
- Position Pendent
- Response Quick
- Size 32 mm
- Size 2 1219 mm
- Temperature rating 138
- SAP number 19829MC/W12
- Application detail Standard Coverage
- Connection Threaded
- Connection type
- Finish White
- K factor metric 160
- K factor nominal 11.2
- Main material Brass
- Maximum working pressure 12
- Position Pendent
- Response Quick
- Size 32 mm
- Size 2 305 mm
- Temperature rating 74
- SAP number 19829MC/W18
- Application detail Standard Coverage
- Connection Threaded
- Connection type
- Finish White
- K factor metric 160
- K factor nominal 11.2
- Main material Brass
- Maximum working pressure 12
- Position Pendent
- Response Quick
- Size 32 mm
- Size 2 457 mm
- Temperature rating 74
- SAP number 19829MC/W24
- Application detail Standard Coverage
- Connection Threaded
- Connection type
- Finish White
- K factor metric 160
- K factor nominal 11.2
- Main material Brass
- Maximum working pressure 12
- Position Pendent
- Response Quick
- Size 32 mm
- Size 2 610 mm
- Temperature rating 74
- SAP number 19829MC/W30
- Application detail Standard Coverage
- Connection Threaded
- Connection type
- Finish White
- K factor metric 160
- K factor nominal 11.2
- Main material Brass
- Maximum working pressure 12
- Position Pendent
- Response Quick
- Size 32 mm
- Size 2 762 mm
- Temperature rating 74
- SAP number 19829MC/W36
- Application detail Standard Coverage
- Connection Threaded
- Connection type
- Finish White
- K factor metric 160
- K factor nominal 11.2
- Main material Brass
- Maximum working pressure 12
- Position Pendent
- Response Quick
- Size 32 mm
- Size 2 914 mm
- Temperature rating 74
- SAP number 19829MC/W48
- Application detail Standard Coverage
- Connection Threaded
- Connection type
- Finish White
- K factor metric 160
- K factor nominal 11.2
- Main material Brass
- Maximum working pressure 12
- Position Pendent
- Response Quick
- Size 32 mm
- Size 2 1219 mm
- Temperature rating 74
- SAP number 19829ME/W12
- Application detail Standard Coverage
- Connection Threaded
- Connection type
- Finish White
- K factor metric 160
- K factor nominal 11.2
- Main material Brass
- Maximum working pressure 12
- Position Pendent
- Response Quick
- Size 32 mm
- Size 2 305 mm
- Temperature rating 96
- SAP number 19829ME/W18
- Application detail Standard Coverage
- Connection Threaded
- Connection type
- Finish White
- K factor metric 160
- K factor nominal 11.2
- Main material Brass
- Maximum working pressure 12
- Position Pendent
- Response Quick
- Size 32 mm
- Size 2 457 mm
- Temperature rating 96
- SAP number 19829ME/W24
- Application detail Standard Coverage
- Connection Threaded
- Connection type
- Finish White
- K factor metric 160
- K factor nominal 11.2
- Main material Brass
- Maximum working pressure 12
- Position Pendent
- Response Quick
- Size 32 mm
- Size 2 610 mm
- Temperature rating 96
- SAP number 19829ME/W30
- Application detail Standard Coverage
- Connection Threaded
- Connection type
- Finish White
- K factor metric 160
- K factor nominal 11.2
- Main material Brass
- Maximum working pressure 12
- Position Pendent
- Response Quick
- Size 32 mm
- Size 2 762 mm
- Temperature rating 96
- SAP number 19829ME/W36
- Application detail Standard Coverage
- Connection Threaded
- Connection type
- Finish White
- K factor metric 160
- K factor nominal 11.2
- Main material Brass
- Maximum working pressure 12
- Position Pendent
- Response Quick
- Size 32 mm
- Size 2 914 mm
- Temperature rating 96
- SAP number 19829ME/W48
- Application detail Standard Coverage
- Connection Threaded
- Connection type
- Finish White
- K factor metric 160
- K factor nominal 11.2
- Main material Brass
- Maximum working pressure 12
- Position Pendent
- Response Quick
- Size 32 mm
- Size 2 1219 mm
- Temperature rating 96
- SAP number 19829MG/W12
- Application detail Standard Coverage
- Connection Threaded
- Connection type
- Finish White
- K factor metric 160
- K factor nominal 11.2
- Main material Brass
- Maximum working pressure 12
- Position Pendent
- Response Quick
- Size 32 mm
- Size 2 305 mm
- Temperature rating 138
- SAP number 19829MG/W18
- Application detail Standard Coverage
- Connection Threaded
- Connection type
- Finish White
- K factor metric 160
- K factor nominal 11.2
- Main material Brass
- Maximum working pressure 12
- Position Pendent
- Response Quick
- Size 32 mm
- Size 2 457 mm
- Temperature rating 138
- SAP number 19829MG/W24
- Application detail Standard Coverage
- Connection Threaded
- Connection type
- Finish White
- K factor metric 160
- K factor nominal 11.2
- Main material Brass
- Maximum working pressure 12
- Position Pendent
- Response Quick
- Size 32 mm
- Size 2 610 mm
- Temperature rating 138
- SAP number 19829MG/W30
- Application detail Standard Coverage
- Connection Threaded
- Connection type
- Finish White
- K factor metric 160
- K factor nominal 11.2
- Main material Brass
- Maximum working pressure 12
- Position Pendent
- Response Quick
- Size 32 mm
- Size 2 762 mm
- Temperature rating 138
- SAP number 19829MG/W36
- Application detail Standard Coverage
- Connection Threaded
- Connection type
- Finish White
- K factor metric 160
- K factor nominal 11.2
- Main material Brass
- Maximum working pressure 12
- Position Pendent
- Response Quick
- Size 32 mm
- Size 2 914 mm
- Temperature rating 138
- SAP number 19829MG/W48
- Application detail Standard Coverage
- Connection Threaded
- Connection type
- Finish White
- K factor metric 160
- K factor nominal 11.2
- Main material Brass
- Maximum working pressure 12
- Position Pendent
- Response Quick
- Size 32 mm
- Size 2 1219 mm
- Temperature rating 138
| SAP number | Application detail | Connection | Connection type | Finish | K factor metric | K factor nominal | Main material | Maximum working pressure | Position | Response | Size | Size 2 | Temperature rating |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| 19828AC12 | Standard Coverage |
Threaded |
Brass |
160 |
11.2 |
Brass |
12 |
Pendent |
Quick |
1 1/4” |
305 mm |
74 |
|
| 19828AC18 | Standard Coverage |
Threaded |
Brass |
160 |
11.2 |
Brass |
12 |
Pendent |
Quick |
1 1/4” |
457 mm |
74 |
|
| 19828AC24 | Standard Coverage |
Threaded |
Brass |
160 |
11.2 |
Brass |
12 |
Pendent |
Quick |
1 1/4” |
610 mm |
74 |
|
| 19828AC30 | Standard Coverage |
Threaded |
Brass |
160 |
11.2 |
Brass |
12 |
Pendent |
Quick |
1 1/4” |
762 mm |
74 |
|
| 19828AC36 | Standard Coverage |
Threaded |
Brass |
160 |
11.2 |
Brass |
12 |
Pendent |
Quick |
1 1/4” |
914 mm |
74 |
|
| 19828AC42 | Standard Coverage |
Threaded |
Brass |
160 |
11.2 |
Brass |
12 |
Pendent |
Quick |
1 1/4” |
1067 mm |
74 |
|
| 19828AC48 | Standard Coverage |
Threaded |
Brass |
160 |
11.2 |
Brass |
12 |
Pendent |
Quick |
1 1/4” |
1219 mm |
74 |
|
| 19828AE12 | Standard Coverage |
Threaded |
Brass |
160 |
11.2 |
Brass |
12 |
Pendent |
Quick |
1 1/4” |
305 mm |
96 |
|
| 19828AE18 | Standard Coverage |
Threaded |
Brass |
160 |
11.2 |
Brass |
12 |
Pendent |
Quick |
1 1/4” |
457 mm |
96 |
|
| 19828AE24 | Standard Coverage |
Threaded |
Brass |
160 |
11.2 |
Brass |
12 |
Pendent |
Quick |
1 1/4” |
610 mm |
96 |
|
| 19828AE30 | Standard Coverage |
Threaded |
Brass |
160 |
11.2 |
Brass |
12 |
Pendent |
Quick |
1 1/4” |
762 mm |
96 |
|
| 19828AE36 | Standard Coverage |
Threaded |
Brass |
160 |
11.2 |
Brass |
12 |
Pendent |
Quick |
1 1/4” |
914 mm |
96 |
|
| 19828AE42 | Standard Coverage |
Threaded |
Brass |
160 |
11.2 |
Brass |
12 |
Pendent |
Quick |
1 1/4” |
1067 mm |
96 |
|
| 19828AE48 | Standard Coverage |
Threaded |
Brass |
160 |
11.2 |
Brass |
12 |
Pendent |
Quick |
1 1/4” |
1219 mm |
96 |
|
| 19828AG12 | Standard Coverage |
Threaded |
Brass |
160 |
11.2 |
Brass |
12 |
Pendent |
Quick |
1 1/4” |
305 mm |
138 |
|
| 19828AG18 | Standard Coverage |
Threaded |
Brass |
160 |
11.2 |
Brass |
12 |
Pendent |
Quick |
1 1/4” |
457 mm |
138 |
|
| 19828AG24 | Standard Coverage |
Threaded |
Brass |
160 |
11.2 |
Brass |
12 |
Pendent |
Quick |
1 1/4” |
610 mm |
138 |
|
| 19828AG30 | Standard Coverage |
Threaded |
Brass |
160 |
11.2 |
Brass |
12 |
Pendent |
Quick |
1 1/4” |
762 mm |
138 |
|
| 19828AG36 | Standard Coverage |
Threaded |
Brass |
160 |
11.2 |
Brass |
12 |
Pendent |
Quick |
1 1/4” |
914 mm |
138 |
|
| 19828AG42 | Standard Coverage |
Threaded |
Brass |
160 |
11.2 |
Brass |
12 |
Pendent |
Quick |
1 1/4” |
1067 mm |
138 |
|
| 19828AG48 | Standard Coverage |
Threaded |
Brass |
160 |
11.2 |
Brass |
12 |
Pendent |
Quick |
1 1/4” |
1219 mm |
138 |
|
| 19828FC12 | Standard Coverage |
Threaded |
Chrome |
160 |
11.2 |
Brass |
12 |
Pendent |
Quick |
1 1/4” |
305 mm |
74 |
|
| 19828FC18 | Standard Coverage |
Threaded |
Chrome |
160 |
11.2 |
Brass |
12 |
Pendent |
Quick |
1 1/4” |
457 mm |
74 |
|
| 19828FC24 | Standard Coverage |
Threaded |
Chrome |
160 |
11.2 |
Brass |
12 |
Pendent |
Quick |
1 1/4” |
610 mm |
74 |
|
| 19828FC30 | Standard Coverage |
Threaded |
Chrome |
160 |
11.2 |
Brass |
12 |
Pendent |
Quick |
1 1/4” |
762 mm |
74 |
|
| 19828FC36 | Standard Coverage |
Threaded |
Chrome |
160 |
11.2 |
Brass |
12 |
Pendent |
Quick |
1 1/4” |
914 mm |
74 |
|
| 19828FC42 | Standard Coverage |
Threaded |
Chrome |
160 |
11.2 |
Brass |
12 |
Pendent |
Quick |
1 1/4” |
1067 mm |
74 |
|
| 19828FC48 | Standard Coverage |
Threaded |
Chrome |
160 |
11.2 |
Brass |
12 |
Pendent |
Quick |
1 1/4” |
1219 mm |
74 |
|
| 19828FE12 | Standard Coverage |
Threaded |
Chrome |
160 |
11.2 |
Brass |
12 |
Pendent |
Quick |
1 1/4” |
305 mm |
96 |
|
| 19828FE18 | Standard Coverage |
Threaded |
Chrome |
160 |
11.2 |
Brass |
12 |
Pendent |
Quick |
1 1/4” |
457 mm |
96 |
|
| 19828FE24 | Standard Coverage |
Threaded |
Chrome |
160 |
11.2 |
Brass |
12 |
Pendent |
Quick |
1 1/4” |
610 mm |
96 |
|
| 19828FE30 | Standard Coverage |
Threaded |
Chrome |
160 |
11.2 |
Brass |
12 |
Pendent |
Quick |
1 1/4” |
762 mm |
96 |
|
| 19828FE36 | Standard Coverage |
Threaded |
Chrome |
160 |
11.2 |
Brass |
12 |
Pendent |
Quick |
1 1/4” |
914 mm |
96 |
|
| 19828FE42 | Standard Coverage |
Threaded |
Chrome |
160 |
11.2 |
Brass |
12 |
Pendent |
Quick |
1 1/4” |
1067 mm |
96 |
|
| 19828FE48 | Standard Coverage |
Threaded |
Chrome |
160 |
11.2 |
Brass |
12 |
Pendent |
Quick |
1 1/4” |
1219 mm |
96 |
|
| 19828FG12 | Standard Coverage |
Threaded |
Chrome |
160 |
11.2 |
Brass |
12 |
Pendent |
Quick |
1 1/4” |
305 mm |
138 |
|
| 19828FG18 | Standard Coverage |
Threaded |
Chrome |
160 |
11.2 |
Brass |
12 |
Pendent |
Quick |
1 1/4” |
457 mm |
138 |
|
| 19828FG24 | Standard Coverage |
Threaded |
Chrome |
160 |
11.2 |
Brass |
12 |
Pendent |
Quick |
1 1/4” |
610 mm |
138 |
|
| 19828FG30 | Standard Coverage |
Threaded |
Chrome |
160 |
11.2 |
Brass |
12 |
Pendent |
Quick |
1 1/4” |
762 mm |
138 |
|
| 19828FG36 | Standard Coverage |
Threaded |
Chrome |
160 |
11.2 |
Brass |
12 |
Pendent |
Quick |
1 1/4” |
914 mm |
138 |
|
| 19828FG42 | Standard Coverage |
Threaded |
Chrome |
160 |
11.2 |
Brass |
12 |
Pendent |
Quick |
1 1/4” |
1067 mm |
138 |
|
| 19828FG48 | Standard Coverage |
Threaded |
Chrome |
160 |
11.2 |
Brass |
12 |
Pendent |
Quick |
1 1/4” |
1219 mm |
138 |
|
| 19828JNC12 | Standard Coverage |
Threaded |
ENT |
160 |
11.2 |
Brass |
12 |
Pendent |
Quick |
1 1/4” |
305 mm |
74 |
|
| 19828JNC18 | Standard Coverage |
Threaded |
ENT |
160 |
11.2 |
Brass |
12 |
Pendent |
Quick |
1 1/4” |
457 mm |
74 |
|
| 19828JNC24 | Standard Coverage |
Threaded |
ENT |
160 |
11.2 |
Brass |
12 |
Pendent |
Quick |
1 1/4” |
610 mm |
74 |
|
| 19828JNC30 | Standard Coverage |
Threaded |
ENT |
160 |
11.2 |
Brass |
12 |
Pendent |
Quick |
1 1/4” |
762 mm |
74 |
|
| 19828JNC36 | Standard Coverage |
Threaded |
ENT |
160 |
11.2 |
Brass |
12 |
Pendent |
Quick |
1 1/4” |
914 mm |
74 |
|
| 19828JNC42 | Standard Coverage |
Threaded |
ENT |
160 |
11.2 |
Brass |
12 |
Pendent |
Quick |
1 1/4” |
1067 mm |
74 |
|
| 19828JNC48 | Standard Coverage |
Threaded |
ENT |
160 |
11.2 |
Brass |
12 |
Pendent |
Quick |
1 1/4” |
1219 mm |
74 |
|
| 19828JNE12 | Standard Coverage |
Threaded |
ENT |
160 |
11.2 |
Brass |
12 |
Pendent |
Quick |
1 1/4” |
305 mm |
96 |
|
| 19828JNE18 | Standard Coverage |
Threaded |
ENT |
160 |
11.2 |
Brass |
12 |
Pendent |
Quick |
1 1/4” |
457 mm |
96 |
|
| 19828JNE24 | Standard Coverage |
Threaded |
ENT |
160 |
11.2 |
Brass |
12 |
Pendent |
Quick |
1 1/4” |
610 mm |
96 |
|
| 19828JNE30 | Standard Coverage |
Threaded |
ENT |
160 |
11.2 |
Brass |
12 |
Pendent |
Quick |
1 1/4” |
762 mm |
96 |
|
| 19828JNE36 | Standard Coverage |
Threaded |
ENT |
160 |
11.2 |
Brass |
12 |
Pendent |
Quick |
1 1/4” |
914 mm |
96 |
|
| 19828JNE42 | Standard Coverage |
Threaded |
ENT |
160 |
11.2 |
Brass |
12 |
Pendent |
Quick |
1 1/4” |
1067 mm |
96 |
|
| 19828JNE48 | Standard Coverage |
Threaded |
ENT |
160 |
11.2 |
Brass |
12 |
Pendent |
Quick |
1 1/4” |
1219 mm |
96 |
|
| 19828JNG12 | Standard Coverage |
Threaded |
ENT |
160 |
11.2 |
Brass |
12 |
Pendent |
Quick |
1 1/4” |
305 mm |
138 |
|
| 19828JNG18 | Standard Coverage |
Threaded |
ENT |
160 |
11.2 |
Brass |
12 |
Pendent |
Quick |
1 1/4” |
457 mm |
138 |
|
| 19828JNG24 | Standard Coverage |
Threaded |
ENT |
160 |
11.2 |
Brass |
12 |
Pendent |
Quick |
1 1/4” |
610 mm |
138 |
|
| 19828JNG30 | Standard Coverage |
Threaded |
ENT |
160 |
11.2 |
Brass |
12 |
Pendent |
Quick |
1 1/4” |
762 mm |
138 |
|
| 19828JNG36 | Standard Coverage |
Threaded |
ENT |
160 |
11.2 |
Brass |
12 |
Pendent |
Quick |
1 1/4” |
914 mm |
138 |
|
| 19828JNG42 | Standard Coverage |
Threaded |
ENT |
160 |
11.2 |
Brass |
12 |
Pendent |
Quick |
1 1/4” |
1067 mm |
138 |
|
| 19828JNG48 | Standard Coverage |
Threaded |
ENT |
160 |
11.2 |
Brass |
12 |
Pendent |
Quick |
1 1/4” |
1219 mm |
138 |
|
| 19828MC/W12 | Standard Coverage |
Threaded |
White |
160 |
11.2 |
Brass |
12 |
Pendent |
Quick |
1 1/4” |
305 mm |
74 |
|
| 19828MC/W18 | Standard Coverage |
Threaded |
White |
160 |
11.2 |
Brass |
12 |
Pendent |
Quick |
1 1/4” |
457 mm |
74 |
|
| 19828MC/W24 | Standard Coverage |
Threaded |
White |
160 |
11.2 |
Brass |
12 |
Pendent |
Quick |
1 1/4” |
610 mm |
74 |
|
| 19828MC/W30 | Standard Coverage |
Threaded |
White |
160 |
11.2 |
Brass |
12 |
Pendent |
Quick |
1 1/4” |
762 mm |
74 |
|
| 19828MC/W36 | Standard Coverage |
Threaded |
White |
160 |
11.2 |
Brass |
12 |
Pendent |
Quick |
1 1/4” |
914 mm |
74 |
|
| 19828MC/W42 | Standard Coverage |
Threaded |
White |
160 |
11.2 |
Brass |
12 |
Pendent |
Quick |
1 1/4” |
1067 mm |
74 |
|
| 19828MC/W48 | Standard Coverage |
Threaded |
White |
160 |
11.2 |
Brass |
12 |
Pendent |
Quick |
1 1/4” |
1219 mm |
74 |
|
| 19828ME/W12 | Standard Coverage |
Threaded |
White |
160 |
11.2 |
Brass |
12 |
Pendent |
Quick |
1 1/4” |
305 mm |
96 |
|
| 19828ME/W18 | Standard Coverage |
Threaded |
White |
160 |
11.2 |
Brass |
12 |
Pendent |
Quick |
1 1/4” |
457 mm |
96 |
|
| 19828ME/W24 | Standard Coverage |
Threaded |
White |
160 |
11.2 |
Brass |
12 |
Pendent |
Quick |
1 1/4” |
610 mm |
96 |
|
| 19828ME/W30 | Standard Coverage |
Threaded |
White |
160 |
11.2 |
Brass |
12 |
Pendent |
Quick |
1 1/4” |
762 mm |
96 |
|
| 19828ME/W36 | Standard Coverage |
Threaded |
White |
160 |
11.2 |
Brass |
12 |
Pendent |
Quick |
1 1/4” |
914 mm |
96 |
|
| 19828ME/W42 | Standard Coverage |
Threaded |
White |
160 |
11.2 |
Brass |
12 |
Pendent |
Quick |
1 1/4” |
1067 mm |
96 |
|
| 19828ME/W48 | Standard Coverage |
Threaded |
White |
160 |
11.2 |
Brass |
12 |
Pendent |
Quick |
1 1/4” |
1219 mm |
96 |
|
| 19828MG/W12 | Standard Coverage |
Threaded |
White |
160 |
11.2 |
Brass |
12 |
Pendent |
Quick |
1 1/4” |
305 mm |
138 |
|
| 19828MG/W18 | Standard Coverage |
Threaded |
White |
160 |
11.2 |
Brass |
12 |
Pendent |
Quick |
1 1/4” |
457 mm |
138 |
|
| 19828MG/W24 | Standard Coverage |
Threaded |
White |
160 |
11.2 |
Brass |
12 |
Pendent |
Quick |
1 1/4” |
610 mm |
138 |
|
| 19828MG/W30 | Standard Coverage |
Threaded |
White |
160 |
11.2 |
Brass |
12 |
Pendent |
Quick |
1 1/4” |
762 mm |
138 |
|
| 19828MG/W36 | Standard Coverage |
Threaded |
White |
160 |
11.2 |
Brass |
12 |
Pendent |
Quick |
1 1/4” |
914 mm |
138 |
|
| 19828MG/W42 | Standard Coverage |
Threaded |
White |
160 |
11.2 |
Brass |
12 |
Pendent |
Quick |
1 1/4” |
1067 mm |
138 |
|
| 19828MG/W48 | Standard Coverage |
Threaded |
White |
160 |
11.2 |
Brass |
12 |
Pendent |
Quick |
1 1/4” |
1219 mm |
138 |
|
| 19829AC12 | Standard Coverage |
Threaded |
Brass |
160 |
11.2 |
Brass |
12 |
Pendent |
Quick |
32 mm |
305 mm |
74 |
|
| 19829AC18 | Standard Coverage |
Threaded |
Brass |
160 |
11.2 |
Brass |
12 |
Pendent |
Quick |
32 mm |
457 mm |
74 |
|
| 19829AC24 | Standard Coverage |
Threaded |
Brass |
160 |
11.2 |
Brass |
12 |
Pendent |
Quick |
32 mm |
610 mm |
74 |
|
| 19829AC30 | Standard Coverage |
Threaded |
Brass |
160 |
11.2 |
Brass |
12 |
Pendent |
Quick |
32 mm |
762 mm |
74 |
|
| 19829AC36 | Standard Coverage |
Threaded |
Brass |
160 |
11.2 |
Brass |
12 |
Pendent |
Quick |
32 mm |
914 mm |
74 |
|
| 19829AC48 | Standard Coverage |
Threaded |
Brass |
160 |
11.2 |
Brass |
12 |
Pendent |
Quick |
32 mm |
1219 mm |
74 |
|
| 19829AE12 | Standard Coverage |
Threaded |
Brass |
160 |
11.2 |
Brass |
12 |
Pendent |
Quick |
32 mm |
305 mm |
96 |
|
| 19829AE18 | Standard Coverage |
Threaded |
Brass |
160 |
11.2 |
Brass |
12 |
Pendent |
Quick |
32 mm |
457 mm |
96 |
|
| 19829AE24 | Standard Coverage |
Threaded |
Brass |
160 |
11.2 |
Brass |
12 |
Pendent |
Quick |
32 mm |
610 mm |
96 |
|
| 19829AE30 | Standard Coverage |
Threaded |
Brass |
160 |
11.2 |
Brass |
12 |
Pendent |
Quick |
32 mm |
762 mm |
96 |
|
| 19829AE36 | Standard Coverage |
Threaded |
Brass |
160 |
11.2 |
Brass |
12 |
Pendent |
Quick |
32 mm |
914 mm |
96 |
|
| 19829AE48 | Standard Coverage |
Threaded |
Brass |
160 |
11.2 |
Brass |
12 |
Pendent |
Quick |
32 mm |
1219 mm |
96 |
|
| 19829AG12 | Standard Coverage |
Threaded |
Brass |
160 |
11.2 |
Brass |
12 |
Pendent |
Quick |
32 mm |
305 mm |
138 |
|
| 19829AG18 | Standard Coverage |
Threaded |
Brass |
160 |
11.2 |
Brass |
12 |
Pendent |
Quick |
32 mm |
457 mm |
138 |
|
| 19829AG24 | Standard Coverage |
Threaded |
Brass |
160 |
11.2 |
Brass |
12 |
Pendent |
Quick |
32 mm |
610 mm |
138 |
|
| 19829AG30 | Standard Coverage |
Threaded |
Brass |
160 |
11.2 |
Brass |
12 |
Pendent |
Quick |
32 mm |
762 mm |
138 |
|
| 19829AG36 | Standard Coverage |
Threaded |
Brass |
160 |
11.2 |
Brass |
12 |
Pendent |
Quick |
32 mm |
914 mm |
138 |
|
| 19829AG48 | Standard Coverage |
Threaded |
Brass |
160 |
11.2 |
Brass |
12 |
Pendent |
Quick |
32 mm |
1219 mm |
138 |
|
| 19829FC12 | Standard Coverage |
Threaded |
Chrome |
160 |
11.2 |
Brass |
12 |
Pendent |
Quick |
32 mm |
305 mm |
74 |
|
| 19829FC18 | Standard Coverage |
Threaded |
Chrome |
160 |
11.2 |
Brass |
12 |
Pendent |
Quick |
32 mm |
457 mm |
74 |
|
| 19829FC24 | Standard Coverage |
Threaded |
Chrome |
160 |
11.2 |
Brass |
12 |
Pendent |
Quick |
32 mm |
610 mm |
74 |
|
| 19829FC30 | Standard Coverage |
Threaded |
Chrome |
160 |
11.2 |
Brass |
12 |
Pendent |
Quick |
32 mm |
762 mm |
74 |
|
| 19829FC36 | Standard Coverage |
Threaded |
Chrome |
160 |
11.2 |
Brass |
12 |
Pendent |
Quick |
32 mm |
914 mm |
74 |
|
| 19829FC42 | Standard Coverage |
Threaded |
Chrome |
160 |
11.2 |
Brass |
12 |
Pendent |
Quick |
32 mm |
1067 mm |
74 |
|
| 19829FC48 | Standard Coverage |
Threaded |
Chrome |
160 |
11.2 |
Brass |
12 |
Pendent |
Quick |
32 mm |
1219 mm |
74 |
|
| 19829FE12 | Standard Coverage |
Threaded |
Chrome |
160 |
11.2 |
Brass |
12 |
Pendent |
Quick |
32 mm |
305 mm |
96 |
|
| 19829FE18 | Standard Coverage |
Threaded |
Chrome |
160 |
11.2 |
Brass |
12 |
Pendent |
Quick |
32 mm |
457 mm |
96 |
|
| 19829FE24 | Standard Coverage |
Threaded |
Chrome |
160 |
11.2 |
Brass |
12 |
Pendent |
Quick |
32 mm |
610 mm |
96 |
|
| 19829FE30 | Standard Coverage |
Threaded |
Chrome |
160 |
11.2 |
Brass |
12 |
Pendent |
Quick |
32 mm |
762 mm |
96 |
|
| 19829FE36 | Standard Coverage |
Threaded |
Chrome |
160 |
11.2 |
Brass |
12 |
Pendent |
Quick |
32 mm |
914 mm |
96 |
|
| 19829FE48 | Standard Coverage |
Threaded |
Chrome |
160 |
11.2 |
Brass |
12 |
Pendent |
Quick |
32 mm |
1219 mm |
96 |
|
| 19829FG12 | Standard Coverage |
Threaded |
Chrome |
160 |
11.2 |
Brass |
12 |
Pendent |
Quick |
32 mm |
305 mm |
138 |
|
| 19829FG18 | Standard Coverage |
Threaded |
Chrome |
160 |
11.2 |
Brass |
12 |
Pendent |
Quick |
32 mm |
457 mm |
138 |
|
| 19829FG24 | Standard Coverage |
Threaded |
Chrome |
160 |
11.2 |
Brass |
12 |
Pendent |
Quick |
32 mm |
610 mm |
138 |
|
| 19829FG30 | Standard Coverage |
Threaded |
Chrome |
160 |
11.2 |
Brass |
12 |
Pendent |
Quick |
32 mm |
762 mm |
138 |
|
| 19829FG36 | Standard Coverage |
Threaded |
Chrome |
160 |
11.2 |
Brass |
12 |
Pendent |
Quick |
32 mm |
914 mm |
138 |
|
| 19829FG48 | Standard Coverage |
Threaded |
Chrome |
160 |
11.2 |
Brass |
12 |
Pendent |
Quick |
32 mm |
1219 mm |
138 |
|
| 19829MC/W12 | Standard Coverage |
Threaded |
White |
160 |
11.2 |
Brass |
12 |
Pendent |
Quick |
32 mm |
305 mm |
74 |
|
| 19829MC/W18 | Standard Coverage |
Threaded |
White |
160 |
11.2 |
Brass |
12 |
Pendent |
Quick |
32 mm |
457 mm |
74 |
|
| 19829MC/W24 | Standard Coverage |
Threaded |
White |
160 |
11.2 |
Brass |
12 |
Pendent |
Quick |
32 mm |
610 mm |
74 |
|
| 19829MC/W30 | Standard Coverage |
Threaded |
White |
160 |
11.2 |
Brass |
12 |
Pendent |
Quick |
32 mm |
762 mm |
74 |
|
| 19829MC/W36 | Standard Coverage |
Threaded |
White |
160 |
11.2 |
Brass |
12 |
Pendent |
Quick |
32 mm |
914 mm |
74 |
|
| 19829MC/W48 | Standard Coverage |
Threaded |
White |
160 |
11.2 |
Brass |
12 |
Pendent |
Quick |
32 mm |
1219 mm |
74 |
|
| 19829ME/W12 | Standard Coverage |
Threaded |
White |
160 |
11.2 |
Brass |
12 |
Pendent |
Quick |
32 mm |
305 mm |
96 |
|
| 19829ME/W18 | Standard Coverage |
Threaded |
White |
160 |
11.2 |
Brass |
12 |
Pendent |
Quick |
32 mm |
457 mm |
96 |
|
| 19829ME/W24 | Standard Coverage |
Threaded |
White |
160 |
11.2 |
Brass |
12 |
Pendent |
Quick |
32 mm |
610 mm |
96 |
|
| 19829ME/W30 | Standard Coverage |
Threaded |
White |
160 |
11.2 |
Brass |
12 |
Pendent |
Quick |
32 mm |
762 mm |
96 |
|
| 19829ME/W36 | Standard Coverage |
Threaded |
White |
160 |
11.2 |
Brass |
12 |
Pendent |
Quick |
32 mm |
914 mm |
96 |
|
| 19829ME/W48 | Standard Coverage |
Threaded |
White |
160 |
11.2 |
Brass |
12 |
Pendent |
Quick |
32 mm |
1219 mm |
96 |
|
| 19829MG/W12 | Standard Coverage |
Threaded |
White |
160 |
11.2 |
Brass |
12 |
Pendent |
Quick |
32 mm |
305 mm |
138 |
|
| 19829MG/W18 | Standard Coverage |
Threaded |
White |
160 |
11.2 |
Brass |
12 |
Pendent |
Quick |
32 mm |
457 mm |
138 |
|
| 19829MG/W24 | Standard Coverage |
Threaded |
White |
160 |
11.2 |
Brass |
12 |
Pendent |
Quick |
32 mm |
610 mm |
138 |
|
| 19829MG/W30 | Standard Coverage |
Threaded |
White |
160 |
11.2 |
Brass |
12 |
Pendent |
Quick |
32 mm |
762 mm |
138 |
|
| 19829MG/W36 | Standard Coverage |
Threaded |
White |
160 |
11.2 |
Brass |
12 |
Pendent |
Quick |
32 mm |
914 mm |
138 |
|
| 19829MG/W48 | Standard Coverage |
Threaded |
White |
160 |
11.2 |
Brass |
12 |
Pendent |
Quick |
32 mm |
1219 mm |
138 |
Additional part numbers might be available. Please refer to the technical documentation or contact your local Viking sales office for more information.
URL copied to clipboard
