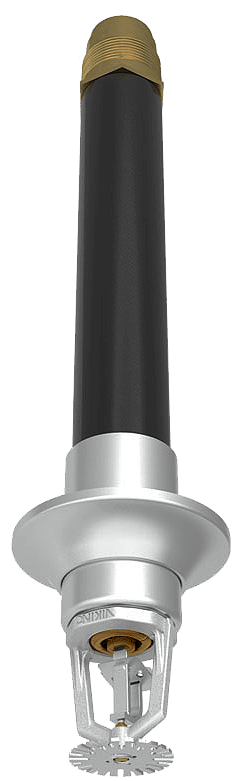

VK546

Adjustable Standard, Standard Response, ELO, Pendent, Fusible Link, Dry Sprinkler

VK546 | DN32 – 1-1/4″ | K161 | Dry | Standard Response | ELO | Pendent | Fusible Link | Adjustable Standard

VK546 VK546 | DN32 – 1-1/4″ | K161 | Dry | Standard Response | ELO | Pendent | Fusible Link | Adjustable Standard

Documents & Resources (2)

Download all documents

Download selected files (1)

Add to download box (1)

All resources (2)

technical documentation (1)

drawings (1)

Data Page | VK544-VK545-VK546 | Standard Response Dry Pendent Fusible Link ELO Sprinkler

Sprinkler & Deluge

Data page

Language:

Languages

Click to select other languages

English

Please select one language

Downloads are not available for youtube, video and external files

Revit | VK546 | Standard Response Dry Pendent Fusible Link ELO Sprinkler

Sprinkler & Deluge

3D – Revit-BIM

Language:

Languages

Click to select other languages

English

Please select one language

Downloads are not available for youtube, video and external files

Product Variants

SAP number 19840FC12
Application detail Standard Coverage
Connection Threaded
Connection type
Finish Chrome
K factor metric 160
K factor nominal 11.2
Main material Brass
Maximum working pressure 12
Position Pendent
Response Standard
Size 1-1/4”
Size 2 305 mm
Temperature rating 74

SAP number 19840FC18
Application detail Standard Coverage
Connection Threaded
Connection type
Finish Chrome
K factor metric 160
K factor nominal 11.2
Main material Brass
Maximum working pressure 12
Position Pendent
Response Standard
Size 1-1/4”
Size 2 457 mm
Temperature rating 74

SAP number 19840FC24
Application detail Standard Coverage
Connection Threaded
Connection type
Finish Chrome
K factor metric 160
K factor nominal 11.2
Main material Brass
Maximum working pressure 12
Position Pendent
Response Standard
Size 1-1/4”
Size 2 610 mm
Temperature rating 74

SAP number 19840FC30
Application detail Standard Coverage
Connection Threaded
Connection type
Finish Chrome
K factor metric 160
K factor nominal 11.2
Main material Brass
Maximum working pressure 12
Position Pendent
Response Standard
Size 1-1/4”
Size 2 762 mm
Temperature rating 74

SAP number 19840FC36
Application detail Standard Coverage
Connection Threaded
Connection type
Finish Chrome
K factor metric 160
K factor nominal 11.2
Main material Brass
Maximum working pressure 12
Position Pendent
Response Standard
Size 1-1/4”
Size 2 914 mm
Temperature rating 74

SAP number 19840FC42
Application detail Standard Coverage
Connection Threaded
Connection type
Finish Chrome
K factor metric 160
K factor nominal 11.2
Main material Brass
Maximum working pressure 12
Position Pendent
Response Standard
Size 1-1/4”
Size 2 1067 mm
Temperature rating 74

SAP number 19840FC48
Application detail Standard Coverage
Connection Threaded
Connection type
Finish Chrome
K factor metric 160
K factor nominal 11.2
Main material Brass
Maximum working pressure 12
Position Pendent
Response Standard
Size 1-1/4”
Size 2 1219 mm
Temperature rating 74

SAP number 19840FE12
Application detail Standard Coverage
Connection Threaded
Connection type
Finish Chrome
K factor metric 160
K factor nominal 11.2
Main material Brass
Maximum working pressure 12
Position Pendent
Response Standard
Size 1-1/4”
Size 2 305 mm
Temperature rating 96

SAP number 19840FE18
Application detail Standard Coverage
Connection Threaded
Connection type
Finish Chrome
K factor metric 160
K factor nominal 11.2
Main material Brass
Maximum working pressure 12
Position Pendent
Response Standard
Size 1-1/4”
Size 2 457 mm
Temperature rating 96

SAP number 19840FE24
Application detail Standard Coverage
Connection Threaded
Connection type
Finish Chrome
K factor metric 160
K factor nominal 11.2
Main material Brass
Maximum working pressure 12
Position Pendent
Response Standard
Size 1-1/4”
Size 2 610 mm
Temperature rating 96

SAP number 19840FE30
Application detail Standard Coverage
Connection Threaded
Connection type
Finish Chrome
K factor metric 160
K factor nominal 11.2
Main material Brass
Maximum working pressure 12
Position Pendent
Response Standard
Size 1-1/4”
Size 2 762 mm
Temperature rating 96

SAP number 19840FE36
Application detail Standard Coverage
Connection Threaded
Connection type
Finish Chrome
K factor metric 160
K factor nominal 11.2
Main material Brass
Maximum working pressure 12
Position Pendent
Response Standard
Size 1-1/4”
Size 2 914 mm
Temperature rating 96

SAP number 19840FE42
Application detail Standard Coverage
Connection Threaded
Connection type
Finish Chrome
K factor metric 160
K factor nominal 11.2
Main material Brass
Maximum working pressure 12
Position Pendent
Response Standard
Size 1-1/4”
Size 2 1067 mm
Temperature rating 96

SAP number 19840FE48
Application detail Standard Coverage
Connection Threaded
Connection type
Finish Chrome
K factor metric 160
K factor nominal 11.2
Main material Brass
Maximum working pressure 12
Position Pendent
Response Standard
Size 1-1/4”
Size 2 1219 mm
Temperature rating 96

SAP number 19840FG12
Application detail Standard Coverage
Connection Threaded
Connection type
Finish Chrome
K factor metric 160
K factor nominal 11.2
Main material Brass
Maximum working pressure 12
Position Pendent
Response Standard
Size 1-1/4”
Size 2 305 mm
Temperature rating 138

SAP number 19840FG18
Application detail Standard Coverage
Connection Threaded
Connection type
Finish Chrome
K factor metric 160
K factor nominal 11.2
Main material Brass
Maximum working pressure 12
Position Pendent
Response Standard
Size 1-1/4”
Size 2 457 mm
Temperature rating 138

SAP number 19840FG24
Application detail Standard Coverage
Connection Threaded
Connection type
Finish Chrome
K factor metric 160
K factor nominal 11.2
Main material Brass
Maximum working pressure 12
Position Pendent
Response Standard
Size 1-1/4”
Size 2 610 mm
Temperature rating 138

SAP number 19840FG30
Application detail Standard Coverage
Connection Threaded
Connection type
Finish Chrome
K factor metric 160
K factor nominal 11.2
Main material Brass
Maximum working pressure 12
Position Pendent
Response Standard
Size 1-1/4”
Size 2 762 mm
Temperature rating 138

SAP number 19840FG36
Application detail Standard Coverage
Connection Threaded
Connection type
Finish Chrome
K factor metric 160
K factor nominal 11.2
Main material Brass
Maximum working pressure 12
Position Pendent
Response Standard
Size 1-1/4”
Size 2 914 mm
Temperature rating 138

SAP number 19840FG42
Application detail Standard Coverage
Connection Threaded
Connection type
Finish Chrome
K factor metric 160
K factor nominal 11.2
Main material Brass
Maximum working pressure 12
Position Pendent
Response Standard
Size 1-1/4”
Size 2 1067 mm
Temperature rating 138

SAP number 19840FG48
Application detail Standard Coverage
Connection Threaded
Connection type
Finish Chrome
K factor metric 160
K factor nominal 11.2
Main material Brass
Maximum working pressure 12
Position Pendent
Response Standard
Size 1-1/4”
Size 2 1219 mm
Temperature rating 138

SAP number 19840JNC12
Application detail Standard Coverage
Connection Threaded
Connection type
Finish ENT
K factor metric 160
K factor nominal 11.2
Main material Brass
Maximum working pressure 12
Position Pendent
Response Standard
Size 1-1/4”
Size 2 305 mm
Temperature rating 74

SAP number 19840JNC18
Application detail Standard Coverage
Connection Threaded
Connection type
Finish ENT
K factor metric 160
K factor nominal 11.2
Main material Brass
Maximum working pressure 12
Position Pendent
Response Standard
Size 1-1/4”
Size 2 457 mm
Temperature rating 74

SAP number 19840JNC24
Application detail Standard Coverage
Connection Threaded
Connection type
Finish ENT
K factor metric 160
K factor nominal 11.2
Main material Brass
Maximum working pressure 12
Position Pendent
Response Standard
Size 1-1/4”
Size 2 610 mm
Temperature rating 74

SAP number 19840JNC30
Application detail Standard Coverage
Connection Threaded
Connection type
Finish ENT
K factor metric 160
K factor nominal 11.2
Main material Brass
Maximum working pressure 12
Position Pendent
Response Standard
Size 1-1/4”
Size 2 762 mm
Temperature rating 74

SAP number 19840JNC36
Application detail Standard Coverage
Connection Threaded
Connection type
Finish ENT
K factor metric 160
K factor nominal 11.2
Main material Brass
Maximum working pressure 12
Position Pendent
Response Standard
Size 1-1/4”
Size 2 914 mm
Temperature rating 74

SAP number 19840JNC42
Application detail Standard Coverage
Connection Threaded
Connection type
Finish ENT
K factor metric 160
K factor nominal 11.2
Main material Brass
Maximum working pressure 12
Position Pendent
Response Standard
Size 1-1/4”
Size 2 1067 mm
Temperature rating 74

SAP number 19840JNC48
Application detail Standard Coverage
Connection Threaded
Connection type
Finish ENT
K factor metric 160
K factor nominal 11.2
Main material Brass
Maximum working pressure 12
Position Pendent
Response Standard
Size 1-1/4”
Size 2 1219 mm
Temperature rating 74

SAP number 19840JNE12
Application detail Standard Coverage
Connection Threaded
Connection type
Finish ENT
K factor metric 160
K factor nominal 11.2
Main material Brass
Maximum working pressure 12
Position Pendent
Response Standard
Size 1-1/4”
Size 2 305 mm
Temperature rating 96

SAP number 19840JNE18
Application detail Standard Coverage
Connection Threaded
Connection type
Finish ENT
K factor metric 160
K factor nominal 11.2
Main material Brass
Maximum working pressure 12
Position Pendent
Response Standard
Size 1-1/4”
Size 2 457 mm
Temperature rating 96

SAP number 19840JNE24
Application detail Standard Coverage
Connection Threaded
Connection type
Finish ENT
K factor metric 160
K factor nominal 11.2
Main material Brass
Maximum working pressure 12
Position Pendent
Response Standard
Size 1-1/4”
Size 2 610 mm
Temperature rating 96

SAP number 19840JNE30
Application detail Standard Coverage
Connection Threaded
Connection type
Finish ENT
K factor metric 160
K factor nominal 11.2
Main material Brass
Maximum working pressure 12
Position Pendent
Response Standard
Size 1-1/4”
Size 2 762 mm
Temperature rating 96

SAP number 19840JNE36
Application detail Standard Coverage
Connection Threaded
Connection type
Finish ENT
K factor metric 160
K factor nominal 11.2
Main material Brass
Maximum working pressure 12
Position Pendent
Response Standard
Size 1-1/4”
Size 2 914 mm
Temperature rating 96

SAP number 19840JNE42
Application detail Standard Coverage
Connection Threaded
Connection type
Finish ENT
K factor metric 160
K factor nominal 11.2
Main material Brass
Maximum working pressure 12
Position Pendent
Response Standard
Size 1-1/4”
Size 2 1067 mm
Temperature rating 96

SAP number 19840JNE48
Application detail Standard Coverage
Connection Threaded
Connection type
Finish ENT
K factor metric 160
K factor nominal 11.2
Main material Brass
Maximum working pressure 12
Position Pendent
Response Standard
Size 1-1/4”
Size 2 1219 mm
Temperature rating 96

SAP number 19840JNG12
Application detail Standard Coverage
Connection Threaded
Connection type
Finish ENT
K factor metric 160
K factor nominal 11.2
Main material Brass
Maximum working pressure 12
Position Pendent
Response Standard
Size 1-1/4”
Size 2 305 mm
Temperature rating 138

SAP number 19840JNG18
Application detail Standard Coverage
Connection Threaded
Connection type
Finish ENT
K factor metric 160
K factor nominal 11.2
Main material Brass
Maximum working pressure 12
Position Pendent
Response Standard
Size 1-1/4”
Size 2 457 mm
Temperature rating 138

SAP number 19840JNG24
Application detail Standard Coverage
Connection Threaded
Connection type
Finish ENT
K factor metric 160
K factor nominal 11.2
Main material Brass
Maximum working pressure 12
Position Pendent
Response Standard
Size 1-1/4”
Size 2 610 mm
Temperature rating 138

SAP number 19840JNG30
Application detail Standard Coverage
Connection Threaded
Connection type
Finish ENT
K factor metric 160
K factor nominal 11.2
Main material Brass
Maximum working pressure 12
Position Pendent
Response Standard
Size 1-1/4”
Size 2 762 mm
Temperature rating 138

SAP number 19840JNG36
Application detail Standard Coverage
Connection Threaded
Connection type
Finish ENT
K factor metric 160
K factor nominal 11.2
Main material Brass
Maximum working pressure 12
Position Pendent
Response Standard
Size 1-1/4”
Size 2 914 mm
Temperature rating 138

SAP number 19840JNG42
Application detail Standard Coverage
Connection Threaded
Connection type
Finish ENT
K factor metric 160
K factor nominal 11.2
Main material Brass
Maximum working pressure 12
Position Pendent
Response Standard
Size 1-1/4”
Size 2 1067 mm
Temperature rating 138

SAP number 19840JNG48
Application detail Standard Coverage
Connection Threaded
Connection type
Finish ENT
K factor metric 160
K factor nominal 11.2
Main material Brass
Maximum working pressure 12
Position Pendent
Response Standard
Size 1-1/4”
Size 2 1219 mm
Temperature rating 138

SAP number 19840MC/W12
Application detail Standard Coverage
Connection Threaded
Connection type
Finish White
K factor metric 160
K factor nominal 11.2
Main material Brass
Maximum working pressure 12
Position Pendent
Response Standard
Size 1-1/4”
Size 2 305 mm
Temperature rating 74

SAP number 19840MC/W18
Application detail Standard Coverage
Connection Threaded
Connection type
Finish White
K factor metric 160
K factor nominal 11.2
Main material Brass
Maximum working pressure 12
Position Pendent
Response Standard
Size 1-1/4”
Size 2 457 mm
Temperature rating 74

SAP number 19840MC/W24
Application detail Standard Coverage
Connection Threaded
Connection type
Finish White
K factor metric 160
K factor nominal 11.2
Main material Brass
Maximum working pressure 12
Position Pendent
Response Standard
Size 1-1/4”
Size 2 610 mm
Temperature rating 74

SAP number 19840MC/W30
Application detail Standard Coverage
Connection Threaded
Connection type
Finish White
K factor metric 160
K factor nominal 11.2
Main material Brass
Maximum working pressure 12
Position Pendent
Response Standard
Size 1-1/4”
Size 2 762 mm
Temperature rating 74

SAP number 19840MC/W36
Application detail Standard Coverage
Connection Threaded
Connection type
Finish White
K factor metric 160
K factor nominal 11.2
Main material Brass
Maximum working pressure 12
Position Pendent
Response Standard
Size 1-1/4”
Size 2 914 mm
Temperature rating 74

SAP number 19840MC/W42
Application detail Standard Coverage
Connection Threaded
Connection type
Finish White
K factor metric 160
K factor nominal 11.2
Main material Brass
Maximum working pressure 12
Position Pendent
Response Standard
Size 1-1/4”
Size 2 1067 mm
Temperature rating 74

SAP number 19840MC/W48
Application detail Standard Coverage
Connection Threaded
Connection type
Finish White
K factor metric 160
K factor nominal 11.2
Main material Brass
Maximum working pressure 12
Position Pendent
Response Standard
Size 1-1/4”
Size 2 1219 mm
Temperature rating 74

SAP number 19840ME/W12
Application detail Standard Coverage
Connection Threaded
Connection type
Finish White
K factor metric 160
K factor nominal 11.2
Main material Brass
Maximum working pressure 12
Position Pendent
Response Standard
Size 1-1/4”
Size 2 305 mm
Temperature rating 96

SAP number 19840ME/W18
Application detail Standard Coverage
Connection Threaded
Connection type
Finish White
K factor metric 160
K factor nominal 11.2
Main material Brass
Maximum working pressure 12
Position Pendent
Response Standard
Size 1-1/4”
Size 2 457 mm
Temperature rating 96

SAP number 19840ME/W24
Application detail Standard Coverage
Connection Threaded
Connection type
Finish White
K factor metric 160
K factor nominal 11.2
Main material Brass
Maximum working pressure 12
Position Pendent
Response Standard
Size 1-1/4”
Size 2 610 mm
Temperature rating 96

SAP number 19840ME/W30
Application detail Standard Coverage
Connection Threaded
Connection type
Finish White
K factor metric 160
K factor nominal 11.2
Main material Brass
Maximum working pressure 12
Position Pendent
Response Standard
Size 1-1/4”
Size 2 762 mm
Temperature rating 96

SAP number 19840ME/W36
Application detail Standard Coverage
Connection Threaded
Connection type
Finish White
K factor metric 160
K factor nominal 11.2
Main material Brass
Maximum working pressure 12
Position Pendent
Response Standard
Size 1-1/4”
Size 2 914 mm
Temperature rating 96

SAP number 19840ME/W42
Application detail Standard Coverage
Connection Threaded
Connection type
Finish White
K factor metric 160
K factor nominal 11.2
Main material Brass
Maximum working pressure 12
Position Pendent
Response Standard
Size 1-1/4”
Size 2 1067 mm
Temperature rating 96

SAP number 19840ME/W48
Application detail Standard Coverage
Connection Threaded
Connection type
Finish White
K factor metric 160
K factor nominal 11.2
Main material Brass
Maximum working pressure 12
Position Pendent
Response Standard
Size 1-1/4”
Size 2 1219 mm
Temperature rating 96

SAP number 19840MG/W12
Application detail Standard Coverage
Connection Threaded
Connection type
Finish White
K factor metric 160
K factor nominal 11.2
Main material Brass
Maximum working pressure 12
Position Pendent
Response Standard
Size 1-1/4”
Size 2 305 mm
Temperature rating 138

SAP number 19840MG/W18
Application detail Standard Coverage
Connection Threaded
Connection type
Finish White
K factor metric 160
K factor nominal 11.2
Main material Brass
Maximum working pressure 12
Position Pendent
Response Standard
Size 1-1/4”
Size 2 457 mm
Temperature rating 138

SAP number 19840MG/W24
Application detail Standard Coverage
Connection Threaded
Connection type
Finish White
K factor metric 160
K factor nominal 11.2
Main material Brass
Maximum working pressure 12
Position Pendent
Response Standard
Size 1-1/4”
Size 2 610 mm
Temperature rating 138

SAP number 19840MG/W30
Application detail Standard Coverage
Connection Threaded
Connection type
Finish White
K factor metric 160
K factor nominal 11.2
Main material Brass
Maximum working pressure 12
Position Pendent
Response Standard
Size 1-1/4”
Size 2 762 mm
Temperature rating 138

SAP number 19840MG/W36
Application detail Standard Coverage
Connection Threaded
Connection type
Finish White
K factor metric 160
K factor nominal 11.2
Main material Brass
Maximum working pressure 12
Position Pendent
Response Standard
Size 1-1/4”
Size 2 914 mm
Temperature rating 138

SAP number 19840MG/W42
Application detail Standard Coverage
Connection Threaded
Connection type
Finish White
K factor metric 160
K factor nominal 11.2
Main material Brass
Maximum working pressure 12
Position Pendent
Response Standard
Size 1-1/4”
Size 2 1067 mm
Temperature rating 138

SAP number 19840MG/W48
Application detail Standard Coverage
Connection Threaded
Connection type
Finish White
K factor metric 160
K factor nominal 11.2
Main material Brass
Maximum working pressure 12
Position Pendent
Response Standard
Size 1-1/4”
Size 2 1219 mm
Temperature rating 138

SAP number 19841FC12
Application detail Standard Coverage
Connection Threaded
Connection type
Finish Chrome
K factor metric 160
K factor nominal 11.2
Main material Brass
Maximum working pressure 12
Position Pendent
Response Standard
Size 32 mm
Size 2 305 mm
Temperature rating 74

SAP number 19841FC18
Application detail Standard Coverage
Connection Threaded
Connection type
Finish Chrome
K factor metric 160
K factor nominal 11.2
Main material Brass
Maximum working pressure 12
Position Pendent
Response Standard
Size 32 mm
Size 2 457 mm
Temperature rating 74

SAP number 19841FC24
Application detail Standard Coverage
Connection Threaded
Connection type
Finish Chrome
K factor metric 160
K factor nominal 11.2
Main material Brass
Maximum working pressure 12
Position Pendent
Response Standard
Size 32 mm
Size 2 610 mm
Temperature rating 74

SAP number 19841FC30
Application detail Standard Coverage
Connection Threaded
Connection type
Finish Chrome
K factor metric 160
K factor nominal 11.2
Main material Brass
Maximum working pressure 12
Position Pendent
Response Standard
Size 32 mm
Size 2 762 mm
Temperature rating 74

SAP number 19841FC36
Application detail Standard Coverage
Connection Threaded
Connection type
Finish Chrome
K factor metric 160
K factor nominal 11.2
Main material Brass
Maximum working pressure 12
Position Pendent
Response Standard
Size 32 mm
Size 2 914 mm
Temperature rating 74

SAP number 19841FC42
Application detail Standard Coverage
Connection Threaded
Connection type
Finish Chrome
K factor metric 160
K factor nominal 11.2
Main material Brass
Maximum working pressure 12
Position Pendent
Response Standard
Size 32 mm
Size 2 1067 mm
Temperature rating 74

SAP number 19841FC48
Application detail Standard Coverage
Connection Threaded
Connection type
Finish Chrome
K factor metric 160
K factor nominal 11.2
Main material Brass
Maximum working pressure 12
Position Pendent
Response Standard
Size 32 mm
Size 2 1219 mm
Temperature rating 74

SAP number 19841FE12
Application detail Standard Coverage
Connection Threaded
Connection type
Finish Chrome
K factor metric 160
K factor nominal 11.2
Main material Brass
Maximum working pressure 12
Position Pendent
Response Standard
Size 32 mm
Size 2 305 mm
Temperature rating 96

SAP number 19841FE18
Application detail Standard Coverage
Connection Threaded
Connection type
Finish Chrome
K factor metric 160
K factor nominal 11.2
Main material Brass
Maximum working pressure 12
Position Pendent
Response Standard
Size 32 mm
Size 2 457 mm
Temperature rating 96

SAP number 19841FE24
Application detail Standard Coverage
Connection Threaded
Connection type
Finish Chrome
K factor metric 160
K factor nominal 11.2
Main material Brass
Maximum working pressure 12
Position Pendent
Response Standard
Size 32 mm
Size 2 610 mm
Temperature rating 96

SAP number 19841FE30
Application detail Standard Coverage
Connection Threaded
Connection type
Finish Chrome
K factor metric 160
K factor nominal 11.2
Main material Brass
Maximum working pressure 12
Position Pendent
Response Standard
Size 32 mm
Size 2 762 mm
Temperature rating 96

SAP number 19841FE36
Application detail Standard Coverage
Connection Threaded
Connection type
Finish Chrome
K factor metric 160
K factor nominal 11.2
Main material Brass
Maximum working pressure 12
Position Pendent
Response Standard
Size 32 mm
Size 2 914 mm
Temperature rating 96

SAP number 19841FE42
Application detail Standard Coverage
Connection Threaded
Connection type
Finish Chrome
K factor metric 160
K factor nominal 11.2
Main material Brass
Maximum working pressure 12
Position Pendent
Response Standard
Size 32 mm
Size 2 1067 mm
Temperature rating 96

SAP number 19841FE48
Application detail Standard Coverage
Connection Threaded
Connection type
Finish Chrome
K factor metric 160
K factor nominal 11.2
Main material Brass
Maximum working pressure 12
Position Pendent
Response Standard
Size 32 mm
Size 2 1219 mm
Temperature rating 96

SAP number 19841FG12
Application detail Standard Coverage
Connection Threaded
Connection type
Finish Chrome
K factor metric 160
K factor nominal 11.2
Main material Brass
Maximum working pressure 12
Position Pendent
Response Standard
Size 32 mm
Size 2 305 mm
Temperature rating 138

SAP number 19841FG18
Application detail Standard Coverage
Connection Threaded
Connection type
Finish Chrome
K factor metric 160
K factor nominal 11.2
Main material Brass
Maximum working pressure 12
Position Pendent
Response Standard
Size 32 mm
Size 2 457 mm
Temperature rating 138

SAP number 19841FG24
Application detail Standard Coverage
Connection Threaded
Connection type
Finish Chrome
K factor metric 160
K factor nominal 11.2
Main material Brass
Maximum working pressure 12
Position Pendent
Response Standard
Size 32 mm
Size 2 610 mm
Temperature rating 138

SAP number 19841FG30
Application detail Standard Coverage
Connection Threaded
Connection type
Finish Chrome
K factor metric 160
K factor nominal 11.2
Main material Brass
Maximum working pressure 12
Position Pendent
Response Standard
Size 32 mm
Size 2 762 mm
Temperature rating 138

SAP number 19841FG36
Application detail Standard Coverage
Connection Threaded
Connection type
Finish Chrome
K factor metric 160
K factor nominal 11.2
Main material Brass
Maximum working pressure 12
Position Pendent
Response Standard
Size 32 mm
Size 2 914 mm
Temperature rating 138

SAP number 19841FG42
Application detail Standard Coverage
Connection Threaded
Connection type
Finish Chrome
K factor metric 160
K factor nominal 11.2
Main material Brass
Maximum working pressure 12
Position Pendent
Response Standard
Size 32 mm
Size 2 1067 mm
Temperature rating 138

SAP number 19841FG48
Application detail Standard Coverage
Connection Threaded
Connection type
Finish Chrome
K factor metric 160
K factor nominal 11.2
Main material Brass
Maximum working pressure 12
Position Pendent
Response Standard
Size 32 mm
Size 2 1219 mm
Temperature rating 138

SAP number 19841MC/W12
Application detail Standard Coverage
Connection Threaded
Connection type
Finish White
K factor metric 160
K factor nominal 11.2
Main material Brass
Maximum working pressure 12
Position Pendent
Response Standard
Size 32 mm
Size 2 305 mm
Temperature rating 74

SAP number 19841MC/W18
Application detail Standard Coverage
Connection Threaded
Connection type
Finish White
K factor metric 160
K factor nominal 11.2
Main material Brass
Maximum working pressure 12
Position Pendent
Response Standard
Size 32 mm
Size 2 457 mm
Temperature rating 74

SAP number 19841MC/W24
Application detail Standard Coverage
Connection Threaded
Connection type
Finish White
K factor metric 160
K factor nominal 11.2
Main material Brass
Maximum working pressure 12
Position Pendent
Response Standard
Size 32 mm
Size 2 610 mm
Temperature rating 74

SAP number 19841MC/W30
Application detail Standard Coverage
Connection Threaded
Connection type
Finish White
K factor metric 160
K factor nominal 11.2
Main material Brass
Maximum working pressure 12
Position Pendent
Response Standard
Size 32 mm
Size 2 762 mm
Temperature rating 74

SAP number 19841MC/W36
Application detail Standard Coverage
Connection Threaded
Connection type
Finish White
K factor metric 160
K factor nominal 11.2
Main material Brass
Maximum working pressure 12
Position Pendent
Response Standard
Size 32 mm
Size 2 914 mm
Temperature rating 74

SAP number 19841MC/W42
Application detail Standard Coverage
Connection Threaded
Connection type
Finish White
K factor metric 160
K factor nominal 11.2
Main material Brass
Maximum working pressure 12
Position Pendent
Response Standard
Size 32 mm
Size 2 1067 mm
Temperature rating 74

SAP number 19841MC/W48
Application detail Standard Coverage
Connection Threaded
Connection type
Finish White
K factor metric 160
K factor nominal 11.2
Main material Brass
Maximum working pressure 12
Position Pendent
Response Standard
Size 32 mm
Size 2 1219 mm
Temperature rating 74

SAP number 19841ME/W12
Application detail Standard Coverage
Connection Threaded
Connection type
Finish White
K factor metric 160
K factor nominal 11.2
Main material Brass
Maximum working pressure 12
Position Pendent
Response Standard
Size 32 mm
Size 2 305 mm
Temperature rating 96

SAP number 19841ME/W18
Application detail Standard Coverage
Connection Threaded
Connection type
Finish White
K factor metric 160
K factor nominal 11.2
Main material Brass
Maximum working pressure 12
Position Pendent
Response Standard
Size 32 mm
Size 2 457 mm
Temperature rating 96

SAP number 19841ME/W24
Application detail Standard Coverage
Connection Threaded
Connection type
Finish White
K factor metric 160
K factor nominal 11.2
Main material Brass
Maximum working pressure 12
Position Pendent
Response Standard
Size 32 mm
Size 2 610 mm
Temperature rating 96

SAP number 19841ME/W30
Application detail Standard Coverage
Connection Threaded
Connection type
Finish White
K factor metric 160
K factor nominal 11.2
Main material Brass
Maximum working pressure 12
Position Pendent
Response Standard
Size 32 mm
Size 2 762 mm
Temperature rating 96

SAP number 19841ME/W36
Application detail Standard Coverage
Connection Threaded
Connection type
Finish White
K factor metric 160
K factor nominal 11.2
Main material Brass
Maximum working pressure 12
Position Pendent
Response Standard
Size 32 mm
Size 2 914 mm
Temperature rating 96

SAP number 19841ME/W42
Application detail Standard Coverage
Connection Threaded
Connection type
Finish White
K factor metric 160
K factor nominal 11.2
Main material Brass
Maximum working pressure 12
Position Pendent
Response Standard
Size 32 mm
Size 2 1067 mm
Temperature rating 96

SAP number 19841ME/W48
Application detail Standard Coverage
Connection Threaded
Connection type
Finish White
K factor metric 160
K factor nominal 11.2
Main material Brass
Maximum working pressure 12
Position Pendent
Response Standard
Size 32 mm
Size 2 1219 mm
Temperature rating 96

SAP number 19841MG/W12
Application detail Standard Coverage
Connection Threaded
Connection type
Finish White
K factor metric 160
K factor nominal 11.2
Main material Brass
Maximum working pressure 12
Position Pendent
Response Standard
Size 32 mm
Size 2 305 mm
Temperature rating 138

SAP number 19841MG/W18
Application detail Standard Coverage
Connection Threaded
Connection type
Finish White
K factor metric 160
K factor nominal 11.2
Main material Brass
Maximum working pressure 12
Position Pendent
Response Standard
Size 32 mm
Size 2 457 mm
Temperature rating 138

SAP number 19841MG/W24
Application detail Standard Coverage
Connection Threaded
Connection type
Finish White
K factor metric 160
K factor nominal 11.2
Main material Brass
Maximum working pressure 12
Position Pendent
Response Standard
Size 32 mm
Size 2 610 mm
Temperature rating 138

SAP number 19841MG/W30
Application detail Standard Coverage
Connection Threaded
Connection type
Finish White
K factor metric 160
K factor nominal 11.2
Main material Brass
Maximum working pressure 12
Position Pendent
Response Standard
Size 32 mm
Size 2 762 mm
Temperature rating 138

SAP number 19841MG/W36
Application detail Standard Coverage
Connection Threaded
Connection type
Finish White
K factor metric 160
K factor nominal 11.2
Main material Brass
Maximum working pressure 12
Position Pendent
Response Standard
Size 32 mm
Size 2 914 mm
Temperature rating 138

SAP number 19841MG/W42
Application detail Standard Coverage
Connection Threaded
Connection type
Finish White
K factor metric 160
K factor nominal 11.2
Main material Brass
Maximum working pressure 12
Position Pendent
Response Standard
Size 32 mm
Size 2 1067 mm
Temperature rating 138

SAP number 19841MG/W48
Application detail Standard Coverage
Connection Threaded
Connection type
Finish White
K factor metric 160
K factor nominal 11.2
Main material Brass
Maximum working pressure 12
Position Pendent
Response Standard
Size 32 mm
Size 2 1219 mm
Temperature rating 138

SAP number	Application detail	Connection	Finish	K factor metric	K factor nominal	Main material	Maximum working pressure	Position	Response	Size	Size 2	Temperature rating
19840FC12	Standard Coverage	Threaded	Chrome	160	11.2	Brass	12	Pendent	Standard	1 1/4”	305 mm	74
19840FC18	Standard Coverage	Threaded	Chrome	160	11.2	Brass	12	Pendent	Standard	1 1/4”	457 mm	74
19840FC24	Standard Coverage	Threaded	Chrome	160	11.2	Brass	12	Pendent	Standard	1 1/4”	610 mm	74
19840FC30	Standard Coverage	Threaded	Chrome	160	11.2	Brass	12	Pendent	Standard	1 1/4”	762 mm	74
19840FC36	Standard Coverage	Threaded	Chrome	160	11.2	Brass	12	Pendent	Standard	1 1/4”	914 mm	74
19840FC42	Standard Coverage	Threaded	Chrome	160	11.2	Brass	12	Pendent	Standard	1 1/4”	1067 mm	74
19840FC48	Standard Coverage	Threaded	Chrome	160	11.2	Brass	12	Pendent	Standard	1 1/4”	1219 mm	74
19840FE12	Standard Coverage	Threaded	Chrome	160	11.2	Brass	12	Pendent	Standard	1 1/4”	305 mm	96
19840FE18	Standard Coverage	Threaded	Chrome	160	11.2	Brass	12	Pendent	Standard	1 1/4”	457 mm	96
19840FE24	Standard Coverage	Threaded	Chrome	160	11.2	Brass	12	Pendent	Standard	1 1/4”	610 mm	96
19840FE30	Standard Coverage	Threaded	Chrome	160	11.2	Brass	12	Pendent	Standard	1 1/4”	762 mm	96
19840FE36	Standard Coverage	Threaded	Chrome	160	11.2	Brass	12	Pendent	Standard	1 1/4”	914 mm	96
19840FE42	Standard Coverage	Threaded	Chrome	160	11.2	Brass	12	Pendent	Standard	1 1/4”	1067 mm	96
19840FE48	Standard Coverage	Threaded	Chrome	160	11.2	Brass	12	Pendent	Standard	1 1/4”	1219 mm	96
19840FG12	Standard Coverage	Threaded	Chrome	160	11.2	Brass	12	Pendent	Standard	1 1/4”	305 mm	138
19840FG18	Standard Coverage	Threaded	Chrome	160	11.2	Brass	12	Pendent	Standard	1 1/4”	457 mm	138
19840FG24	Standard Coverage	Threaded	Chrome	160	11.2	Brass	12	Pendent	Standard	1 1/4”	610 mm	138
19840FG30	Standard Coverage	Threaded	Chrome	160	11.2	Brass	12	Pendent	Standard	1 1/4”	762 mm	138
19840FG36	Standard Coverage	Threaded	Chrome	160	11.2	Brass	12	Pendent	Standard	1 1/4”	914 mm	138
19840FG42	Standard Coverage	Threaded	Chrome	160	11.2	Brass	12	Pendent	Standard	1 1/4”	1067 mm	138
19840FG48	Standard Coverage	Threaded	Chrome	160	11.2	Brass	12	Pendent	Standard	1 1/4”	1219 mm	138
19840JNC12	Standard Coverage	Threaded	ENT	160	11.2	Brass	12	Pendent	Standard	1 1/4”	305 mm	74
19840JNC18	Standard Coverage	Threaded	ENT	160	11.2	Brass	12	Pendent	Standard	1 1/4”	457 mm	74
19840JNC24	Standard Coverage	Threaded	ENT	160	11.2	Brass	12	Pendent	Standard	1 1/4”	610 mm	74
19840JNC30	Standard Coverage	Threaded	ENT	160	11.2	Brass	12	Pendent	Standard	1 1/4”	762 mm	74
19840JNC36	Standard Coverage	Threaded	ENT	160	11.2	Brass	12	Pendent	Standard	1 1/4”	914 mm	74
19840JNC42	Standard Coverage	Threaded	ENT	160	11.2	Brass	12	Pendent	Standard	1 1/4”	1067 mm	74
19840JNC48	Standard Coverage	Threaded	ENT	160	11.2	Brass	12	Pendent	Standard	1 1/4”	1219 mm	74
19840JNE12	Standard Coverage	Threaded	ENT	160	11.2	Brass	12	Pendent	Standard	1 1/4”	305 mm	96
19840JNE18	Standard Coverage	Threaded	ENT	160	11.2	Brass	12	Pendent	Standard	1 1/4”	457 mm	96
19840JNE24	Standard Coverage	Threaded	ENT	160	11.2	Brass	12	Pendent	Standard	1 1/4”	610 mm	96
19840JNE30	Standard Coverage	Threaded	ENT	160	11.2	Brass	12	Pendent	Standard	1 1/4”	762 mm	96
19840JNE36	Standard Coverage	Threaded	ENT	160	11.2	Brass	12	Pendent	Standard	1 1/4”	914 mm	96
19840JNE42	Standard Coverage	Threaded	ENT	160	11.2	Brass	12	Pendent	Standard	1 1/4”	1067 mm	96
19840JNE48	Standard Coverage	Threaded	ENT	160	11.2	Brass	12	Pendent	Standard	1 1/4”	1219 mm	96
19840JNG12	Standard Coverage	Threaded	ENT	160	11.2	Brass	12	Pendent	Standard	1 1/4”	305 mm	138
19840JNG18	Standard Coverage	Threaded	ENT	160	11.2	Brass	12	Pendent	Standard	1 1/4”	457 mm	138
19840JNG24	Standard Coverage	Threaded	ENT	160	11.2	Brass	12	Pendent	Standard	1 1/4”	610 mm	138
19840JNG30	Standard Coverage	Threaded	ENT	160	11.2	Brass	12	Pendent	Standard	1 1/4”	762 mm	138
19840JNG36	Standard Coverage	Threaded	ENT	160	11.2	Brass	12	Pendent	Standard	1 1/4”	914 mm	138
19840JNG42	Standard Coverage	Threaded	ENT	160	11.2	Brass	12	Pendent	Standard	1 1/4”	1067 mm	138
19840JNG48	Standard Coverage	Threaded	ENT	160	11.2	Brass	12	Pendent	Standard	1 1/4”	1219 mm	138
19840MC/W12	Standard Coverage	Threaded	White	160	11.2	Brass	12	Pendent	Standard	1 1/4”	305 mm	74
19840MC/W18	Standard Coverage	Threaded	White	160	11.2	Brass	12	Pendent	Standard	1 1/4”	457 mm	74
19840MC/W24	Standard Coverage	Threaded	White	160	11.2	Brass	12	Pendent	Standard	1 1/4”	610 mm	74
19840MC/W30	Standard Coverage	Threaded	White	160	11.2	Brass	12	Pendent	Standard	1 1/4”	762 mm	74
19840MC/W36	Standard Coverage	Threaded	White	160	11.2	Brass	12	Pendent	Standard	1 1/4”	914 mm	74
19840MC/W42	Standard Coverage	Threaded	White	160	11.2	Brass	12	Pendent	Standard	1 1/4”	1067 mm	74
19840MC/W48	Standard Coverage	Threaded	White	160	11.2	Brass	12	Pendent	Standard	1 1/4”	1219 mm	74
19840ME/W12	Standard Coverage	Threaded	White	160	11.2	Brass	12	Pendent	Standard	1 1/4”	305 mm	96
19840ME/W18	Standard Coverage	Threaded	White	160	11.2	Brass	12	Pendent	Standard	1 1/4”	457 mm	96
19840ME/W24	Standard Coverage	Threaded	White	160	11.2	Brass	12	Pendent	Standard	1 1/4”	610 mm	96
19840ME/W30	Standard Coverage	Threaded	White	160	11.2	Brass	12	Pendent	Standard	1 1/4”	762 mm	96
19840ME/W36	Standard Coverage	Threaded	White	160	11.2	Brass	12	Pendent	Standard	1 1/4”	914 mm	96
19840ME/W42	Standard Coverage	Threaded	White	160	11.2	Brass	12	Pendent	Standard	1 1/4”	1067 mm	96
19840ME/W48	Standard Coverage	Threaded	White	160	11.2	Brass	12	Pendent	Standard	1 1/4”	1219 mm	96
19840MG/W12	Standard Coverage	Threaded	White	160	11.2	Brass	12	Pendent	Standard	1 1/4”	305 mm	138
19840MG/W18	Standard Coverage	Threaded	White	160	11.2	Brass	12	Pendent	Standard	1 1/4”	457 mm	138
19840MG/W24	Standard Coverage	Threaded	White	160	11.2	Brass	12	Pendent	Standard	1 1/4”	610 mm	138
19840MG/W30	Standard Coverage	Threaded	White	160	11.2	Brass	12	Pendent	Standard	1 1/4”	762 mm	138
19840MG/W36	Standard Coverage	Threaded	White	160	11.2	Brass	12	Pendent	Standard	1 1/4”	914 mm	138
19840MG/W42	Standard Coverage	Threaded	White	160	11.2	Brass	12	Pendent	Standard	1 1/4”	1067 mm	138
19840MG/W48	Standard Coverage	Threaded	White	160	11.2	Brass	12	Pendent	Standard	1 1/4”	1219 mm	138
19841FC12	Standard Coverage	Threaded	Chrome	160	11.2	Brass	12	Pendent	Standard	32 mm	305 mm	74
19841FC18	Standard Coverage	Threaded	Chrome	160	11.2	Brass	12	Pendent	Standard	32 mm	457 mm	74
19841FC24	Standard Coverage	Threaded	Chrome	160	11.2	Brass	12	Pendent	Standard	32 mm	610 mm	74
19841FC30	Standard Coverage	Threaded	Chrome	160	11.2	Brass	12	Pendent	Standard	32 mm	762 mm	74
19841FC36	Standard Coverage	Threaded	Chrome	160	11.2	Brass	12	Pendent	Standard	32 mm	914 mm	74
19841FC42	Standard Coverage	Threaded	Chrome	160	11.2	Brass	12	Pendent	Standard	32 mm	1067 mm	74
19841FC48	Standard Coverage	Threaded	Chrome	160	11.2	Brass	12	Pendent	Standard	32 mm	1219 mm	74
19841FE12	Standard Coverage	Threaded	Chrome	160	11.2	Brass	12	Pendent	Standard	32 mm	305 mm	96
19841FE18	Standard Coverage	Threaded	Chrome	160	11.2	Brass	12	Pendent	Standard	32 mm	457 mm	96
19841FE24	Standard Coverage	Threaded	Chrome	160	11.2	Brass	12	Pendent	Standard	32 mm	610 mm	96
19841FE30	Standard Coverage	Threaded	Chrome	160	11.2	Brass	12	Pendent	Standard	32 mm	762 mm	96
19841FE36	Standard Coverage	Threaded	Chrome	160	11.2	Brass	12	Pendent	Standard	32 mm	914 mm	96
19841FE42	Standard Coverage	Threaded	Chrome	160	11.2	Brass	12	Pendent	Standard	32 mm	1067 mm	96
19841FE48	Standard Coverage	Threaded	Chrome	160	11.2	Brass	12	Pendent	Standard	32 mm	1219 mm	96
19841FG12	Standard Coverage	Threaded	Chrome	160	11.2	Brass	12	Pendent	Standard	32 mm	305 mm	138
19841FG18	Standard Coverage	Threaded	Chrome	160	11.2	Brass	12	Pendent	Standard	32 mm	457 mm	138
19841FG24	Standard Coverage	Threaded	Chrome	160	11.2	Brass	12	Pendent	Standard	32 mm	610 mm	138
19841FG30	Standard Coverage	Threaded	Chrome	160	11.2	Brass	12	Pendent	Standard	32 mm	762 mm	138
19841FG36	Standard Coverage	Threaded	Chrome	160	11.2	Brass	12	Pendent	Standard	32 mm	914 mm	138
19841FG42	Standard Coverage	Threaded	Chrome	160	11.2	Brass	12	Pendent	Standard	32 mm	1067 mm	138
19841FG48	Standard Coverage	Threaded	Chrome	160	11.2	Brass	12	Pendent	Standard	32 mm	1219 mm	138
19841MC/W12	Standard Coverage	Threaded	White	160	11.2	Brass	12	Pendent	Standard	32 mm	305 mm	74
19841MC/W18	Standard Coverage	Threaded	White	160	11.2	Brass	12	Pendent	Standard	32 mm	457 mm	74
19841MC/W24	Standard Coverage	Threaded	White	160	11.2	Brass	12	Pendent	Standard	32 mm	610 mm	74
19841MC/W30	Standard Coverage	Threaded	White	160	11.2	Brass	12	Pendent	Standard	32 mm	762 mm	74
19841MC/W36	Standard Coverage	Threaded	White	160	11.2	Brass	12	Pendent	Standard	32 mm	914 mm	74
19841MC/W42	Standard Coverage	Threaded	White	160	11.2	Brass	12	Pendent	Standard	32 mm	1067 mm	74
19841MC/W48	Standard Coverage	Threaded	White	160	11.2	Brass	12	Pendent	Standard	32 mm	1219 mm	74
19841ME/W12	Standard Coverage	Threaded	White	160	11.2	Brass	12	Pendent	Standard	32 mm	305 mm	96
19841ME/W18	Standard Coverage	Threaded	White	160	11.2	Brass	12	Pendent	Standard	32 mm	457 mm	96
19841ME/W24	Standard Coverage	Threaded	White	160	11.2	Brass	12	Pendent	Standard	32 mm	610 mm	96
19841ME/W30	Standard Coverage	Threaded	White	160	11.2	Brass	12	Pendent	Standard	32 mm	762 mm	96
19841ME/W36	Standard Coverage	Threaded	White	160	11.2	Brass	12	Pendent	Standard	32 mm	914 mm	96
19841ME/W42	Standard Coverage	Threaded	White	160	11.2	Brass	12	Pendent	Standard	32 mm	1067 mm	96
19841ME/W48	Standard Coverage	Threaded	White	160	11.2	Brass	12	Pendent	Standard	32 mm	1219 mm	96
19841MG/W12	Standard Coverage	Threaded	White	160	11.2	Brass	12	Pendent	Standard	32 mm	305 mm	138
19841MG/W18	Standard Coverage	Threaded	White	160	11.2	Brass	12	Pendent	Standard	32 mm	457 mm	138
19841MG/W24	Standard Coverage	Threaded	White	160	11.2	Brass	12	Pendent	Standard	32 mm	610 mm	138
19841MG/W30	Standard Coverage	Threaded	White	160	11.2	Brass	12	Pendent	Standard	32 mm	762 mm	138
19841MG/W36	Standard Coverage	Threaded	White	160	11.2	Brass	12	Pendent	Standard	32 mm	914 mm	138
19841MG/W42	Standard Coverage	Threaded	White	160	11.2	Brass	12	Pendent	Standard	32 mm	1067 mm	138
19841MG/W48	Standard Coverage	Threaded	White	160	11.2	Brass	12	Pendent	Standard	32 mm	1219 mm	138

Additional part numbers might be available. Please refer to the technical documentation or contact your local Viking sales office for more information.

URL copied to clipboard
