VK478

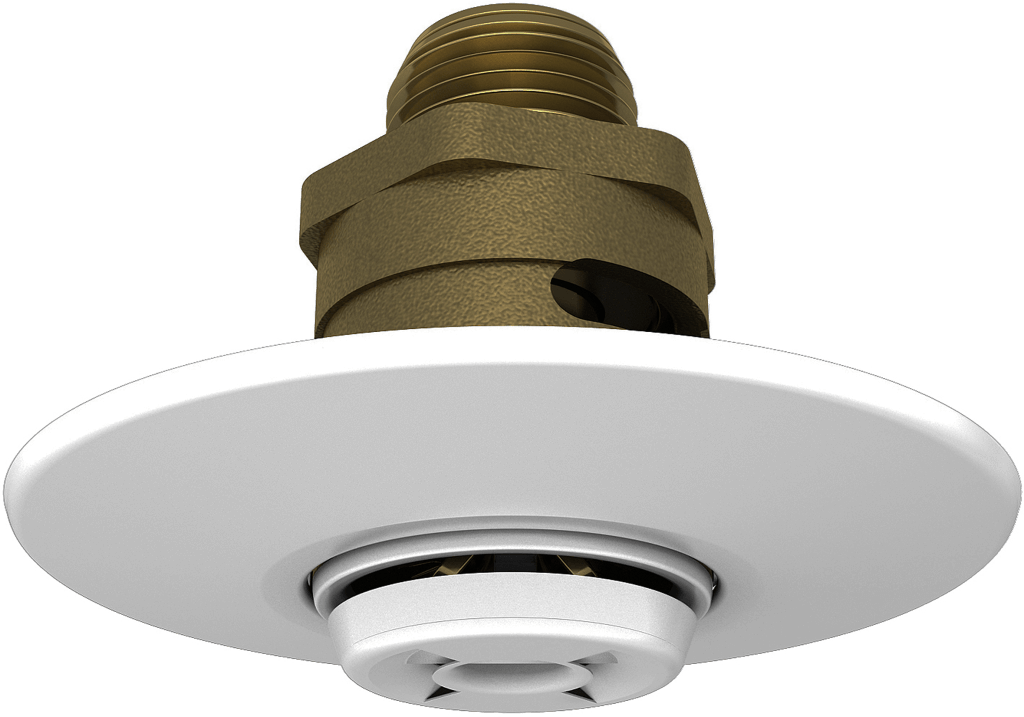

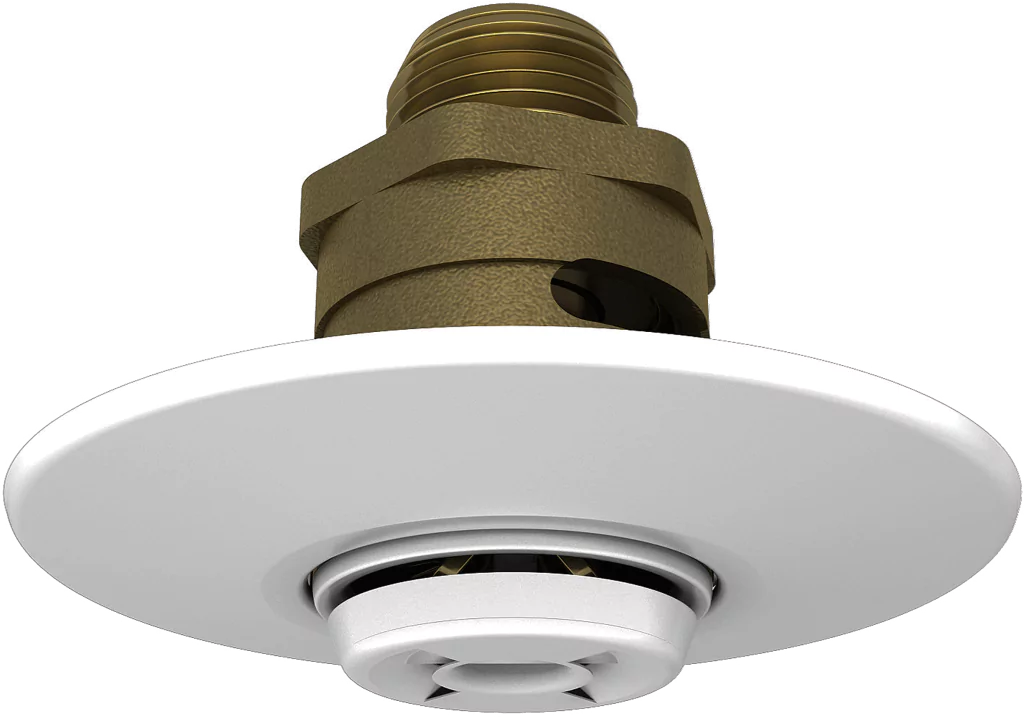

VK478 | DN15-1/2″ | K80 | Quick Response | Flush | Pendent | Fusible Link

VK478

Documents & Resources (2)

Download all documents

Download selected files (1)

Add to download box (1)

All resources (2)

technical documentation (1)

commercial documentation (1)

Technical Data Sheet | VK478

Sprinkler & Deluge

Data page

Language:

Languages

Click to select other languages

English

Please select one language

Downloads are not available for youtube, video and external files

Quick response sprinklers | VK478 Flush pendent – LPCB approved

Sprinkler & Deluge

Leaflet

Language:

Languages

Click to select other languages

English

Please select one language

Downloads are not available for youtube, video and external files

Product Variants

SAP number 19995MC/RAL9010
Temperature rating 74
K factor nominal 5,6
K factor metric 80
Finish Pure white RAL9010
Position Pendent
Response Quick
Maximum working pressure 12
Application detail
Connection
Connection type
Main material
Size
Size 2
SIN VK478

SAP number 19995MC/B
Temperature rating 74
K factor nominal 5.6
K factor metric 80
Finish Black
Position Pendent
Response Standard
Maximum working pressure 12
Application detail Standard Coverage
Connection Threaded
Connection type
Main material Brass
Size 1/2″
Size 2

SAP number 19995MC/RAL9010
Temperature rating 74
K factor nominal 5.6
K factor metric 80
Finish Pure white RAL9010
Position Pendent
Response Standard
Maximum working pressure 12
Application detail Standard Coverage
Connection Threaded
Connection type
Main material Brass
Size 1/2″
Size 2

SAP number 19995MC/W
Temperature rating 74
K factor nominal 5.6
K factor metric 80
Finish White
Position Pendent
Response Standard
Maximum working pressure 12
Application detail Standard Coverage
Connection Threaded
Connection type
Main material Brass
Size 1/2″
Size 2

SAP number 19995ME/B
Temperature rating 96
K factor nominal 5.6
K factor metric 80
Finish Black
Position Pendent
Response Standard
Maximum working pressure 12
Application detail Standard Coverage
Connection Threaded
Connection type
Main material Brass
Size 1/2″
Size 2

SAP number 19995ME/RAL9010
Temperature rating 96
K factor nominal 5.6
K factor metric 80
Finish Pure white RAL9010
Position Pendent
Response Standard
Maximum working pressure 12
Application detail Standard Coverage
Connection Threaded
Connection type
Main material Brass
Size 1/2″
Size 2

SAP number 19995ME/W
Temperature rating 96
K factor nominal 5.6
K factor metric 80
Finish White
Position Pendent
Response Standard
Maximum working pressure 12
Application detail Standard Coverage
Connection Threaded
Connection type
Main material Brass
Size 1/2″
Size 2

SAP number	Application detail	Connection	Finish	K factor metric	K factor nominal	Main material	Maximum working pressure	Position	Response	Size	Temperature rating
19995MC/RAL9010			Pure white RAL9010	80	5,6		12	Pendent	Quick		74	VK478
19995MC/B	Standard Coverage	Threaded	Black	80	5.6	Brass	12	Pendent	Standard	1/2″	74
19995MC/RAL9010	Standard Coverage	Threaded	Pure white RAL9010	80	5.6	Brass	12	Pendent	Standard	1/2″	74
19995MC/W	Standard Coverage	Threaded	White	80	5.6	Brass	12	Pendent	Standard	1/2″	74
19995ME/B	Standard Coverage	Threaded	Black	80	5.6	Brass	12	Pendent	Standard	1/2″	96
19995ME/RAL9010	Standard Coverage	Threaded	Pure white RAL9010	80	5.6	Brass	12	Pendent	Standard	1/2″	96
19995ME/W	Standard Coverage	Threaded	White	80	5.6	Brass	12	Pendent	Standard	1/2″	96

Additional part numbers might be available. Please refer to the technical documentation or contact your local Viking sales office for more information.
