VK106

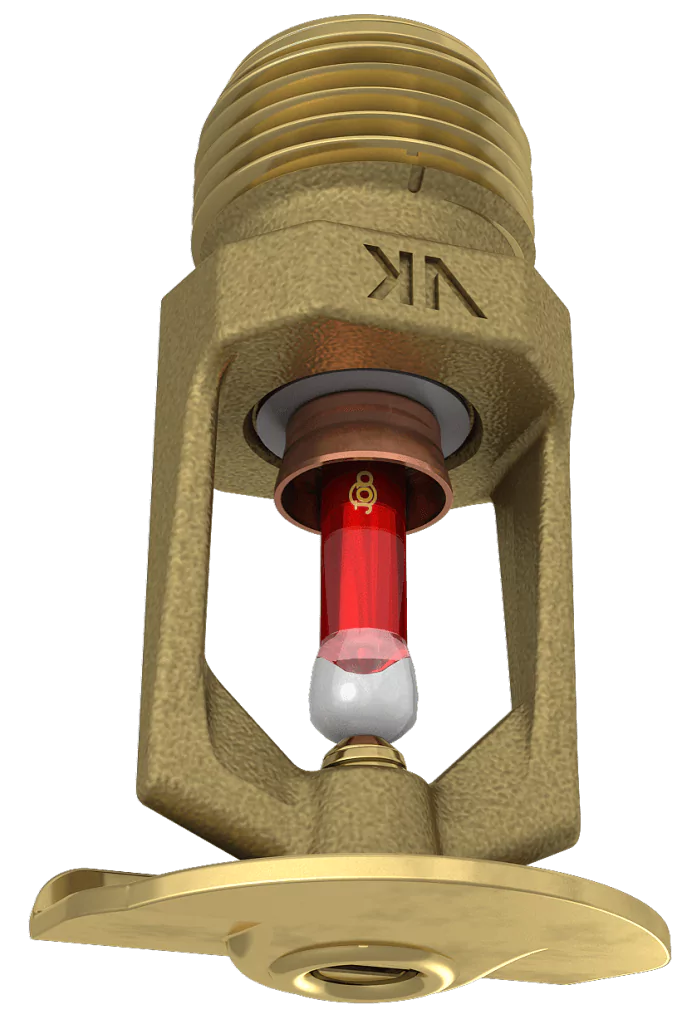

VK106 | DN15-1/2″ | K80 | Standard Response | Horizontal Sidewall

VK106

Documents & Resources (2)

Download all documents

Download selected files (1)

Add to download box (1)

All resources (2)

technical documentation (1)

drawings (1)

Technical Data Sheet | VK106

Sprinkler & Deluge

Data page

Language:

Languages

Click to select other languages

All

Dutch; Flemish

English

Please select one language

Downloads are not available for youtube, video and external files

Figure 1 | VK106 (12996) – Dimensions

Sprinkler & Deluge

2D – CAD

Language:

Languages

Click to select other languages

English

Please select one language

Downloads are not available for youtube, video and external files

Product Variants

SAP number 12996FA
Temperature rating 57
K factor nominal 5,6
K factor metric 80
Finish Chrome
Position Vertical sidewall
Response Standard
Application detail Standard Coverage
Maximum working pressure 12
Connection
Connection type
Main material
Size
Size 2
SIN VK106

SAP number 12996AB
Temperature rating 68
K factor nominal 5.6
K factor metric 80
Finish Brass
Position Vertical sidewall
Response Standard
Application detail Standard Coverage
Maximum working pressure 12
Connection Threaded
Connection type
Main material Brass
Size 1/2″
Size 2

SAP number 12996AD
Temperature rating 79
K factor nominal 5.6
K factor metric 80
Finish Brass
Position Vertical sidewall
Response Standard
Application detail Standard Coverage
Maximum working pressure 12
Connection Threaded
Connection type
Main material Brass
Size 1/2″
Size 2

SAP number 12996AE
Temperature rating 93
K factor nominal 5.6
K factor metric 80
Finish Brass
Position Vertical sidewall
Response Standard
Application detail Standard Coverage
Maximum working pressure 12
Connection Threaded
Connection type
Main material Brass
Size 1/2″
Size 2

SAP number 12996AG
Temperature rating 141
K factor nominal 5.6
K factor metric 80
Finish Brass
Position Vertical sidewall
Response Standard
Application detail Standard Coverage
Maximum working pressure 12
Connection Threaded
Connection type
Main material Brass
Size 1/2″
Size 2

SAP number 12996AH
Temperature rating 182
K factor nominal 5.6
K factor metric 80
Finish Brass
Position Vertical sidewall
Response Standard
Application detail Standard Coverage
Maximum working pressure 12
Connection Threaded
Connection type
Main material Brass
Size 1/2″
Size 2

SAP number 12996FA
Temperature rating 57
K factor nominal 5.6
K factor metric 80
Finish Chrome
Position Vertical sidewall
Response Standard
Application detail Standard Coverage
Maximum working pressure 12
Connection Threaded
Connection type
Main material Brass
Size 1/2″
Size 2

SAP number 12996FB
Temperature rating 68
K factor nominal 5.6
K factor metric 80
Finish Chrome
Position Vertical sidewall
Response Standard
Application detail Standard Coverage
Maximum working pressure 12
Connection Threaded
Connection type
Main material Brass
Size 1/2″
Size 2

SAP number 12996FD
Temperature rating 79
K factor nominal 5.6
K factor metric 80
Finish Chrome
Position Vertical sidewall
Response Standard
Application detail Standard Coverage
Maximum working pressure 12
Connection Threaded
Connection type
Main material Brass
Size 1/2″
Size 2

SAP number 12996FE
Temperature rating 93
K factor nominal 5.6
K factor metric 80
Finish Chrome
Position Vertical sidewall
Response Standard
Application detail Standard Coverage
Maximum working pressure 12
Connection Threaded
Connection type
Main material Brass
Size 1/2″
Size 2

SAP number 12996FG
Temperature rating 141
K factor nominal 5.6
K factor metric 80
Finish Chrome
Position Vertical sidewall
Response Standard
Application detail Standard Coverage
Maximum working pressure 12
Connection Threaded
Connection type
Main material Brass
Size 1/2″
Size 2

SAP number 12996FH
Temperature rating 182
K factor nominal 5.6
K factor metric 80
Finish Chrome
Position Vertical sidewall
Response Standard
Application detail Standard Coverage
Maximum working pressure 12
Connection Threaded
Connection type
Main material Brass
Size 1/2″
Size 2

SAP number 12996JNB
Temperature rating 68
K factor nominal 5.6
K factor metric 80
Finish ENT
Position Vertical sidewall
Response Standard
Application detail Standard Coverage
Maximum working pressure 12
Connection Threaded
Connection type
Main material Brass
Size 1/2″
Size 2

SAP number 12996JND
Temperature rating 79
K factor nominal 5.6
K factor metric 80
Finish ENT
Position Vertical sidewall
Response Standard
Application detail Standard Coverage
Maximum working pressure 12
Connection Threaded
Connection type
Main material Brass
Size 1/2″
Size 2

SAP number 12996JNE
Temperature rating 93
K factor nominal 5.6
K factor metric 80
Finish ENT
Position Vertical sidewall
Response Standard
Application detail Standard Coverage
Maximum working pressure 12
Connection Threaded
Connection type
Main material Brass
Size 1/2″
Size 2

SAP number 12996JNG
Temperature rating 141
K factor nominal 5.6
K factor metric 80
Finish ENT
Position Vertical sidewall
Response Standard
Application detail Standard Coverage
Maximum working pressure 12
Connection Threaded
Connection type
Main material Brass
Size 1/2″
Size 2

SAP number 12996MB/B
Temperature rating 68
K factor nominal 5.6
K factor metric 80
Finish Black
Position Vertical sidewall
Response Standard
Application detail Standard Coverage
Maximum working pressure 12
Connection Threaded
Connection type
Main material Brass
Size 1/2″
Size 2

SAP number 12996MB/W
Temperature rating 68
K factor nominal 5.6
K factor metric 80
Finish White
Position Vertical sidewall
Response Standard
Application detail Standard Coverage
Maximum working pressure 12
Connection Threaded
Connection type
Main material Brass
Size 1/2″
Size 2

SAP number 12996MD/B
Temperature rating 79
K factor nominal 5.6
K factor metric 80
Finish Black
Position Vertical sidewall
Response Standard
Application detail Standard Coverage
Maximum working pressure 12
Connection Threaded
Connection type
Main material Brass
Size 1/2″
Size 2

SAP number 12996MD/W
Temperature rating 79
K factor nominal 5.6
K factor metric 80
Finish White
Position Vertical sidewall
Response Standard
Application detail Standard Coverage
Maximum working pressure 12
Connection Threaded
Connection type
Main material Brass
Size 1/2″
Size 2

SAP number 12996ME/B
Temperature rating 93
K factor nominal 5.6
K factor metric 80
Finish Black
Position Vertical sidewall
Response Standard
Application detail Standard Coverage
Maximum working pressure 12
Connection Threaded
Connection type
Main material Brass
Size 1/2″
Size 2

SAP number 12996ME/W
Temperature rating 93
K factor nominal 5.6
K factor metric 80
Finish White
Position Vertical sidewall
Response Standard
Application detail Standard Coverage
Maximum working pressure 12
Connection Threaded
Connection type
Main material Brass
Size 1/2″
Size 2

SAP number 12996MG/B
Temperature rating 141
K factor nominal 5.6
K factor metric 80
Finish Black
Position Vertical sidewall
Response Standard
Application detail Standard Coverage
Maximum working pressure 12
Connection Threaded
Connection type
Main material Brass
Size 1/2″
Size 2

SAP number 12996MG/W
Temperature rating 141
K factor nominal 5.6
K factor metric 80
Finish White
Position Vertical sidewall
Response Standard
Application detail Standard Coverage
Maximum working pressure 12
Connection Threaded
Connection type
Main material Brass
Size 1/2″
Size 2

SAP number 12996MH/B
Temperature rating 182
K factor nominal 5.6
K factor metric 80
Finish Black
Position Vertical sidewall
Response Standard
Application detail Standard Coverage
Maximum working pressure 12
Connection Threaded
Connection type
Main material Brass
Size 1/2″
Size 2

SAP number 12996MH/W
Temperature rating 182
K factor nominal 5.6
K factor metric 80
Finish White
Position Vertical sidewall
Response Standard
Application detail Standard Coverage
Maximum working pressure 12
Connection Threaded
Connection type
Main material Brass
Size 1/2″
Size 2

SAP number	Application detail	Connection	Finish	K factor metric	K factor nominal	Main material	Maximum working pressure	Position	Response	Size	Temperature rating
12996FA	Standard Coverage		Chrome	80	5,6		12	Vertical sidewall	Standard		57	VK106
12996AB	Standard Coverage	Threaded	Brass	80	5.6	Brass	12	Vertical sidewall	Standard	1/2″	68
12996AD	Standard Coverage	Threaded	Brass	80	5.6	Brass	12	Vertical sidewall	Standard	1/2″	79
12996AE	Standard Coverage	Threaded	Brass	80	5.6	Brass	12	Vertical sidewall	Standard	1/2″	93
12996AG	Standard Coverage	Threaded	Brass	80	5.6	Brass	12	Vertical sidewall	Standard	1/2″	141
12996AH	Standard Coverage	Threaded	Brass	80	5.6	Brass	12	Vertical sidewall	Standard	1/2″	182
12996FA	Standard Coverage	Threaded	Chrome	80	5.6	Brass	12	Vertical sidewall	Standard	1/2″	57
12996FB	Standard Coverage	Threaded	Chrome	80	5.6	Brass	12	Vertical sidewall	Standard	1/2″	68
12996FD	Standard Coverage	Threaded	Chrome	80	5.6	Brass	12	Vertical sidewall	Standard	1/2″	79
12996FE	Standard Coverage	Threaded	Chrome	80	5.6	Brass	12	Vertical sidewall	Standard	1/2″	93
12996FG	Standard Coverage	Threaded	Chrome	80	5.6	Brass	12	Vertical sidewall	Standard	1/2″	141
12996FH	Standard Coverage	Threaded	Chrome	80	5.6	Brass	12	Vertical sidewall	Standard	1/2″	182
12996JNB	Standard Coverage	Threaded	ENT	80	5.6	Brass	12	Vertical sidewall	Standard	1/2″	68
12996JND	Standard Coverage	Threaded	ENT	80	5.6	Brass	12	Vertical sidewall	Standard	1/2″	79
12996JNE	Standard Coverage	Threaded	ENT	80	5.6	Brass	12	Vertical sidewall	Standard	1/2″	93
12996JNG	Standard Coverage	Threaded	ENT	80	5.6	Brass	12	Vertical sidewall	Standard	1/2″	141
12996MB/B	Standard Coverage	Threaded	Black	80	5.6	Brass	12	Vertical sidewall	Standard	1/2″	68
12996MB/W	Standard Coverage	Threaded	White	80	5.6	Brass	12	Vertical sidewall	Standard	1/2″	68
12996MD/B	Standard Coverage	Threaded	Black	80	5.6	Brass	12	Vertical sidewall	Standard	1/2″	79
12996MD/W	Standard Coverage	Threaded	White	80	5.6	Brass	12	Vertical sidewall	Standard	1/2″	79
12996ME/B	Standard Coverage	Threaded	Black	80	5.6	Brass	12	Vertical sidewall	Standard	1/2″	93
12996ME/W	Standard Coverage	Threaded	White	80	5.6	Brass	12	Vertical sidewall	Standard	1/2″	93
12996MG/B	Standard Coverage	Threaded	Black	80	5.6	Brass	12	Vertical sidewall	Standard	1/2″	141
12996MG/W	Standard Coverage	Threaded	White	80	5.6	Brass	12	Vertical sidewall	Standard	1/2″	141
12996MH/B	Standard Coverage	Threaded	Black	80	5.6	Brass	12	Vertical sidewall	Standard	1/2″	182
12996MH/W	Standard Coverage	Threaded	White	80	5.6	Brass	12	Vertical sidewall	Standard	1/2″	182

Additional part numbers might be available. Please refer to the technical documentation or contact your local Viking sales office for more information.

URL copied to clipboard
