VK680

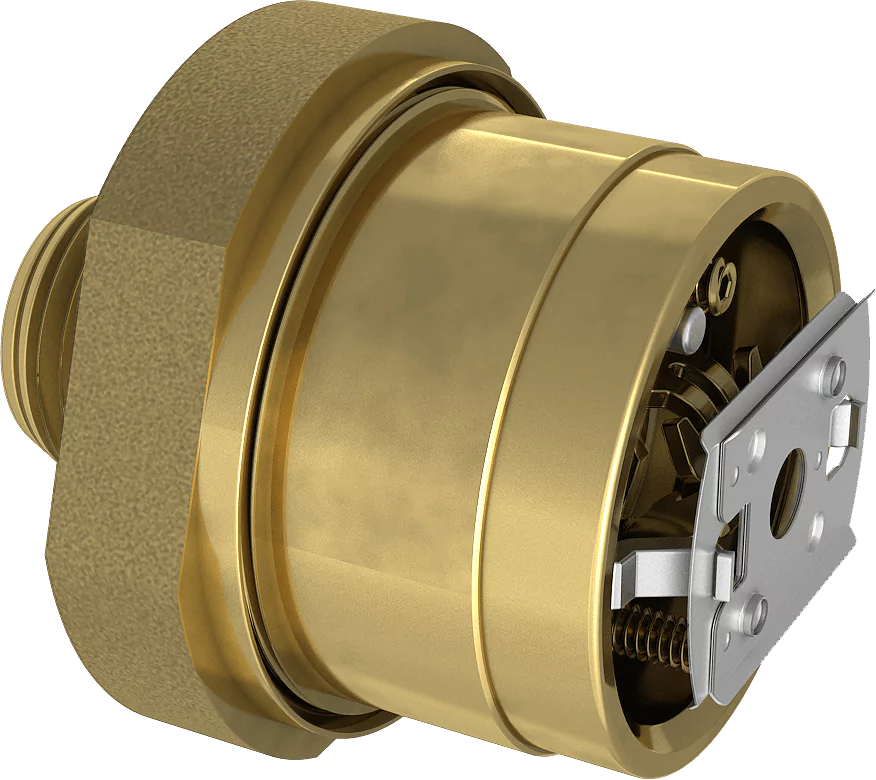

VK680 | DN20-3/4″ | K115 | Quick Response | Extended Coverage | Concealed | Horizontal Sidewall | Fusible Link
VK680
Documents & Resources (2)
Download all documents
Download selected files (1)
Add to download box (1)
Sprinkler & Deluge
Data page
Languages
Sprinkler & Deluge
2D – CAD
Languages
Sprinkler & Deluge
2D – CAD
Languages
Sprinkler & Deluge
3D – Revit-BIM
Languages
Sprinkler & Deluge
2D – CAD
Languages
Product Variants
- SAP number 17114AC
- Temperature_rating 74
- K_factor_nominal 8
- K_factor_metric 115
- Position Horizontal sidewall
- Response Quick
- Maximum_working_pressure 12
- Application_detail Extended Coverage
- Connection Threaded
- Connection_type NPT
- Finish Brass
- Main_material Brass
- Size 3/4″
- Size_2 3/4″
- SAP number 17114JNC
- Temperature_rating 74
- K_factor_nominal 8
- K_factor_metric 115
- Position Horizontal sidewall
- Response Quick
- Maximum_working_pressure 12
- Application_detail Extended Coverage
- Connection Threaded
- Connection_type NPT
- Finish ENT
- Main_material Brass
- Size 3/4″
- Size_2 3/4″
- SAP number 21358AC
- Temperature_rating 74
- K_factor_nominal 8
- K_factor_metric 115
- Position Horizontal sidewall
- Response Quick
- Maximum_working_pressure 12
- Application_detail Extended Coverage
- Connection Threaded
- Connection_type BSP
- Finish Brass
- Main_material Brass
- Size 20 mm
- Size_2 20 mm
| SAP number | Application_detail | Connection | Connection_type | Finish | K_factor_metric | K_factor_nominal | Main_material | Maximum_working_pressure | Position | Response | Size | Size_2 | Temperature_rating |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| 17114AC | Extended Coverage |
Threaded |
NPT |
Brass |
115 |
8 |
Brass |
12 |
Horizontal sidewall |
Quick |
3/4″ |
3/4″ |
74 |
| 17114JNC | Extended Coverage |
Threaded |
NPT |
ENT |
115 |
8 |
Brass |
12 |
Horizontal sidewall |
Quick |
3/4″ |
3/4″ |
74 |
| 21358AC | Extended Coverage |
Threaded |
BSP |
Brass |
115 |
8 |
Brass |
12 |
Horizontal sidewall |
Quick |
20 mm |
20 mm |
74 |
Additional part numbers might be available. Please refer to the technical documentation or contact your local Viking sales office for more information.
