VK603

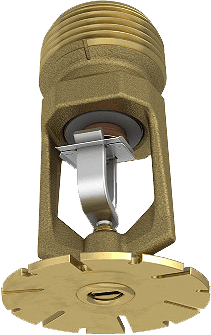

VK603 | DN20-3/4″ | K115 | Quick Response | Extended Coverage | Pendent | Fusible Link
VK603
Documents & Resources (2)
Download all documents
Download selected files (1)
Add to download box (1)
All resources (6)
technical documentation (1)
drawings (5)
Sprinkler & Deluge
Data page
Language:
Languages
Click to select other languages
Sprinkler & Deluge
2D – CAD
Language:
Languages
Click to select other languages
Sprinkler & Deluge
2D – CAD
Language:
Languages
Click to select other languages
Sprinkler & Deluge
2D – CAD
Language:
Languages
Click to select other languages
Sprinkler & Deluge
2D – CAD
Language:
Languages
Click to select other languages
Sprinkler & Deluge
3D – Revit-BIM
Language:
Languages
Click to select other languages
Product Variants
- SAP number 18277JNC
- Application_detail Extended Coverage
- Connection Threaded
- Connection_type NPT
- Finish ENT
- K_factor_metric 115
- K_factor_nominal 8
- Main_material Brass
- Maximum_working_pressure 12
- Position Pendent
- Response Quick
- Size 3/4″
- Size_2 3/4″
- Temperature_rating 74
- SAP number 18277JNE
- Application_detail Extended Coverage
- Connection Threaded
- Connection_type NPT
- Finish ENT
- K_factor_metric 115
- K_factor_nominal 8
- Main_material Brass
- Maximum_working_pressure 12
- Position Pendent
- Response Quick
- Size 3/4″
- Size_2 3/4″
- Temperature_rating 96
- SAP number 18277AC
- Application_detail Extended Coverage
- Connection Threaded
- Connection_type NPT
- Finish Brass
- K_factor_metric 115
- K_factor_nominal 8
- Main_material Brass
- Maximum_working_pressure 12
- Position Pendent
- Response Quick
- Size 3/4″
- Size_2 3/4″
- Temperature_rating 74
- SAP number 18277AE
- Application_detail Extended Coverage
- Connection Threaded
- Connection_type NPT
- Finish Brass
- K_factor_metric 115
- K_factor_nominal 8
- Main_material Brass
- Maximum_working_pressure 12
- Position Pendent
- Response Quick
- Size 3/4″
- Size_2 3/4″
- Temperature_rating 96
- SAP number 18277FC
- Application_detail Extended Coverage
- Connection Threaded
- Connection_type NPT
- Finish Chrome
- K_factor_metric 115
- K_factor_nominal 8
- Main_material Brass
- Maximum_working_pressure 12
- Position Pendent
- Response Quick
- Size 3/4″
- Size_2 3/4″
- Temperature_rating 74
- SAP number 18277FE
- Application_detail Extended Coverage
- Connection Threaded
- Connection_type NPT
- Finish Chrome
- K_factor_metric 115
- K_factor_nominal 8
- Main_material Brass
- Maximum_working_pressure 12
- Position Pendent
- Response Quick
- Size 3/4″
- Size_2 3/4″
- Temperature_rating 96
- SAP number 18277MC/B
- Application_detail Extended Coverage
- Connection Threaded
- Connection_type NPT
- Finish Black
- K_factor_metric 115
- K_factor_nominal 8
- Main_material Brass
- Maximum_working_pressure 12
- Position Pendent
- Response Quick
- Size 3/4″
- Size_2 3/4″
- Temperature_rating 74
- SAP number 18277MC/W
- Application_detail Extended Coverage
- Connection Threaded
- Connection_type NPT
- Finish White
- K_factor_metric 115
- K_factor_nominal 8
- Main_material Brass
- Maximum_working_pressure 12
- Position Pendent
- Response Quick
- Size 3/4″
- Size_2 3/4″
- Temperature_rating 74
- SAP number 18277ME/W
- Application_detail Extended Coverage
- Connection Threaded
- Connection_type NPT
- Finish White
- K_factor_metric 115
- K_factor_nominal 8
- Main_material Brass
- Maximum_working_pressure 12
- Position Pendent
- Response Quick
- Size 3/4″
- Size_2 3/4″
- Temperature_rating 96
| SAP number | Application_detail | Connection | Connection_type | Finish | K_factor_metric | K_factor_nominal | Main_material | Maximum_working_pressure | Position | Response | Size | Size_2 | Temperature_rating |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| 18277JNC | Extended Coverage |
Threaded |
NPT |
ENT |
115 |
8 |
Brass |
12 |
Pendent |
Quick |
3/4″ |
3/4″ |
74 |
| 18277JNE | Extended Coverage |
Threaded |
NPT |
ENT |
115 |
8 |
Brass |
12 |
Pendent |
Quick |
3/4″ |
3/4″ |
96 |
| 18277AC | Extended Coverage |
Threaded |
NPT |
Brass |
115 |
8 |
Brass |
12 |
Pendent |
Quick |
3/4″ |
3/4″ |
74 |
| 18277AE | Extended Coverage |
Threaded |
NPT |
Brass |
115 |
8 |
Brass |
12 |
Pendent |
Quick |
3/4″ |
3/4″ |
96 |
| 18277FC | Extended Coverage |
Threaded |
NPT |
Chrome |
115 |
8 |
Brass |
12 |
Pendent |
Quick |
3/4″ |
3/4″ |
74 |
| 18277FE | Extended Coverage |
Threaded |
NPT |
Chrome |
115 |
8 |
Brass |
12 |
Pendent |
Quick |
3/4″ |
3/4″ |
96 |
| 18277MC/B | Extended Coverage |
Threaded |
NPT |
Black |
115 |
8 |
Brass |
12 |
Pendent |
Quick |
3/4″ |
3/4″ |
74 |
| 18277MC/W | Extended Coverage |
Threaded |
NPT |
White |
115 |
8 |
Brass |
12 |
Pendent |
Quick |
3/4″ |
3/4″ |
74 |
| 18277ME/W | Extended Coverage |
Threaded |
NPT |
White |
115 |
8 |
Brass |
12 |
Pendent |
Quick |
3/4″ |
3/4″ |
96 |
Additional part numbers might be available. Please refer to the technical documentation or contact your local Viking sales office for more information.
