VK592

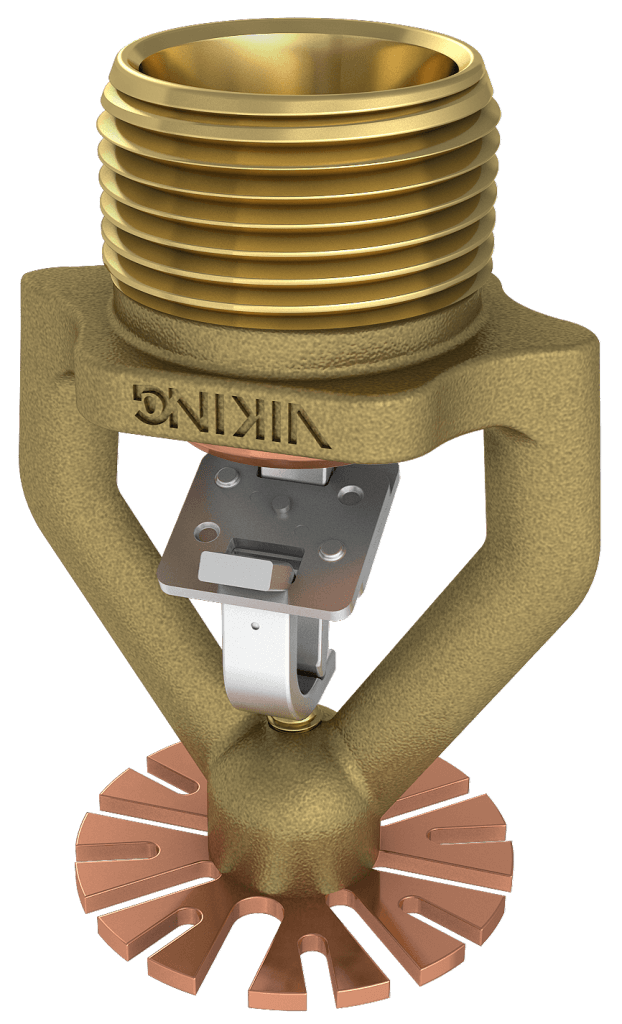

VK592 | DN25-1″ | K283 | Standard Response | CMSA | Pendent | Fusible Link
VK592
Documents & Resources (2)
Download all documents
Download selected files (1)
Add to download box (1)
Sprinkler & Deluge
Data page
Languages
Sprinkler & Deluge
Approvals / Certificates
Languages
Sprinkler & Deluge
Approvals / Certificates
Languages
Sprinkler & Deluge
2D – CAD
Languages
Sprinkler & Deluge
2D – CAD
Languages
Sprinkler & Deluge
2D – CAD
Languages
Sprinkler & Deluge
2D – CAD
Languages
Sprinkler & Deluge
3D – Revit-BIM
Languages
Product Variants
- SAP number 14243AC
- Temperature_rating 74
- K_factor_nominal 19.6
- K_factor_metric 280
- Finish Brass
- Position Pendent
- Response Standard
- Application_detail CMSA
- Connection Threaded
- Connection_type NPT
- Main_material Brass
- Maximum_working_pressure 12
- Size 1″
- Size_2 1″
- SAP number 14243AE
- Temperature_rating 96
- K_factor_nominal 19.6
- K_factor_metric 280
- Finish Brass
- Position Pendent
- Response Standard
- Application_detail CMSA
- Connection Threaded
- Connection_type NPT
- Main_material Brass
- Maximum_working_pressure 12
- Size 1″
- Size_2 1″
- SAP number 15468AC
- Temperature_rating 74
- K_factor_nominal 19.6
- K_factor_metric 280
- Finish Brass
- Position Pendent
- Response Standard
- Application_detail CMSA
- Connection Threaded
- Connection_type BSP
- Main_material Brass
- Maximum_working_pressure 12
- Size 25 mm
- Size_2 25 mm
- SAP number 15468AE
- Temperature_rating 96
- K_factor_nominal 19.6
- K_factor_metric 280
- Finish Brass
- Position Pendent
- Response Standard
- Application_detail CMSA
- Connection Threaded
- Connection_type BSP
- Main_material Brass
- Maximum_working_pressure 12
- Size 25 mm
- Size_2 25 mm
| SAP number | Application_detail | Connection | Connection_type | Finish | K_factor_metric | K_factor_nominal | Main_material | Maximum_working_pressure | Position | Response | Size | Size_2 | Temperature_rating |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| 14243AC | CMSA |
Threaded |
NPT |
Brass |
280 |
19.6 |
Brass |
12 |
Pendent |
Standard |
1″ |
1″ |
74 |
| 14243AE | CMSA |
Threaded |
NPT |
Brass |
280 |
19.6 |
Brass |
12 |
Pendent |
Standard |
1″ |
1″ |
96 |
| 15468AC | CMSA |
Threaded |
BSP |
Brass |
280 |
19.6 |
Brass |
12 |
Pendent |
Standard |
25 mm |
25 mm |
74 |
| 15468AE | CMSA |
Threaded |
BSP |
Brass |
280 |
19.6 |
Brass |
12 |
Pendent |
Standard |
25 mm |
25 mm |
96 |
Additional part numbers might be available. Please refer to the technical documentation or contact your local Viking sales office for more information.
