VK545

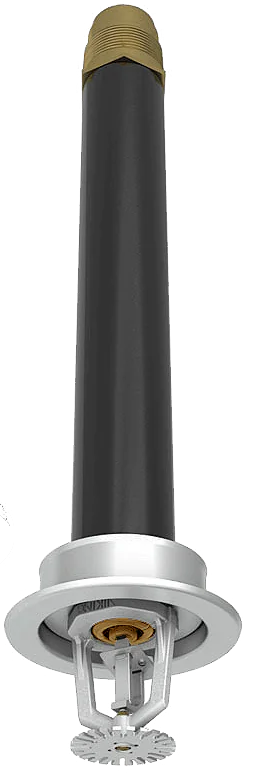

Adjustable Recessed, Standard Response, ELO, Pendent, Fusible Link, Dry Sprinkler

VK545 | DN32 – 1-1/4″ | K161 | Dry | Standard Response | ELO | Pendent | Fusible Link | Adjustable Recessed

VK545 VK545 | DN32 – 1-1/4″ | K161 | Dry | Standard Response | ELO | Pendent | Fusible Link | Adjustable Recessed

Documents & Resources (2)

Download all documents

Download selected files (1)

Add to download box (1)

All resources (2)

technical documentation (1)

drawings (1)

Data Page | VK544-VK545-VK546 | Standard Response Dry Pendent Fusible Link ELO Sprinkler

Sprinkler & Deluge

Data page

Language:

Languages

Click to select other languages

English

Please select one language

Downloads are not available for youtube, video and external files

Revit | VK545 | Standard Response Dry Pendent Fusible Link ELO Sprinkler

Sprinkler & Deluge

3D – Revit-BIM

Language:

Languages

Click to select other languages

English

Please select one language

Downloads are not available for youtube, video and external files

Product Variants

SAP number 19835FC12
Application detail Standard Coverage
Connection Threaded
Connection type
Finish Chrome
K factor metric 160
K factor nominal 11.2
Main material Brass
Maximum working pressure 12
Position Pendent
Response Standard
Size 1-1/4”
Size 2 305 mm
Temperature rating 74

SAP number 19835FC18
Application detail Standard Coverage
Connection Threaded
Connection type
Finish Chrome
K factor metric 160
K factor nominal 11.2
Main material Brass
Maximum working pressure 12
Position Pendent
Response Standard
Size 1-1/4”
Size 2 457 mm
Temperature rating 74

SAP number 19835FC24
Application detail Standard Coverage
Connection Threaded
Connection type
Finish Chrome
K factor metric 160
K factor nominal 11.2
Main material Brass
Maximum working pressure 12
Position Pendent
Response Standard
Size 1-1/4”
Size 2 610 mm
Temperature rating 74

SAP number 19835FC30
Application detail Standard Coverage
Connection Threaded
Connection type
Finish Chrome
K factor metric 160
K factor nominal 11.2
Main material Brass
Maximum working pressure 12
Position Pendent
Response Standard
Size 1-1/4”
Size 2 762 mm
Temperature rating 74

SAP number 19835FC36
Application detail Standard Coverage
Connection Threaded
Connection type
Finish Chrome
K factor metric 160
K factor nominal 11.2
Main material Brass
Maximum working pressure 12
Position Pendent
Response Standard
Size 1-1/4”
Size 2 914 mm
Temperature rating 74

SAP number 19835FC42
Application detail Standard Coverage
Connection Threaded
Connection type
Finish Chrome
K factor metric 160
K factor nominal 11.2
Main material Brass
Maximum working pressure 12
Position Pendent
Response Standard
Size 1-1/4”
Size 2 1067 mm
Temperature rating 74

SAP number 19835FC48
Application detail Standard Coverage
Connection Threaded
Connection type
Finish Chrome
K factor metric 160
K factor nominal 11.2
Main material Brass
Maximum working pressure 12
Position Pendent
Response Standard
Size 1-1/4”
Size 2 1219 mm
Temperature rating 74

SAP number 19835FE12
Application detail Standard Coverage
Connection Threaded
Connection type
Finish Chrome
K factor metric 160
K factor nominal 11.2
Main material Brass
Maximum working pressure 12
Position Pendent
Response Standard
Size 1-1/4”
Size 2 305 mm
Temperature rating 96

SAP number 19835FE18
Application detail Standard Coverage
Connection Threaded
Connection type
Finish Chrome
K factor metric 160
K factor nominal 11.2
Main material Brass
Maximum working pressure 12
Position Pendent
Response Standard
Size 1-1/4”
Size 2 457 mm
Temperature rating 96

SAP number 19835FE24
Application detail Standard Coverage
Connection Threaded
Connection type
Finish Chrome
K factor metric 160
K factor nominal 11.2
Main material Brass
Maximum working pressure 12
Position Pendent
Response Standard
Size 1-1/4”
Size 2 610 mm
Temperature rating 96

SAP number 19835FE30
Application detail Standard Coverage
Connection Threaded
Connection type
Finish Chrome
K factor metric 160
K factor nominal 11.2
Main material Brass
Maximum working pressure 12
Position Pendent
Response Standard
Size 1-1/4”
Size 2 762 mm
Temperature rating 96

SAP number 19835FE36
Application detail Standard Coverage
Connection Threaded
Connection type
Finish Chrome
K factor metric 160
K factor nominal 11.2
Main material Brass
Maximum working pressure 12
Position Pendent
Response Standard
Size 1-1/4”
Size 2 914 mm
Temperature rating 96

SAP number 19835FE42
Application detail Standard Coverage
Connection Threaded
Connection type
Finish Chrome
K factor metric 160
K factor nominal 11.2
Main material Brass
Maximum working pressure 12
Position Pendent
Response Standard
Size 1-1/4”
Size 2 1067 mm
Temperature rating 96

SAP number 19835FE48
Application detail Standard Coverage
Connection Threaded
Connection type
Finish Chrome
K factor metric 160
K factor nominal 11.2
Main material Brass
Maximum working pressure 12
Position Pendent
Response Standard
Size 1-1/4”
Size 2 1219 mm
Temperature rating 96

SAP number 19835JNC12
Application detail Standard Coverage
Connection Threaded
Connection type
Finish ENT
K factor metric 160
K factor nominal 11.2
Main material Brass
Maximum working pressure 12
Position Pendent
Response Standard
Size 1-1/4”
Size 2 305 mm
Temperature rating 74

SAP number 19835JNC18
Application detail Standard Coverage
Connection Threaded
Connection type
Finish ENT
K factor metric 160
K factor nominal 11.2
Main material Brass
Maximum working pressure 12
Position Pendent
Response Standard
Size 1-1/4”
Size 2 457 mm
Temperature rating 74

SAP number 19835JNC24
Application detail Standard Coverage
Connection Threaded
Connection type
Finish ENT
K factor metric 160
K factor nominal 11.2
Main material Brass
Maximum working pressure 12
Position Pendent
Response Standard
Size 1-1/4”
Size 2 610 mm
Temperature rating 74

SAP number 19835JNC30
Application detail Standard Coverage
Connection Threaded
Connection type
Finish ENT
K factor metric 160
K factor nominal 11.2
Main material Brass
Maximum working pressure 12
Position Pendent
Response Standard
Size 1-1/4”
Size 2 762 mm
Temperature rating 74

SAP number 19835JNC36
Application detail Standard Coverage
Connection Threaded
Connection type
Finish ENT
K factor metric 160
K factor nominal 11.2
Main material Brass
Maximum working pressure 12
Position Pendent
Response Standard
Size 1-1/4”
Size 2 914 mm
Temperature rating 74

SAP number 19835JNC42
Application detail Standard Coverage
Connection Threaded
Connection type
Finish ENT
K factor metric 160
K factor nominal 11.2
Main material Brass
Maximum working pressure 12
Position Pendent
Response Standard
Size 1-1/4”
Size 2 1067 mm
Temperature rating 74

SAP number 19835JNC48
Application detail Standard Coverage
Connection Threaded
Connection type
Finish ENT
K factor metric 160
K factor nominal 11.2
Main material Brass
Maximum working pressure 12
Position Pendent
Response Standard
Size 1-1/4”
Size 2 1219 mm
Temperature rating 74

SAP number 19835JNE12
Application detail Standard Coverage
Connection Threaded
Connection type
Finish ENT
K factor metric 160
K factor nominal 11.2
Main material Brass
Maximum working pressure 12
Position Pendent
Response Standard
Size 1-1/4”
Size 2 305 mm
Temperature rating 96

SAP number 19835JNE18
Application detail Standard Coverage
Connection Threaded
Connection type
Finish ENT
K factor metric 160
K factor nominal 11.2
Main material Brass
Maximum working pressure 12
Position Pendent
Response Standard
Size 1-1/4”
Size 2 457 mm
Temperature rating 96

SAP number 19835JNE24
Application detail Standard Coverage
Connection Threaded
Connection type
Finish ENT
K factor metric 160
K factor nominal 11.2
Main material Brass
Maximum working pressure 12
Position Pendent
Response Standard
Size 1-1/4”
Size 2 610 mm
Temperature rating 96

SAP number 19835JNE30
Application detail Standard Coverage
Connection Threaded
Connection type
Finish ENT
K factor metric 160
K factor nominal 11.2
Main material Brass
Maximum working pressure 12
Position Pendent
Response Standard
Size 1-1/4”
Size 2 762 mm
Temperature rating 96

SAP number 19835JNE36
Application detail Standard Coverage
Connection Threaded
Connection type
Finish ENT
K factor metric 160
K factor nominal 11.2
Main material Brass
Maximum working pressure 12
Position Pendent
Response Standard
Size 1-1/4”
Size 2 914 mm
Temperature rating 96

SAP number 19835JNE42
Application detail Standard Coverage
Connection Threaded
Connection type
Finish ENT
K factor metric 160
K factor nominal 11.2
Main material Brass
Maximum working pressure 12
Position Pendent
Response Standard
Size 1-1/4”
Size 2 1067 mm
Temperature rating 96

SAP number 19835JNE48
Application detail Standard Coverage
Connection Threaded
Connection type
Finish ENT
K factor metric 160
K factor nominal 11.2
Main material Brass
Maximum working pressure 12
Position Pendent
Response Standard
Size 1-1/4”
Size 2 1219 mm
Temperature rating 96

SAP number 19835MC/W12
Application detail Standard Coverage
Connection Threaded
Connection type
Finish White
K factor metric 160
K factor nominal 11.2
Main material Brass
Maximum working pressure 12
Position Pendent
Response Standard
Size 1-1/4”
Size 2 305 mm
Temperature rating 74

SAP number 19835MC/W18
Application detail Standard Coverage
Connection Threaded
Connection type
Finish White
K factor metric 160
K factor nominal 11.2
Main material Brass
Maximum working pressure 12
Position Pendent
Response Standard
Size 1-1/4”
Size 2 457 mm
Temperature rating 74

SAP number 19835MC/W24
Application detail Standard Coverage
Connection Threaded
Connection type
Finish White
K factor metric 160
K factor nominal 11.2
Main material Brass
Maximum working pressure 12
Position Pendent
Response Standard
Size 1-1/4”
Size 2 610 mm
Temperature rating 74

SAP number 19835MC/W30
Application detail Standard Coverage
Connection Threaded
Connection type
Finish White
K factor metric 160
K factor nominal 11.2
Main material Brass
Maximum working pressure 12
Position Pendent
Response Standard
Size 1-1/4”
Size 2 762 mm
Temperature rating 74

SAP number 19835MC/W36
Application detail Standard Coverage
Connection Threaded
Connection type
Finish White
K factor metric 160
K factor nominal 11.2
Main material Brass
Maximum working pressure 12
Position Pendent
Response Standard
Size 1-1/4”
Size 2 914 mm
Temperature rating 74

SAP number 19835MC/W42
Application detail Standard Coverage
Connection Threaded
Connection type
Finish White
K factor metric 160
K factor nominal 11.2
Main material Brass
Maximum working pressure 12
Position Pendent
Response Standard
Size 1-1/4”
Size 2 1067 mm
Temperature rating 74

SAP number 19835MC/W48
Application detail Standard Coverage
Connection Threaded
Connection type
Finish White
K factor metric 160
K factor nominal 11.2
Main material Brass
Maximum working pressure 12
Position Pendent
Response Standard
Size 1-1/4”
Size 2 1219 mm
Temperature rating 74

SAP number 19835ME/W12
Application detail Standard Coverage
Connection Threaded
Connection type
Finish White
K factor metric 160
K factor nominal 11.2
Main material Brass
Maximum working pressure 12
Position Pendent
Response Standard
Size 1-1/4”
Size 2 305 mm
Temperature rating 96

SAP number 19835ME/W18
Application detail Standard Coverage
Connection Threaded
Connection type
Finish White
K factor metric 160
K factor nominal 11.2
Main material Brass
Maximum working pressure 12
Position Pendent
Response Standard
Size 1-1/4”
Size 2 457 mm
Temperature rating 96

SAP number 19835ME/W24
Application detail Standard Coverage
Connection Threaded
Connection type
Finish White
K factor metric 160
K factor nominal 11.2
Main material Brass
Maximum working pressure 12
Position Pendent
Response Standard
Size 1-1/4”
Size 2 610 mm
Temperature rating 96

SAP number 19835ME/W30
Application detail Standard Coverage
Connection Threaded
Connection type
Finish White
K factor metric 160
K factor nominal 11.2
Main material Brass
Maximum working pressure 12
Position Pendent
Response Standard
Size 1-1/4”
Size 2 762 mm
Temperature rating 96

SAP number 19835ME/W36
Application detail Standard Coverage
Connection Threaded
Connection type
Finish White
K factor metric 160
K factor nominal 11.2
Main material Brass
Maximum working pressure 12
Position Pendent
Response Standard
Size 1-1/4”
Size 2 914 mm
Temperature rating 96

SAP number 19835ME/W42
Application detail Standard Coverage
Connection Threaded
Connection type
Finish White
K factor metric 160
K factor nominal 11.2
Main material Brass
Maximum working pressure 12
Position Pendent
Response Standard
Size 1-1/4”
Size 2 1067 mm
Temperature rating 96

SAP number 19835ME/W48
Application detail Standard Coverage
Connection Threaded
Connection type
Finish White
K factor metric 160
K factor nominal 11.2
Main material Brass
Maximum working pressure 12
Position Pendent
Response Standard
Size 1-1/4”
Size 2 1219 mm
Temperature rating 96

SAP number 19836FC12
Application detail Standard Coverage
Connection Threaded
Connection type
Finish Chrome
K factor metric 160
K factor nominal 11.2
Main material Brass
Maximum working pressure 12
Position Pendent
Response Standard
Size 32 mm
Size 2 305 mm
Temperature rating 74

SAP number 19836FC18
Application detail Standard Coverage
Connection Threaded
Connection type
Finish Chrome
K factor metric 160
K factor nominal 11.2
Main material Brass
Maximum working pressure 12
Position Pendent
Response Standard
Size 32 mm
Size 2 457 mm
Temperature rating 74

SAP number 19836FC24
Application detail Standard Coverage
Connection Threaded
Connection type
Finish Chrome
K factor metric 160
K factor nominal 11.2
Main material Brass
Maximum working pressure 12
Position Pendent
Response Standard
Size 32 mm
Size 2 610 mm
Temperature rating 74

SAP number 19836FC30
Application detail Standard Coverage
Connection Threaded
Connection type
Finish Chrome
K factor metric 160
K factor nominal 11.2
Main material Brass
Maximum working pressure 12
Position Pendent
Response Standard
Size 32 mm
Size 2 762 mm
Temperature rating 74

SAP number 19836FC36
Application detail Standard Coverage
Connection Threaded
Connection type
Finish Chrome
K factor metric 160
K factor nominal 11.2
Main material Brass
Maximum working pressure 12
Position Pendent
Response Standard
Size 32 mm
Size 2 914 mm
Temperature rating 74

SAP number 19836FC42
Application detail Standard Coverage
Connection Threaded
Connection type
Finish Chrome
K factor metric 160
K factor nominal 11.2
Main material Brass
Maximum working pressure 12
Position Pendent
Response Standard
Size 32 mm
Size 2 1067 mm
Temperature rating 74

SAP number 19836FC48
Application detail Standard Coverage
Connection Threaded
Connection type
Finish Chrome
K factor metric 160
K factor nominal 11.2
Main material Brass
Maximum working pressure 12
Position Pendent
Response Standard
Size 32 mm
Size 2 1219 mm
Temperature rating 74

SAP number 19836FE12
Application detail Standard Coverage
Connection Threaded
Connection type
Finish Chrome
K factor metric 160
K factor nominal 11.2
Main material Brass
Maximum working pressure 12
Position Pendent
Response Standard
Size 32 mm
Size 2 305 mm
Temperature rating 96

SAP number 19836FE18
Application detail Standard Coverage
Connection Threaded
Connection type
Finish Chrome
K factor metric 160
K factor nominal 11.2
Main material Brass
Maximum working pressure 12
Position Pendent
Response Standard
Size 32 mm
Size 2 457 mm
Temperature rating 96

SAP number 19836FE24
Application detail Standard Coverage
Connection Threaded
Connection type
Finish Chrome
K factor metric 160
K factor nominal 11.2
Main material Brass
Maximum working pressure 12
Position Pendent
Response Standard
Size 32 mm
Size 2 610 mm
Temperature rating 96

SAP number 19836FE30
Application detail Standard Coverage
Connection Threaded
Connection type
Finish Chrome
K factor metric 160
K factor nominal 11.2
Main material Brass
Maximum working pressure 12
Position Pendent
Response Standard
Size 32 mm
Size 2 762 mm
Temperature rating 96

SAP number 19836FE36
Application detail Standard Coverage
Connection Threaded
Connection type
Finish Chrome
K factor metric 160
K factor nominal 11.2
Main material Brass
Maximum working pressure 12
Position Pendent
Response Standard
Size 32 mm
Size 2 914 mm
Temperature rating 96

SAP number 19836FE42
Application detail Standard Coverage
Connection Threaded
Connection type
Finish Chrome
K factor metric 160
K factor nominal 11.2
Main material Brass
Maximum working pressure 12
Position Pendent
Response Standard
Size 32 mm
Size 2 1067 mm
Temperature rating 96

SAP number 19836FE48
Application detail Standard Coverage
Connection Threaded
Connection type
Finish Chrome
K factor metric 160
K factor nominal 11.2
Main material Brass
Maximum working pressure 12
Position Pendent
Response Standard
Size 32 mm
Size 2 1219 mm
Temperature rating 96

SAP number 19836MC/W12
Application detail Standard Coverage
Connection Threaded
Connection type
Finish White
K factor metric 160
K factor nominal 11.2
Main material Brass
Maximum working pressure 12
Position Pendent
Response Standard
Size 32 mm
Size 2 305 mm
Temperature rating 74

SAP number 19836MC/W18
Application detail Standard Coverage
Connection Threaded
Connection type
Finish White
K factor metric 160
K factor nominal 11.2
Main material Brass
Maximum working pressure 12
Position Pendent
Response Standard
Size 32 mm
Size 2 457 mm
Temperature rating 74

SAP number 19836MC/W24
Application detail Standard Coverage
Connection Threaded
Connection type
Finish White
K factor metric 160
K factor nominal 11.2
Main material Brass
Maximum working pressure 12
Position Pendent
Response Standard
Size 32 mm
Size 2 610 mm
Temperature rating 74

SAP number 19836MC/W30
Application detail Standard Coverage
Connection Threaded
Connection type
Finish White
K factor metric 160
K factor nominal 11.2
Main material Brass
Maximum working pressure 12
Position Pendent
Response Standard
Size 32 mm
Size 2 762 mm
Temperature rating 74

SAP number 19836MC/W36
Application detail Standard Coverage
Connection Threaded
Connection type
Finish White
K factor metric 160
K factor nominal 11.2
Main material Brass
Maximum working pressure 12
Position Pendent
Response Standard
Size 32 mm
Size 2 914 mm
Temperature rating 74

SAP number 19836MC/W42
Application detail Standard Coverage
Connection Threaded
Connection type
Finish White
K factor metric 160
K factor nominal 11.2
Main material Brass
Maximum working pressure 12
Position Pendent
Response Standard
Size 32 mm
Size 2 1067 mm
Temperature rating 74

SAP number 19836MC/W48
Application detail Standard Coverage
Connection Threaded
Connection type
Finish White
K factor metric 160
K factor nominal 11.2
Main material Brass
Maximum working pressure 12
Position Pendent
Response Standard
Size 32 mm
Size 2 1219 mm
Temperature rating 74

SAP number 19836ME/W12
Application detail Standard Coverage
Connection Threaded
Connection type
Finish White
K factor metric 160
K factor nominal 11.2
Main material Brass
Maximum working pressure 12
Position Pendent
Response Standard
Size 32 mm
Size 2 305 mm
Temperature rating 96

SAP number 19836ME/W18
Application detail Standard Coverage
Connection Threaded
Connection type
Finish White
K factor metric 160
K factor nominal 11.2
Main material Brass
Maximum working pressure 12
Position Pendent
Response Standard
Size 32 mm
Size 2 457 mm
Temperature rating 96

SAP number 19836ME/W24
Application detail Standard Coverage
Connection Threaded
Connection type
Finish White
K factor metric 160
K factor nominal 11.2
Main material Brass
Maximum working pressure 12
Position Pendent
Response Standard
Size 32 mm
Size 2 610 mm
Temperature rating 96

SAP number 19836ME/W30
Application detail Standard Coverage
Connection Threaded
Connection type
Finish White
K factor metric 160
K factor nominal 11.2
Main material Brass
Maximum working pressure 12
Position Pendent
Response Standard
Size 32 mm
Size 2 762 mm
Temperature rating 96

SAP number 19836ME/W36
Application detail Standard Coverage
Connection Threaded
Connection type
Finish White
K factor metric 160
K factor nominal 11.2
Main material Brass
Maximum working pressure 12
Position Pendent
Response Standard
Size 32 mm
Size 2 914 mm
Temperature rating 96

SAP number 19836ME/W42
Application detail Standard Coverage
Connection Threaded
Connection type
Finish White
K factor metric 160
K factor nominal 11.2
Main material Brass
Maximum working pressure 12
Position Pendent
Response Standard
Size 32 mm
Size 2 1067 mm
Temperature rating 96

SAP number 19836ME/W48
Application detail Standard Coverage
Connection Threaded
Connection type
Finish White
K factor metric 160
K factor nominal 11.2
Main material Brass
Maximum working pressure 12
Position Pendent
Response Standard
Size 32 mm
Size 2 1219 mm
Temperature rating 96

SAP number	Application detail	Connection	Finish	K factor metric	K factor nominal	Main material	Maximum working pressure	Position	Response	Size	Size 2	Temperature rating
19835FC12	Standard Coverage	Threaded	Chrome	160	11.2	Brass	12	Pendent	Standard	1 1/4”	305 mm	74
19835FC18	Standard Coverage	Threaded	Chrome	160	11.2	Brass	12	Pendent	Standard	1 1/4”	457 mm	74
19835FC24	Standard Coverage	Threaded	Chrome	160	11.2	Brass	12	Pendent	Standard	1 1/4”	610 mm	74
19835FC30	Standard Coverage	Threaded	Chrome	160	11.2	Brass	12	Pendent	Standard	1 1/4”	762 mm	74
19835FC36	Standard Coverage	Threaded	Chrome	160	11.2	Brass	12	Pendent	Standard	1 1/4”	914 mm	74
19835FC42	Standard Coverage	Threaded	Chrome	160	11.2	Brass	12	Pendent	Standard	1 1/4”	1067 mm	74
19835FC48	Standard Coverage	Threaded	Chrome	160	11.2	Brass	12	Pendent	Standard	1 1/4”	1219 mm	74
19835FE12	Standard Coverage	Threaded	Chrome	160	11.2	Brass	12	Pendent	Standard	1 1/4”	305 mm	96
19835FE18	Standard Coverage	Threaded	Chrome	160	11.2	Brass	12	Pendent	Standard	1 1/4”	457 mm	96
19835FE24	Standard Coverage	Threaded	Chrome	160	11.2	Brass	12	Pendent	Standard	1 1/4”	610 mm	96
19835FE30	Standard Coverage	Threaded	Chrome	160	11.2	Brass	12	Pendent	Standard	1 1/4”	762 mm	96
19835FE36	Standard Coverage	Threaded	Chrome	160	11.2	Brass	12	Pendent	Standard	1 1/4”	914 mm	96
19835FE42	Standard Coverage	Threaded	Chrome	160	11.2	Brass	12	Pendent	Standard	1 1/4”	1067 mm	96
19835FE48	Standard Coverage	Threaded	Chrome	160	11.2	Brass	12	Pendent	Standard	1 1/4”	1219 mm	96
19835JNC12	Standard Coverage	Threaded	ENT	160	11.2	Brass	12	Pendent	Standard	1 1/4”	305 mm	74
19835JNC18	Standard Coverage	Threaded	ENT	160	11.2	Brass	12	Pendent	Standard	1 1/4”	457 mm	74
19835JNC24	Standard Coverage	Threaded	ENT	160	11.2	Brass	12	Pendent	Standard	1 1/4”	610 mm	74
19835JNC30	Standard Coverage	Threaded	ENT	160	11.2	Brass	12	Pendent	Standard	1 1/4”	762 mm	74
19835JNC36	Standard Coverage	Threaded	ENT	160	11.2	Brass	12	Pendent	Standard	1 1/4”	914 mm	74
19835JNC42	Standard Coverage	Threaded	ENT	160	11.2	Brass	12	Pendent	Standard	1 1/4”	1067 mm	74
19835JNC48	Standard Coverage	Threaded	ENT	160	11.2	Brass	12	Pendent	Standard	1 1/4”	1219 mm	74
19835JNE12	Standard Coverage	Threaded	ENT	160	11.2	Brass	12	Pendent	Standard	1 1/4”	305 mm	96
19835JNE18	Standard Coverage	Threaded	ENT	160	11.2	Brass	12	Pendent	Standard	1 1/4”	457 mm	96
19835JNE24	Standard Coverage	Threaded	ENT	160	11.2	Brass	12	Pendent	Standard	1 1/4”	610 mm	96
19835JNE30	Standard Coverage	Threaded	ENT	160	11.2	Brass	12	Pendent	Standard	1 1/4”	762 mm	96
19835JNE36	Standard Coverage	Threaded	ENT	160	11.2	Brass	12	Pendent	Standard	1 1/4”	914 mm	96
19835JNE42	Standard Coverage	Threaded	ENT	160	11.2	Brass	12	Pendent	Standard	1 1/4”	1067 mm	96
19835JNE48	Standard Coverage	Threaded	ENT	160	11.2	Brass	12	Pendent	Standard	1 1/4”	1219 mm	96
19835MC/W12	Standard Coverage	Threaded	White	160	11.2	Brass	12	Pendent	Standard	1 1/4”	305 mm	74
19835MC/W18	Standard Coverage	Threaded	White	160	11.2	Brass	12	Pendent	Standard	1 1/4”	457 mm	74
19835MC/W24	Standard Coverage	Threaded	White	160	11.2	Brass	12	Pendent	Standard	1 1/4”	610 mm	74
19835MC/W30	Standard Coverage	Threaded	White	160	11.2	Brass	12	Pendent	Standard	1 1/4”	762 mm	74
19835MC/W36	Standard Coverage	Threaded	White	160	11.2	Brass	12	Pendent	Standard	1 1/4”	914 mm	74
19835MC/W42	Standard Coverage	Threaded	White	160	11.2	Brass	12	Pendent	Standard	1 1/4”	1067 mm	74
19835MC/W48	Standard Coverage	Threaded	White	160	11.2	Brass	12	Pendent	Standard	1 1/4”	1219 mm	74
19835ME/W12	Standard Coverage	Threaded	White	160	11.2	Brass	12	Pendent	Standard	1 1/4”	305 mm	96
19835ME/W18	Standard Coverage	Threaded	White	160	11.2	Brass	12	Pendent	Standard	1 1/4”	457 mm	96
19835ME/W24	Standard Coverage	Threaded	White	160	11.2	Brass	12	Pendent	Standard	1 1/4”	610 mm	96
19835ME/W30	Standard Coverage	Threaded	White	160	11.2	Brass	12	Pendent	Standard	1 1/4”	762 mm	96
19835ME/W36	Standard Coverage	Threaded	White	160	11.2	Brass	12	Pendent	Standard	1 1/4”	914 mm	96
19835ME/W42	Standard Coverage	Threaded	White	160	11.2	Brass	12	Pendent	Standard	1 1/4”	1067 mm	96
19835ME/W48	Standard Coverage	Threaded	White	160	11.2	Brass	12	Pendent	Standard	1 1/4”	1219 mm	96
19836FC12	Standard Coverage	Threaded	Chrome	160	11.2	Brass	12	Pendent	Standard	32 mm	305 mm	74
19836FC18	Standard Coverage	Threaded	Chrome	160	11.2	Brass	12	Pendent	Standard	32 mm	457 mm	74
19836FC24	Standard Coverage	Threaded	Chrome	160	11.2	Brass	12	Pendent	Standard	32 mm	610 mm	74
19836FC30	Standard Coverage	Threaded	Chrome	160	11.2	Brass	12	Pendent	Standard	32 mm	762 mm	74
19836FC36	Standard Coverage	Threaded	Chrome	160	11.2	Brass	12	Pendent	Standard	32 mm	914 mm	74
19836FC42	Standard Coverage	Threaded	Chrome	160	11.2	Brass	12	Pendent	Standard	32 mm	1067 mm	74
19836FC48	Standard Coverage	Threaded	Chrome	160	11.2	Brass	12	Pendent	Standard	32 mm	1219 mm	74
19836FE12	Standard Coverage	Threaded	Chrome	160	11.2	Brass	12	Pendent	Standard	32 mm	305 mm	96
19836FE18	Standard Coverage	Threaded	Chrome	160	11.2	Brass	12	Pendent	Standard	32 mm	457 mm	96
19836FE24	Standard Coverage	Threaded	Chrome	160	11.2	Brass	12	Pendent	Standard	32 mm	610 mm	96
19836FE30	Standard Coverage	Threaded	Chrome	160	11.2	Brass	12	Pendent	Standard	32 mm	762 mm	96
19836FE36	Standard Coverage	Threaded	Chrome	160	11.2	Brass	12	Pendent	Standard	32 mm	914 mm	96
19836FE42	Standard Coverage	Threaded	Chrome	160	11.2	Brass	12	Pendent	Standard	32 mm	1067 mm	96
19836FE48	Standard Coverage	Threaded	Chrome	160	11.2	Brass	12	Pendent	Standard	32 mm	1219 mm	96
19836MC/W12	Standard Coverage	Threaded	White	160	11.2	Brass	12	Pendent	Standard	32 mm	305 mm	74
19836MC/W18	Standard Coverage	Threaded	White	160	11.2	Brass	12	Pendent	Standard	32 mm	457 mm	74
19836MC/W24	Standard Coverage	Threaded	White	160	11.2	Brass	12	Pendent	Standard	32 mm	610 mm	74
19836MC/W30	Standard Coverage	Threaded	White	160	11.2	Brass	12	Pendent	Standard	32 mm	762 mm	74
19836MC/W36	Standard Coverage	Threaded	White	160	11.2	Brass	12	Pendent	Standard	32 mm	914 mm	74
19836MC/W42	Standard Coverage	Threaded	White	160	11.2	Brass	12	Pendent	Standard	32 mm	1067 mm	74
19836MC/W48	Standard Coverage	Threaded	White	160	11.2	Brass	12	Pendent	Standard	32 mm	1219 mm	74
19836ME/W12	Standard Coverage	Threaded	White	160	11.2	Brass	12	Pendent	Standard	32 mm	305 mm	96
19836ME/W18	Standard Coverage	Threaded	White	160	11.2	Brass	12	Pendent	Standard	32 mm	457 mm	96
19836ME/W24	Standard Coverage	Threaded	White	160	11.2	Brass	12	Pendent	Standard	32 mm	610 mm	96
19836ME/W30	Standard Coverage	Threaded	White	160	11.2	Brass	12	Pendent	Standard	32 mm	762 mm	96
19836ME/W36	Standard Coverage	Threaded	White	160	11.2	Brass	12	Pendent	Standard	32 mm	914 mm	96
19836ME/W42	Standard Coverage	Threaded	White	160	11.2	Brass	12	Pendent	Standard	32 mm	1067 mm	96
19836ME/W48	Standard Coverage	Threaded	White	160	11.2	Brass	12	Pendent	Standard	32 mm	1219 mm	96

Additional part numbers might be available. Please refer to the technical documentation or contact your local Viking sales office for more information.

URL copied to clipboard
