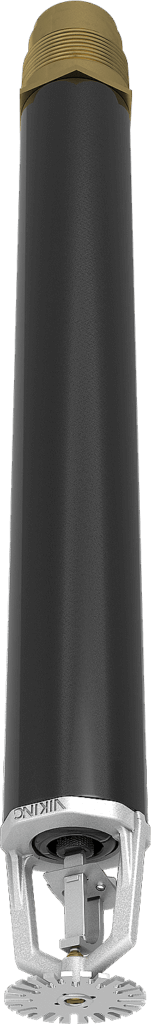

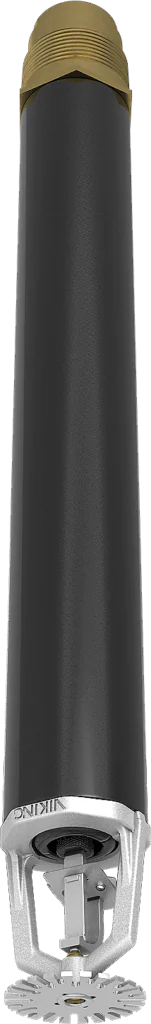

VK544
Plain Barrel, Fusible Link, Standard Response, ELO, Dry Spinkler
VK544 | DN32 – 1-1/4″ | K161 | Dry | Standard Response | ELO | Pendent | Fusible Link | Plain Barrel
VK544 VK544 | DN32 – 1-1/4″ | K161 | Dry | Standard Response | ELO | Pendent | Fusible Link | Plain Barrel
Documents & Resources (2)
Download all documents
Download selected files (1)
Add to download box (1)
All resources (2)
technical documentation (1)
drawings (1)
Sprinkler & Deluge
Data page
Language:
Languages
Click to select other languages
Sprinkler & Deluge
3D – Revit-BIM
Language:
Languages
Click to select other languages
Product Variants
- SAP number 19830AC12
- Application_detail Standard Coverage
- Connection Threaded
- Connection_type NPT
- Finish Brass
- K_factor_metric 160
- K_factor_nominal 11.2
- Main_material Brass
- Maximum_working_pressure 12
- Position Pendent
- Response Standard
- Size 1-1/4”
- Size_2 305 mm
- Temperature_rating 74
- SAP number 19830AC18
- Application_detail Standard Coverage
- Connection Threaded
- Connection_type NPT
- Finish Brass
- K_factor_metric 160
- K_factor_nominal 11.2
- Main_material Brass
- Maximum_working_pressure 12
- Position Pendent
- Response Standard
- Size 1-1/4”
- Size_2 457 mm
- Temperature_rating 74
- SAP number 19830AC24
- Application_detail Standard Coverage
- Connection Threaded
- Connection_type NPT
- Finish Brass
- K_factor_metric 160
- K_factor_nominal 11.2
- Main_material Brass
- Maximum_working_pressure 12
- Position Pendent
- Response Standard
- Size 1-1/4”
- Size_2 610 mm
- Temperature_rating 74
- SAP number 19830AC30
- Application_detail Standard Coverage
- Connection Threaded
- Connection_type NPT
- Finish Brass
- K_factor_metric 160
- K_factor_nominal 11.2
- Main_material Brass
- Maximum_working_pressure 12
- Position Pendent
- Response Standard
- Size 1-1/4”
- Size_2 762 mm
- Temperature_rating 74
- SAP number 19830AC36
- Application_detail Standard Coverage
- Connection Threaded
- Connection_type NPT
- Finish Brass
- K_factor_metric 160
- K_factor_nominal 11.2
- Main_material Brass
- Maximum_working_pressure 12
- Position Pendent
- Response Standard
- Size 1-1/4”
- Size_2 914 mm
- Temperature_rating 74
- SAP number 19830AC42
- Application_detail Standard Coverage
- Connection Threaded
- Connection_type NPT
- Finish Brass
- K_factor_metric 160
- K_factor_nominal 11.2
- Main_material Brass
- Maximum_working_pressure 12
- Position Pendent
- Response Standard
- Size 1-1/4”
- Size_2 1067 mm
- Temperature_rating 74
- SAP number 19830AC48
- Application_detail Standard Coverage
- Connection Threaded
- Connection_type NPT
- Finish Brass
- K_factor_metric 160
- K_factor_nominal 11.2
- Main_material Brass
- Maximum_working_pressure 12
- Position Pendent
- Response Standard
- Size 1-1/4”
- Size_2 1219 mm
- Temperature_rating 74
- SAP number 19830AE12
- Application_detail Standard Coverage
- Connection Threaded
- Connection_type NPT
- Finish Brass
- K_factor_metric 160
- K_factor_nominal 11.2
- Main_material Brass
- Maximum_working_pressure 12
- Position Pendent
- Response Standard
- Size 1-1/4”
- Size_2 305 mm
- Temperature_rating 96
- SAP number 19830AE18
- Application_detail Standard Coverage
- Connection Threaded
- Connection_type NPT
- Finish Brass
- K_factor_metric 160
- K_factor_nominal 11.2
- Main_material Brass
- Maximum_working_pressure 12
- Position Pendent
- Response Standard
- Size 1-1/4”
- Size_2 457 mm
- Temperature_rating 96
- SAP number 19830AE24
- Application_detail Standard Coverage
- Connection Threaded
- Connection_type NPT
- Finish Brass
- K_factor_metric 160
- K_factor_nominal 11.2
- Main_material Brass
- Maximum_working_pressure 12
- Position Pendent
- Response Standard
- Size 1-1/4”
- Size_2 610 mm
- Temperature_rating 96
- SAP number 19830AE30
- Application_detail Standard Coverage
- Connection Threaded
- Connection_type NPT
- Finish Brass
- K_factor_metric 160
- K_factor_nominal 11.2
- Main_material Brass
- Maximum_working_pressure 12
- Position Pendent
- Response Standard
- Size 1-1/4”
- Size_2 762 mm
- Temperature_rating 96
- SAP number 19830AE36
- Application_detail Standard Coverage
- Connection Threaded
- Connection_type NPT
- Finish Brass
- K_factor_metric 160
- K_factor_nominal 11.2
- Main_material Brass
- Maximum_working_pressure 12
- Position Pendent
- Response Standard
- Size 1-1/4”
- Size_2 914 mm
- Temperature_rating 96
- SAP number 19830AE42
- Application_detail Standard Coverage
- Connection Threaded
- Connection_type NPT
- Finish Brass
- K_factor_metric 160
- K_factor_nominal 11.2
- Main_material Brass
- Maximum_working_pressure 12
- Position Pendent
- Response Standard
- Size 1-1/4”
- Size_2 1067 mm
- Temperature_rating 96
- SAP number 19830AE48
- Application_detail Standard Coverage
- Connection Threaded
- Connection_type NPT
- Finish Brass
- K_factor_metric 160
- K_factor_nominal 11.2
- Main_material Brass
- Maximum_working_pressure 12
- Position Pendent
- Response Standard
- Size 1-1/4”
- Size_2 1219 mm
- Temperature_rating 96
- SAP number 19830AG12
- Application_detail Standard Coverage
- Connection Threaded
- Connection_type NPT
- Finish Brass
- K_factor_metric 160
- K_factor_nominal 11.2
- Main_material Brass
- Maximum_working_pressure 12
- Position Pendent
- Response Standard
- Size 1-1/4”
- Size_2 305 mm
- Temperature_rating 138
- SAP number 19830AG18
- Application_detail Standard Coverage
- Connection Threaded
- Connection_type NPT
- Finish Brass
- K_factor_metric 160
- K_factor_nominal 11.2
- Main_material Brass
- Maximum_working_pressure 12
- Position Pendent
- Response Standard
- Size 1-1/4”
- Size_2 457 mm
- Temperature_rating 138
- SAP number 19830AG24
- Application_detail Standard Coverage
- Connection Threaded
- Connection_type NPT
- Finish Brass
- K_factor_metric 160
- K_factor_nominal 11.2
- Main_material Brass
- Maximum_working_pressure 12
- Position Pendent
- Response Standard
- Size 1-1/4”
- Size_2 610 mm
- Temperature_rating 138
- SAP number 19830AG30
- Application_detail Standard Coverage
- Connection Threaded
- Connection_type NPT
- Finish Brass
- K_factor_metric 160
- K_factor_nominal 11.2
- Main_material Brass
- Maximum_working_pressure 12
- Position Pendent
- Response Standard
- Size 1-1/4”
- Size_2 762 mm
- Temperature_rating 138
- SAP number 19830AG36
- Application_detail Standard Coverage
- Connection Threaded
- Connection_type NPT
- Finish Brass
- K_factor_metric 160
- K_factor_nominal 11.2
- Main_material Brass
- Maximum_working_pressure 12
- Position Pendent
- Response Standard
- Size 1-1/4”
- Size_2 914 mm
- Temperature_rating 138
- SAP number 19830AG42
- Application_detail Standard Coverage
- Connection Threaded
- Connection_type NPT
- Finish Brass
- K_factor_metric 160
- K_factor_nominal 11.2
- Main_material Brass
- Maximum_working_pressure 12
- Position Pendent
- Response Standard
- Size 1-1/4”
- Size_2 1067 mm
- Temperature_rating 138
- SAP number 19830AG48
- Application_detail Standard Coverage
- Connection Threaded
- Connection_type NPT
- Finish Brass
- K_factor_metric 160
- K_factor_nominal 11.2
- Main_material Brass
- Maximum_working_pressure 12
- Position Pendent
- Response Standard
- Size 1-1/4”
- Size_2 1219 mm
- Temperature_rating 138
- SAP number 19830FC12
- Application_detail Standard Coverage
- Connection Threaded
- Connection_type NPT
- Finish Chrome
- K_factor_metric 160
- K_factor_nominal 11.2
- Main_material Brass
- Maximum_working_pressure 12
- Position Pendent
- Response Standard
- Size 1-1/4”
- Size_2 305 mm
- Temperature_rating 74
- SAP number 19830FC18
- Application_detail Standard Coverage
- Connection Threaded
- Connection_type NPT
- Finish Chrome
- K_factor_metric 160
- K_factor_nominal 11.2
- Main_material Brass
- Maximum_working_pressure 12
- Position Pendent
- Response Standard
- Size 1-1/4”
- Size_2 457 mm
- Temperature_rating 74
- SAP number 19830FC24
- Application_detail Standard Coverage
- Connection Threaded
- Connection_type NPT
- Finish Chrome
- K_factor_metric 160
- K_factor_nominal 11.2
- Main_material Brass
- Maximum_working_pressure 12
- Position Pendent
- Response Standard
- Size 1-1/4”
- Size_2 610 mm
- Temperature_rating 74
- SAP number 19830FC30
- Application_detail Standard Coverage
- Connection Threaded
- Connection_type NPT
- Finish Chrome
- K_factor_metric 160
- K_factor_nominal 11.2
- Main_material Brass
- Maximum_working_pressure 12
- Position Pendent
- Response Standard
- Size 1-1/4”
- Size_2 762 mm
- Temperature_rating 74
- SAP number 19830FC36
- Application_detail Standard Coverage
- Connection Threaded
- Connection_type NPT
- Finish Chrome
- K_factor_metric 160
- K_factor_nominal 11.2
- Main_material Brass
- Maximum_working_pressure 12
- Position Pendent
- Response Standard
- Size 1-1/4”
- Size_2 914 mm
- Temperature_rating 74
- SAP number 19830FC42
- Application_detail Standard Coverage
- Connection Threaded
- Connection_type NPT
- Finish Chrome
- K_factor_metric 160
- K_factor_nominal 11.2
- Main_material Brass
- Maximum_working_pressure 12
- Position Pendent
- Response Standard
- Size 1-1/4”
- Size_2 1067 mm
- Temperature_rating 74
- SAP number 19830FC48
- Application_detail Standard Coverage
- Connection Threaded
- Connection_type NPT
- Finish Chrome
- K_factor_metric 160
- K_factor_nominal 11.2
- Main_material Brass
- Maximum_working_pressure 12
- Position Pendent
- Response Standard
- Size 1-1/4”
- Size_2 1219 mm
- Temperature_rating 74
- SAP number 19830FE12
- Application_detail Standard Coverage
- Connection Threaded
- Connection_type NPT
- Finish Chrome
- K_factor_metric 160
- K_factor_nominal 11.2
- Main_material Brass
- Maximum_working_pressure 12
- Position Pendent
- Response Standard
- Size 1-1/4”
- Size_2 305 mm
- Temperature_rating 96
- SAP number 19830FE18
- Application_detail Standard Coverage
- Connection Threaded
- Connection_type NPT
- Finish Chrome
- K_factor_metric 160
- K_factor_nominal 11.2
- Main_material Brass
- Maximum_working_pressure 12
- Position Pendent
- Response Standard
- Size 1-1/4”
- Size_2 457 mm
- Temperature_rating 96
- SAP number 19830FE24
- Application_detail Standard Coverage
- Connection Threaded
- Connection_type NPT
- Finish Chrome
- K_factor_metric 160
- K_factor_nominal 11.2
- Main_material Brass
- Maximum_working_pressure 12
- Position Pendent
- Response Standard
- Size 1-1/4”
- Size_2 610 mm
- Temperature_rating 96
- SAP number 19830FE30
- Application_detail Standard Coverage
- Connection Threaded
- Connection_type NPT
- Finish Chrome
- K_factor_metric 160
- K_factor_nominal 11.2
- Main_material Brass
- Maximum_working_pressure 12
- Position Pendent
- Response Standard
- Size 1-1/4”
- Size_2 762 mm
- Temperature_rating 96
- SAP number 19830FE36
- Application_detail Standard Coverage
- Connection Threaded
- Connection_type NPT
- Finish Chrome
- K_factor_metric 160
- K_factor_nominal 11.2
- Main_material Brass
- Maximum_working_pressure 12
- Position Pendent
- Response Standard
- Size 1-1/4”
- Size_2 914 mm
- Temperature_rating 96
- SAP number 19830FE42
- Application_detail Standard Coverage
- Connection Threaded
- Connection_type NPT
- Finish Chrome
- K_factor_metric 160
- K_factor_nominal 11.2
- Main_material Brass
- Maximum_working_pressure 12
- Position Pendent
- Response Standard
- Size 1-1/4”
- Size_2 1067 mm
- Temperature_rating 96
- SAP number 19830FE48
- Application_detail Standard Coverage
- Connection Threaded
- Connection_type NPT
- Finish Chrome
- K_factor_metric 160
- K_factor_nominal 11.2
- Main_material Brass
- Maximum_working_pressure 12
- Position Pendent
- Response Standard
- Size 1-1/4”
- Size_2 1219 mm
- Temperature_rating 96
- SAP number 19830FG12
- Application_detail Standard Coverage
- Connection Threaded
- Connection_type NPT
- Finish Chrome
- K_factor_metric 160
- K_factor_nominal 11.2
- Main_material Brass
- Maximum_working_pressure 12
- Position Pendent
- Response Standard
- Size 1-1/4”
- Size_2 305 mm
- Temperature_rating 138
- SAP number 19830FG18
- Application_detail Standard Coverage
- Connection Threaded
- Connection_type NPT
- Finish Chrome
- K_factor_metric 160
- K_factor_nominal 11.2
- Main_material Brass
- Maximum_working_pressure 12
- Position Pendent
- Response Standard
- Size 1-1/4”
- Size_2 457 mm
- Temperature_rating 138
- SAP number 19830FG24
- Application_detail Standard Coverage
- Connection Threaded
- Connection_type NPT
- Finish Chrome
- K_factor_metric 160
- K_factor_nominal 11.2
- Main_material Brass
- Maximum_working_pressure 12
- Position Pendent
- Response Standard
- Size 1-1/4”
- Size_2 610 mm
- Temperature_rating 138
- SAP number 19830FG30
- Application_detail Standard Coverage
- Connection Threaded
- Connection_type NPT
- Finish Chrome
- K_factor_metric 160
- K_factor_nominal 11.2
- Main_material Brass
- Maximum_working_pressure 12
- Position Pendent
- Response Standard
- Size 1-1/4”
- Size_2 762 mm
- Temperature_rating 138
- SAP number 19830FG36
- Application_detail Standard Coverage
- Connection Threaded
- Connection_type NPT
- Finish Chrome
- K_factor_metric 160
- K_factor_nominal 11.2
- Main_material Brass
- Maximum_working_pressure 12
- Position Pendent
- Response Standard
- Size 1-1/4”
- Size_2 914 mm
- Temperature_rating 138
- SAP number 19830FG42
- Application_detail Standard Coverage
- Connection Threaded
- Connection_type NPT
- Finish Chrome
- K_factor_metric 160
- K_factor_nominal 11.2
- Main_material Brass
- Maximum_working_pressure 12
- Position Pendent
- Response Standard
- Size 1-1/4”
- Size_2 1067 mm
- Temperature_rating 138
- SAP number 19830FG48
- Application_detail Standard Coverage
- Connection Threaded
- Connection_type NPT
- Finish Chrome
- K_factor_metric 160
- K_factor_nominal 11.2
- Main_material Brass
- Maximum_working_pressure 12
- Position Pendent
- Response Standard
- Size 1-1/4”
- Size_2 1219 mm
- Temperature_rating 138
- SAP number 19830JNC12
- Application_detail Standard Coverage
- Connection Threaded
- Connection_type NPT
- Finish ENT
- K_factor_metric 160
- K_factor_nominal 11.2
- Main_material Brass
- Maximum_working_pressure 12
- Position Pendent
- Response Standard
- Size 1-1/4”
- Size_2 305 mm
- Temperature_rating 74
- SAP number 19830JNC18
- Application_detail Standard Coverage
- Connection Threaded
- Connection_type NPT
- Finish ENT
- K_factor_metric 160
- K_factor_nominal 11.2
- Main_material Brass
- Maximum_working_pressure 12
- Position Pendent
- Response Standard
- Size 1-1/4”
- Size_2 457 mm
- Temperature_rating 74
- SAP number 19830JNC24
- Application_detail Standard Coverage
- Connection Threaded
- Connection_type NPT
- Finish ENT
- K_factor_metric 160
- K_factor_nominal 11.2
- Main_material Brass
- Maximum_working_pressure 12
- Position Pendent
- Response Standard
- Size 1-1/4”
- Size_2 610 mm
- Temperature_rating 74
- SAP number 19830JNC30
- Application_detail Standard Coverage
- Connection Threaded
- Connection_type NPT
- Finish ENT
- K_factor_metric 160
- K_factor_nominal 11.2
- Main_material Brass
- Maximum_working_pressure 12
- Position Pendent
- Response Standard
- Size 1-1/4”
- Size_2 762 mm
- Temperature_rating 74
- SAP number 19830JNC36
- Application_detail Standard Coverage
- Connection Threaded
- Connection_type NPT
- Finish ENT
- K_factor_metric 160
- K_factor_nominal 11.2
- Main_material Brass
- Maximum_working_pressure 12
- Position Pendent
- Response Standard
- Size 1-1/4”
- Size_2 914 mm
- Temperature_rating 74
- SAP number 19830JNC42
- Application_detail Standard Coverage
- Connection Threaded
- Connection_type NPT
- Finish ENT
- K_factor_metric 160
- K_factor_nominal 11.2
- Main_material Brass
- Maximum_working_pressure 12
- Position Pendent
- Response Standard
- Size 1-1/4”
- Size_2 1067 mm
- Temperature_rating 74
- SAP number 19830JNC48
- Application_detail Standard Coverage
- Connection Threaded
- Connection_type NPT
- Finish ENT
- K_factor_metric 160
- K_factor_nominal 11.2
- Main_material Brass
- Maximum_working_pressure 12
- Position Pendent
- Response Standard
- Size 1-1/4”
- Size_2 1219 mm
- Temperature_rating 74
- SAP number 19830JNE12
- Application_detail Standard Coverage
- Connection Threaded
- Connection_type NPT
- Finish ENT
- K_factor_metric 160
- K_factor_nominal 11.2
- Main_material Brass
- Maximum_working_pressure 12
- Position Pendent
- Response Standard
- Size 1-1/4”
- Size_2 305 mm
- Temperature_rating 96
- SAP number 19830JNE18
- Application_detail Standard Coverage
- Connection Threaded
- Connection_type NPT
- Finish ENT
- K_factor_metric 160
- K_factor_nominal 11.2
- Main_material Brass
- Maximum_working_pressure 12
- Position Pendent
- Response Standard
- Size 1-1/4”
- Size_2 457 mm
- Temperature_rating 96
- SAP number 19830JNE24
- Application_detail Standard Coverage
- Connection Threaded
- Connection_type NPT
- Finish ENT
- K_factor_metric 160
- K_factor_nominal 11.2
- Main_material Brass
- Maximum_working_pressure 12
- Position Pendent
- Response Standard
- Size 1-1/4”
- Size_2 610 mm
- Temperature_rating 96
- SAP number 19830JNE30
- Application_detail Standard Coverage
- Connection Threaded
- Connection_type NPT
- Finish ENT
- K_factor_metric 160
- K_factor_nominal 11.2
- Main_material Brass
- Maximum_working_pressure 12
- Position Pendent
- Response Standard
- Size 1-1/4”
- Size_2 762 mm
- Temperature_rating 96
- SAP number 19830JNE36
- Application_detail Standard Coverage
- Connection Threaded
- Connection_type NPT
- Finish ENT
- K_factor_metric 160
- K_factor_nominal 11.2
- Main_material Brass
- Maximum_working_pressure 12
- Position Pendent
- Response Standard
- Size 1-1/4”
- Size_2 914 mm
- Temperature_rating 96
- SAP number 19830JNE42
- Application_detail Standard Coverage
- Connection Threaded
- Connection_type NPT
- Finish ENT
- K_factor_metric 160
- K_factor_nominal 11.2
- Main_material Brass
- Maximum_working_pressure 12
- Position Pendent
- Response Standard
- Size 1-1/4”
- Size_2 1067 mm
- Temperature_rating 96
- SAP number 19830JNE48
- Application_detail Standard Coverage
- Connection Threaded
- Connection_type NPT
- Finish ENT
- K_factor_metric 160
- K_factor_nominal 11.2
- Main_material Brass
- Maximum_working_pressure 12
- Position Pendent
- Response Standard
- Size 1-1/4”
- Size_2 1219 mm
- Temperature_rating 96
- SAP number 19830JNG12
- Application_detail Standard Coverage
- Connection Threaded
- Connection_type NPT
- Finish ENT
- K_factor_metric 160
- K_factor_nominal 11.2
- Main_material Brass
- Maximum_working_pressure 12
- Position Pendent
- Response Standard
- Size 1-1/4”
- Size_2 305 mm
- Temperature_rating 138
- SAP number 19830JNG18
- Application_detail Standard Coverage
- Connection Threaded
- Connection_type NPT
- Finish ENT
- K_factor_metric 160
- K_factor_nominal 11.2
- Main_material Brass
- Maximum_working_pressure 12
- Position Pendent
- Response Standard
- Size 1-1/4”
- Size_2 457 mm
- Temperature_rating 138
- SAP number 19830JNG24
- Application_detail Standard Coverage
- Connection Threaded
- Connection_type NPT
- Finish ENT
- K_factor_metric 160
- K_factor_nominal 11.2
- Main_material Brass
- Maximum_working_pressure 12
- Position Pendent
- Response Standard
- Size 1-1/4”
- Size_2 610 mm
- Temperature_rating 138
- SAP number 19830JNG30
- Application_detail Standard Coverage
- Connection Threaded
- Connection_type NPT
- Finish ENT
- K_factor_metric 160
- K_factor_nominal 11.2
- Main_material Brass
- Maximum_working_pressure 12
- Position Pendent
- Response Standard
- Size 1-1/4”
- Size_2 762 mm
- Temperature_rating 138
- SAP number 19830JNG36
- Application_detail Standard Coverage
- Connection Threaded
- Connection_type NPT
- Finish ENT
- K_factor_metric 160
- K_factor_nominal 11.2
- Main_material Brass
- Maximum_working_pressure 12
- Position Pendent
- Response Standard
- Size 1-1/4”
- Size_2 914 mm
- Temperature_rating 138
- SAP number 19830JNG42
- Application_detail Standard Coverage
- Connection Threaded
- Connection_type NPT
- Finish ENT
- K_factor_metric 160
- K_factor_nominal 11.2
- Main_material Brass
- Maximum_working_pressure 12
- Position Pendent
- Response Standard
- Size 1-1/4”
- Size_2 1067 mm
- Temperature_rating 138
- SAP number 19830JNG48
- Application_detail Standard Coverage
- Connection Threaded
- Connection_type NPT
- Finish ENT
- K_factor_metric 160
- K_factor_nominal 11.2
- Main_material Brass
- Maximum_working_pressure 12
- Position Pendent
- Response Standard
- Size 1-1/4”
- Size_2 1219 mm
- Temperature_rating 138
- SAP number 19830MC/W12
- Application_detail Standard Coverage
- Connection Threaded
- Connection_type NPT
- Finish White
- K_factor_metric 160
- K_factor_nominal 11.2
- Main_material Brass
- Maximum_working_pressure 12
- Position Pendent
- Response Standard
- Size 1-1/4”
- Size_2 305 mm
- Temperature_rating 74
- SAP number 19830MC/W18
- Application_detail Standard Coverage
- Connection Threaded
- Connection_type NPT
- Finish White
- K_factor_metric 160
- K_factor_nominal 11.2
- Main_material Brass
- Maximum_working_pressure 12
- Position Pendent
- Response Standard
- Size 1-1/4”
- Size_2 457 mm
- Temperature_rating 74
- SAP number 19830MC/W24
- Application_detail Standard Coverage
- Connection Threaded
- Connection_type NPT
- Finish White
- K_factor_metric 160
- K_factor_nominal 11.2
- Main_material Brass
- Maximum_working_pressure 12
- Position Pendent
- Response Standard
- Size 1-1/4”
- Size_2 610 mm
- Temperature_rating 74
- SAP number 19830MC/W30
- Application_detail Standard Coverage
- Connection Threaded
- Connection_type NPT
- Finish White
- K_factor_metric 160
- K_factor_nominal 11.2
- Main_material Brass
- Maximum_working_pressure 12
- Position Pendent
- Response Standard
- Size 1-1/4”
- Size_2 762 mm
- Temperature_rating 74
- SAP number 19830MC/W36
- Application_detail Standard Coverage
- Connection Threaded
- Connection_type NPT
- Finish White
- K_factor_metric 160
- K_factor_nominal 11.2
- Main_material Brass
- Maximum_working_pressure 12
- Position Pendent
- Response Standard
- Size 1-1/4”
- Size_2 914 mm
- Temperature_rating 74
- SAP number 19830MC/W42
- Application_detail Standard Coverage
- Connection Threaded
- Connection_type NPT
- Finish White
- K_factor_metric 160
- K_factor_nominal 11.2
- Main_material Brass
- Maximum_working_pressure 12
- Position Pendent
- Response Standard
- Size 1-1/4”
- Size_2 1067 mm
- Temperature_rating 74
- SAP number 19830MC/W48
- Application_detail Standard Coverage
- Connection Threaded
- Connection_type NPT
- Finish White
- K_factor_metric 160
- K_factor_nominal 11.2
- Main_material Brass
- Maximum_working_pressure 12
- Position Pendent
- Response Standard
- Size 1-1/4”
- Size_2 1219 mm
- Temperature_rating 74
- SAP number 19830ME/W12
- Application_detail Standard Coverage
- Connection Threaded
- Connection_type NPT
- Finish White
- K_factor_metric 160
- K_factor_nominal 11.2
- Main_material Brass
- Maximum_working_pressure 12
- Position Pendent
- Response Standard
- Size 1-1/4”
- Size_2 305 mm
- Temperature_rating 96
- SAP number 19830ME/W18
- Application_detail Standard Coverage
- Connection Threaded
- Connection_type NPT
- Finish White
- K_factor_metric 160
- K_factor_nominal 11.2
- Main_material Brass
- Maximum_working_pressure 12
- Position Pendent
- Response Standard
- Size 1-1/4”
- Size_2 457 mm
- Temperature_rating 96
- SAP number 19830ME/W24
- Application_detail Standard Coverage
- Connection Threaded
- Connection_type NPT
- Finish White
- K_factor_metric 160
- K_factor_nominal 11.2
- Main_material Brass
- Maximum_working_pressure 12
- Position Pendent
- Response Standard
- Size 1-1/4”
- Size_2 610 mm
- Temperature_rating 96
- SAP number 19830ME/W30
- Application_detail Standard Coverage
- Connection Threaded
- Connection_type NPT
- Finish White
- K_factor_metric 160
- K_factor_nominal 11.2
- Main_material Brass
- Maximum_working_pressure 12
- Position Pendent
- Response Standard
- Size 1-1/4”
- Size_2 762 mm
- Temperature_rating 96
- SAP number 19830ME/W36
- Application_detail Standard Coverage
- Connection Threaded
- Connection_type NPT
- Finish White
- K_factor_metric 160
- K_factor_nominal 11.2
- Main_material Brass
- Maximum_working_pressure 12
- Position Pendent
- Response Standard
- Size 1-1/4”
- Size_2 914 mm
- Temperature_rating 96
- SAP number 19830ME/W42
- Application_detail Standard Coverage
- Connection Threaded
- Connection_type NPT
- Finish White
- K_factor_metric 160
- K_factor_nominal 11.2
- Main_material Brass
- Maximum_working_pressure 12
- Position Pendent
- Response Standard
- Size 1-1/4”
- Size_2 1067 mm
- Temperature_rating 96
- SAP number 19830ME/W48
- Application_detail Standard Coverage
- Connection Threaded
- Connection_type NPT
- Finish White
- K_factor_metric 160
- K_factor_nominal 11.2
- Main_material Brass
- Maximum_working_pressure 12
- Position Pendent
- Response Standard
- Size 1-1/4”
- Size_2 1219 mm
- Temperature_rating 96
- SAP number 19830MG/W12
- Application_detail Standard Coverage
- Connection Threaded
- Connection_type NPT
- Finish White
- K_factor_metric 160
- K_factor_nominal 11.2
- Main_material Brass
- Maximum_working_pressure 12
- Position Pendent
- Response Standard
- Size 1-1/4”
- Size_2 305 mm
- Temperature_rating 138
- SAP number 19830MG/W18
- Application_detail Standard Coverage
- Connection Threaded
- Connection_type NPT
- Finish White
- K_factor_metric 160
- K_factor_nominal 11.2
- Main_material Brass
- Maximum_working_pressure 12
- Position Pendent
- Response Standard
- Size 1-1/4”
- Size_2 457 mm
- Temperature_rating 138
- SAP number 19830MG/W24
- Application_detail Standard Coverage
- Connection Threaded
- Connection_type NPT
- Finish White
- K_factor_metric 160
- K_factor_nominal 11.2
- Main_material Brass
- Maximum_working_pressure 12
- Position Pendent
- Response Standard
- Size 1-1/4”
- Size_2 610 mm
- Temperature_rating 138
- SAP number 19830MG/W30
- Application_detail Standard Coverage
- Connection Threaded
- Connection_type NPT
- Finish White
- K_factor_metric 160
- K_factor_nominal 11.2
- Main_material Brass
- Maximum_working_pressure 12
- Position Pendent
- Response Standard
- Size 1-1/4”
- Size_2 762 mm
- Temperature_rating 138
- SAP number 19830MG/W36
- Application_detail Standard Coverage
- Connection Threaded
- Connection_type NPT
- Finish White
- K_factor_metric 160
- K_factor_nominal 11.2
- Main_material Brass
- Maximum_working_pressure 12
- Position Pendent
- Response Standard
- Size 1-1/4”
- Size_2 914 mm
- Temperature_rating 138
- SAP number 19830MG/W42
- Application_detail Standard Coverage
- Connection Threaded
- Connection_type NPT
- Finish White
- K_factor_metric 160
- K_factor_nominal 11.2
- Main_material Brass
- Maximum_working_pressure 12
- Position Pendent
- Response Standard
- Size 1-1/4”
- Size_2 1067 mm
- Temperature_rating 138
- SAP number 19830MG/W48
- Application_detail Standard Coverage
- Connection Threaded
- Connection_type NPT
- Finish White
- K_factor_metric 160
- K_factor_nominal 11.2
- Main_material Brass
- Maximum_working_pressure 12
- Position Pendent
- Response Standard
- Size 1-1/4”
- Size_2 1219 mm
- Temperature_rating 138
- SAP number 19831AC12
- Application_detail Standard Coverage
- Connection Threaded
- Connection_type BSP
- Finish Brass
- K_factor_metric 160
- K_factor_nominal 11.2
- Main_material Brass
- Maximum_working_pressure 12
- Position Pendent
- Response Standard
- Size 32 mm
- Size_2 305 mm
- Temperature_rating 74
- SAP number 19831AC18
- Application_detail Standard Coverage
- Connection Threaded
- Connection_type BSP
- Finish Brass
- K_factor_metric 160
- K_factor_nominal 11.2
- Main_material Brass
- Maximum_working_pressure 12
- Position Pendent
- Response Standard
- Size 32 mm
- Size_2 457 mm
- Temperature_rating 74
- SAP number 19831AC24
- Application_detail Standard Coverage
- Connection Threaded
- Connection_type BSP
- Finish Brass
- K_factor_metric 160
- K_factor_nominal 11.2
- Main_material Brass
- Maximum_working_pressure 12
- Position Pendent
- Response Standard
- Size 32 mm
- Size_2 610 mm
- Temperature_rating 74
- SAP number 19831AC30
- Application_detail Standard Coverage
- Connection Threaded
- Connection_type BSP
- Finish Brass
- K_factor_metric 160
- K_factor_nominal 11.2
- Main_material Brass
- Maximum_working_pressure 12
- Position Pendent
- Response Standard
- Size 32 mm
- Size_2 762 mm
- Temperature_rating 74
- SAP number 19831AC36
- Application_detail Standard Coverage
- Connection Threaded
- Connection_type BSP
- Finish Brass
- K_factor_metric 160
- K_factor_nominal 11.2
- Main_material Brass
- Maximum_working_pressure 12
- Position Pendent
- Response Standard
- Size 32 mm
- Size_2 914 mm
- Temperature_rating 74
- SAP number 19831AC42
- Application_detail Standard Coverage
- Connection Threaded
- Connection_type BSP
- Finish Brass
- K_factor_metric 160
- K_factor_nominal 11.2
- Main_material Brass
- Maximum_working_pressure 12
- Position Pendent
- Response Standard
- Size 32 mm
- Size_2 1067 mm
- Temperature_rating 74
- SAP number 19831AC48
- Application_detail Standard Coverage
- Connection Threaded
- Connection_type BSP
- Finish Brass
- K_factor_metric 160
- K_factor_nominal 11.2
- Main_material Brass
- Maximum_working_pressure 12
- Position Pendent
- Response Standard
- Size 32 mm
- Size_2 1219 mm
- Temperature_rating 74
- SAP number 19831AE12
- Application_detail Standard Coverage
- Connection Threaded
- Connection_type BSP
- Finish Brass
- K_factor_metric 160
- K_factor_nominal 11.2
- Main_material Brass
- Maximum_working_pressure 12
- Position Pendent
- Response Standard
- Size 32 mm
- Size_2 305 mm
- Temperature_rating 96
- SAP number 19831AE18
- Application_detail Standard Coverage
- Connection Threaded
- Connection_type BSP
- Finish Brass
- K_factor_metric 160
- K_factor_nominal 11.2
- Main_material Brass
- Maximum_working_pressure 12
- Position Pendent
- Response Standard
- Size 32 mm
- Size_2 457 mm
- Temperature_rating 96
- SAP number 19831AE24
- Application_detail Standard Coverage
- Connection Threaded
- Connection_type BSP
- Finish Brass
- K_factor_metric 160
- K_factor_nominal 11.2
- Main_material Brass
- Maximum_working_pressure 12
- Position Pendent
- Response Standard
- Size 32 mm
- Size_2 610 mm
- Temperature_rating 96
- SAP number 19831AE30
- Application_detail Standard Coverage
- Connection Threaded
- Connection_type BSP
- Finish Brass
- K_factor_metric 160
- K_factor_nominal 11.2
- Main_material Brass
- Maximum_working_pressure 12
- Position Pendent
- Response Standard
- Size 32 mm
- Size_2 762 mm
- Temperature_rating 96
- SAP number 19831AE36
- Application_detail Standard Coverage
- Connection Threaded
- Connection_type BSP
- Finish Brass
- K_factor_metric 160
- K_factor_nominal 11.2
- Main_material Brass
- Maximum_working_pressure 12
- Position Pendent
- Response Standard
- Size 32 mm
- Size_2 914 mm
- Temperature_rating 96
- SAP number 19831AE42
- Application_detail Standard Coverage
- Connection Threaded
- Connection_type BSP
- Finish Brass
- K_factor_metric 160
- K_factor_nominal 11.2
- Main_material Brass
- Maximum_working_pressure 12
- Position Pendent
- Response Standard
- Size 32 mm
- Size_2 1067 mm
- Temperature_rating 96
- SAP number 19831AE48
- Application_detail Standard Coverage
- Connection Threaded
- Connection_type BSP
- Finish Brass
- K_factor_metric 160
- K_factor_nominal 11.2
- Main_material Brass
- Maximum_working_pressure 12
- Position Pendent
- Response Standard
- Size 32 mm
- Size_2 1219 mm
- Temperature_rating 96
- SAP number 19831AG12
- Application_detail Standard Coverage
- Connection Threaded
- Connection_type BSP
- Finish Brass
- K_factor_metric 160
- K_factor_nominal 11.2
- Main_material Brass
- Maximum_working_pressure 12
- Position Pendent
- Response Standard
- Size 32 mm
- Size_2 305 mm
- Temperature_rating 138
- SAP number 19831AG18
- Application_detail Standard Coverage
- Connection Threaded
- Connection_type BSP
- Finish Brass
- K_factor_metric 160
- K_factor_nominal 11.2
- Main_material Brass
- Maximum_working_pressure 12
- Position Pendent
- Response Standard
- Size 32 mm
- Size_2 457 mm
- Temperature_rating 138
- SAP number 19831AG24
- Application_detail Standard Coverage
- Connection Threaded
- Connection_type BSP
- Finish Brass
- K_factor_metric 160
- K_factor_nominal 11.2
- Main_material Brass
- Maximum_working_pressure 12
- Position Pendent
- Response Standard
- Size 32 mm
- Size_2 610 mm
- Temperature_rating 138
- SAP number 19831AG30
- Application_detail Standard Coverage
- Connection Threaded
- Connection_type BSP
- Finish Brass
- K_factor_metric 160
- K_factor_nominal 11.2
- Main_material Brass
- Maximum_working_pressure 12
- Position Pendent
- Response Standard
- Size 32 mm
- Size_2 762 mm
- Temperature_rating 138
- SAP number 19831AG36
- Application_detail Standard Coverage
- Connection Threaded
- Connection_type BSP
- Finish Brass
- K_factor_metric 160
- K_factor_nominal 11.2
- Main_material Brass
- Maximum_working_pressure 12
- Position Pendent
- Response Standard
- Size 32 mm
- Size_2 914 mm
- Temperature_rating 138
- SAP number 19831AG42
- Application_detail Standard Coverage
- Connection Threaded
- Connection_type BSP
- Finish Brass
- K_factor_metric 160
- K_factor_nominal 11.2
- Main_material Brass
- Maximum_working_pressure 12
- Position Pendent
- Response Standard
- Size 32 mm
- Size_2 1067 mm
- Temperature_rating 138
- SAP number 19831AG48
- Application_detail Standard Coverage
- Connection Threaded
- Connection_type BSP
- Finish Brass
- K_factor_metric 160
- K_factor_nominal 11.2
- Main_material Brass
- Maximum_working_pressure 12
- Position Pendent
- Response Standard
- Size 32 mm
- Size_2 1219 mm
- Temperature_rating 138
- SAP number 19831FC12
- Application_detail Standard Coverage
- Connection Threaded
- Connection_type BSP
- Finish Chrome
- K_factor_metric 160
- K_factor_nominal 11.2
- Main_material Brass
- Maximum_working_pressure 12
- Position Pendent
- Response Standard
- Size 32 mm
- Size_2 305 mm
- Temperature_rating 74
- SAP number 19831FC18
- Application_detail Standard Coverage
- Connection Threaded
- Connection_type BSP
- Finish Chrome
- K_factor_metric 160
- K_factor_nominal 11.2
- Main_material Brass
- Maximum_working_pressure 12
- Position Pendent
- Response Standard
- Size 32 mm
- Size_2 457 mm
- Temperature_rating 74
- SAP number 19831FC24
- Application_detail Standard Coverage
- Connection Threaded
- Connection_type BSP
- Finish Chrome
- K_factor_metric 160
- K_factor_nominal 11.2
- Main_material Brass
- Maximum_working_pressure 12
- Position Pendent
- Response Standard
- Size 32 mm
- Size_2 610 mm
- Temperature_rating 74
- SAP number 19831FC30
- Application_detail Standard Coverage
- Connection Threaded
- Connection_type BSP
- Finish Chrome
- K_factor_metric 160
- K_factor_nominal 11.2
- Main_material Brass
- Maximum_working_pressure 12
- Position Pendent
- Response Standard
- Size 32 mm
- Size_2 762 mm
- Temperature_rating 74
- SAP number 19831FC36
- Application_detail Standard Coverage
- Connection Threaded
- Connection_type BSP
- Finish Chrome
- K_factor_metric 160
- K_factor_nominal 11.2
- Main_material Brass
- Maximum_working_pressure 12
- Position Pendent
- Response Standard
- Size 32 mm
- Size_2 914 mm
- Temperature_rating 74
- SAP number 19831FC42
- Application_detail Standard Coverage
- Connection Threaded
- Connection_type BSP
- Finish Chrome
- K_factor_metric 160
- K_factor_nominal 11.2
- Main_material Brass
- Maximum_working_pressure 12
- Position Pendent
- Response Standard
- Size 32 mm
- Size_2 1067 mm
- Temperature_rating 74
- SAP number 19831FC48
- Application_detail Standard Coverage
- Connection Threaded
- Connection_type BSP
- Finish Chrome
- K_factor_metric 160
- K_factor_nominal 11.2
- Main_material Brass
- Maximum_working_pressure 12
- Position Pendent
- Response Standard
- Size 32 mm
- Size_2 1219 mm
- Temperature_rating 74
- SAP number 19831FE12
- Application_detail Standard Coverage
- Connection Threaded
- Connection_type BSP
- Finish Chrome
- K_factor_metric 160
- K_factor_nominal 11.2
- Main_material Brass
- Maximum_working_pressure 12
- Position Pendent
- Response Standard
- Size 32 mm
- Size_2 305 mm
- Temperature_rating 96
- SAP number 19831FE18
- Application_detail Standard Coverage
- Connection Threaded
- Connection_type BSP
- Finish Chrome
- K_factor_metric 160
- K_factor_nominal 11.2
- Main_material Brass
- Maximum_working_pressure 12
- Position Pendent
- Response Standard
- Size 32 mm
- Size_2 457 mm
- Temperature_rating 96
- SAP number 19831FE24
- Application_detail Standard Coverage
- Connection Threaded
- Connection_type BSP
- Finish Chrome
- K_factor_metric 160
- K_factor_nominal 11.2
- Main_material Brass
- Maximum_working_pressure 12
- Position Pendent
- Response Standard
- Size 32 mm
- Size_2 610 mm
- Temperature_rating 96
- SAP number 19831FE30
- Application_detail Standard Coverage
- Connection Threaded
- Connection_type BSP
- Finish Chrome
- K_factor_metric 160
- K_factor_nominal 11.2
- Main_material Brass
- Maximum_working_pressure 12
- Position Pendent
- Response Standard
- Size 32 mm
- Size_2 762 mm
- Temperature_rating 96
- SAP number 19831FE36
- Application_detail Standard Coverage
- Connection Threaded
- Connection_type BSP
- Finish Chrome
- K_factor_metric 160
- K_factor_nominal 11.2
- Main_material Brass
- Maximum_working_pressure 12
- Position Pendent
- Response Standard
- Size 32 mm
- Size_2 914 mm
- Temperature_rating 96
- SAP number 19831FE42
- Application_detail Standard Coverage
- Connection Threaded
- Connection_type BSP
- Finish Chrome
- K_factor_metric 160
- K_factor_nominal 11.2
- Main_material Brass
- Maximum_working_pressure 12
- Position Pendent
- Response Standard
- Size 32 mm
- Size_2 1067 mm
- Temperature_rating 96
- SAP number 19831FE48
- Application_detail Standard Coverage
- Connection Threaded
- Connection_type BSP
- Finish Chrome
- K_factor_metric 160
- K_factor_nominal 11.2
- Main_material Brass
- Maximum_working_pressure 12
- Position Pendent
- Response Standard
- Size 32 mm
- Size_2 1219 mm
- Temperature_rating 96
- SAP number 19831FG12
- Application_detail Standard Coverage
- Connection Threaded
- Connection_type BSP
- Finish Chrome
- K_factor_metric 160
- K_factor_nominal 11.2
- Main_material Brass
- Maximum_working_pressure 12
- Position Pendent
- Response Standard
- Size 32 mm
- Size_2 305 mm
- Temperature_rating 138
- SAP number 19831FG18
- Application_detail Standard Coverage
- Connection Threaded
- Connection_type BSP
- Finish Chrome
- K_factor_metric 160
- K_factor_nominal 11.2
- Main_material Brass
- Maximum_working_pressure 12
- Position Pendent
- Response Standard
- Size 32 mm
- Size_2 457 mm
- Temperature_rating 138
- SAP number 19831FG24
- Application_detail Standard Coverage
- Connection Threaded
- Connection_type BSP
- Finish Chrome
- K_factor_metric 160
- K_factor_nominal 11.2
- Main_material Brass
- Maximum_working_pressure 12
- Position Pendent
- Response Standard
- Size 32 mm
- Size_2 610 mm
- Temperature_rating 138
- SAP number 19831FG30
- Application_detail Standard Coverage
- Connection Threaded
- Connection_type BSP
- Finish Chrome
- K_factor_metric 160
- K_factor_nominal 11.2
- Main_material Brass
- Maximum_working_pressure 12
- Position Pendent
- Response Standard
- Size 32 mm
- Size_2 762 mm
- Temperature_rating 138
- SAP number 19831FG36
- Application_detail Standard Coverage
- Connection Threaded
- Connection_type BSP
- Finish Chrome
- K_factor_metric 160
- K_factor_nominal 11.2
- Main_material Brass
- Maximum_working_pressure 12
- Position Pendent
- Response Standard
- Size 32 mm
- Size_2 914 mm
- Temperature_rating 138
- SAP number 19831FG42
- Application_detail Standard Coverage
- Connection Threaded
- Connection_type BSP
- Finish Chrome
- K_factor_metric 160
- K_factor_nominal 11.2
- Main_material Brass
- Maximum_working_pressure 12
- Position Pendent
- Response Standard
- Size 32 mm
- Size_2 1067 mm
- Temperature_rating 138
- SAP number 19831FG48
- Application_detail Standard Coverage
- Connection Threaded
- Connection_type BSP
- Finish Chrome
- K_factor_metric 160
- K_factor_nominal 11.2
- Main_material Brass
- Maximum_working_pressure 12
- Position Pendent
- Response Standard
- Size 32 mm
- Size_2 1219 mm
- Temperature_rating 138
- SAP number 19831MC/W12
- Application_detail Standard Coverage
- Connection Threaded
- Connection_type BSP
- Finish White
- K_factor_metric 160
- K_factor_nominal 11.2
- Main_material Brass
- Maximum_working_pressure 12
- Position Pendent
- Response Standard
- Size 32 mm
- Size_2 305 mm
- Temperature_rating 74
- SAP number 19831MC/W18
- Application_detail Standard Coverage
- Connection Threaded
- Connection_type BSP
- Finish White
- K_factor_metric 160
- K_factor_nominal 11.2
- Main_material Brass
- Maximum_working_pressure 12
- Position Pendent
- Response Standard
- Size 32 mm
- Size_2 457 mm
- Temperature_rating 74
- SAP number 19831MC/W24
- Application_detail Standard Coverage
- Connection Threaded
- Connection_type BSP
- Finish White
- K_factor_metric 160
- K_factor_nominal 11.2
- Main_material Brass
- Maximum_working_pressure 12
- Position Pendent
- Response Standard
- Size 32 mm
- Size_2 610 mm
- Temperature_rating 74
- SAP number 19831MC/W30
- Application_detail Standard Coverage
- Connection Threaded
- Connection_type BSP
- Finish White
- K_factor_metric 160
- K_factor_nominal 11.2
- Main_material Brass
- Maximum_working_pressure 12
- Position Pendent
- Response Standard
- Size 32 mm
- Size_2 762 mm
- Temperature_rating 74
- SAP number 19831MC/W36
- Application_detail Standard Coverage
- Connection Threaded
- Connection_type BSP
- Finish White
- K_factor_metric 160
- K_factor_nominal 11.2
- Main_material Brass
- Maximum_working_pressure 12
- Position Pendent
- Response Standard
- Size 32 mm
- Size_2 914 mm
- Temperature_rating 74
- SAP number 19831MC/W42
- Application_detail Standard Coverage
- Connection Threaded
- Connection_type BSP
- Finish White
- K_factor_metric 160
- K_factor_nominal 11.2
- Main_material Brass
- Maximum_working_pressure 12
- Position Pendent
- Response Standard
- Size 32 mm
- Size_2 1067 mm
- Temperature_rating 74
- SAP number 19831MC/W48
- Application_detail Standard Coverage
- Connection Threaded
- Connection_type BSP
- Finish White
- K_factor_metric 160
- K_factor_nominal 11.2
- Main_material Brass
- Maximum_working_pressure 12
- Position Pendent
- Response Standard
- Size 32 mm
- Size_2 1219 mm
- Temperature_rating 74
- SAP number 19831ME/W12
- Application_detail Standard Coverage
- Connection Threaded
- Connection_type BSP
- Finish White
- K_factor_metric 160
- K_factor_nominal 11.2
- Main_material Brass
- Maximum_working_pressure 12
- Position Pendent
- Response Standard
- Size 32 mm
- Size_2 305 mm
- Temperature_rating 96
- SAP number 19831ME/W18
- Application_detail Standard Coverage
- Connection Threaded
- Connection_type BSP
- Finish White
- K_factor_metric 160
- K_factor_nominal 11.2
- Main_material Brass
- Maximum_working_pressure 12
- Position Pendent
- Response Standard
- Size 32 mm
- Size_2 457 mm
- Temperature_rating 96
- SAP number 19831ME/W24
- Application_detail Standard Coverage
- Connection Threaded
- Connection_type BSP
- Finish White
- K_factor_metric 160
- K_factor_nominal 11.2
- Main_material Brass
- Maximum_working_pressure 12
- Position Pendent
- Response Standard
- Size 32 mm
- Size_2 610 mm
- Temperature_rating 96
- SAP number 19831ME/W30
- Application_detail Standard Coverage
- Connection Threaded
- Connection_type BSP
- Finish White
- K_factor_metric 160
- K_factor_nominal 11.2
- Main_material Brass
- Maximum_working_pressure 12
- Position Pendent
- Response Standard
- Size 32 mm
- Size_2 762 mm
- Temperature_rating 96
- SAP number 19831ME/W36
- Application_detail Standard Coverage
- Connection Threaded
- Connection_type BSP
- Finish White
- K_factor_metric 160
- K_factor_nominal 11.2
- Main_material Brass
- Maximum_working_pressure 12
- Position Pendent
- Response Standard
- Size 32 mm
- Size_2 914 mm
- Temperature_rating 96
- SAP number 19831ME/W42
- Application_detail Standard Coverage
- Connection Threaded
- Connection_type BSP
- Finish White
- K_factor_metric 160
- K_factor_nominal 11.2
- Main_material Brass
- Maximum_working_pressure 12
- Position Pendent
- Response Standard
- Size 32 mm
- Size_2 1067 mm
- Temperature_rating 96
- SAP number 19831ME/W48
- Application_detail Standard Coverage
- Connection Threaded
- Connection_type BSP
- Finish White
- K_factor_metric 160
- K_factor_nominal 11.2
- Main_material Brass
- Maximum_working_pressure 12
- Position Pendent
- Response Standard
- Size 32 mm
- Size_2 1219 mm
- Temperature_rating 96
- SAP number 19831MG/W12
- Application_detail Standard Coverage
- Connection Threaded
- Connection_type BSP
- Finish White
- K_factor_metric 160
- K_factor_nominal 11.2
- Main_material Brass
- Maximum_working_pressure 12
- Position Pendent
- Response Standard
- Size 32 mm
- Size_2 305 mm
- Temperature_rating 138
- SAP number 19831MG/W18
- Application_detail Standard Coverage
- Connection Threaded
- Connection_type BSP
- Finish White
- K_factor_metric 160
- K_factor_nominal 11.2
- Main_material Brass
- Maximum_working_pressure 12
- Position Pendent
- Response Standard
- Size 32 mm
- Size_2 457 mm
- Temperature_rating 138
- SAP number 19831MG/W24
- Application_detail Standard Coverage
- Connection Threaded
- Connection_type BSP
- Finish White
- K_factor_metric 160
- K_factor_nominal 11.2
- Main_material Brass
- Maximum_working_pressure 12
- Position Pendent
- Response Standard
- Size 32 mm
- Size_2 610 mm
- Temperature_rating 138
- SAP number 19831MG/W30
- Application_detail Standard Coverage
- Connection Threaded
- Connection_type BSP
- Finish White
- K_factor_metric 160
- K_factor_nominal 11.2
- Main_material Brass
- Maximum_working_pressure 12
- Position Pendent
- Response Standard
- Size 32 mm
- Size_2 762 mm
- Temperature_rating 138
- SAP number 19831MG/W36
- Application_detail Standard Coverage
- Connection Threaded
- Connection_type BSP
- Finish White
- K_factor_metric 160
- K_factor_nominal 11.2
- Main_material Brass
- Maximum_working_pressure 12
- Position Pendent
- Response Standard
- Size 32 mm
- Size_2 914 mm
- Temperature_rating 138
- SAP number 19831MG/W42
- Application_detail Standard Coverage
- Connection Threaded
- Connection_type BSP
- Finish White
- K_factor_metric 160
- K_factor_nominal 11.2
- Main_material Brass
- Maximum_working_pressure 12
- Position Pendent
- Response Standard
- Size 32 mm
- Size_2 1067 mm
- Temperature_rating 138
- SAP number 19831MG/W48
- Application_detail Standard Coverage
- Connection Threaded
- Connection_type BSP
- Finish White
- K_factor_metric 160
- K_factor_nominal 11.2
- Main_material Brass
- Maximum_working_pressure 12
- Position Pendent
- Response Standard
- Size 32 mm
- Size_2 1219 mm
- Temperature_rating 138
| SAP number | Application_detail | Connection | Connection_type | Finish | K_factor_metric | K_factor_nominal | Main_material | Maximum_working_pressure | Position | Response | Size | Size_2 | Temperature_rating |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| 19830AC12 | Standard Coverage |
Threaded |
NPT |
Brass |
160 |
11.2 |
Brass |
12 |
Pendent |
Standard |
1-1/4” |
305 mm |
74 |
| 19830AC18 | Standard Coverage |
Threaded |
NPT |
Brass |
160 |
11.2 |
Brass |
12 |
Pendent |
Standard |
1-1/4” |
457 mm |
74 |
| 19830AC24 | Standard Coverage |
Threaded |
NPT |
Brass |
160 |
11.2 |
Brass |
12 |
Pendent |
Standard |
1-1/4” |
610 mm |
74 |
| 19830AC30 | Standard Coverage |
Threaded |
NPT |
Brass |
160 |
11.2 |
Brass |
12 |
Pendent |
Standard |
1-1/4” |
762 mm |
74 |
| 19830AC36 | Standard Coverage |
Threaded |
NPT |
Brass |
160 |
11.2 |
Brass |
12 |
Pendent |
Standard |
1-1/4” |
914 mm |
74 |
| 19830AC42 | Standard Coverage |
Threaded |
NPT |
Brass |
160 |
11.2 |
Brass |
12 |
Pendent |
Standard |
1-1/4” |
1067 mm |
74 |
| 19830AC48 | Standard Coverage |
Threaded |
NPT |
Brass |
160 |
11.2 |
Brass |
12 |
Pendent |
Standard |
1-1/4” |
1219 mm |
74 |
| 19830AE12 | Standard Coverage |
Threaded |
NPT |
Brass |
160 |
11.2 |
Brass |
12 |
Pendent |
Standard |
1-1/4” |
305 mm |
96 |
| 19830AE18 | Standard Coverage |
Threaded |
NPT |
Brass |
160 |
11.2 |
Brass |
12 |
Pendent |
Standard |
1-1/4” |
457 mm |
96 |
| 19830AE24 | Standard Coverage |
Threaded |
NPT |
Brass |
160 |
11.2 |
Brass |
12 |
Pendent |
Standard |
1-1/4” |
610 mm |
96 |
| 19830AE30 | Standard Coverage |
Threaded |
NPT |
Brass |
160 |
11.2 |
Brass |
12 |
Pendent |
Standard |
1-1/4” |
762 mm |
96 |
| 19830AE36 | Standard Coverage |
Threaded |
NPT |
Brass |
160 |
11.2 |
Brass |
12 |
Pendent |
Standard |
1-1/4” |
914 mm |
96 |
| 19830AE42 | Standard Coverage |
Threaded |
NPT |
Brass |
160 |
11.2 |
Brass |
12 |
Pendent |
Standard |
1-1/4” |
1067 mm |
96 |
| 19830AE48 | Standard Coverage |
Threaded |
NPT |
Brass |
160 |
11.2 |
Brass |
12 |
Pendent |
Standard |
1-1/4” |
1219 mm |
96 |
| 19830AG12 | Standard Coverage |
Threaded |
NPT |
Brass |
160 |
11.2 |
Brass |
12 |
Pendent |
Standard |
1-1/4” |
305 mm |
138 |
| 19830AG18 | Standard Coverage |
Threaded |
NPT |
Brass |
160 |
11.2 |
Brass |
12 |
Pendent |
Standard |
1-1/4” |
457 mm |
138 |
| 19830AG24 | Standard Coverage |
Threaded |
NPT |
Brass |
160 |
11.2 |
Brass |
12 |
Pendent |
Standard |
1-1/4” |
610 mm |
138 |
| 19830AG30 | Standard Coverage |
Threaded |
NPT |
Brass |
160 |
11.2 |
Brass |
12 |
Pendent |
Standard |
1-1/4” |
762 mm |
138 |
| 19830AG36 | Standard Coverage |
Threaded |
NPT |
Brass |
160 |
11.2 |
Brass |
12 |
Pendent |
Standard |
1-1/4” |
914 mm |
138 |
| 19830AG42 | Standard Coverage |
Threaded |
NPT |
Brass |
160 |
11.2 |
Brass |
12 |
Pendent |
Standard |
1-1/4” |
1067 mm |
138 |
| 19830AG48 | Standard Coverage |
Threaded |
NPT |
Brass |
160 |
11.2 |
Brass |
12 |
Pendent |
Standard |
1-1/4” |
1219 mm |
138 |
| 19830FC12 | Standard Coverage |
Threaded |
NPT |
Chrome |
160 |
11.2 |
Brass |
12 |
Pendent |
Standard |
1-1/4” |
305 mm |
74 |
| 19830FC18 | Standard Coverage |
Threaded |
NPT |
Chrome |
160 |
11.2 |
Brass |
12 |
Pendent |
Standard |
1-1/4” |
457 mm |
74 |
| 19830FC24 | Standard Coverage |
Threaded |
NPT |
Chrome |
160 |
11.2 |
Brass |
12 |
Pendent |
Standard |
1-1/4” |
610 mm |
74 |
| 19830FC30 | Standard Coverage |
Threaded |
NPT |
Chrome |
160 |
11.2 |
Brass |
12 |
Pendent |
Standard |
1-1/4” |
762 mm |
74 |
| 19830FC36 | Standard Coverage |
Threaded |
NPT |
Chrome |
160 |
11.2 |
Brass |
12 |
Pendent |
Standard |
1-1/4” |
914 mm |
74 |
| 19830FC42 | Standard Coverage |
Threaded |
NPT |
Chrome |
160 |
11.2 |
Brass |
12 |
Pendent |
Standard |
1-1/4” |
1067 mm |
74 |
| 19830FC48 | Standard Coverage |
Threaded |
NPT |
Chrome |
160 |
11.2 |
Brass |
12 |
Pendent |
Standard |
1-1/4” |
1219 mm |
74 |
| 19830FE12 | Standard Coverage |
Threaded |
NPT |
Chrome |
160 |
11.2 |
Brass |
12 |
Pendent |
Standard |
1-1/4” |
305 mm |
96 |
| 19830FE18 | Standard Coverage |
Threaded |
NPT |
Chrome |
160 |
11.2 |
Brass |
12 |
Pendent |
Standard |
1-1/4” |
457 mm |
96 |
| 19830FE24 | Standard Coverage |
Threaded |
NPT |
Chrome |
160 |
11.2 |
Brass |
12 |
Pendent |
Standard |
1-1/4” |
610 mm |
96 |
| 19830FE30 | Standard Coverage |
Threaded |
NPT |
Chrome |
160 |
11.2 |
Brass |
12 |
Pendent |
Standard |
1-1/4” |
762 mm |
96 |
| 19830FE36 | Standard Coverage |
Threaded |
NPT |
Chrome |
160 |
11.2 |
Brass |
12 |
Pendent |
Standard |
1-1/4” |
914 mm |
96 |
| 19830FE42 | Standard Coverage |
Threaded |
NPT |
Chrome |
160 |
11.2 |
Brass |
12 |
Pendent |
Standard |
1-1/4” |
1067 mm |
96 |
| 19830FE48 | Standard Coverage |
Threaded |
NPT |
Chrome |
160 |
11.2 |
Brass |
12 |
Pendent |
Standard |
1-1/4” |
1219 mm |
96 |
| 19830FG12 | Standard Coverage |
Threaded |
NPT |
Chrome |
160 |
11.2 |
Brass |
12 |
Pendent |
Standard |
1-1/4” |
305 mm |
138 |
| 19830FG18 | Standard Coverage |
Threaded |
NPT |
Chrome |
160 |
11.2 |
Brass |
12 |
Pendent |
Standard |
1-1/4” |
457 mm |
138 |
| 19830FG24 | Standard Coverage |
Threaded |
NPT |
Chrome |
160 |
11.2 |
Brass |
12 |
Pendent |
Standard |
1-1/4” |
610 mm |
138 |
| 19830FG30 | Standard Coverage |
Threaded |
NPT |
Chrome |
160 |
11.2 |
Brass |
12 |
Pendent |
Standard |
1-1/4” |
762 mm |
138 |
| 19830FG36 | Standard Coverage |
Threaded |
NPT |
Chrome |
160 |
11.2 |
Brass |
12 |
Pendent |
Standard |
1-1/4” |
914 mm |
138 |
| 19830FG42 | Standard Coverage |
Threaded |
NPT |
Chrome |
160 |
11.2 |
Brass |
12 |
Pendent |
Standard |
1-1/4” |
1067 mm |
138 |
| 19830FG48 | Standard Coverage |
Threaded |
NPT |
Chrome |
160 |
11.2 |
Brass |
12 |
Pendent |
Standard |
1-1/4” |
1219 mm |
138 |
| 19830JNC12 | Standard Coverage |
Threaded |
NPT |
ENT |
160 |
11.2 |
Brass |
12 |
Pendent |
Standard |
1-1/4” |
305 mm |
74 |
| 19830JNC18 | Standard Coverage |
Threaded |
NPT |
ENT |
160 |
11.2 |
Brass |
12 |
Pendent |
Standard |
1-1/4” |
457 mm |
74 |
| 19830JNC24 | Standard Coverage |
Threaded |
NPT |
ENT |
160 |
11.2 |
Brass |
12 |
Pendent |
Standard |
1-1/4” |
610 mm |
74 |
| 19830JNC30 | Standard Coverage |
Threaded |
NPT |
ENT |
160 |
11.2 |
Brass |
12 |
Pendent |
Standard |
1-1/4” |
762 mm |
74 |
| 19830JNC36 | Standard Coverage |
Threaded |
NPT |
ENT |
160 |
11.2 |
Brass |
12 |
Pendent |
Standard |
1-1/4” |
914 mm |
74 |
| 19830JNC42 | Standard Coverage |
Threaded |
NPT |
ENT |
160 |
11.2 |
Brass |
12 |
Pendent |
Standard |
1-1/4” |
1067 mm |
74 |
| 19830JNC48 | Standard Coverage |
Threaded |
NPT |
ENT |
160 |
11.2 |
Brass |
12 |
Pendent |
Standard |
1-1/4” |
1219 mm |
74 |
| 19830JNE12 | Standard Coverage |
Threaded |
NPT |
ENT |
160 |
11.2 |
Brass |
12 |
Pendent |
Standard |
1-1/4” |
305 mm |
96 |
| 19830JNE18 | Standard Coverage |
Threaded |
NPT |
ENT |
160 |
11.2 |
Brass |
12 |
Pendent |
Standard |
1-1/4” |
457 mm |
96 |
| 19830JNE24 | Standard Coverage |
Threaded |
NPT |
ENT |
160 |
11.2 |
Brass |
12 |
Pendent |
Standard |
1-1/4” |
610 mm |
96 |
| 19830JNE30 | Standard Coverage |
Threaded |
NPT |
ENT |
160 |
11.2 |
Brass |
12 |
Pendent |
Standard |
1-1/4” |
762 mm |
96 |
| 19830JNE36 | Standard Coverage |
Threaded |
NPT |
ENT |
160 |
11.2 |
Brass |
12 |
Pendent |
Standard |
1-1/4” |
914 mm |
96 |
| 19830JNE42 | Standard Coverage |
Threaded |
NPT |
ENT |
160 |
11.2 |
Brass |
12 |
Pendent |
Standard |
1-1/4” |
1067 mm |
96 |
| 19830JNE48 | Standard Coverage |
Threaded |
NPT |
ENT |
160 |
11.2 |
Brass |
12 |
Pendent |
Standard |
1-1/4” |
1219 mm |
96 |
| 19830JNG12 | Standard Coverage |
Threaded |
NPT |
ENT |
160 |
11.2 |
Brass |
12 |
Pendent |
Standard |
1-1/4” |
305 mm |
138 |
| 19830JNG18 | Standard Coverage |
Threaded |
NPT |
ENT |
160 |
11.2 |
Brass |
12 |
Pendent |
Standard |
1-1/4” |
457 mm |
138 |
| 19830JNG24 | Standard Coverage |
Threaded |
NPT |
ENT |
160 |
11.2 |
Brass |
12 |
Pendent |
Standard |
1-1/4” |
610 mm |
138 |
| 19830JNG30 | Standard Coverage |
Threaded |
NPT |
ENT |
160 |
11.2 |
Brass |
12 |
Pendent |
Standard |
1-1/4” |
762 mm |
138 |
| 19830JNG36 | Standard Coverage |
Threaded |
NPT |
ENT |
160 |
11.2 |
Brass |
12 |
Pendent |
Standard |
1-1/4” |
914 mm |
138 |
| 19830JNG42 | Standard Coverage |
Threaded |
NPT |
ENT |
160 |
11.2 |
Brass |
12 |
Pendent |
Standard |
1-1/4” |
1067 mm |
138 |
| 19830JNG48 | Standard Coverage |
Threaded |
NPT |
ENT |
160 |
11.2 |
Brass |
12 |
Pendent |
Standard |
1-1/4” |
1219 mm |
138 |
| 19830MC/W12 | Standard Coverage |
Threaded |
NPT |
White |
160 |
11.2 |
Brass |
12 |
Pendent |
Standard |
1-1/4” |
305 mm |
74 |
| 19830MC/W18 | Standard Coverage |
Threaded |
NPT |
White |
160 |
11.2 |
Brass |
12 |
Pendent |
Standard |
1-1/4” |
457 mm |
74 |
| 19830MC/W24 | Standard Coverage |
Threaded |
NPT |
White |
160 |
11.2 |
Brass |
12 |
Pendent |
Standard |
1-1/4” |
610 mm |
74 |
| 19830MC/W30 | Standard Coverage |
Threaded |
NPT |
White |
160 |
11.2 |
Brass |
12 |
Pendent |
Standard |
1-1/4” |
762 mm |
74 |
| 19830MC/W36 | Standard Coverage |
Threaded |
NPT |
White |
160 |
11.2 |
Brass |
12 |
Pendent |
Standard |
1-1/4” |
914 mm |
74 |
| 19830MC/W42 | Standard Coverage |
Threaded |
NPT |
White |
160 |
11.2 |
Brass |
12 |
Pendent |
Standard |
1-1/4” |
1067 mm |
74 |
| 19830MC/W48 | Standard Coverage |
Threaded |
NPT |
White |
160 |
11.2 |
Brass |
12 |
Pendent |
Standard |
1-1/4” |
1219 mm |
74 |
| 19830ME/W12 | Standard Coverage |
Threaded |
NPT |
White |
160 |
11.2 |
Brass |
12 |
Pendent |
Standard |
1-1/4” |
305 mm |
96 |
| 19830ME/W18 | Standard Coverage |
Threaded |
NPT |
White |
160 |
11.2 |
Brass |
12 |
Pendent |
Standard |
1-1/4” |
457 mm |
96 |
| 19830ME/W24 | Standard Coverage |
Threaded |
NPT |
White |
160 |
11.2 |
Brass |
12 |
Pendent |
Standard |
1-1/4” |
610 mm |
96 |
| 19830ME/W30 | Standard Coverage |
Threaded |
NPT |
White |
160 |
11.2 |
Brass |
12 |
Pendent |
Standard |
1-1/4” |
762 mm |
96 |
| 19830ME/W36 | Standard Coverage |
Threaded |
NPT |
White |
160 |
11.2 |
Brass |
12 |
Pendent |
Standard |
1-1/4” |
914 mm |
96 |
| 19830ME/W42 | Standard Coverage |
Threaded |
NPT |
White |
160 |
11.2 |
Brass |
12 |
Pendent |
Standard |
1-1/4” |
1067 mm |
96 |
| 19830ME/W48 | Standard Coverage |
Threaded |
NPT |
White |
160 |
11.2 |
Brass |
12 |
Pendent |
Standard |
1-1/4” |
1219 mm |
96 |
| 19830MG/W12 | Standard Coverage |
Threaded |
NPT |
White |
160 |
11.2 |
Brass |
12 |
Pendent |
Standard |
1-1/4” |
305 mm |
138 |
| 19830MG/W18 | Standard Coverage |
Threaded |
NPT |
White |
160 |
11.2 |
Brass |
12 |
Pendent |
Standard |
1-1/4” |
457 mm |
138 |
| 19830MG/W24 | Standard Coverage |
Threaded |
NPT |
White |
160 |
11.2 |
Brass |
12 |
Pendent |
Standard |
1-1/4” |
610 mm |
138 |
| 19830MG/W30 | Standard Coverage |
Threaded |
NPT |
White |
160 |
11.2 |
Brass |
12 |
Pendent |
Standard |
1-1/4” |
762 mm |
138 |
| 19830MG/W36 | Standard Coverage |
Threaded |
NPT |
White |
160 |
11.2 |
Brass |
12 |
Pendent |
Standard |
1-1/4” |
914 mm |
138 |
| 19830MG/W42 | Standard Coverage |
Threaded |
NPT |
White |
160 |
11.2 |
Brass |
12 |
Pendent |
Standard |
1-1/4” |
1067 mm |
138 |
| 19830MG/W48 | Standard Coverage |
Threaded |
NPT |
White |
160 |
11.2 |
Brass |
12 |
Pendent |
Standard |
1-1/4” |
1219 mm |
138 |
| 19831AC12 | Standard Coverage |
Threaded |
BSP |
Brass |
160 |
11.2 |
Brass |
12 |
Pendent |
Standard |
32 mm |
305 mm |
74 |
| 19831AC18 | Standard Coverage |
Threaded |
BSP |
Brass |
160 |
11.2 |
Brass |
12 |
Pendent |
Standard |
32 mm |
457 mm |
74 |
| 19831AC24 | Standard Coverage |
Threaded |
BSP |
Brass |
160 |
11.2 |
Brass |
12 |
Pendent |
Standard |
32 mm |
610 mm |
74 |
| 19831AC30 | Standard Coverage |
Threaded |
BSP |
Brass |
160 |
11.2 |
Brass |
12 |
Pendent |
Standard |
32 mm |
762 mm |
74 |
| 19831AC36 | Standard Coverage |
Threaded |
BSP |
Brass |
160 |
11.2 |
Brass |
12 |
Pendent |
Standard |
32 mm |
914 mm |
74 |
| 19831AC42 | Standard Coverage |
Threaded |
BSP |
Brass |
160 |
11.2 |
Brass |
12 |
Pendent |
Standard |
32 mm |
1067 mm |
74 |
| 19831AC48 | Standard Coverage |
Threaded |
BSP |
Brass |
160 |
11.2 |
Brass |
12 |
Pendent |
Standard |
32 mm |
1219 mm |
74 |
| 19831AE12 | Standard Coverage |
Threaded |
BSP |
Brass |
160 |
11.2 |
Brass |
12 |
Pendent |
Standard |
32 mm |
305 mm |
96 |
| 19831AE18 | Standard Coverage |
Threaded |
BSP |
Brass |
160 |
11.2 |
Brass |
12 |
Pendent |
Standard |
32 mm |
457 mm |
96 |
| 19831AE24 | Standard Coverage |
Threaded |
BSP |
Brass |
160 |
11.2 |
Brass |
12 |
Pendent |
Standard |
32 mm |
610 mm |
96 |
| 19831AE30 | Standard Coverage |
Threaded |
BSP |
Brass |
160 |
11.2 |
Brass |
12 |
Pendent |
Standard |
32 mm |
762 mm |
96 |
| 19831AE36 | Standard Coverage |
Threaded |
BSP |
Brass |
160 |
11.2 |
Brass |
12 |
Pendent |
Standard |
32 mm |
914 mm |
96 |
| 19831AE42 | Standard Coverage |
Threaded |
BSP |
Brass |
160 |
11.2 |
Brass |
12 |
Pendent |
Standard |
32 mm |
1067 mm |
96 |
| 19831AE48 | Standard Coverage |
Threaded |
BSP |
Brass |
160 |
11.2 |
Brass |
12 |
Pendent |
Standard |
32 mm |
1219 mm |
96 |
| 19831AG12 | Standard Coverage |
Threaded |
BSP |
Brass |
160 |
11.2 |
Brass |
12 |
Pendent |
Standard |
32 mm |
305 mm |
138 |
| 19831AG18 | Standard Coverage |
Threaded |
BSP |
Brass |
160 |
11.2 |
Brass |
12 |
Pendent |
Standard |
32 mm |
457 mm |
138 |
| 19831AG24 | Standard Coverage |
Threaded |
BSP |
Brass |
160 |
11.2 |
Brass |
12 |
Pendent |
Standard |
32 mm |
610 mm |
138 |
| 19831AG30 | Standard Coverage |
Threaded |
BSP |
Brass |
160 |
11.2 |
Brass |
12 |
Pendent |
Standard |
32 mm |
762 mm |
138 |
| 19831AG36 | Standard Coverage |
Threaded |
BSP |
Brass |
160 |
11.2 |
Brass |
12 |
Pendent |
Standard |
32 mm |
914 mm |
138 |
| 19831AG42 | Standard Coverage |
Threaded |
BSP |
Brass |
160 |
11.2 |
Brass |
12 |
Pendent |
Standard |
32 mm |
1067 mm |
138 |
| 19831AG48 | Standard Coverage |
Threaded |
BSP |
Brass |
160 |
11.2 |
Brass |
12 |
Pendent |
Standard |
32 mm |
1219 mm |
138 |
| 19831FC12 | Standard Coverage |
Threaded |
BSP |
Chrome |
160 |
11.2 |
Brass |
12 |
Pendent |
Standard |
32 mm |
305 mm |
74 |
| 19831FC18 | Standard Coverage |
Threaded |
BSP |
Chrome |
160 |
11.2 |
Brass |
12 |
Pendent |
Standard |
32 mm |
457 mm |
74 |
| 19831FC24 | Standard Coverage |
Threaded |
BSP |
Chrome |
160 |
11.2 |
Brass |
12 |
Pendent |
Standard |
32 mm |
610 mm |
74 |
| 19831FC30 | Standard Coverage |
Threaded |
BSP |
Chrome |
160 |
11.2 |
Brass |
12 |
Pendent |
Standard |
32 mm |
762 mm |
74 |
| 19831FC36 | Standard Coverage |
Threaded |
BSP |
Chrome |
160 |
11.2 |
Brass |
12 |
Pendent |
Standard |
32 mm |
914 mm |
74 |
| 19831FC42 | Standard Coverage |
Threaded |
BSP |
Chrome |
160 |
11.2 |
Brass |
12 |
Pendent |
Standard |
32 mm |
1067 mm |
74 |
| 19831FC48 | Standard Coverage |
Threaded |
BSP |
Chrome |
160 |
11.2 |
Brass |
12 |
Pendent |
Standard |
32 mm |
1219 mm |
74 |
| 19831FE12 | Standard Coverage |
Threaded |
BSP |
Chrome |
160 |
11.2 |
Brass |
12 |
Pendent |
Standard |
32 mm |
305 mm |
96 |
| 19831FE18 | Standard Coverage |
Threaded |
BSP |
Chrome |
160 |
11.2 |
Brass |
12 |
Pendent |
Standard |
32 mm |
457 mm |
96 |
| 19831FE24 | Standard Coverage |
Threaded |
BSP |
Chrome |
160 |
11.2 |
Brass |
12 |
Pendent |
Standard |
32 mm |
610 mm |
96 |
| 19831FE30 | Standard Coverage |
Threaded |
BSP |
Chrome |
160 |
11.2 |
Brass |
12 |
Pendent |
Standard |
32 mm |
762 mm |
96 |
| 19831FE36 | Standard Coverage |
Threaded |
BSP |
Chrome |
160 |
11.2 |
Brass |
12 |
Pendent |
Standard |
32 mm |
914 mm |
96 |
| 19831FE42 | Standard Coverage |
Threaded |
BSP |
Chrome |
160 |
11.2 |
Brass |
12 |
Pendent |
Standard |
32 mm |
1067 mm |
96 |
| 19831FE48 | Standard Coverage |
Threaded |
BSP |
Chrome |
160 |
11.2 |
Brass |
12 |
Pendent |
Standard |
32 mm |
1219 mm |
96 |
| 19831FG12 | Standard Coverage |
Threaded |
BSP |
Chrome |
160 |
11.2 |
Brass |
12 |
Pendent |
Standard |
32 mm |
305 mm |
138 |
| 19831FG18 | Standard Coverage |
Threaded |
BSP |
Chrome |
160 |
11.2 |
Brass |
12 |
Pendent |
Standard |
32 mm |
457 mm |
138 |
| 19831FG24 | Standard Coverage |
Threaded |
BSP |
Chrome |
160 |
11.2 |
Brass |
12 |
Pendent |
Standard |
32 mm |
610 mm |
138 |
| 19831FG30 | Standard Coverage |
Threaded |
BSP |
Chrome |
160 |
11.2 |
Brass |
12 |
Pendent |
Standard |
32 mm |
762 mm |
138 |
| 19831FG36 | Standard Coverage |
Threaded |
BSP |
Chrome |
160 |
11.2 |
Brass |
12 |
Pendent |
Standard |
32 mm |
914 mm |
138 |
| 19831FG42 | Standard Coverage |
Threaded |
BSP |
Chrome |
160 |
11.2 |
Brass |
12 |
Pendent |
Standard |
32 mm |
1067 mm |
138 |
| 19831FG48 | Standard Coverage |
Threaded |
BSP |
Chrome |
160 |
11.2 |
Brass |
12 |
Pendent |
Standard |
32 mm |
1219 mm |
138 |
| 19831MC/W12 | Standard Coverage |
Threaded |
BSP |
White |
160 |
11.2 |
Brass |
12 |
Pendent |
Standard |
32 mm |
305 mm |
74 |
| 19831MC/W18 | Standard Coverage |
Threaded |
BSP |
White |
160 |
11.2 |
Brass |
12 |
Pendent |
Standard |
32 mm |
457 mm |
74 |
| 19831MC/W24 | Standard Coverage |
Threaded |
BSP |
White |
160 |
11.2 |
Brass |
12 |
Pendent |
Standard |
32 mm |
610 mm |
74 |
| 19831MC/W30 | Standard Coverage |
Threaded |
BSP |
White |
160 |
11.2 |
Brass |
12 |
Pendent |
Standard |
32 mm |
762 mm |
74 |
| 19831MC/W36 | Standard Coverage |
Threaded |
BSP |
White |
160 |
11.2 |
Brass |
12 |
Pendent |
Standard |
32 mm |
914 mm |
74 |
| 19831MC/W42 | Standard Coverage |
Threaded |
BSP |
White |
160 |
11.2 |
Brass |
12 |
Pendent |
Standard |
32 mm |
1067 mm |
74 |
| 19831MC/W48 | Standard Coverage |
Threaded |
BSP |
White |
160 |
11.2 |
Brass |
12 |
Pendent |
Standard |
32 mm |
1219 mm |
74 |
| 19831ME/W12 | Standard Coverage |
Threaded |
BSP |
White |
160 |
11.2 |
Brass |
12 |
Pendent |
Standard |
32 mm |
305 mm |
96 |
| 19831ME/W18 | Standard Coverage |
Threaded |
BSP |
White |
160 |
11.2 |
Brass |
12 |
Pendent |
Standard |
32 mm |
457 mm |
96 |
| 19831ME/W24 | Standard Coverage |
Threaded |
BSP |
White |
160 |
11.2 |
Brass |
12 |
Pendent |
Standard |
32 mm |
610 mm |
96 |
| 19831ME/W30 | Standard Coverage |
Threaded |
BSP |
White |
160 |
11.2 |
Brass |
12 |
Pendent |
Standard |
32 mm |
762 mm |
96 |
| 19831ME/W36 | Standard Coverage |
Threaded |
BSP |
White |
160 |
11.2 |
Brass |
12 |
Pendent |
Standard |
32 mm |
914 mm |
96 |
| 19831ME/W42 | Standard Coverage |
Threaded |
BSP |
White |
160 |
11.2 |
Brass |
12 |
Pendent |
Standard |
32 mm |
1067 mm |
96 |
| 19831ME/W48 | Standard Coverage |
Threaded |
BSP |
White |
160 |
11.2 |
Brass |
12 |
Pendent |
Standard |
32 mm |
1219 mm |
96 |
| 19831MG/W12 | Standard Coverage |
Threaded |
BSP |
White |
160 |
11.2 |
Brass |
12 |
Pendent |
Standard |
32 mm |
305 mm |
138 |
| 19831MG/W18 | Standard Coverage |
Threaded |
BSP |
White |
160 |
11.2 |
Brass |
12 |
Pendent |
Standard |
32 mm |
457 mm |
138 |
| 19831MG/W24 | Standard Coverage |
Threaded |
BSP |
White |
160 |
11.2 |
Brass |
12 |
Pendent |
Standard |
32 mm |
610 mm |
138 |
| 19831MG/W30 | Standard Coverage |
Threaded |
BSP |
White |
160 |
11.2 |
Brass |
12 |
Pendent |
Standard |
32 mm |
762 mm |
138 |
| 19831MG/W36 | Standard Coverage |
Threaded |
BSP |
White |
160 |
11.2 |
Brass |
12 |
Pendent |
Standard |
32 mm |
914 mm |
138 |
| 19831MG/W42 | Standard Coverage |
Threaded |
BSP |
White |
160 |
11.2 |
Brass |
12 |
Pendent |
Standard |
32 mm |
1067 mm |
138 |
| 19831MG/W48 | Standard Coverage |
Threaded |
BSP |
White |
160 |
11.2 |
Brass |
12 |
Pendent |
Standard |
32 mm |
1219 mm |
138 |
Additional part numbers might be available. Please refer to the technical documentation or contact your local Viking sales office for more information.
URL copied to clipboard
