VK5311

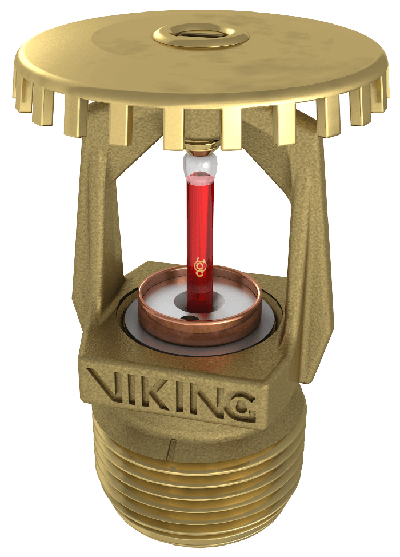

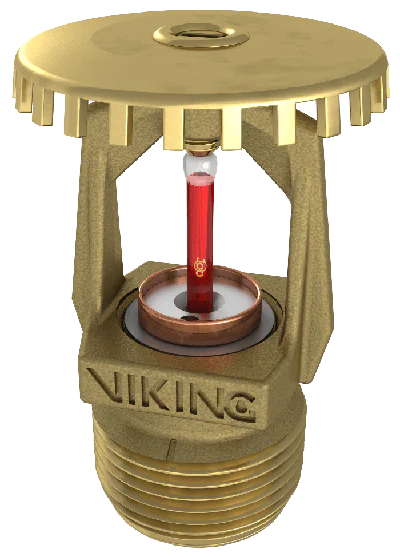

Quick Response ELO Upright Sprinkler

VK5311 | DN15/DN20 – 1/2″/3/4″ | K161 | Quick Response | ELO | Upright

Documents & Resources (2)

Download all documents

Download selected files (1)

Add to download box (1)

All resources (1)

drawings (1)

Revit | VK5311 | Quick Response ELO Upright Sprinkler (CMDA)

Sprinkler & Deluge

3D – Revit-BIM

Language:

Languages

Click to select other languages

English

Please select one language

Downloads are not available for youtube, video and external files

Product Variants

SAP number 19304AB
Application detail Standard Coverage
Connection Threaded
Connection type
Finish Brass
K factor metric 160
K factor nominal 11.2
Main material Brass
Maximum working pressure 12
Position Upright
Response Quick
Size 3/4″
Size 2
Temperature rating 68

SAP number 19304AD
Application detail Standard Coverage
Connection Threaded
Connection type
Finish Brass
K factor metric 160
K factor nominal 11.2
Main material Brass
Maximum working pressure 12
Position Upright
Response Quick
Size 3/4″
Size 2
Temperature rating 79

SAP number 19304AE
Application detail Standard Coverage
Connection Threaded
Connection type
Finish Brass
K factor metric 160
K factor nominal 11.2
Main material Brass
Maximum working pressure 12
Position Upright
Response Quick
Size 3/4″
Size 2
Temperature rating 93

SAP number 19304AG
Application detail Standard Coverage
Connection Threaded
Connection type
Finish Brass
K factor metric 160
K factor nominal 11.2
Main material Brass
Maximum working pressure 12
Position Upright
Response Quick
Size 3/4″
Size 2
Temperature rating 141

SAP number 19304AZ
Application detail Standard Coverage
Connection Threaded
Connection type
Finish Brass
K factor metric 160
K factor nominal 11.2
Main material Brass
Maximum working pressure 12
Position Upright
Response Quick
Size 3/4″
Size 2
Temperature rating OPEN

SAP number 19304FB
Application detail Standard Coverage
Connection Threaded
Connection type
Finish Chrome
K factor metric 160
K factor nominal 11.2
Main material Brass
Maximum working pressure 12
Position Upright
Response Quick
Size 3/4″
Size 2
Temperature rating 68

SAP number 19304FD
Application detail Standard Coverage
Connection Threaded
Connection type
Finish Chrome
K factor metric 160
K factor nominal 11.2
Main material Brass
Maximum working pressure 12
Position Upright
Response Quick
Size 3/4″
Size 2
Temperature rating 79

SAP number 19304FE
Application detail Standard Coverage
Connection Threaded
Connection type
Finish Chrome
K factor metric 160
K factor nominal 11.2
Main material Brass
Maximum working pressure 12
Position Upright
Response Quick
Size 3/4″
Size 2
Temperature rating 93

SAP number 19304FG
Application detail Standard Coverage
Connection Threaded
Connection type
Finish Chrome
K factor metric 160
K factor nominal 11.2
Main material Brass
Maximum working pressure 12
Position Upright
Response Quick
Size 3/4″
Size 2
Temperature rating 141

SAP number 19304MB/W
Application detail Standard Coverage
Connection Threaded
Connection type
Finish White
K factor metric 160
K factor nominal 11.2
Main material Brass
Maximum working pressure 12
Position Upright
Response Quick
Size 3/4″
Size 2
Temperature rating 68

SAP number 19304MD/W
Application detail Standard Coverage
Connection Threaded
Connection type
Finish White
K factor metric 160
K factor nominal 11.2
Main material Brass
Maximum working pressure 12
Position Upright
Response Quick
Size 3/4″
Size 2
Temperature rating 79

SAP number 19304ME/W
Application detail Standard Coverage
Connection Threaded
Connection type
Finish White
K factor metric 160
K factor nominal 11.2
Main material Brass
Maximum working pressure 12
Position Upright
Response Quick
Size 3/4″
Size 2
Temperature rating 93

SAP number 19304MG/W
Application detail Standard Coverage
Connection Threaded
Connection type
Finish White
K factor metric 160
K factor nominal 11.2
Main material Brass
Maximum working pressure 12
Position Upright
Response Quick
Size 3/4″
Size 2
Temperature rating 141

SAP number 19305AB
Application detail Standard Coverage
Connection Threaded
Connection type
Finish Brass
K factor metric 160
K factor nominal 11.2
Main material Brass
Maximum working pressure 12
Position Upright
Response Quick
Size 1/2″
Size 2
Temperature rating 68

SAP number 19305AD
Application detail Standard Coverage
Connection Threaded
Connection type
Finish Brass
K factor metric 160
K factor nominal 11.2
Main material Brass
Maximum working pressure 12
Position Upright
Response Quick
Size 1/2″
Size 2
Temperature rating 79

SAP number 19305AE
Application detail Standard Coverage
Connection Threaded
Connection type
Finish Brass
K factor metric 160
K factor nominal 11.2
Main material Brass
Maximum working pressure 12
Position Upright
Response Quick
Size 1/2″
Size 2
Temperature rating 93

SAP number 19305AG
Application detail Standard Coverage
Connection Threaded
Connection type
Finish Brass
K factor metric 160
K factor nominal 11.2
Main material Brass
Maximum working pressure 12
Position Upright
Response Quick
Size 1/2″
Size 2
Temperature rating 141

SAP number 19305FB
Application detail Standard Coverage
Connection Threaded
Connection type
Finish Chrome
K factor metric 160
K factor nominal 11.2
Main material Brass
Maximum working pressure 12
Position Upright
Response Quick
Size 1/2″
Size 2
Temperature rating 68

SAP number 19305FD
Application detail Standard Coverage
Connection Threaded
Connection type
Finish Chrome
K factor metric 160
K factor nominal 11.2
Main material Brass
Maximum working pressure 12
Position Upright
Response Quick
Size 1/2″
Size 2
Temperature rating 79

SAP number 19305FE
Application detail Standard Coverage
Connection Threaded
Connection type
Finish Chrome
K factor metric 160
K factor nominal 11.2
Main material Brass
Maximum working pressure 12
Position Upright
Response Quick
Size 1/2″
Size 2
Temperature rating 93

SAP number 19305FG
Application detail Standard Coverage
Connection Threaded
Connection type
Finish Chrome
K factor metric 160
K factor nominal 11.2
Main material Brass
Maximum working pressure 12
Position Upright
Response Quick
Size 1/2″
Size 2
Temperature rating 141

SAP number 19305MB/W
Application detail Standard Coverage
Connection Threaded
Connection type
Finish White
K factor metric 160
K factor nominal 11.2
Main material Brass
Maximum working pressure 12
Position Upright
Response Quick
Size 1/2″
Size 2
Temperature rating 68

SAP number 19305MD/W
Application detail Standard Coverage
Connection Threaded
Connection type
Finish White
K factor metric 160
K factor nominal 11.2
Main material Brass
Maximum working pressure 12
Position Upright
Response Quick
Size 1/2″
Size 2
Temperature rating 79

SAP number 19305ME/W
Application detail Standard Coverage
Connection Threaded
Connection type
Finish White
K factor metric 160
K factor nominal 11.2
Main material Brass
Maximum working pressure 12
Position Upright
Response Quick
Size 1/2″
Size 2
Temperature rating 93

SAP number 19305MG/W
Application detail Standard Coverage
Connection Threaded
Connection type
Finish White
K factor metric 160
K factor nominal 11.2
Main material Brass
Maximum working pressure 12
Position Upright
Response Quick
Size 1/2″
Size 2
Temperature rating 141

SAP number 19305NB
Application detail Standard Coverage
Connection Threaded
Connection type
Finish Black PTFE
K factor metric 160
K factor nominal 11.2
Main material Brass
Maximum working pressure 12
Position Upright
Response Quick
Size 1/2″
Size 2
Temperature rating 68

SAP number	Application detail	Connection	Finish	K factor metric	K factor nominal	Main material	Maximum working pressure	Position	Response	Size	Temperature rating
19304AB	Standard Coverage	Threaded	Brass	160	11.2	Brass	12	Upright	Quick	3/4″	68
19304AD	Standard Coverage	Threaded	Brass	160	11.2	Brass	12	Upright	Quick	3/4″	79
19304AE	Standard Coverage	Threaded	Brass	160	11.2	Brass	12	Upright	Quick	3/4″	93
19304AG	Standard Coverage	Threaded	Brass	160	11.2	Brass	12	Upright	Quick	3/4″	141
19304AZ	Standard Coverage	Threaded	Brass	160	11.2	Brass	12	Upright	Quick	3/4″	OPEN
19304FB	Standard Coverage	Threaded	Chrome	160	11.2	Brass	12	Upright	Quick	3/4″	68
19304FD	Standard Coverage	Threaded	Chrome	160	11.2	Brass	12	Upright	Quick	3/4″	79
19304FE	Standard Coverage	Threaded	Chrome	160	11.2	Brass	12	Upright	Quick	3/4″	93
19304FG	Standard Coverage	Threaded	Chrome	160	11.2	Brass	12	Upright	Quick	3/4″	141
19304MB/W	Standard Coverage	Threaded	White	160	11.2	Brass	12	Upright	Quick	3/4″	68
19304MD/W	Standard Coverage	Threaded	White	160	11.2	Brass	12	Upright	Quick	3/4″	79
19304ME/W	Standard Coverage	Threaded	White	160	11.2	Brass	12	Upright	Quick	3/4″	93
19304MG/W	Standard Coverage	Threaded	White	160	11.2	Brass	12	Upright	Quick	3/4″	141
19305AB	Standard Coverage	Threaded	Brass	160	11.2	Brass	12	Upright	Quick	1/2″	68
19305AD	Standard Coverage	Threaded	Brass	160	11.2	Brass	12	Upright	Quick	1/2″	79
19305AE	Standard Coverage	Threaded	Brass	160	11.2	Brass	12	Upright	Quick	1/2″	93
19305AG	Standard Coverage	Threaded	Brass	160	11.2	Brass	12	Upright	Quick	1/2″	141
19305FB	Standard Coverage	Threaded	Chrome	160	11.2	Brass	12	Upright	Quick	1/2″	68
19305FD	Standard Coverage	Threaded	Chrome	160	11.2	Brass	12	Upright	Quick	1/2″	79
19305FE	Standard Coverage	Threaded	Chrome	160	11.2	Brass	12	Upright	Quick	1/2″	93
19305FG	Standard Coverage	Threaded	Chrome	160	11.2	Brass	12	Upright	Quick	1/2″	141
19305MB/W	Standard Coverage	Threaded	White	160	11.2	Brass	12	Upright	Quick	1/2″	68
19305MD/W	Standard Coverage	Threaded	White	160	11.2	Brass	12	Upright	Quick	1/2″	79
19305ME/W	Standard Coverage	Threaded	White	160	11.2	Brass	12	Upright	Quick	1/2″	93
19305MG/W	Standard Coverage	Threaded	White	160	11.2	Brass	12	Upright	Quick	1/2″	141
19305NB	Standard Coverage	Threaded	Black PTFE	160	11.2	Brass	12	Upright	Quick	1/2″	68

Additional part numbers might be available. Please refer to the technical documentation or contact your local Viking sales office for more information.
