VK311

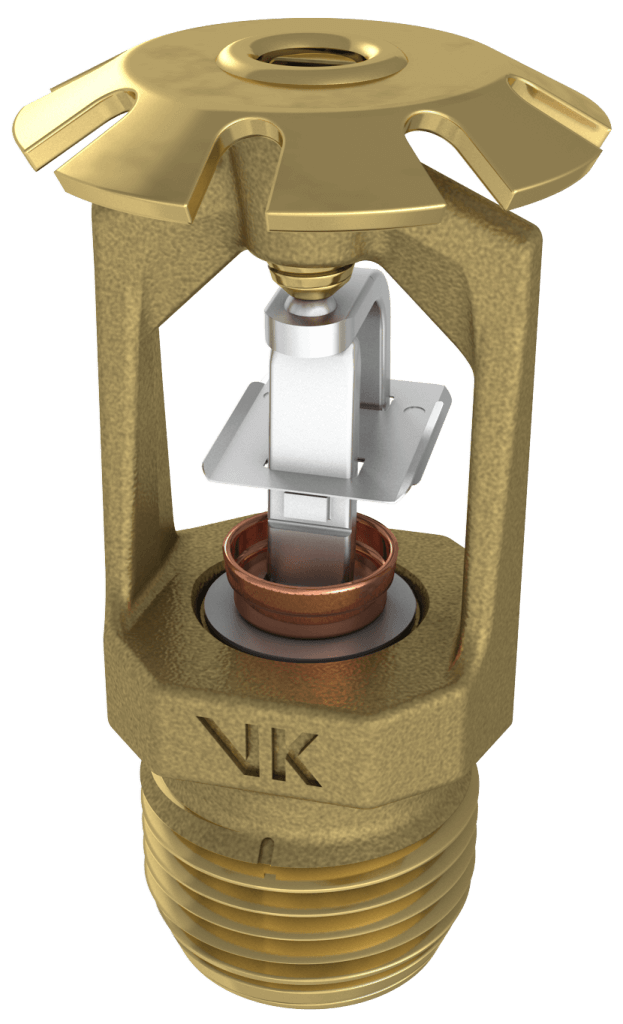

VK311 | DN15-1/2″ | K80 | Quick Response | Conventional | Fusible Link

VK311

Documents & Resources (2)

Download all documents

Download selected files (1)

Add to download box (1)

All resources (2)

technical documentation (1)

drawings (1)

Technical Data Sheet | VK311

Sprinkler & Deluge

Data page

Language:

Languages

Click to select other languages

English

Please select one language

Downloads are not available for youtube, video and external files

Revit | VK311 | Quick Response Fusible Element Conventional Sprinkler

Sprinkler & Deluge

3D – Revit-BIM

Language:

Languages

Click to select other languages

English

Please select one language

Downloads are not available for youtube, video and external files

Product Variants

SAP number 19392AC
Application detail Standard Coverage
Connection Threaded
Connection type NPT
Finish Brass
K factor metric 80
K factor nominal 5.6
Main material Brass
Maximum working pressure 12
Position Conventional
Response Quick
Size 1/2″
Size 2 1/2″
Temperature rating 74

SAP number 19392AE
Application detail Standard Coverage
Connection Threaded
Connection type NPT
Finish Brass
K factor metric 80
K factor nominal 5.6
Main material Brass
Maximum working pressure 12
Position Conventional
Response Quick
Size 1/2″
Size 2 1/2″
Temperature rating 96

SAP number 19392AG
Application detail Standard Coverage
Connection Threaded
Connection type NPT
Finish Brass
K factor metric 80
K factor nominal 5.6
Main material Brass
Maximum working pressure 12
Position Conventional
Response Quick
Size 1/2″
Size 2 1/2″
Temperature rating 138

SAP number 19392FC
Application detail Standard Coverage
Connection Threaded
Connection type NPT
Finish Chrome
K factor metric 80
K factor nominal 5.6
Main material Brass
Maximum working pressure 12
Position Conventional
Response Quick
Size 1/2″
Size 2 1/2″
Temperature rating 74

SAP number 19392FE
Application detail Standard Coverage
Connection Threaded
Connection type NPT
Finish Chrome
K factor metric 80
K factor nominal 5.6
Main material Brass
Maximum working pressure 12
Position Conventional
Response Quick
Size 1/2″
Size 2 1/2″
Temperature rating 96

SAP number 19392FG
Application detail Standard Coverage
Connection Threaded
Connection type NPT
Finish Chrome
K factor metric 80
K factor nominal 5.6
Main material Brass
Maximum working pressure 12
Position Conventional
Response Quick
Size 1/2″
Size 2 1/2″
Temperature rating 138

SAP number 19392JNC
Application detail Standard Coverage
Connection Threaded
Connection type NPT
Finish ENT
K factor metric 80
K factor nominal 5.6
Main material Brass
Maximum working pressure 12
Position Conventional
Response Quick
Size 1/2″
Size 2 1/2″
Temperature rating 74

SAP number 19392JNE
Application detail Standard Coverage
Connection Threaded
Connection type NPT
Finish ENT
K factor metric 80
K factor nominal 5.6
Main material Brass
Maximum working pressure 12
Position Conventional
Response Quick
Size 1/2″
Size 2 1/2″
Temperature rating 96

SAP number 19392JNG
Application detail Standard Coverage
Connection Threaded
Connection type NPT
Finish ENT
K factor metric 80
K factor nominal 5.6
Main material Brass
Maximum working pressure 12
Position Conventional
Response Quick
Size 1/2″
Size 2 1/2″
Temperature rating 138

SAP number 19392MC/W
Application detail Standard Coverage
Connection Threaded
Connection type NPT
Finish White
K factor metric 80
K factor nominal 5.6
Main material Brass
Maximum working pressure 12
Position Conventional
Response Quick
Size 1/2″
Size 2 1/2″
Temperature rating 74

SAP number 19392ME/W
Application detail Standard Coverage
Connection Threaded
Connection type NPT
Finish White
K factor metric 80
K factor nominal 5.6
Main material Brass
Maximum working pressure 12
Position Conventional
Response Quick
Size 1/2″
Size 2 1/2″
Temperature rating 96

SAP number 19392MG/W
Application detail Standard Coverage
Connection Threaded
Connection type NPT
Finish White
K factor metric 80
K factor nominal 5.6
Main material Brass
Maximum working pressure 12
Position Conventional
Response Quick
Size 1/2″
Size 2 1/2″
Temperature rating 138

SAP number	Application detail	Connection	Connection type	Finish	K factor metric	K factor nominal	Main material	Maximum working pressure	Position	Response	Size	Size 2	Temperature rating
19392AC	Standard Coverage	Threaded	NPT	Brass	80	5.6	Brass	12	Conventional	Quick	1/2″	1/2″	74
19392AE	Standard Coverage	Threaded	NPT	Brass	80	5.6	Brass	12	Conventional	Quick	1/2″	1/2″	96
19392AG	Standard Coverage	Threaded	NPT	Brass	80	5.6	Brass	12	Conventional	Quick	1/2″	1/2″	138
19392FC	Standard Coverage	Threaded	NPT	Chrome	80	5.6	Brass	12	Conventional	Quick	1/2″	1/2″	74
19392FE	Standard Coverage	Threaded	NPT	Chrome	80	5.6	Brass	12	Conventional	Quick	1/2″	1/2″	96
19392FG	Standard Coverage	Threaded	NPT	Chrome	80	5.6	Brass	12	Conventional	Quick	1/2″	1/2″	138
19392JNC	Standard Coverage	Threaded	NPT	ENT	80	5.6	Brass	12	Conventional	Quick	1/2″	1/2″	74
19392JNE	Standard Coverage	Threaded	NPT	ENT	80	5.6	Brass	12	Conventional	Quick	1/2″	1/2″	96
19392JNG	Standard Coverage	Threaded	NPT	ENT	80	5.6	Brass	12	Conventional	Quick	1/2″	1/2″	138
19392MC/W	Standard Coverage	Threaded	NPT	White	80	5.6	Brass	12	Conventional	Quick	1/2″	1/2″	74
19392ME/W	Standard Coverage	Threaded	NPT	White	80	5.6	Brass	12	Conventional	Quick	1/2″	1/2″	96
19392MG/W	Standard Coverage	Threaded	NPT	White	80	5.6	Brass	12	Conventional	Quick	1/2″	1/2″	138

Additional part numbers might be available. Please refer to the technical documentation or contact your local Viking sales office for more information.
