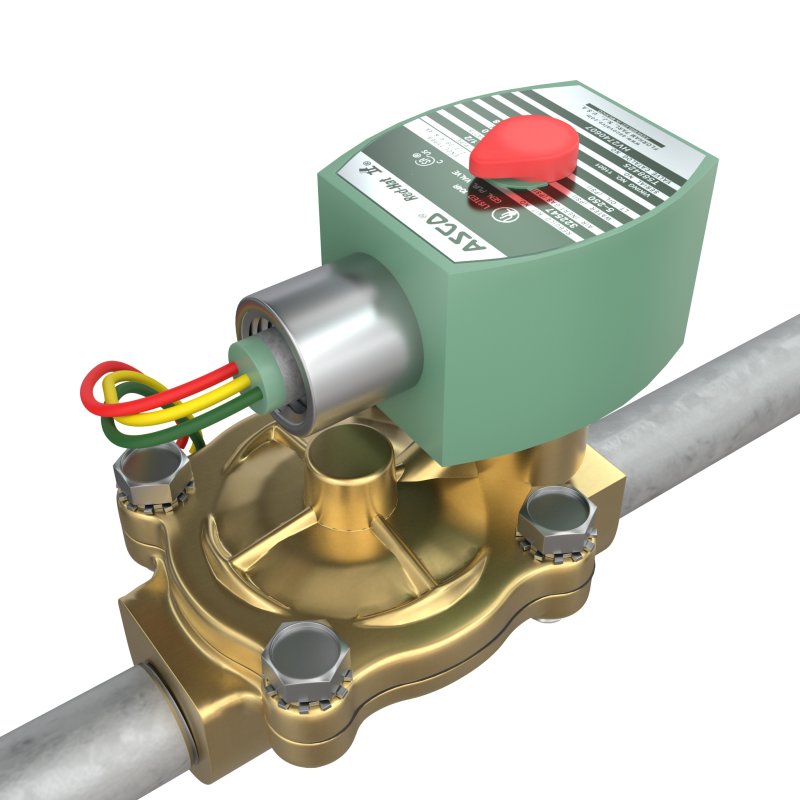

SV Solenoid Valve
Solenoid Valve
SV Solenoid Valve
Documents & Resources (2)
Download all documents
Download selected files (1)
Add to download box (1)
All resources (2)
technical documentation (1)
commercial documentation (1)
Sprinkler & Deluge
Product sheet
Language:
Languages
Click to select other languages
Sprinkler & Deluge
Quick reference guide
Language:
Languages
Click to select other languages
Product Variants
- SAP number 11601
- Application detail
- Connection Threaded
- Connection type
- Main material Brass (Body)
- Maximum working pressure 17.2 bar
- Size 1/2″
- Size 2
- Style Normally Closed
- Temperature rating max. 54 °C (ambient)
- SAP number 11602
- Application detail Explosion Proof
- Connection Threaded
- Connection type
- Main material Brass (Body)
- Maximum working pressure 17.2 bar
- Size 1/2″
- Size 2
- Style Normally Closed
- Temperature rating max. 54 °C (ambient)
- SAP number 13215
- Application detail
- Connection Threaded
- Connection type
- Main material Brass (Body)
- Maximum working pressure 17.2 bar
- Size 1/2″
- Size 2
- Style Normally Open
- Temperature rating max. 54 °C (ambient)
- SAP number 13843
- Application detail
- Connection Threaded
- Connection type
- Main material Brass (Body)
- Maximum working pressure 20.6 bar
- Size 1/2″
- Size 2
- Style Normally Closed
- Temperature rating max. 60 °C (ambient)
- SAP number 13844
- Application detail Explosion Proof
- Connection Threaded
- Connection type
- Main material Brass (Body)
- Maximum working pressure 20.6 bar
- Size 1/2″
- Size 2
- Style Normally Closed
- Temperature rating max. 60 °C (ambient)
- SAP number 840131
- Application detail
- Connection Threaded
- Connection type
- Main material Brass (Body)
- Maximum working pressure 16 bar
- Size 1/2″
- Size 2
- Style Impulse (bistable)
- Temperature rating max. 80 °C (ambient)
| SAP number | Application detail | Connection | Connection type | Main material | Maximum working pressure | Size | Size 2 | Style | Temperature rating |
|---|---|---|---|---|---|---|---|---|---|
| 11601 | Threaded |
Brass (Body) |
17.2 bar |
1/2″ |
Normally Closed |
max. 54 °C (ambient) |
|||
| 11602 | Explosion Proof |
Threaded |
Brass (Body) |
17.2 bar |
1/2″ |
Normally Closed |
max. 54 °C (ambient) |
||
| 13215 | Threaded |
Brass (Body) |
17.2 bar |
1/2″ |
Normally Open |
max. 54 °C (ambient) |
|||
| 13843 | Threaded |
Brass (Body) |
20.6 bar |
1/2″ |
Normally Closed |
max. 60 °C (ambient) |
|||
| 13844 | Explosion Proof |
Threaded |
Brass (Body) |
20.6 bar |
1/2″ |
Normally Closed |
max. 60 °C (ambient) |
||
| 840131 | Threaded |
Brass (Body) |
16 bar |
1/2″ |
Impulse (bistable) |
max. 80 °C (ambient) |
Additional part numbers might be available. Please refer to the technical documentation or contact your local Viking sales office for more information.
