VK490

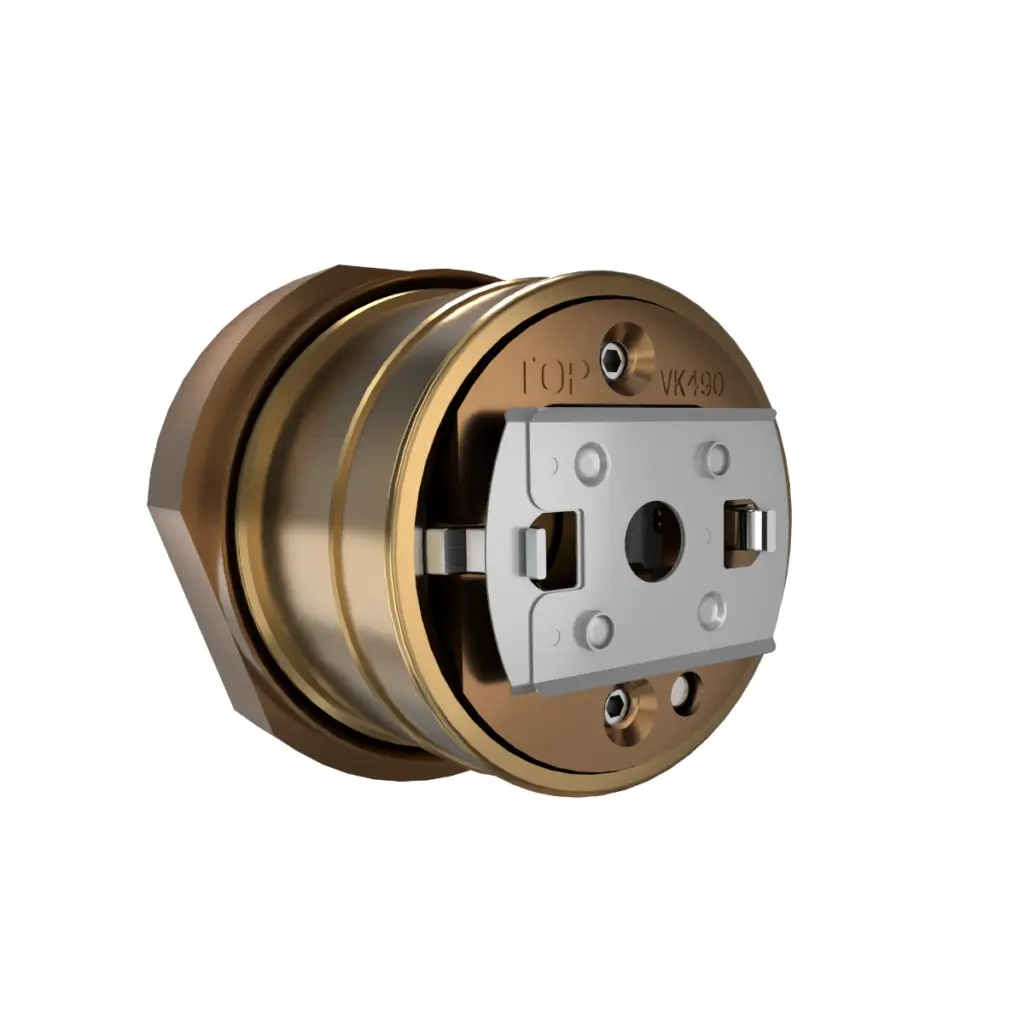

VK490 | DN15-1/2″ | K84 | Residential | Horizontal Sidewall

VK490

Documents & Resources (2)

Download all documents

Download selected files (1)

Zum Download-Feld hinzufügen (1)

All resources (1)

drawings (1)

Revit | VK490 | Residential Concealed Horizontal Sidewall Sprinkler

Sprinkler & Sprühwasser

3D – Revit-BIM

Language:

Sprachen

Klicken Sie, um andere Sprachen auszuwählen

English

Bitte wählen Sie eine Sprache aus

Downloads are not available for youtube, video and external files

VK490 — Product Variants

8 SKUs · 14 attributes

Product Variants

SAP number 20409AC
Application_detail Residential
Connection Threaded
Connection_type NPT
Finish Brass
K_factor_metric 84
K_factor_nominal 5,8
Main_material Brass
Maximum_working_pressure 12
Position Horizontal sidewall
Response Residential
Size 1/2″
Size_2 1/2″
Style
Temperature_rating 74

SAP number 20409AE
Application_detail Residential
Connection Threaded
Connection_type NPT
Finish Brass
K_factor_metric 84
K_factor_nominal 5,8
Main_material Brass
Maximum_working_pressure 12
Position Horizontal sidewall
Response Residential
Size 1/2″
Size_2 1/2″
Style
Temperature_rating 96

SAP number 20409JNC
Application_detail Residential
Connection Threaded
Connection_type NPT
Finish ENT
K_factor_metric 84
K_factor_nominal 5.8
Main_material Brass
Maximum_working_pressure 12
Position Horizontal sidewall
Response Residential
Size 1/2″
Size_2 1/2″
Style
Temperature_rating 74

SAP number 20409JNE
Application_detail Residential
Connection Threaded
Connection_type NPT
Finish ENT
K_factor_metric 84
K_factor_nominal 5.8
Main_material Brass
Maximum_working_pressure 12
Position Horizontal sidewall
Response Residential
Size 1/2″
Size_2 1/2″
Style
Temperature_rating 96

SAP number 27026AC
Application_detail Residential
Connection Threaded
Connection_type NPT
Finish Brass
K_factor_metric 84
K_factor_nominal 5.8
Main_material Brass
Maximum_working_pressure 12
Position Horizontal sidewall
Response Residential
Size 1/2″
Size_2 1/2″
Style
Temperature_rating 74

SAP number 27026AE
Application_detail Residential
Connection Threaded
Connection_type NPT
Finish Brass
K_factor_metric 84
K_factor_nominal 5.8
Main_material Brass
Maximum_working_pressure 12
Position Horizontal sidewall
Response Residential
Size 1/2″
Size_2 1/2″
Style
Temperature_rating 96

SAP number 27026JNC
Application_detail Residential
Connection Threaded
Connection_type NPT
Finish ENT
K_factor_metric 84
K_factor_nominal 5.8
Main_material Brass
Maximum_working_pressure 12
Position Horizontal sidewall
Response Residential
Size 1/2″
Size_2 1/2″
Style
Temperature_rating 74

SAP number 27026JNE
Application_detail Residential
Connection Threaded
Connection_type NPT
Finish ENT
K_factor_metric 84
K_factor_nominal 5.8
Main_material Brass
Maximum_working_pressure 12
Position Horizontal sidewall
Response Residential
Size 1/2″
Size_2 1/2″
Style
Temperature_rating 96

SAP number	Application_detail	Connection	Connection_type	Finish	K_factor_metric	K_factor_nominal	Main_material	Maximum_working_pressure	Position	Response	Size	Size_2	Temperature_rating
20409AC	Residential	Threaded	NPT	Brass	84	5,8	Brass	12	Horizontal sidewall	Residential	1/2″	1/2″	74
20409AE	Residential	Threaded	NPT	Brass	84	5,8	Brass	12	Horizontal sidewall	Residential	1/2″	1/2″	96
20409JNC	Residential	Threaded	NPT	ENT	84	5.8	Brass	12	Horizontal sidewall	Residential	1/2″	1/2″	74
20409JNE	Residential	Threaded	NPT	ENT	84	5.8	Brass	12	Horizontal sidewall	Residential	1/2″	1/2″	96
27026AC	Residential	Threaded	NPT	Brass	84	5.8	Brass	12	Horizontal sidewall	Residential	1/2″	1/2″	74
27026AE	Residential	Threaded	NPT	Brass	84	5.8	Brass	12	Horizontal sidewall	Residential	1/2″	1/2″	96
27026JNC	Residential	Threaded	NPT	ENT	84	5.8	Brass	12	Horizontal sidewall	Residential	1/2″	1/2″	74
27026JNE	Residential	Threaded	NPT	ENT	84	5.8	Brass	12	Horizontal sidewall	Residential	1/2″	1/2″	96

Additional part numbers might be available. Please refer to the technical documentation or contact your local Viking sales office for more information.
