VK484

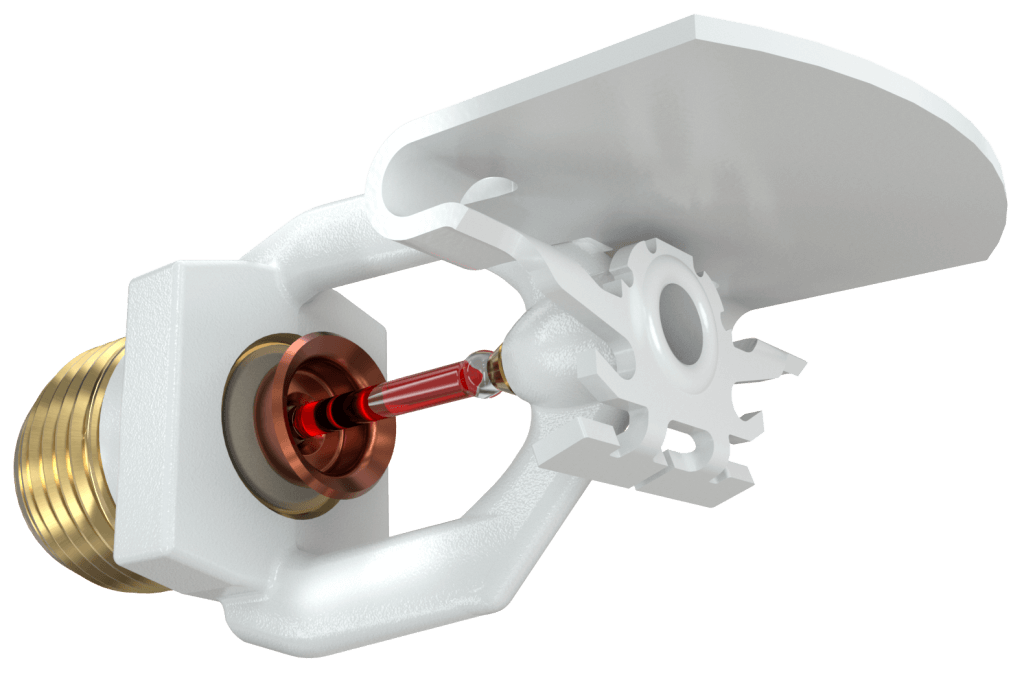

VK484 | DN15-1/2″ | K60 | Residential | Horizontal Sidewall

VK484

VK484 — Product Variants

10 SKUs · 13 attributes

Product Variants

SAP number 16240JNB
Temperature_rating 68
K_factor_nominal 4.2
K_factor_metric 60
Finish ENT
Position Horizontal sidewall
Response Residential
Application_detail Residential
Connection Threaded
Connection_type NPT
Main_material Brass
Maximum_working_pressure 12
Size 1/2″
Size_2 1/2″

SAP number 16240JND
Temperature_rating 79
K_factor_nominal 4.2
K_factor_metric 60
Finish ENT
Position Horizontal sidewall
Response Residential
Application_detail Residential
Connection Threaded
Connection_type NPT
Main_material Brass
Maximum_working_pressure 12
Size 1/2″
Size_2 1/2″

SAP number 16240AB
Temperature_rating 68
K_factor_nominal 4.2
K_factor_metric 60
Finish Brass
Position Horizontal sidewall
Response Residential
Application_detail Residential
Connection Threaded
Connection_type NPT
Main_material Brass
Maximum_working_pressure 12
Size 1/2″
Size_2 1/2″

SAP number 16240AD
Temperature_rating 79
K_factor_nominal 4.2
K_factor_metric 60
Finish Brass
Position Horizontal sidewall
Response Residential
Application_detail Residential
Connection Threaded
Connection_type NPT
Main_material Brass
Maximum_working_pressure 12
Size 1/2″
Size_2 1/2″

SAP number 16240FB
Temperature_rating 68
K_factor_nominal 4.2
K_factor_metric 60
Finish Chrome
Position Horizontal sidewall
Response Residential
Application_detail Residential
Connection Threaded
Connection_type NPT
Main_material Brass
Maximum_working_pressure 12
Size 1/2″
Size_2 1/2″

SAP number 16240FD
Temperature_rating 79
K_factor_nominal 4.2
K_factor_metric 60
Finish Chrome
Position Horizontal sidewall
Response Residential
Application_detail Residential
Connection Threaded
Connection_type NPT
Main_material Brass
Maximum_working_pressure 12
Size 1/2″
Size_2 1/2″

SAP number 16240MB/B
Temperature_rating 68
K_factor_nominal 4.2
K_factor_metric 60
Finish Black
Position Horizontal sidewall
Response Residential
Application_detail Residential
Connection Threaded
Connection_type NPT
Main_material Brass
Maximum_working_pressure 12
Size 1/2″
Size_2 1/2″

SAP number 16240MB/W
Temperature_rating 68
K_factor_nominal 4.2
K_factor_metric 60
Finish White
Position Horizontal sidewall
Response Residential
Application_detail Residential
Connection Threaded
Connection_type NPT
Main_material Brass
Maximum_working_pressure 12
Size 1/2″
Size_2 1/2″

SAP number 16240MD/B
Temperature_rating 79
K_factor_nominal 4.2
K_factor_metric 60
Finish Black
Position Horizontal sidewall
Response Residential
Application_detail Residential
Connection Threaded
Connection_type NPT
Main_material Brass
Maximum_working_pressure 12
Size 1/2″
Size_2 1/2″

SAP number 16240MD/W
Temperature_rating 79
K_factor_nominal 4.2
K_factor_metric 60
Finish White
Position Horizontal sidewall
Response Residential
Application_detail Residential
Connection Threaded
Connection_type NPT
Main_material Brass
Maximum_working_pressure 12
Size 1/2″
Size_2 1/2″

SAP number	Application_detail	Connection	Connection_type	Finish	K_factor_metric	K_factor_nominal	Main_material	Maximum_working_pressure	Position	Response	Size	Size_2	Temperature_rating
16240JNB	Residential	Threaded	NPT	ENT	60	4.2	Brass	12	Horizontal sidewall	Residential	1/2″	1/2″	68
16240JND	Residential	Threaded	NPT	ENT	60	4.2	Brass	12	Horizontal sidewall	Residential	1/2″	1/2″	79
16240AB	Residential	Threaded	NPT	Brass	60	4.2	Brass	12	Horizontal sidewall	Residential	1/2″	1/2″	68
16240AD	Residential	Threaded	NPT	Brass	60	4.2	Brass	12	Horizontal sidewall	Residential	1/2″	1/2″	79
16240FB	Residential	Threaded	NPT	Chrome	60	4.2	Brass	12	Horizontal sidewall	Residential	1/2″	1/2″	68
16240FD	Residential	Threaded	NPT	Chrome	60	4.2	Brass	12	Horizontal sidewall	Residential	1/2″	1/2″	79
16240MB/B	Residential	Threaded	NPT	Black	60	4.2	Brass	12	Horizontal sidewall	Residential	1/2″	1/2″	68
16240MB/W	Residential	Threaded	NPT	White	60	4.2	Brass	12	Horizontal sidewall	Residential	1/2″	1/2″	68
16240MD/B	Residential	Threaded	NPT	Black	60	4.2	Brass	12	Horizontal sidewall	Residential	1/2″	1/2″	79
16240MD/W	Residential	Threaded	NPT	White	60	4.2	Brass	12	Horizontal sidewall	Residential	1/2″	1/2″	79

Additional part numbers might be available. Please refer to the technical documentation or contact your local Viking sales office for more information.
