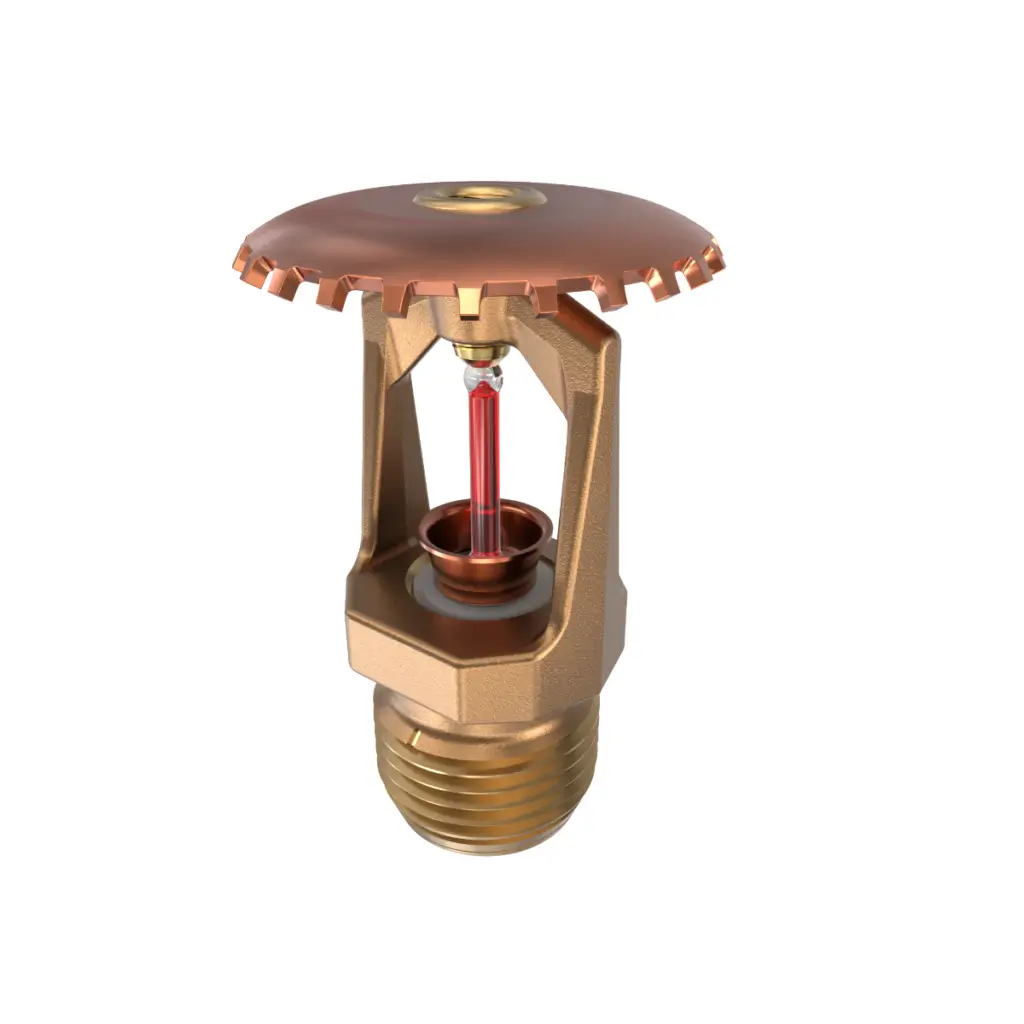

VK300

VK300 | DN15-1/2″ NPT / 15 mm BSP | K80 | Quick Response | Upright

VK300

VK300 — Product Variants

4 SKUs · 15 attributes

Product Variants

SAP number 12978AB
Application_detail Standard Coverage
Connection Threaded
Connection_type NPT
Finish Brass
K_factor_metric 80
K_factor_nominal 5.6
Lowest_use_temperature -55°C
Main_material Brass
Maximum_working_pressure 12
Position Upright
Response Quick
Size 1/2″
Size_2 1/2″
Style Vertical
Temperature_rating 68

SAP number 12978FB
Application_detail Standard Coverage
Connection Threaded
Connection_type NPT
Finish Chrome
K_factor_metric 80
K_factor_nominal 5.6
Lowest_use_temperature -55°C
Main_material Brass
Maximum_working_pressure 12
Position Upright
Response Quick
Size 1/2″
Size_2 1/2″
Style Vertical
Temperature_rating 68

SAP number 12978AE
Application_detail Standard Coverage
Connection Threaded
Connection_type NPT
Finish Brass
K_factor_metric 80
K_factor_nominal 5.6
Lowest_use_temperature -55°C
Main_material Brass
Maximum_working_pressure 12
Position Upright
Response Quick
Size 1/2″
Size_2 1/2″
Style Vertical
Temperature_rating 93

SAP number 12978FA
Application_detail Standard Coverage
Connection Threaded
Connection_type NPT
Finish Chrome
K_factor_metric 80
K_factor_nominal 5.6
Lowest_use_temperature -55°C
Main_material Brass
Maximum_working_pressure 12
Position Upright
Response Quick
Size 1/2″
Size_2 1/2″
Style Vertical
Temperature_rating 57

SAP number	Application_detail	Connection	Connection_type	Finish	K_factor_metric	K_factor_nominal	Lowest_use_temperature	Main_material	Maximum_working_pressure	Position	Response	Size	Size_2	Style	Temperature_rating
12978AB	Standard Coverage	Threaded	NPT	Brass	80	5.6	-55°C	Brass	12	Upright	Quick	1/2″	1/2″	Vertical	68
12978FB	Standard Coverage	Threaded	NPT	Chrome	80	5.6	-55°C	Brass	12	Upright	Quick	1/2″	1/2″	Vertical	68
12978AE	Standard Coverage	Threaded	NPT	Brass	80	5.6	-55°C	Brass	12	Upright	Quick	1/2″	1/2″	Vertical	93
12978FA	Standard Coverage	Threaded	NPT	Chrome	80	5.6	-55°C	Brass	12	Upright	Quick	1/2″	1/2″	Vertical	57

Additional part numbers might be available. Please refer to the technical documentation or contact your local Viking sales office for more information.
