BVL-4

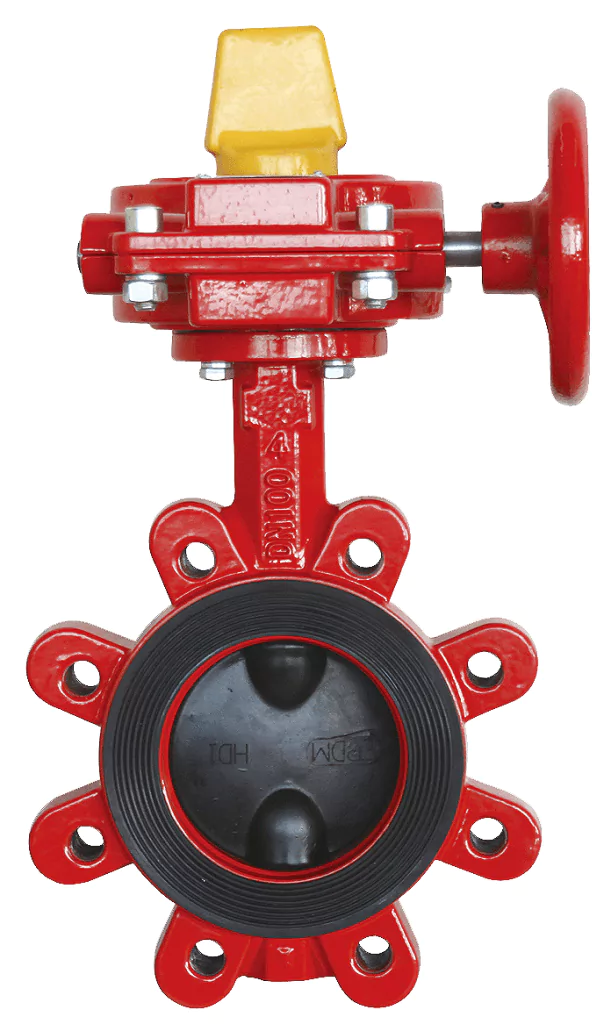

BVL-4 Butterfly Valve | Lugged ANSI without Switch
BVL-4
Documents & Resources (2)
Download all documents
Download selected files (1)
Zum Download-Feld hinzufügen (1)
All resources (2)
technical documentation (1)
drawings (1)
Sprinkler & Sprühwasser
Produktblatt
Language:
Sprachen
Klicken Sie, um andere Sprachen auszuwählen
Sprinkler & Sprühwasser
3D – Revit-BIM
Language:
Sprachen
Klicken Sie, um andere Sprachen auszuwählen
Product Variants
- SAP number BVL-4-100A
- Temperature rating 0 to 80
- Connection Lugged
- Connection type ANSI
- Size 4″/DN100
- Finish Epoxy coated ductile iron
- Maximum working pressure 21
- SAP number BVL-4-300A
- Temperature rating 0 to 80
- Connection Lugged
- Connection type ANSI
- Size 12″/DN300
- Finish Epoxy coated ductile iron
- Maximum working pressure 17
- SAP number BVL-4-150A
- Temperature rating 0 to 80
- Connection Lugged
- Connection type ANSI
- Size 6″/DN150
- Finish Epoxy coated ductile iron
- Maximum working pressure 21
- SAP number BVL-4-200A
- Temperature rating 0 to 80
- Connection Lugged
- Connection type ANSI
- Size 8″/DN200
- Finish Epoxy coated ductile iron
- Maximum working pressure 21
- SAP number BVL-4-125A
- Temperature rating 0 to 80
- Connection Lugged
- Connection type ANSI
- Size 5″/DN125
- Finish Epoxy coated ductile iron
- Maximum working pressure 21
- SAP number BVL-4-250A
- Temperature rating 0 to 80
- Connection Lugged
- Connection type ANSI
- Size 10″/DN250
- Finish Epoxy coated ductile iron
- Maximum working pressure 17
- SAP number BVL-4-065A
- Temperature rating 0 to 80
- Connection Lugged
- Connection type ANSI
- Size 2-1/2″/DN65
- Finish Epoxy coated ductile iron
- Maximum working pressure 21
- SAP number BVL-4-050A
- Temperature rating 0 to 80
- Connection Lugged
- Connection type ANSI
- Size 2″/DN50
- Finish Epoxy coated ductile iron
- Maximum working pressure 21
- SAP number BVL-4-080A
- Temperature rating 0 to 80
- Connection Lugged
- Connection type ANSI
- Size 3″/DN80
- Finish Epoxy coated ductile iron
- Maximum working pressure 21
| SAP number | Temperature rating | Connection | Connection type | Size | Finish | Maximum working pressure |
|---|---|---|---|---|---|---|
| BVL-4-100A | 0 to 80 |
Lugged |
ANSI |
4″/DN100 |
Epoxy coated ductile iron |
21 |
| BVL-4-300A | 0 to 80 |
Lugged |
ANSI |
12″/DN300 |
Epoxy coated ductile iron |
17 |
| BVL-4-150A | 0 to 80 |
Lugged |
ANSI |
6″/DN150 |
Epoxy coated ductile iron |
21 |
| BVL-4-200A | 0 to 80 |
Lugged |
ANSI |
8″/DN200 |
Epoxy coated ductile iron |
21 |
| BVL-4-125A | 0 to 80 |
Lugged |
ANSI |
5″/DN125 |
Epoxy coated ductile iron |
21 |
| BVL-4-250A | 0 to 80 |
Lugged |
ANSI |
10″/DN250 |
Epoxy coated ductile iron |
17 |
| BVL-4-065A | 0 to 80 |
Lugged |
ANSI |
2 1/2″/DN65 |
Epoxy coated ductile iron |
21 |
| BVL-4-050A | 0 to 80 |
Lugged |
ANSI |
2″/DN50 |
Epoxy coated ductile iron |
21 |
| BVL-4-080A | 0 to 80 |
Lugged |
ANSI |
3″/DN80 |
Epoxy coated ductile iron |
21 |
Additional part numbers might be available. Please refer to the technical documentation or contact your local Viking sales office for more information.
