VK3021

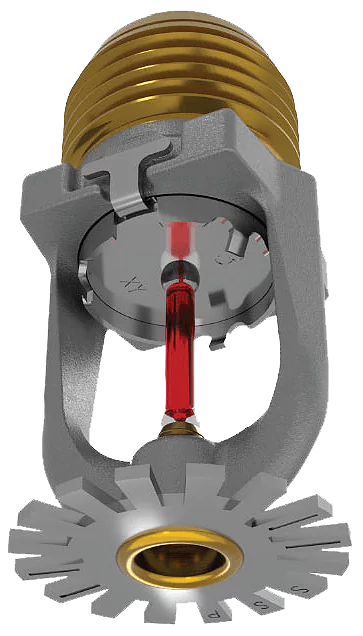

VK3021 | DN15-1/2″ | K80 | Quick Response | Pendent | XT1

VK3021

Product Variants

SAP number 23870AA
Application detail Standard Coverage
Connection Threaded
Connection type NPT
Finish Brass
K factor metric 80
K factor nominal 5.6
Main material Brass
Maximum working pressure 12
Position Pendent
Response Quick
Size 1/2″
Size 2 1/2″
Temperature rating 57

SAP number 23870AB
Application detail Standard Coverage
Connection Threaded
Connection type NPT
Finish Brass
K factor metric 80
K factor nominal 5.6
Main material Brass
Maximum working pressure 12
Position Pendent
Response Quick
Size 1/2″
Size 2 1/2″
Temperature rating 68

SAP number 23870AD
Application detail Standard Coverage
Connection Threaded
Connection type NPT
Finish Brass
K factor metric 80
K factor nominal 5.6
Main material Brass
Maximum working pressure 12
Position Pendent
Response Quick
Size 1/2″
Size 2 1/2″
Temperature rating 79

SAP number 23870AE
Application detail Standard Coverage
Connection Threaded
Connection type NPT
Finish Brass
K factor metric 80
K factor nominal 5.6
Main material Brass
Maximum working pressure 12
Position Pendent
Response Quick
Size 1/2″
Size 2 1/2″
Temperature rating 93

SAP number 23870AG
Application detail Standard Coverage
Connection Threaded
Connection type NPT
Finish Brass
K factor metric 80
K factor nominal 5.6
Main material Brass
Maximum working pressure 12
Position Pendent
Response Quick
Size 1/2″
Size 2 1/2″
Temperature rating 141

SAP number 23870AZ
Application detail Standard Coverage
Connection Threaded
Connection type NPT
Finish Brass
K factor metric 80
K factor nominal 5.6
Main material Brass
Maximum working pressure 12
Position Pendent
Response Quick
Size 1/2″
Size 2 1/2″
Temperature rating Open

SAP number 23870FA
Application detail Standard Coverage
Connection Threaded
Connection type NPT
Finish Chrome
K factor metric 80
K factor nominal 5.6
Main material Brass
Maximum working pressure 12
Position Pendent
Response Quick
Size 1/2″
Size 2 1/2″
Temperature rating 57

SAP number 23870FB
Application detail Standard Coverage
Connection Threaded
Connection type NPT
Finish Chrome
K factor metric 80
K factor nominal 5.6
Main material Brass
Maximum working pressure 12
Position Pendent
Response Quick
Size 1/2″
Size 2 1/2″
Temperature rating 68

SAP number 23870FD
Application detail Standard Coverage
Connection Threaded
Connection type NPT
Finish Chrome
K factor metric 80
K factor nominal 5.6
Main material Brass
Maximum working pressure 12
Position Pendent
Response Quick
Size 1/2″
Size 2 1/2″
Temperature rating 79

SAP number 23870FE
Application detail Standard Coverage
Connection Threaded
Connection type NPT
Finish Chrome
K factor metric 80
K factor nominal 5.6
Main material Brass
Maximum working pressure 12
Position Pendent
Response Quick
Size 1/2″
Size 2 1/2″
Temperature rating 93

SAP number 23870FG
Application detail Standard Coverage
Connection Threaded
Connection type NPT
Finish Chrome
K factor metric 80
K factor nominal 5.6
Main material Brass
Maximum working pressure 12
Position Pendent
Response Quick
Size 1/2″
Size 2 1/2″
Temperature rating 141

SAP number 23870FZ
Application detail Standard Coverage
Connection Threaded
Connection type NPT
Finish Chrome
K factor metric 80
K factor nominal 5.6
Main material Brass
Maximum working pressure 12
Position Pendent
Response Quick
Size 1/2″
Size 2 1/2″
Temperature rating Open

SAP number 23870JNA
Application detail Standard Coverage
Connection Threaded
Connection type NPT
Finish ENT
K factor metric 80
K factor nominal 5.6
Main material Brass
Maximum working pressure 12
Position Pendent
Response Quick
Size 1/2″
Size 2 1/2″
Temperature rating 57

SAP number 23870JNB
Application detail Standard Coverage
Connection Threaded
Connection type NPT
Finish ENT
K factor metric 80
K factor nominal 5.6
Main material Brass
Maximum working pressure 12
Position Pendent
Response Quick
Size 1/2″
Size 2 1/2″
Temperature rating 68

SAP number 23870JND
Application detail Standard Coverage
Connection Threaded
Connection type NPT
Finish ENT
K factor metric 80
K factor nominal 5.6
Main material Brass
Maximum working pressure 12
Position Pendent
Response Quick
Size 1/2″
Size 2 1/2″
Temperature rating 79

SAP number 23870JNE
Application detail Standard Coverage
Connection Threaded
Connection type NPT
Finish ENT
K factor metric 80
K factor nominal 5.6
Main material Brass
Maximum working pressure 12
Position Pendent
Response Quick
Size 1/2″
Size 2 1/2″
Temperature rating 93

SAP number 23870JNG
Application detail Standard Coverage
Connection Threaded
Connection type NPT
Finish ENT
K factor metric 80
K factor nominal 5.6
Main material Brass
Maximum working pressure 12
Position Pendent
Response Quick
Size 1/2″
Size 2 1/2″
Temperature rating 141

SAP number 23870JNZ
Application detail Standard Coverage
Connection Threaded
Connection type NPT
Finish ENT
K factor metric 80
K factor nominal 5.6
Main material Brass
Maximum working pressure 12
Position Pendent
Response Quick
Size 1/2″
Size 2 1/2″
Temperature rating Open

SAP number 23870MA/B
Application detail Standard Coverage
Connection Threaded
Connection type NPT
Finish Black
K factor metric 80
K factor nominal 5.6
Main material Brass
Maximum working pressure 12
Position Pendent
Response Quick
Size 1/2″
Size 2 1/2″
Temperature rating 57

SAP number 23870MA/W
Application detail Standard Coverage
Connection Threaded
Connection type NPT
Finish White
K factor metric 80
K factor nominal 5.6
Main material Brass
Maximum working pressure 12
Position Pendent
Response Quick
Size 1/2″
Size 2 1/2″
Temperature rating 57

SAP number 23870MB/B
Application detail Standard Coverage
Connection Threaded
Connection type NPT
Finish Black
K factor metric 80
K factor nominal 5.6
Main material Brass
Maximum working pressure 12
Position Pendent
Response Quick
Size 1/2″
Size 2 1/2″
Temperature rating 68

SAP number 23870MB/W
Application detail Standard Coverage
Connection Threaded
Connection type NPT
Finish White
K factor metric 80
K factor nominal 5.6
Main material Brass
Maximum working pressure 12
Position Pendent
Response Quick
Size 1/2″
Size 2 1/2″
Temperature rating 68

SAP number 23870MD/B
Application detail Standard Coverage
Connection Threaded
Connection type NPT
Finish Black
K factor metric 80
K factor nominal 5.6
Main material Brass
Maximum working pressure 12
Position Pendent
Response Quick
Size 1/2″
Size 2 1/2″
Temperature rating 79

SAP number 23870MD/W
Application detail Standard Coverage
Connection Threaded
Connection type NPT
Finish White
K factor metric 80
K factor nominal 5.6
Main material Brass
Maximum working pressure 12
Position Pendent
Response Quick
Size 1/2″
Size 2 1/2″
Temperature rating 79

SAP number 23870ME/B
Application detail Standard Coverage
Connection Threaded
Connection type NPT
Finish Black
K factor metric 80
K factor nominal 5.6
Main material Brass
Maximum working pressure 12
Position Pendent
Response Quick
Size 1/2″
Size 2 1/2″
Temperature rating 93

SAP number 23870ME/W
Application detail Standard Coverage
Connection Threaded
Connection type NPT
Finish White
K factor metric 80
K factor nominal 5.6
Main material Brass
Maximum working pressure 12
Position Pendent
Response Quick
Size 1/2″
Size 2 1/2″
Temperature rating 93

SAP number 23870MG/B
Application detail Standard Coverage
Connection Threaded
Connection type NPT
Finish Black
K factor metric 80
K factor nominal 5.6
Main material Brass
Maximum working pressure 12
Position Pendent
Response Quick
Size 1/2″
Size 2 1/2″
Temperature rating 141

SAP number 23870MG/W
Application detail Standard Coverage
Connection Threaded
Connection type NPT
Finish White
K factor metric 80
K factor nominal 5.6
Main material Brass
Maximum working pressure 12
Position Pendent
Response Quick
Size 1/2″
Size 2 1/2″
Temperature rating 141

SAP number 23870MZ/B
Application detail Standard Coverage
Connection Threaded
Connection type NPT
Finish Black
K factor metric 80
K factor nominal 5.6
Main material Brass
Maximum working pressure 12
Position Pendent
Response Quick
Size 1/2″
Size 2 1/2″
Temperature rating Open

SAP number 23870MZ/W
Application detail Standard Coverage
Connection Threaded
Connection type NPT
Finish White
K factor metric 80
K factor nominal 5.6
Main material Brass
Maximum working pressure 12
Position Pendent
Response Quick
Size 1/2″
Size 2 1/2″
Temperature rating Open

SAP number	Application detail	Connection	Connection type	Finish	K factor metric	K factor nominal	Main material	Maximum working pressure	Position	Response	Size	Size 2	Temperature rating
23870AA	Standard Coverage	Threaded	NPT	Brass	80	5.6	Brass	12	Pendent	Quick	1/2″	1/2″	57
23870AB	Standard Coverage	Threaded	NPT	Brass	80	5.6	Brass	12	Pendent	Quick	1/2″	1/2″	68
23870AD	Standard Coverage	Threaded	NPT	Brass	80	5.6	Brass	12	Pendent	Quick	1/2″	1/2″	79
23870AE	Standard Coverage	Threaded	NPT	Brass	80	5.6	Brass	12	Pendent	Quick	1/2″	1/2″	93
23870AG	Standard Coverage	Threaded	NPT	Brass	80	5.6	Brass	12	Pendent	Quick	1/2″	1/2″	141
23870AZ	Standard Coverage	Threaded	NPT	Brass	80	5.6	Brass	12	Pendent	Quick	1/2″	1/2″	Open
23870FA	Standard Coverage	Threaded	NPT	Chrome	80	5.6	Brass	12	Pendent	Quick	1/2″	1/2″	57
23870FB	Standard Coverage	Threaded	NPT	Chrome	80	5.6	Brass	12	Pendent	Quick	1/2″	1/2″	68
23870FD	Standard Coverage	Threaded	NPT	Chrome	80	5.6	Brass	12	Pendent	Quick	1/2″	1/2″	79
23870FE	Standard Coverage	Threaded	NPT	Chrome	80	5.6	Brass	12	Pendent	Quick	1/2″	1/2″	93
23870FG	Standard Coverage	Threaded	NPT	Chrome	80	5.6	Brass	12	Pendent	Quick	1/2″	1/2″	141
23870FZ	Standard Coverage	Threaded	NPT	Chrome	80	5.6	Brass	12	Pendent	Quick	1/2″	1/2″	Open
23870JNA	Standard Coverage	Threaded	NPT	ENT	80	5.6	Brass	12	Pendent	Quick	1/2″	1/2″	57
23870JNB	Standard Coverage	Threaded	NPT	ENT	80	5.6	Brass	12	Pendent	Quick	1/2″	1/2″	68
23870JND	Standard Coverage	Threaded	NPT	ENT	80	5.6	Brass	12	Pendent	Quick	1/2″	1/2″	79
23870JNE	Standard Coverage	Threaded	NPT	ENT	80	5.6	Brass	12	Pendent	Quick	1/2″	1/2″	93
23870JNG	Standard Coverage	Threaded	NPT	ENT	80	5.6	Brass	12	Pendent	Quick	1/2″	1/2″	141
23870JNZ	Standard Coverage	Threaded	NPT	ENT	80	5.6	Brass	12	Pendent	Quick	1/2″	1/2″	Open
23870MA/B	Standard Coverage	Threaded	NPT	Black	80	5.6	Brass	12	Pendent	Quick	1/2″	1/2″	57
23870MA/W	Standard Coverage	Threaded	NPT	White	80	5.6	Brass	12	Pendent	Quick	1/2″	1/2″	57
23870MB/B	Standard Coverage	Threaded	NPT	Black	80	5.6	Brass	12	Pendent	Quick	1/2″	1/2″	68
23870MB/W	Standard Coverage	Threaded	NPT	White	80	5.6	Brass	12	Pendent	Quick	1/2″	1/2″	68
23870MD/B	Standard Coverage	Threaded	NPT	Black	80	5.6	Brass	12	Pendent	Quick	1/2″	1/2″	79
23870MD/W	Standard Coverage	Threaded	NPT	White	80	5.6	Brass	12	Pendent	Quick	1/2″	1/2″	79
23870ME/B	Standard Coverage	Threaded	NPT	Black	80	5.6	Brass	12	Pendent	Quick	1/2″	1/2″	93
23870ME/W	Standard Coverage	Threaded	NPT	White	80	5.6	Brass	12	Pendent	Quick	1/2″	1/2″	93
23870MG/B	Standard Coverage	Threaded	NPT	Black	80	5.6	Brass	12	Pendent	Quick	1/2″	1/2″	141
23870MG/W	Standard Coverage	Threaded	NPT	White	80	5.6	Brass	12	Pendent	Quick	1/2″	1/2″	141
23870MZ/B	Standard Coverage	Threaded	NPT	Black	80	5.6	Brass	12	Pendent	Quick	1/2″	1/2″	Open
23870MZ/W	Standard Coverage	Threaded	NPT	White	80	5.6	Brass	12	Pendent	Quick	1/2″	1/2″	Open

Additional part numbers might be available. Please refer to the technical documentation or contact your local Viking sales office for more information.
