EconAqua Low Pressure System
EconAqua low pressure water mist system
EconAqua is our low pressure water mist system for protecting commercial buildings such as hotels, offices and car parks. It is very similar to a sprinkler system but uses up to 85% less water.
Viking’s low pressure water mist technology combines the benefits of sprinkler protection with those of the water- and space-saving aspects of low pressure water mist systems.
- Smaller water supply (tank, pump & piping)
- Lower electricity demands (pump)
- Lower water discharge
- Simple design – same as a sprinkler system
- Same robust and dependable sprinkler technology

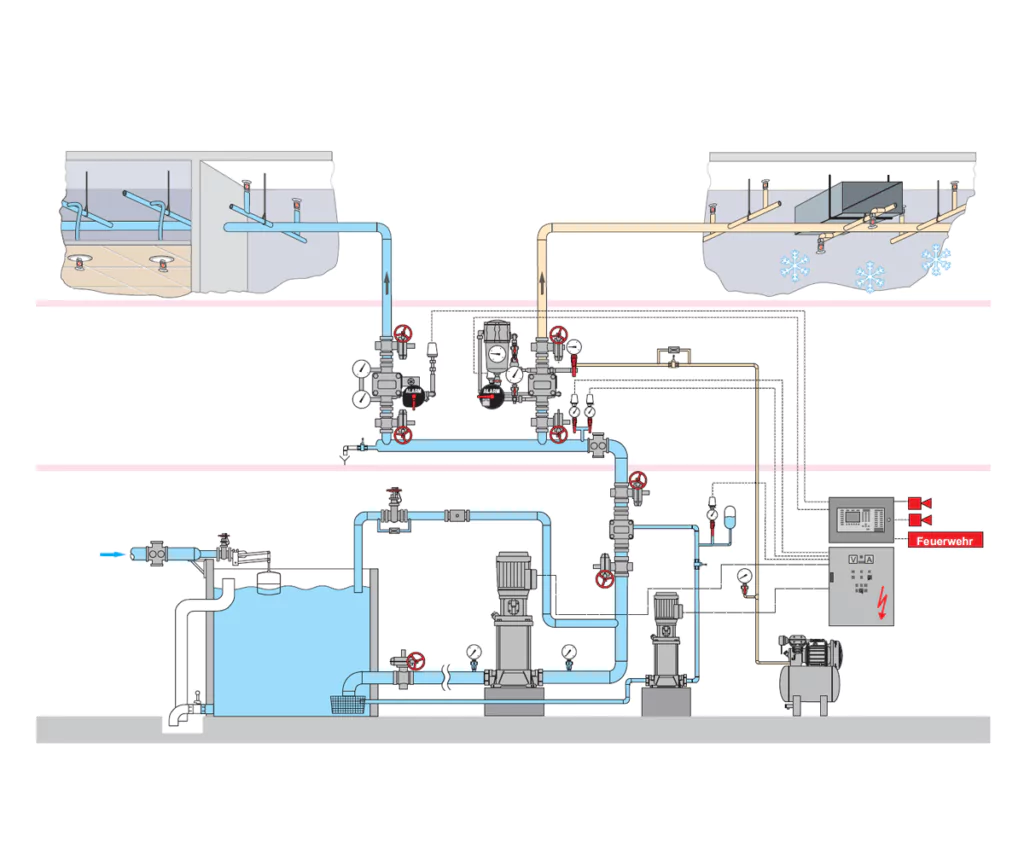

EconAqua system illustration (simplified)
1
Town water mains
2
Automatic feed mechanism
3
Water storage tank
4
Accessories for suction pipe MMP
5
Pump set MMP
6
Pump manifold MMP
7
Test line for pump
8
Swing check valve CVS-1
9
Accessories pressure retaining equipment 16 bar EconAqua
10
Compressor
11
Pump control cabinet
12
Fire detection & control panel
13
Acoustic alarm
14
Accessories for station distribution EconAqua
15
EconAqua selector valve set dry
16
EconAqua selector valve set wet
17
Main distribution pipe – dry
18
Main distribution pipe – wet
19
Dry pipe system for rooms subject to frost hazard
20
Wet pipe system for frost-protected rooms
Legend
1
Town water mains
2
Automatic feed mechanism
3
Water storage tank
4
Accessories for suction pipe MMP
5
Pump set MMP
6
Pump manifold MMP
7
Test line for pump
8
Swing check valve CVS-1
9
Accessories pressure retaining equipment 16 bar EconAqua
10
Compressor
11
Pump control cabinet
12
Fire detection & control panel
13
Acoustic alarm
14
Accessories for station distribution EconAqua
15
EconAqua selector valve set dry
16
EconAqua selector valve set wet
17
Main distribution pipe – dry
18
Main distribution pipe – wet
19
Dry pipe system for rooms subject to frost hazard
20
Wet pipe system for frost-protected rooms
Benefits over high pressure water mist solutions
EconAqua low pressure water mist systems compared to high pressure water mist systems
- An EconAqua low pressure system requires the same amount of water as a similar approved high pressure alternative
- Pump drivers require lower electrical loads
- Concealed heads available with colour options (especially useful for offices, hotels & hospitals)
- Dry systems available for un-heated zones (which can be found in hotels & car parks)
- No risk of high pressure components failing within public areas such as hotels, above work areas in offices or above parked vehicles in car parks
- Same potable water supply can be used as with the incoming water services
- No need for expensive stainless steel pipework and fittings
- Pipework generally pressurized under 16 bar, not 100+ bar
