VNS

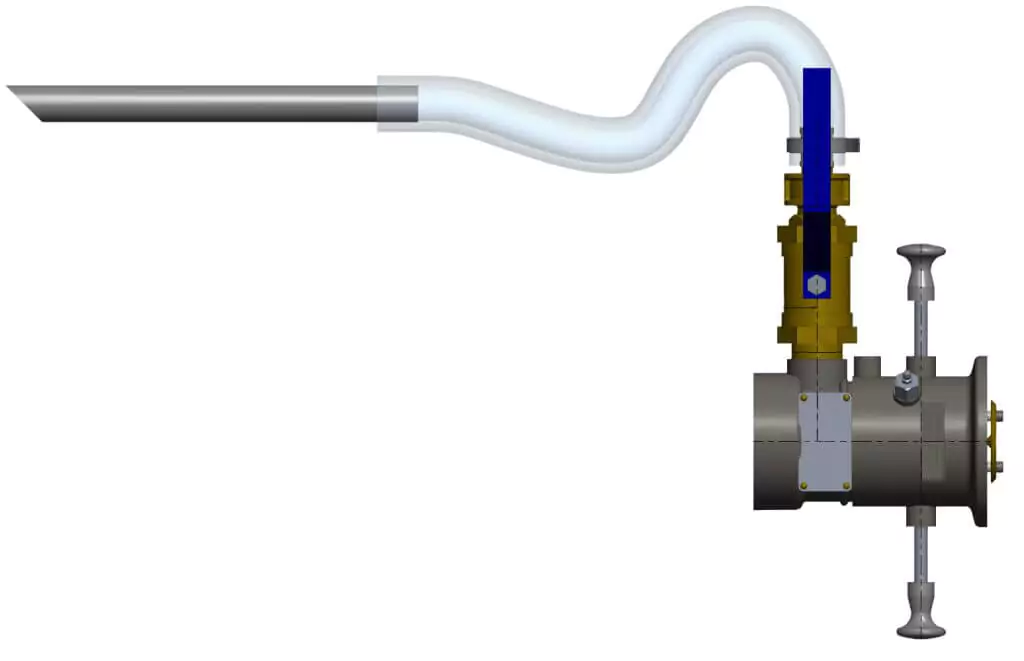

VNS Self Inducting Monitor Nozzle – UL
The “VNS” self inducting nozzle will use the flow of water through the internal waterway to draw foam into the nozzle and mix into a foam solution locally before discharging from the outlet. The foam induction can be isolated using the supplied ball valve and water only can be used. The total flow in this condition will be 3% less than nominal. ; ; Smaller flow nozzles are available in anodized aluminium and nickel aluminium bronze with flow rates of 250, 350 and 500 GPM. For the larger flow rates of 750 and 1000 GPM the nozzle is available in stainless steel only.
VNS The “VNS” self inducting nozzle will use the flow of water through the internal waterway to draw foam into the nozzle and mix into a foam solution locally before discharging from the outlet. The foam induction can be isolated using the supplied ball valve and water only can be used. The total flow in this condition will be 3% less than nominal. ; ; Smaller flow nozzles are available in anodized aluminium and nickel aluminium bronze with flow rates of 250, 350 and 500 GPM. For the larger flow rates of 750 and 1000 GPM the nozzle is available in stainless steel only.
Documents & Resources (2)
Download all documents
Download selected files (1)
Ajouter à la boîte de téléchargement (1)
All resources (3)
technical documentation (2)
commercial documentation (1)
Systèmes à mousse
Product sheet
Language:
les langues
Cliquez pour sélectionner d’autres langues
Systèmes à mousse
Data page
Language:
les langues
Cliquez pour sélectionner d’autres langues
Systèmes à mousse
Leaflet
Language:
les langues
Cliquez pour sélectionner d’autres langues
Product Variants
- SAP number VNS250NA
- Connection Threaded
- Connection type Female NH
- Size 2-1/2″/DN65
- Size 2 2-1/2″ Body
- Finish Natural
- Main material Anodized aluminium
- Style Self inducting foam-water adjustable monitor nozzle
- Maximum working pressure 17,2
- Nominal flowrate 946 @ 6.89 bar
- SAP number VNS750NS
- Connection Threaded
- Connection type Female NH
- Size 3″/DN80
- Size 2 3″ Body
- Finish Natural
- Main material Stainless steel 316
- Style Self inducting foam-water adjustable monitor nozzle
- Maximum working pressure 17,2
- Nominal flowrate 2,838 @ 6.89 bar
- SAP number VNS350BA
- Connection Threaded
- Connection type Female BSP
- Size 2-1/2″/DN65
- Size 2 2-1/2″ Body
- Finish Natural
- Main material Anodized aluminium
- Style Self inducting foam-water adjustable monitor nozzle
- Maximum working pressure 17,2
- Nominal flowrate 1,325 @ 6.89 bar
- SAP number VNS500BA
- Connection Threaded
- Connection type Female BSP
- Size 2-1/2″/DN65
- Size 2 2-1/2″ Body
- Finish Natural
- Main material Anodized aluminium
- Style Self inducting foam-water adjustable monitor nozzle
- Maximum working pressure 17,2
- Nominal flowrate 1,892 @ 6.89 bar
- SAP number VNS1000BS
- Connection Threaded
- Connection type Female BSP
- Size 3″/DN80
- Size 2 3″ Body
- Finish Natural
- Main material Stainless steel 316
- Style Self inducting foam-water adjustable monitor nozzle
- Maximum working pressure 17,2
- Nominal flowrate 3,785 @ 6.89 bar
- SAP number VNS350BN
- Connection Threaded
- Connection type Female BSP
- Size 2-1/2″/DN65
- Size 2 2-1/2″ Body
- Finish Natural
- Main material Nickel aluminium bronze
- Style Self inducting foam-water adjustable monitor nozzle
- Maximum working pressure 17,2
- Nominal flowrate 1,325 @ 6.89 bar
- SAP number VNS250BN
- Connection Threaded
- Connection type Female BSP
- Size 2-1/2″/DN65
- Size 2 2-1/2″ Body
- Finish Natural
- Main material Nickel aluminium bronze
- Style Self inducting foam-water adjustable monitor nozzle
- Maximum working pressure 17,2
- Nominal flowrate 946 @ 6.89 bar
- SAP number VNS1000NS
- Connection Threaded
- Connection type Female NH
- Size 3″/DN80
- Size 2 3″ Body
- Finish Natural
- Main material Stainless steel 316
- Style Self inducting foam-water adjustable monitor nozzle
- Maximum working pressure 17,2
- Nominal flowrate 3,785 @ 6.89 bar
- SAP number VNS250BA
- Connection Threaded
- Connection type Female BSP
- Size 2-1/2″/DN65
- Size 2 2-1/2″ Body
- Finish Natural
- Main material Anodized aluminium
- Style Self inducting foam-water adjustable monitor nozzle
- Maximum working pressure 17,2
- Nominal flowrate 946 @ 6.89 bar
- SAP number VNS500NN
- Connection Threaded
- Connection type Female NH
- Size 2-1/2″/DN65
- Size 2 2-1/2″ Body
- Finish Natural
- Main material Nickel aluminium bronze
- Style Self inducting foam-water adjustable monitor nozzle
- Maximum working pressure 17,2
- Nominal flowrate 1,892 @ 6.89 bar
- SAP number VNS500BN
- Connection Threaded
- Connection type Female BSP
- Size 2-1/2″/DN65
- Size 2 2-1/2″ Body
- Finish Natural
- Main material Nickel aluminium bronze
- Style Self inducting foam-water adjustable monitor nozzle
- Maximum working pressure 17,2
- Nominal flowrate 1,892 @ 6.89 bar
- SAP number VNS750BS
- Connection Threaded
- Connection type Female BSP
- Size 3″/DN80
- Size 2 3″ Body
- Finish Natural
- Main material Stainless steel 316
- Style Self inducting foam-water adjustable monitor nozzle
- Maximum working pressure 17,2
- Nominal flowrate 2,838 @ 6.89 bar
- SAP number VNS350NN
- Connection Threaded
- Connection type Female NH
- Size 2-1/2″/DN65
- Size 2 2-1/2″ Body
- Finish Natural
- Main material Nickel aluminium bronze
- Style Self inducting foam-water adjustable monitor nozzle
- Maximum working pressure 17,2
- Nominal flowrate 1,325 @ 6.89 bar
- SAP number VNS500NA
- Connection Threaded
- Connection type Female NH
- Size 2-1/2″/DN65
- Size 2 2-1/2″ Body
- Finish Natural
- Main material Anodized aluminium
- Style Self inducting foam-water adjustable monitor nozzle
- Maximum working pressure 17,2
- Nominal flowrate 1,892 @ 6.89 bar
- SAP number VNS350NA
- Connection Threaded
- Connection type Female NH
- Size 2-1/2″/DN65
- Size 2 2-1/2″ Body
- Finish Natural
- Main material Anodized aluminium
- Style Self inducting foam-water adjustable monitor nozzle
- Maximum working pressure 17,2
- Nominal flowrate 1,325 @ 6.89 bar
- SAP number VNS250NN
- Connection Threaded
- Connection type Female NH
- Size 2-1/2″/DN65
- Size 2 2-1/2″ Body
- Finish Natural
- Main material Nickel aluminium bronze
- Style Self inducting foam-water adjustable monitor nozzle
- Maximum working pressure 17,2
- Nominal flowrate 946 @ 6.89 bar
| SAP number | Connection | Connection type | Size | Size 2 | Finish | Main material | Style | Maximum working pressure | Nominal flowrate |
|---|---|---|---|---|---|---|---|---|---|
| VNS250NA | Threaded |
Female NH |
2 1/2″/DN65 |
2 1/2″ Body |
Natural |
Anodized aluminium |
Self inducting foam water adjustable monitor nozzle |
17,2 |
946 @ 6.89 bar |
| VNS750NS | Threaded |
Female NH |
3″/DN80 |
3″ Body |
Natural |
Stainless steel 316 |
Self inducting foam water adjustable monitor nozzle |
17,2 |
2,838 @ 6.89 bar |
| VNS350BA | Threaded |
Female BSP |
2 1/2″/DN65 |
2 1/2″ Body |
Natural |
Anodized aluminium |
Self inducting foam water adjustable monitor nozzle |
17,2 |
1,325 @ 6.89 bar |
| VNS500BA | Threaded |
Female BSP |
2 1/2″/DN65 |
2 1/2″ Body |
Natural |
Anodized aluminium |
Self inducting foam water adjustable monitor nozzle |
17,2 |
1,892 @ 6.89 bar |
| VNS1000BS | Threaded |
Female BSP |
3″/DN80 |
3″ Body |
Natural |
Stainless steel 316 |
Self inducting foam water adjustable monitor nozzle |
17,2 |
3,785 @ 6.89 bar |
| VNS350BN | Threaded |
Female BSP |
2 1/2″/DN65 |
2 1/2″ Body |
Natural |
Nickel aluminium bronze |
Self inducting foam water adjustable monitor nozzle |
17,2 |
1,325 @ 6.89 bar |
| VNS250BN | Threaded |
Female BSP |
2 1/2″/DN65 |
2 1/2″ Body |
Natural |
Nickel aluminium bronze |
Self inducting foam water adjustable monitor nozzle |
17,2 |
946 @ 6.89 bar |
| VNS1000NS | Threaded |
Female NH |
3″/DN80 |
3″ Body |
Natural |
Stainless steel 316 |
Self inducting foam water adjustable monitor nozzle |
17,2 |
3,785 @ 6.89 bar |
| VNS250BA | Threaded |
Female BSP |
2 1/2″/DN65 |
2 1/2″ Body |
Natural |
Anodized aluminium |
Self inducting foam water adjustable monitor nozzle |
17,2 |
946 @ 6.89 bar |
| VNS500NN | Threaded |
Female NH |
2 1/2″/DN65 |
2 1/2″ Body |
Natural |
Nickel aluminium bronze |
Self inducting foam water adjustable monitor nozzle |
17,2 |
1,892 @ 6.89 bar |
| VNS500BN | Threaded |
Female BSP |
2 1/2″/DN65 |
2 1/2″ Body |
Natural |
Nickel aluminium bronze |
Self inducting foam water adjustable monitor nozzle |
17,2 |
1,892 @ 6.89 bar |
| VNS750BS | Threaded |
Female BSP |
3″/DN80 |
3″ Body |
Natural |
Stainless steel 316 |
Self inducting foam water adjustable monitor nozzle |
17,2 |
2,838 @ 6.89 bar |
| VNS350NN | Threaded |
Female NH |
2 1/2″/DN65 |
2 1/2″ Body |
Natural |
Nickel aluminium bronze |
Self inducting foam water adjustable monitor nozzle |
17,2 |
1,325 @ 6.89 bar |
| VNS500NA | Threaded |
Female NH |
2 1/2″/DN65 |
2 1/2″ Body |
Natural |
Anodized aluminium |
Self inducting foam water adjustable monitor nozzle |
17,2 |
1,892 @ 6.89 bar |
| VNS350NA | Threaded |
Female NH |
2 1/2″/DN65 |
2 1/2″ Body |
Natural |
Anodized aluminium |
Self inducting foam water adjustable monitor nozzle |
17,2 |
1,325 @ 6.89 bar |
| VNS250NN | Threaded |
Female NH |
2 1/2″/DN65 |
2 1/2″ Body |
Natural |
Nickel aluminium bronze |
Self inducting foam water adjustable monitor nozzle |
17,2 |
946 @ 6.89 bar |
Additional part numbers might be available. Please refer to the technical documentation or contact your local Viking sales office for more information.
