Residential

Sprinkler & Deluge

Product Catalog Sprinkler & Deluge VK467

Residential (15)

Back to product categories

Sprinklers & Nozzles

Wet, Dry, Deluge & Preaction

Control Valves & Devices

Grooved (Germany & UK)

Grooved

Alarm Devices & Monitoring

Piping & Fixing Products

Position

Straight through – Verical (5)
Vertical (7)

Connection

Straight through – Verical (9)
Vertical (1)

Active Filters:

Clear all

VK467

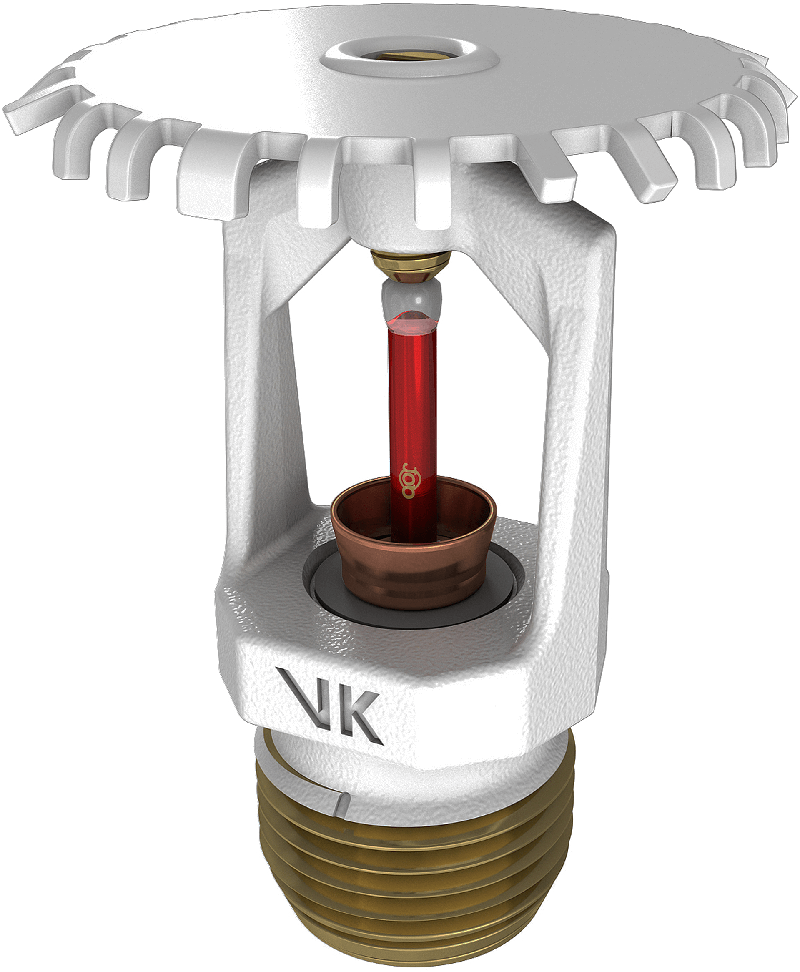

Residential Upright Sprinkler

VK467 | DN15-1/2″ | K70 | Residential | Upright

VK467 VK467 | DN15-1/2″ | K70 | Residential | Upright

Documents & Resources (2)

Download all documents

Download selected files (1)

Add to download box (1)

All resources (2)

technical documentation (1)

drawings (1)

Data Page | VK467 | Residential Upright Sprinkler

Sprinkler & Deluge

Data page

Language:

Languages

Click to select other languages

English

Please select one language

Downloads are not available for youtube, video and external files

Revit | VK467 | Residential Upright Sprinkler

Sprinkler & Deluge

3D – Revit-BIM

Language:

Languages

Click to select other languages

English

Please select one language

Downloads are not available for youtube, video and external files

Product Variants

SAP number 19154AB
Application detail Residential
Connection Threaded
Connection type
Finish Brass
K factor metric 70
K factor nominal 4.9
Main material Brass
Maximum working pressure 12
Position Upright
Response Residential
Size 1/2″
Size 2
Temperature rating 68

SAP number 19154AD
Application detail Residential
Connection Threaded
Connection type
Finish Brass
K factor metric 70
K factor nominal 4.9
Main material Brass
Maximum working pressure 12
Position Upright
Response Residential
Size 1/2″
Size 2
Temperature rating 79

SAP number 19154FB
Application detail Residential
Connection Threaded
Connection type
Finish Chrome
K factor metric 70
K factor nominal 4.9
Main material Brass
Maximum working pressure 12
Position Upright
Response Residential
Size 1/2″
Size 2
Temperature rating 68

SAP number 19154FD
Application detail Residential
Connection Threaded
Connection type
Finish Chrome
K factor metric 70
K factor nominal 4.9
Main material Brass
Maximum working pressure 12
Position Upright
Response Residential
Size 1/2″
Size 2
Temperature rating 79

SAP number 19154JNB
Application detail Residential
Connection Threaded
Connection type
Finish ENT
K factor metric 70
K factor nominal 4.9
Main material Brass
Maximum working pressure 12
Position Upright
Response Residential
Size 1/2″
Size 2
Temperature rating 68

SAP number 19154JND
Application detail Residential
Connection Threaded
Connection type
Finish ENT
K factor metric 70
K factor nominal 4.9
Main material Brass
Maximum working pressure 12
Position Upright
Response Residential
Size 1/2″
Size 2
Temperature rating 79

SAP number 19154MB/B
Application detail Residential
Connection Threaded
Connection type
Finish Black
K factor metric 70
K factor nominal 4.9
Main material Brass
Maximum working pressure 12
Position Upright
Response Residential
Size 1/2″
Size 2
Temperature rating 68

SAP number 19154MB/W
Application detail Residential
Connection Threaded
Connection type
Finish White
K factor metric 70
K factor nominal 4.9
Main material Brass
Maximum working pressure 12
Position Upright
Response Residential
Size 1/2″
Size 2
Temperature rating 68

SAP number 19154MD/B
Application detail Residential
Connection Threaded
Connection type
Finish Black
K factor metric 70
K factor nominal 4.9
Main material Brass
Maximum working pressure 12
Position Upright
Response Residential
Size 1/2″
Size 2
Temperature rating 79

SAP number 19154MD/W
Application detail Residential
Connection Threaded
Connection type
Finish White
K factor metric 70
K factor nominal 4.9
Main material Brass
Maximum working pressure 12
Position Upright
Response Residential
Size 1/2″
Size 2
Temperature rating 79

SAP number	Application detail	Connection	Finish	K factor metric	K factor nominal	Main material	Maximum working pressure	Position	Response	Size	Temperature rating
19154AB	Residential	Threaded	Brass	70	4.9	Brass	12	Upright	Residential	1/2″	68
19154AD	Residential	Threaded	Brass	70	4.9	Brass	12	Upright	Residential	1/2″	79
19154FB	Residential	Threaded	Chrome	70	4.9	Brass	12	Upright	Residential	1/2″	68
19154FD	Residential	Threaded	Chrome	70	4.9	Brass	12	Upright	Residential	1/2″	79
19154JNB	Residential	Threaded	ENT	70	4.9	Brass	12	Upright	Residential	1/2″	68
19154JND	Residential	Threaded	ENT	70	4.9	Brass	12	Upright	Residential	1/2″	79
19154MB/B	Residential	Threaded	Black	70	4.9	Brass	12	Upright	Residential	1/2″	68
19154MB/W	Residential	Threaded	White	70	4.9	Brass	12	Upright	Residential	1/2″	68
19154MD/B	Residential	Threaded	Black	70	4.9	Brass	12	Upright	Residential	1/2″	79
19154MD/W	Residential	Threaded	White	70	4.9	Brass	12	Upright	Residential	1/2″	79

Additional part numbers might be available. Please refer to the technical documentation or contact your local Viking sales office for more information.
